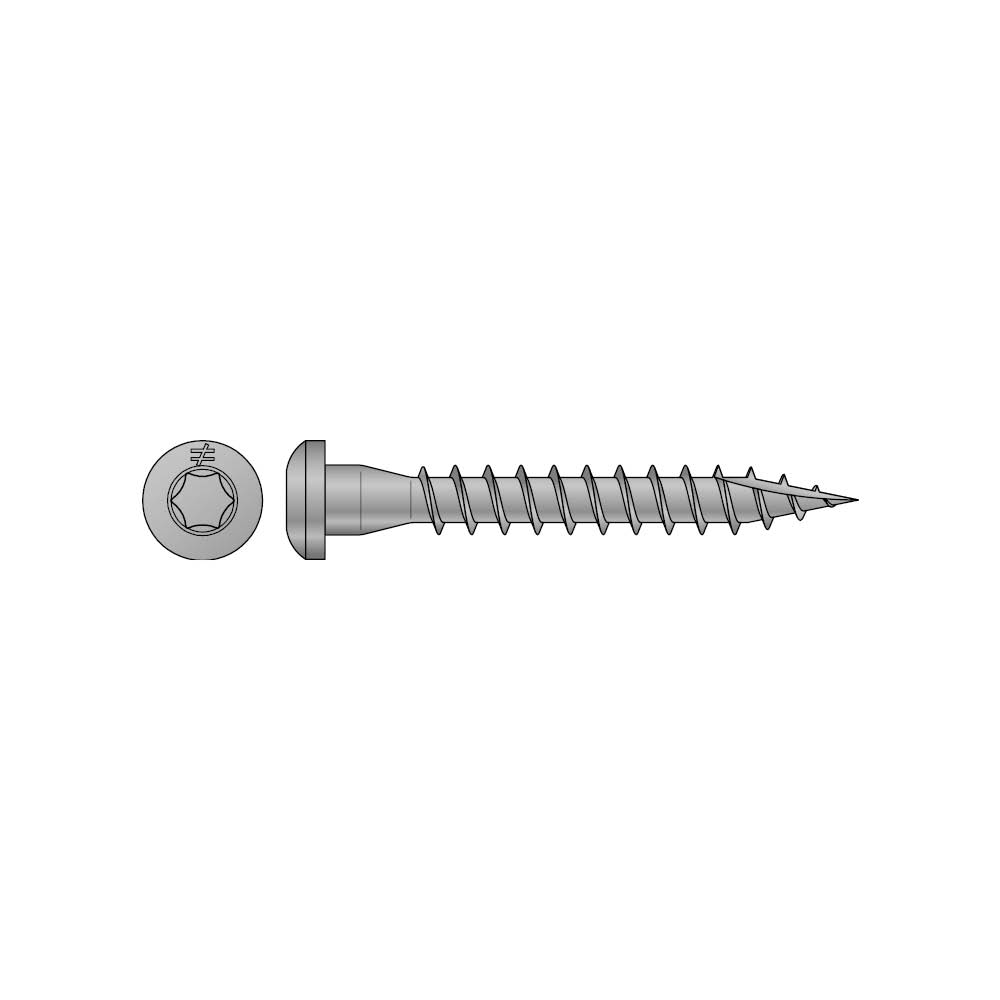

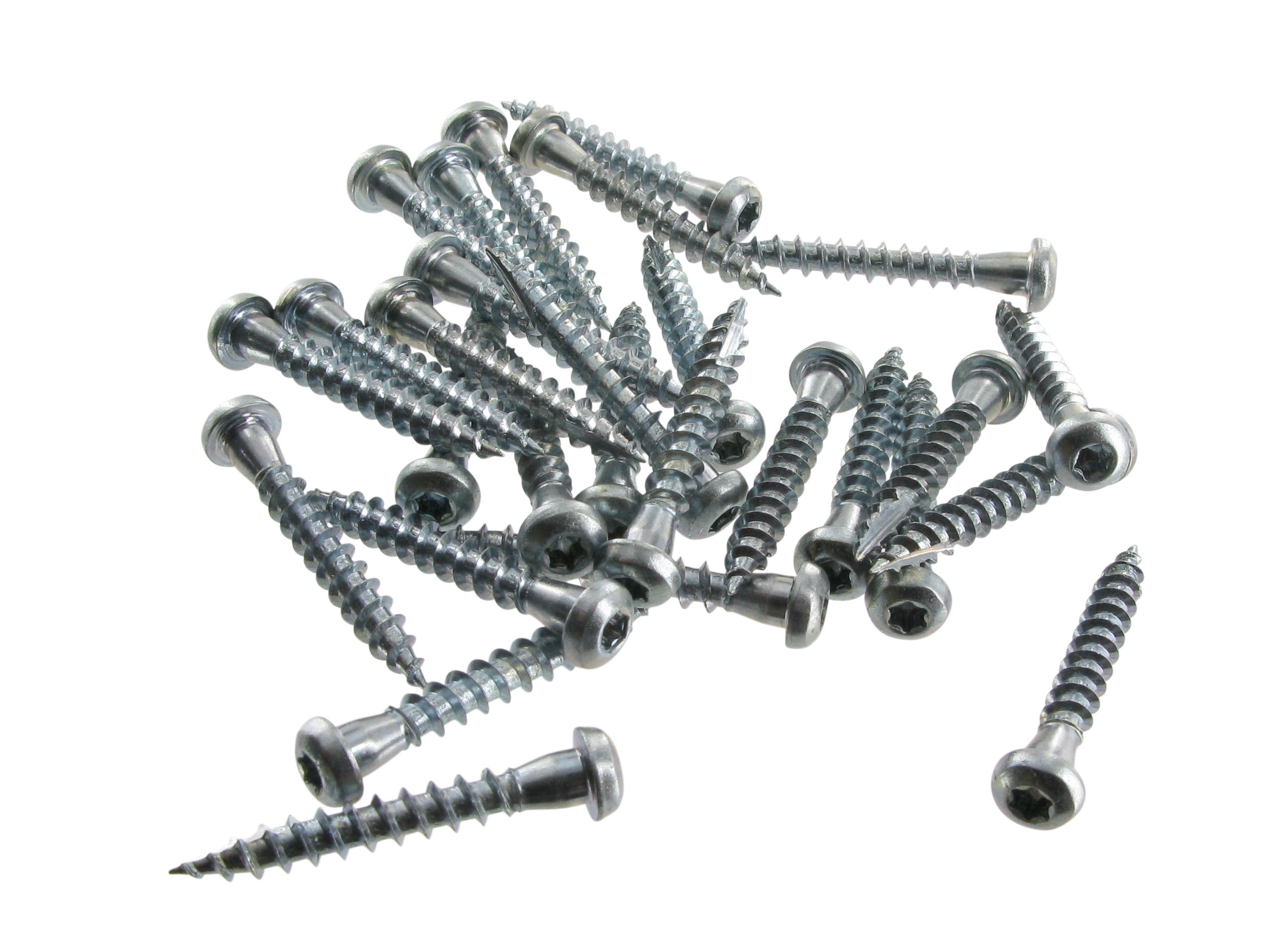

CSA-Z

Screws for Torx head connectors Impreg® +

CSA connector screw is developed for mounting of steel connectors to timber.

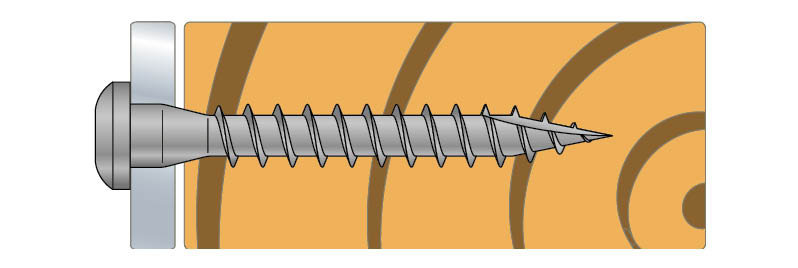

The conical head secures fully contact to the connector which increases the transfer of force. A fixed connection with larger cross-bearing capacity than for standard screws is obtained. The torx helps to fix the screw during insertion.

CE Marking
ETA
Service class 3
Impreg® +
Outdoor

Product Details

Features

Material

  • Steel quality: Carbon steel
  • Corrosion protection: Impreg®+

Screwing

  • 20 Torx bit.

Benefits

  • Threading specific to wood allows easy and quick penetration into the wood.
  • No splitting of the wood.

Application

When to Use

  • Joist hanger fastening.
  • Angle brackets.
  • Strips.

Technical Data

Dimensions

Product dimensions and characteristic capacities

References Fastener dimensions [mm] Characteristic capacities - Timber C24 acc to ETA-04/0013 [kN]
d l dh d1 lg bit Rlat.k Rax.k
CSA5.0X35Z5358.33.1529T-2022.1
CSA5.0X40Z5408.33.1534T-202.32.5
CSA5.0x50Z5508.33.1544T-202.63.2
