NP-Z

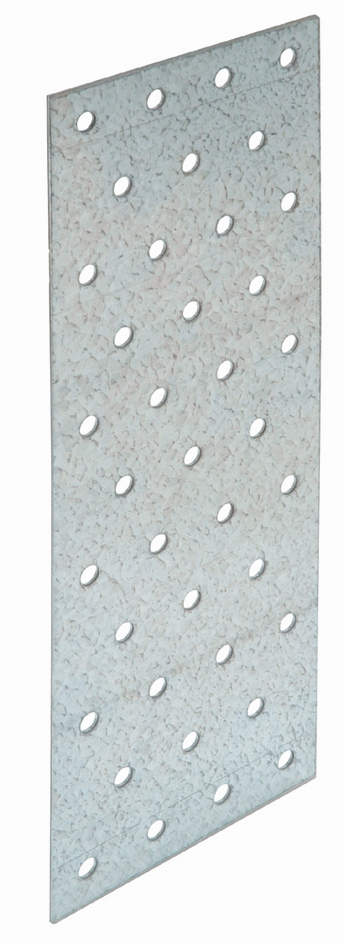

Nail plates ZPRO
The nail plates NP can be used for different application: Beam to post connection, joint of two beam,...
ZPRO coating is a unique coating - corresponding to a zinc layer of approx. 55 μm

CE Marking

New

Outdoor
EPD

Service class 3

ZPRO
Product Details
Features
Material
Steel:
S250GD + ZPRO
Corrosion protection:
ZPRO coating - corresponding to a zinc layer of approx. 55 μm
Benefits
- High flexibility
- Can be bend on site
Application
Support
Used with timber element : solid timber, glulam, Engineered timber...
Intend Use
- Post to beam connection
- Joint between two beams
- Reparation
Technical Data

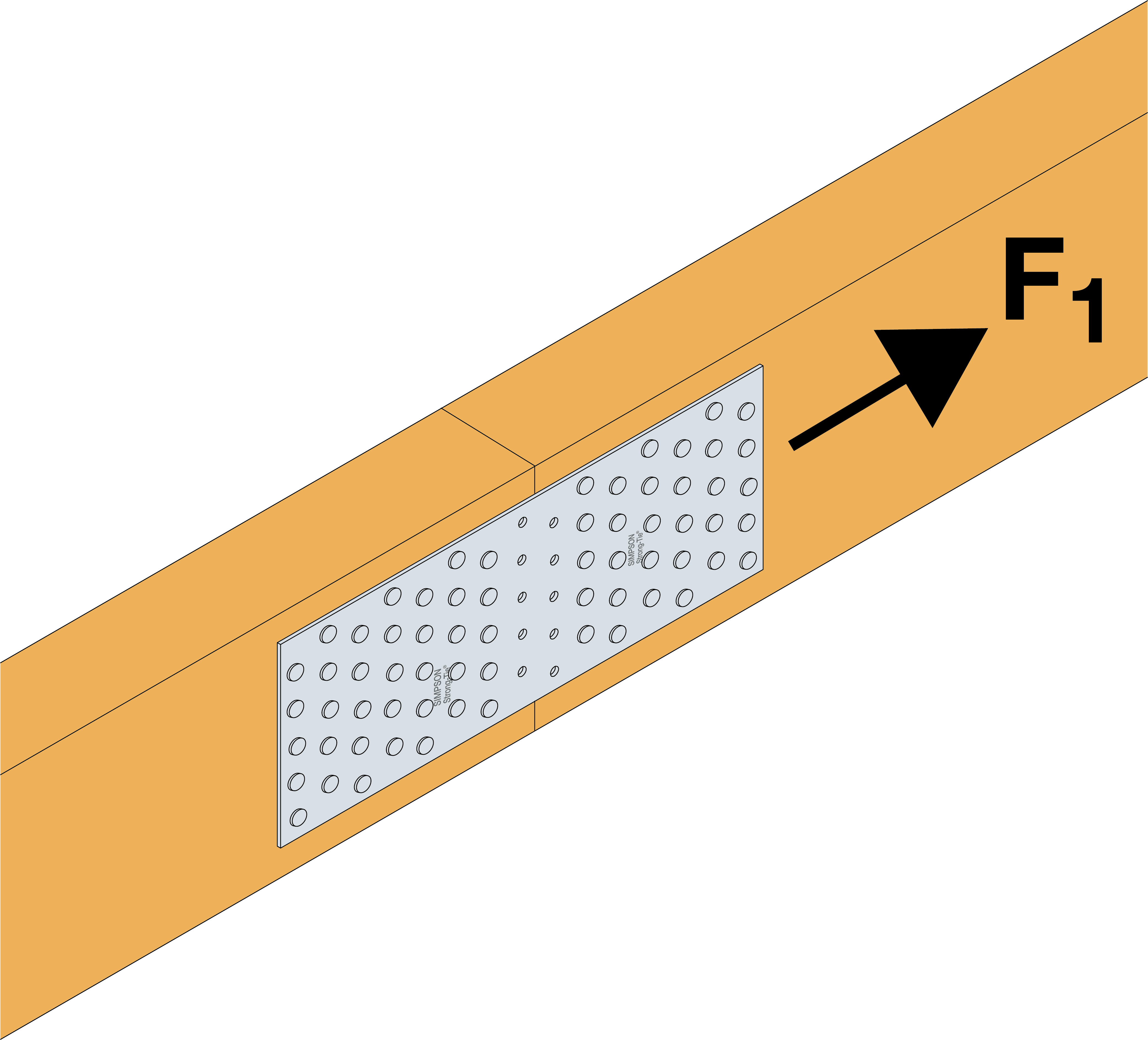

Dimensions and characteristic values
| Reference | Connector Dimensions | Nail plates capacity | ||||||
|---|---|---|---|---|---|---|---|---|
| Other | Product Dimensions[mm] | Joist | Characteristic Capacities[kN] | |||||
| Tun / DB nr. | Qty per Box | A[mm] | B[mm] | Thickness[mm] | Round | R₁,ₖ | ||
| Qty | Diameter | |||||||
| NP20/100/200Z | 2152522 | 25 | 100 | 200 | 2 | 45.0 | Ø5 | min (n x Rlat,k ; 44.6/kmod) |
| NP20/120/300Z | 2152523 | 25 | 120 | 300 | 2 | 83.0 | Ø5 | min (n x Rlat,k ; 53.5/kmod) |
n: the number of nails
Rlat,k : Shear capacity of the fastener

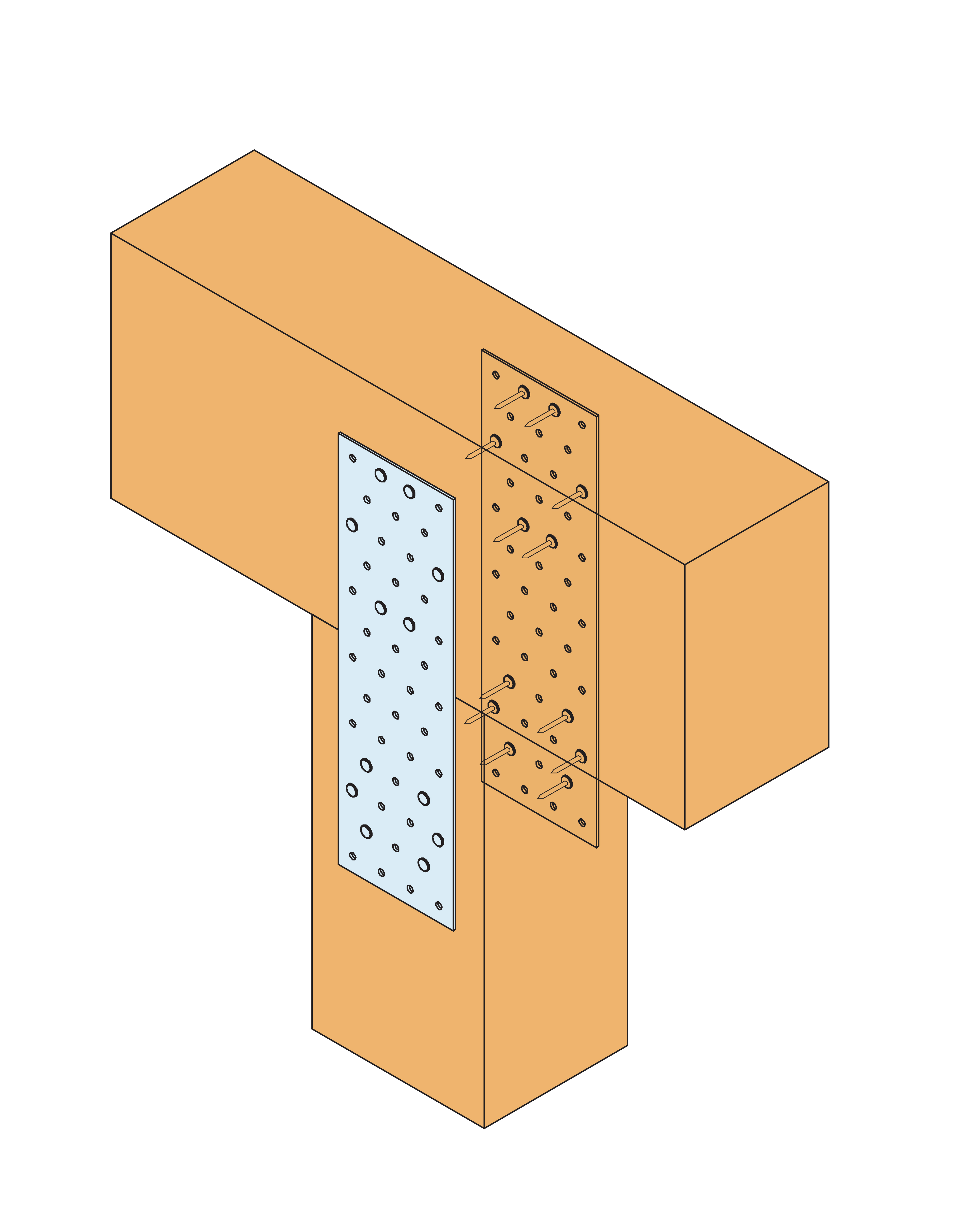

Installation
Installation
Fasteners
- CNA-G nails Ø4.0
- CSA-Z screws Ø5.0
Certification
Environmental Product Declarations (EPD)
