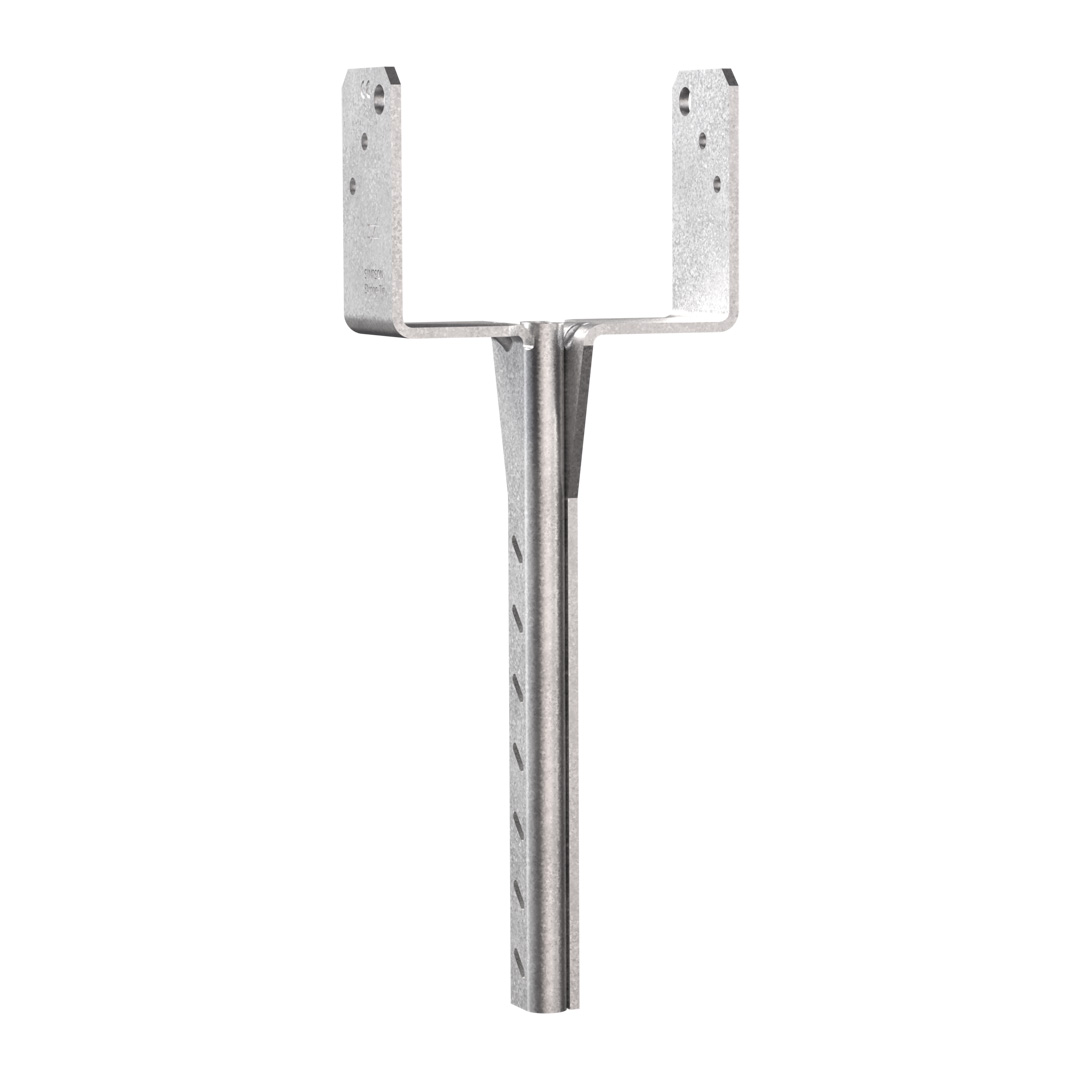

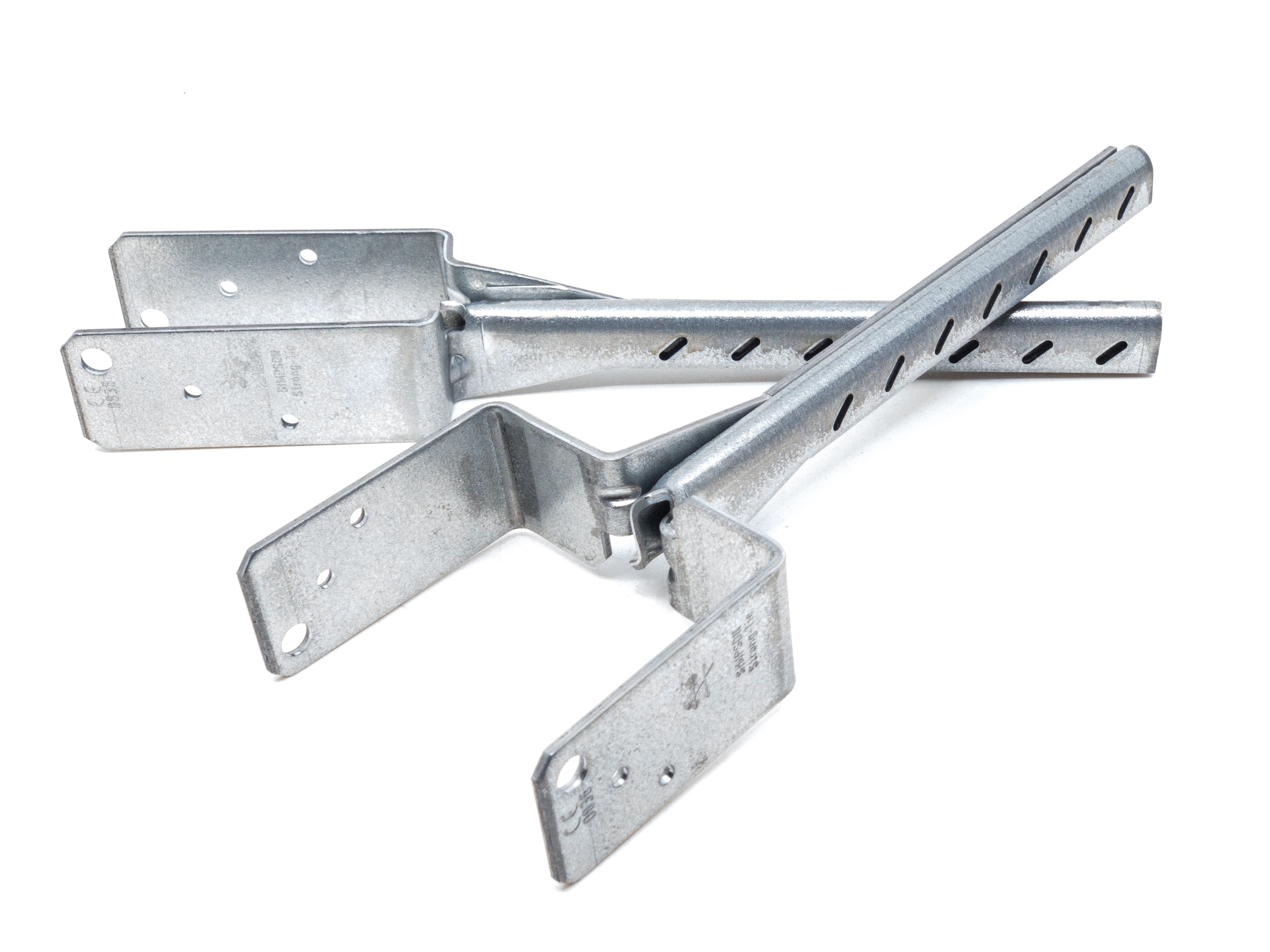

PBWS Folded postbase

PBWS is single-piece, non-welded post base for connecting timber to concrete. An engineered solution, this connector requires up to 45% less steel than a traditionally designed post base.

CE Marking
CE Marking
ETA
ETA
New
New
Label traçabilité totale
Label traçabilité totale
Service class 2
Service class 2
ZPRO
ZPRO
Outdoor
Outdoor
EPD
EPD
PBWS_SSTBP_homepage_PL_pl
PBWS_SSTBP_homepage_SE_sv
PBWS_SSTBP_homepage_FI_fi
PBWS_SSTBP_homepage_DK_da

Product Details

Images

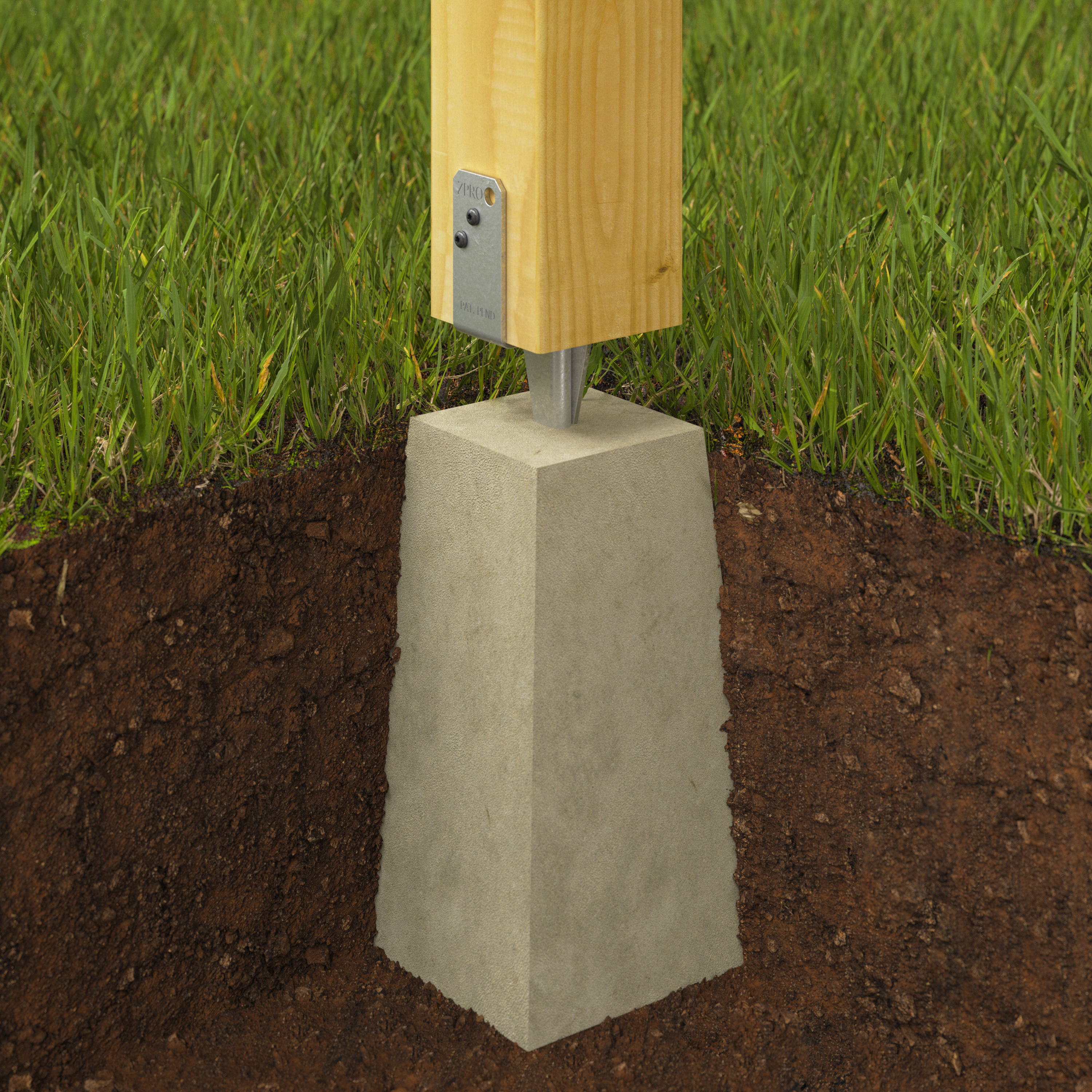

PBWS installed using 4 x CSA connector screws.

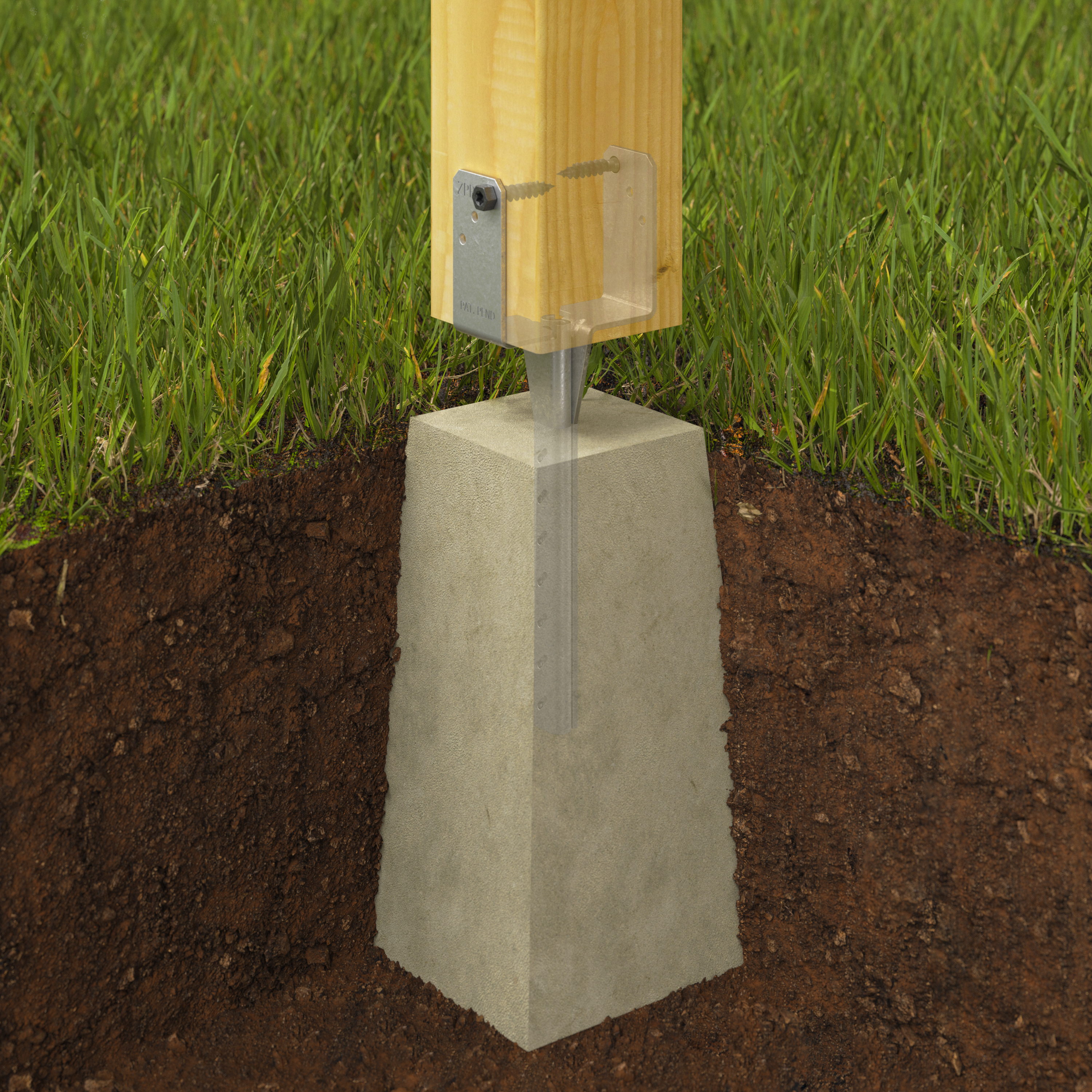

PBWS installed using 2 x SSH hex head screws.
PBWS post installation using 4 x CSA connector screws.

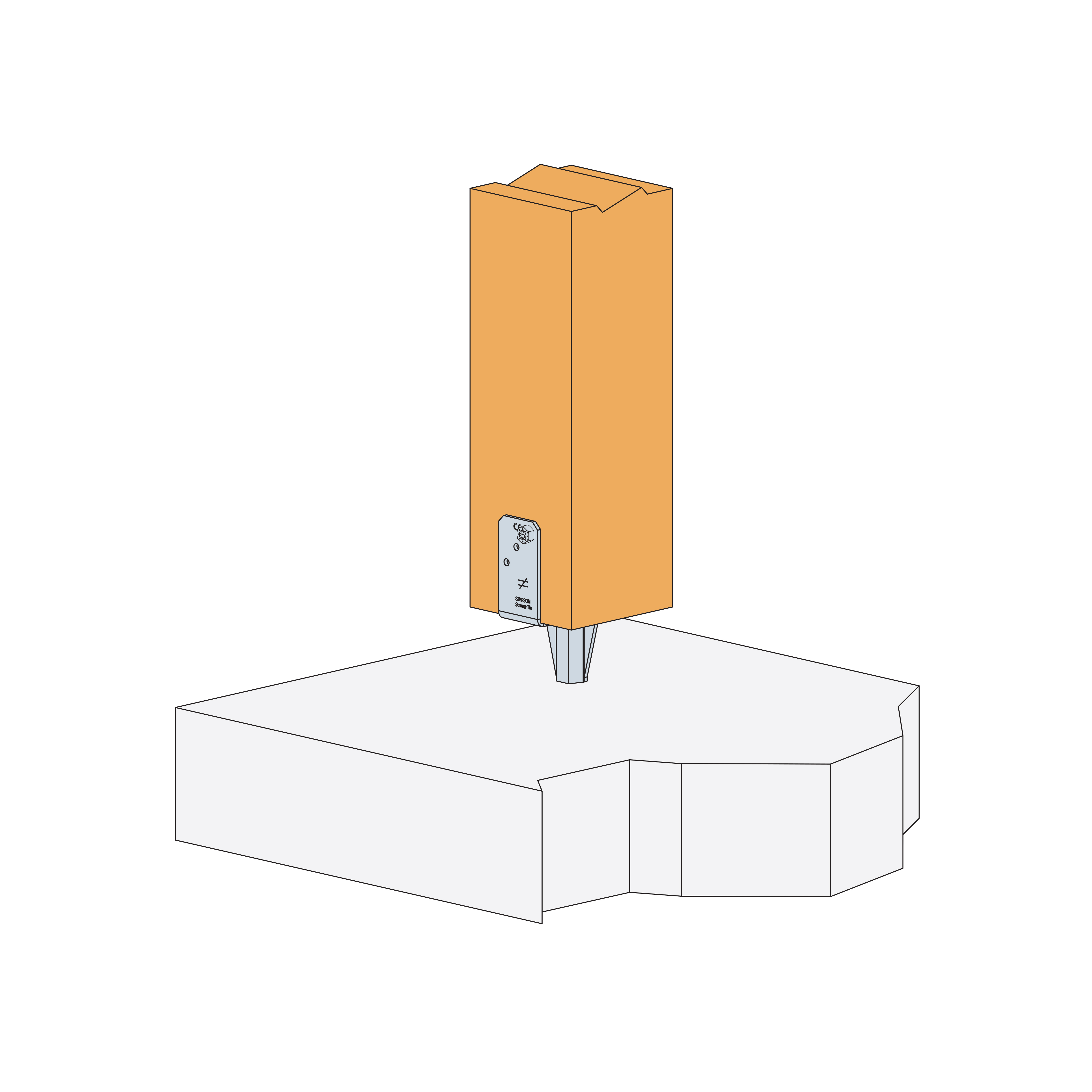

PBWS post installation using 2 x SSH hex head screws.

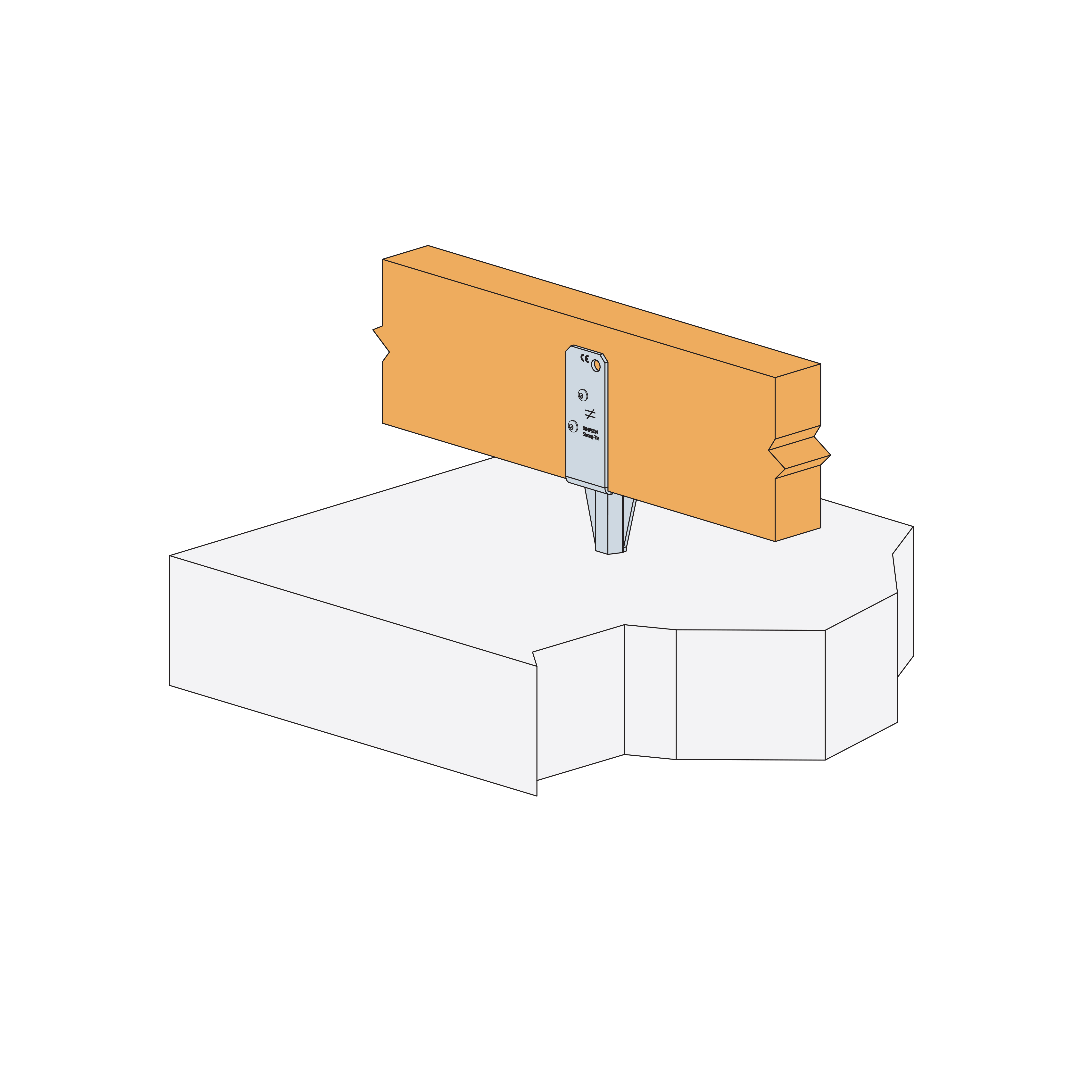

PBWS beam installation.
PBWS installed using 4 x CSA connector screws.
PBWS installed using 2 x SSH hex head screws.

Features

Material

Steel:

S250GD + ZPRO

Corrosion protection:

ZPRO coating - corresponding to a zinc layer of approx. 55 μm

Advantages

  • Light and easy to handle
  • No pre-drilling required
  • Reduced environmental impact due to material reduction
  • Flexible fastening options
  •

Features

​Built to last, the surface of the PBWS is protected using our ZPRO coating for improved resistance to corrosion compared with conventionally coated galvanised steel. This makes the PBWS a good choice for a wide variety of outdoor projects including pergolas, decking, car ports, fencing and sheds.

Optional hole patterns mean it can be fastened to the timber post using either 4 x CSA connector screws or 2 x SSH Hex Head screws, no pre-drilling is required.

Reduced Environmental Impact

PBWS offers the same load-rated capacity as standard post bases, yet due to it's unique folded build, requires up to half as much steel material to produce, making it better for the environment and easier to handle.

Application

Suitable For

Pergolas
Decking
Porches

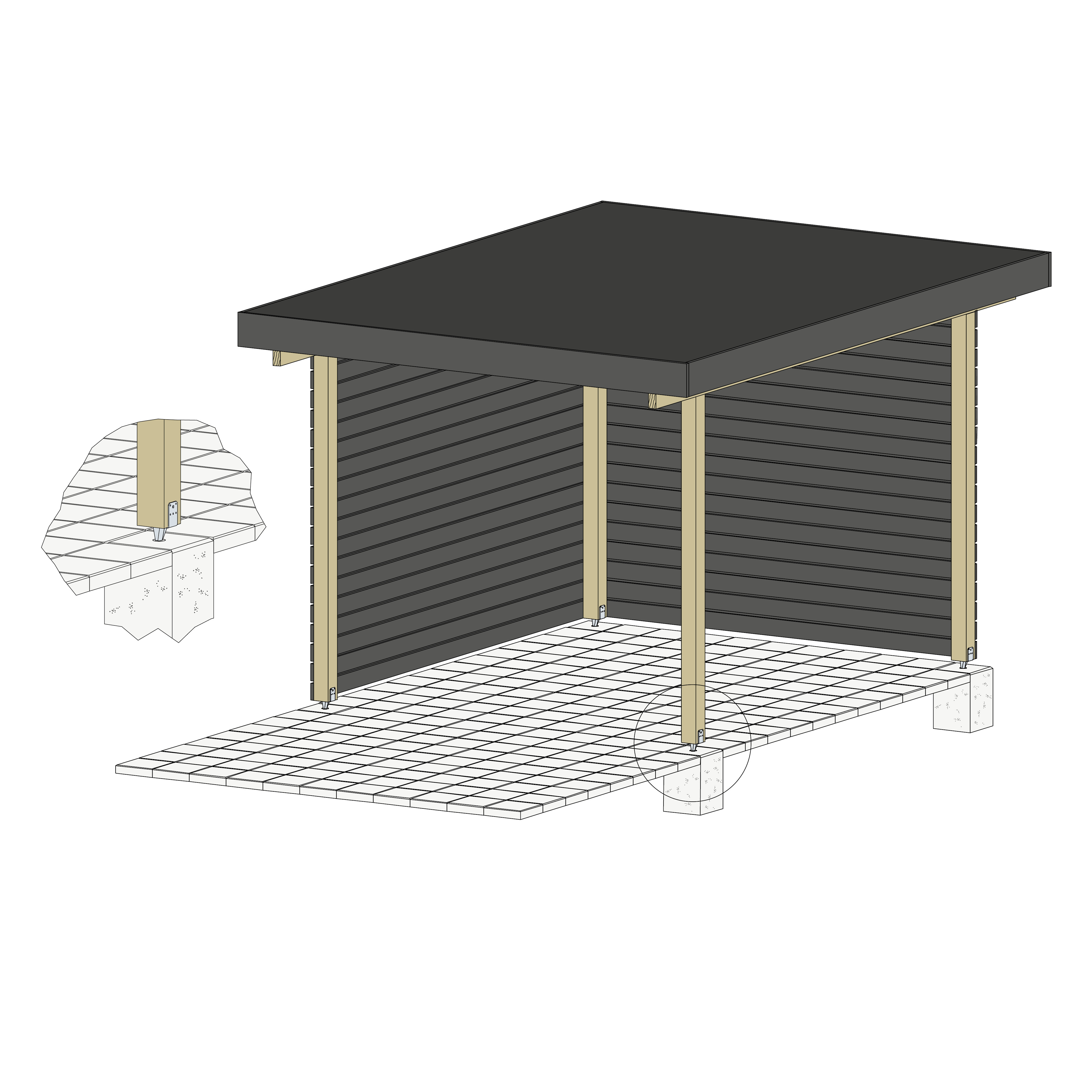

Car ports

Not Recomended for installations where the top of the post/column is not restrained (eg fence posts)

Technical Data

Product dimensions

Dimensions

ReferenceConnector Dimensions
OtherProduct Dimensions[mm]Top plate holes
Qty per boxWeight[kg]A[mm]B[mm]C[mm]E[mm]F[mm]G[mm]t[mm]Round
Ø5[mm]Ø8.5[mm]
PBWS70Z200.57040875015022342
PBWS90Z200.59040775015022342
PBWS100Z200.510040725015022342

Product capacities

ReferencePost base capacity
Product capacities - Timber to Concrete
Number of FastenersCharacteristic capacities - Timber C24[kN]
On postR₁,ₖR₂,ₖ
QtyType
PBWS70Z4CSA5,0x40Z20.22.5
PBWS90Z4CSA5,0x40Z20.22.5
PBWS100Z4CSA5,0x40Z20.22.5

*Minimum concrete strengt C12/15

Product capacities - Ø8 Connector screw

ReferencePost base capacity
Product capacities - Timber to Concrete - Ø8 Connector screw
Number of FastenersCharacteristic capacities - Timber C24[kN]
On postR₁,ₖR₂,ₖ
QtyType
PBWS70Z2.0SSH8x4020.22.5
PBWS90Z2.0SSH8x4020.22.5
PBWS100Z2.0SSH8x4020.22.5

*Minimum concrete strengt C12/15

Installation

Installation

Installation

Upper part :

  1. Place the post in the postbase,
  2. Secure the post base to the post.

Lower part :

  1. Secure the post base to the post,
  2. Drill the support vertically, to the recommended diameter and depth,
  3. Position the post and finalize the fixing to the ground using adhesive,
  4. The column base can also be embedded in the concrete when the latter is poured.
