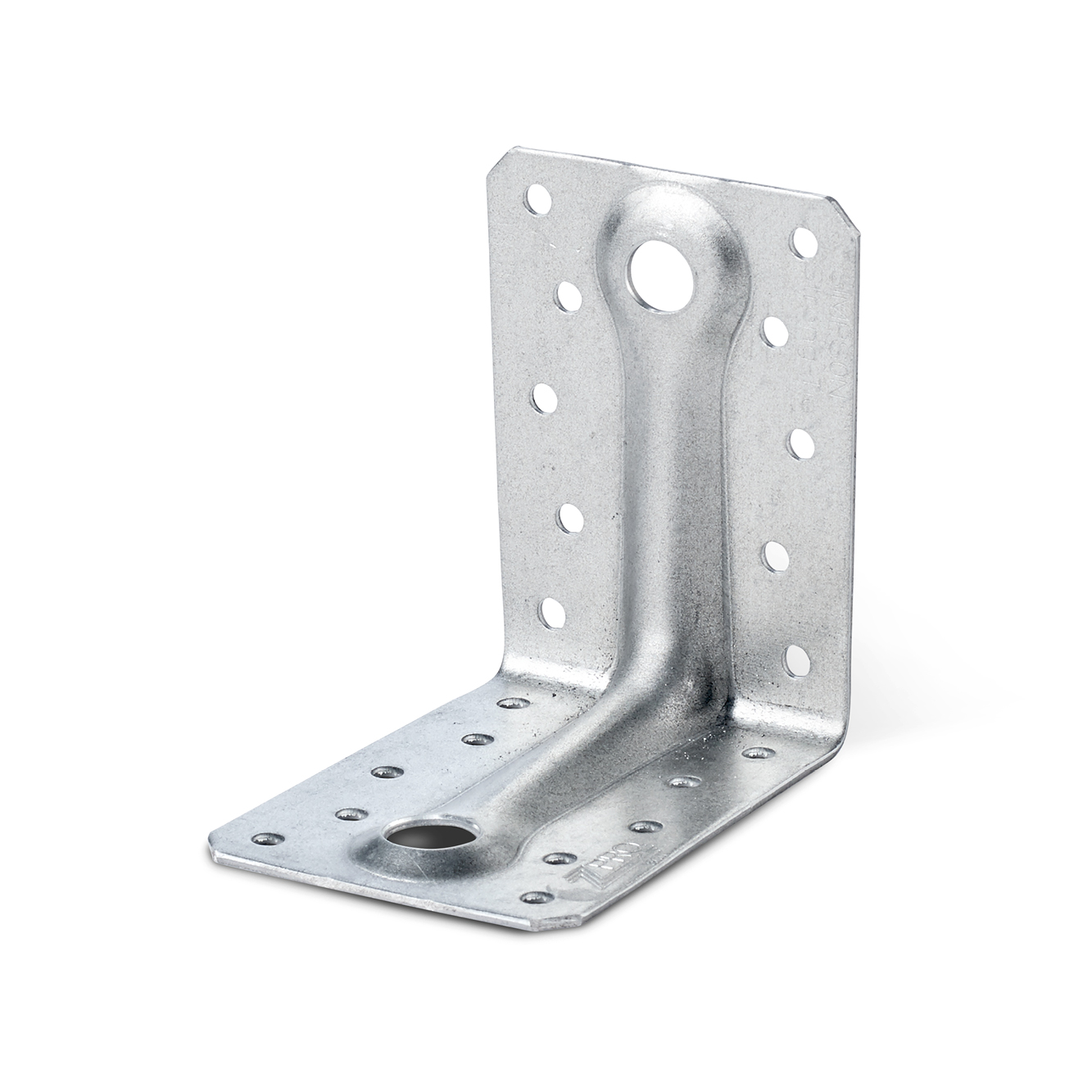

ABR-Z
Reinforced angle brackets
Reinforced angle brackets are suitable for structural applications in framing and timber framed houses as well as light gauge steel construction.

CE Marking

ETA

New

Service class 3

ZPRO
EPD
ABR_Z_SSTBP_homepage_SE_sv
ABR_Z_SSTBP_homepage_FI_fi
Product Details
Features
Material
- Steel grade:
- ABR9020Z Stal S250GD + Zpro according to EN 10346
- ABR7015Z and ABR10525Z Steel S350GD + Zpro according to EN 10346
- Anti-corrosion protection:
ZPRO coating - corresponding to a zinc layer thickness of approx. 55 µm
Benefits
- Reinforcing ribs provide enhanced performance.
Application
Suitable On
- Supporting member: solid wood, glued-laminated wood, concrete, steel, etc.
- Supported member: solid wood, composite lumber, glued-laminated wood, triangular trusses, profiles, etc.
When to Use
- Fastening of small trusses.
- Cladding plates, cladding uprights.
- Rafter anchors, cantilevers, headers, etc.
- Light gauge steel.
Technical Data
Product Dimensions
| Reference | Connector Dimensions | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Other | Product Dimensions[mm] | Joist[mm] | Flange B[mm] | |||||||||||||
| Tun / DB nr. | NOB nr. | Qty per Box | Weight[kg] | A[mm] | B[mm] | C[mm] | Thickness[mm] | Round | Round | |||||||
| Ø5[mm] | Ø7 | Ø11[mm] | Ø14[mm] | Ø5[mm] | Ø9 | Ø13[mm] | Ø14[mm] | |||||||||

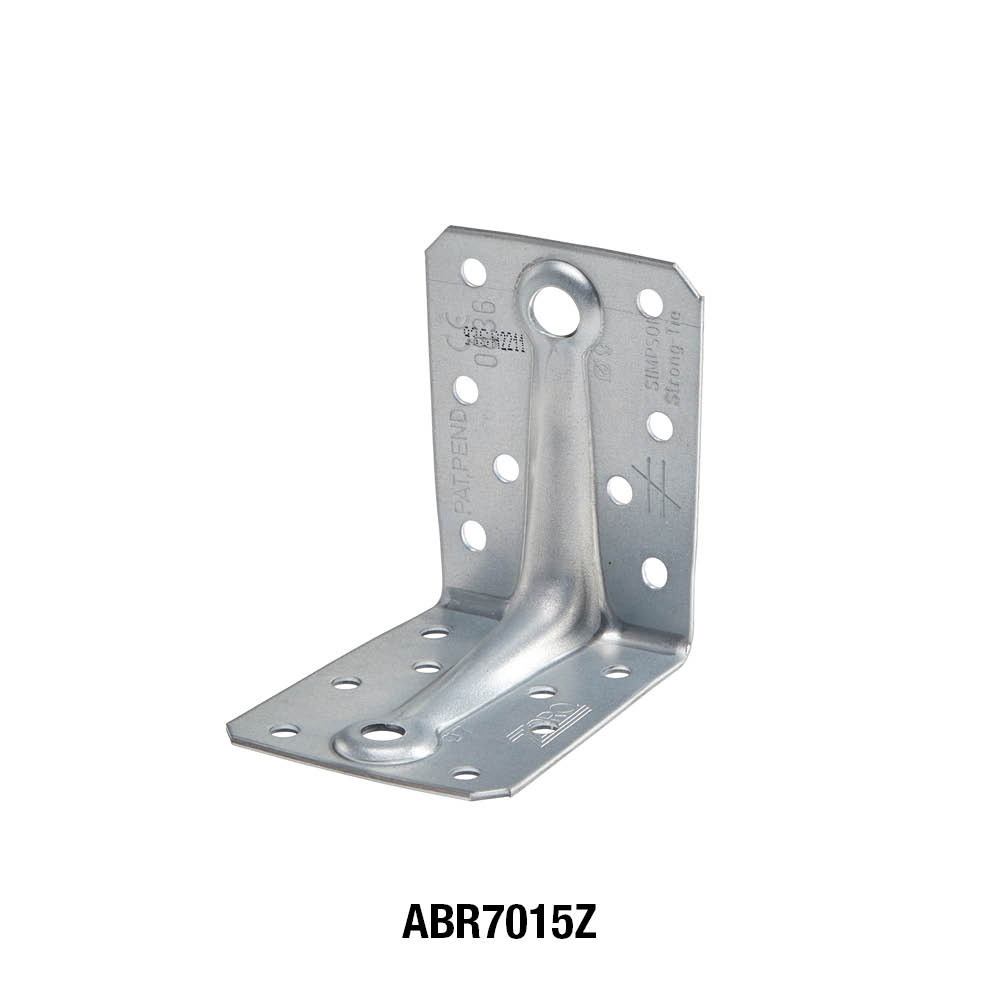

| ABR7015Z | 2048395 | 55360480 | 50.0 | 0.081 | 70 | 70 | 55 | 1.5 | 8 | 1 | - | - | 8 | 1 | - | - |

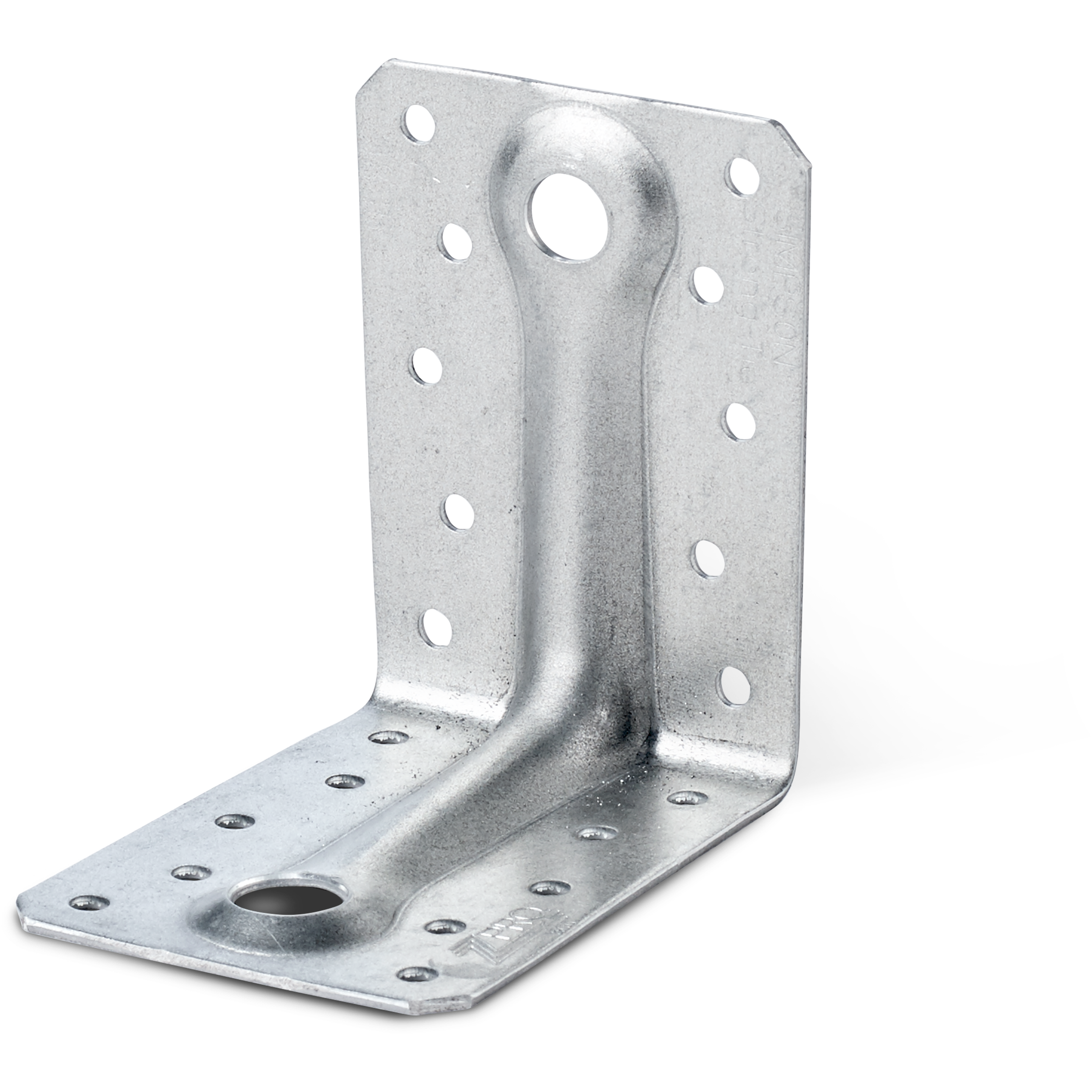

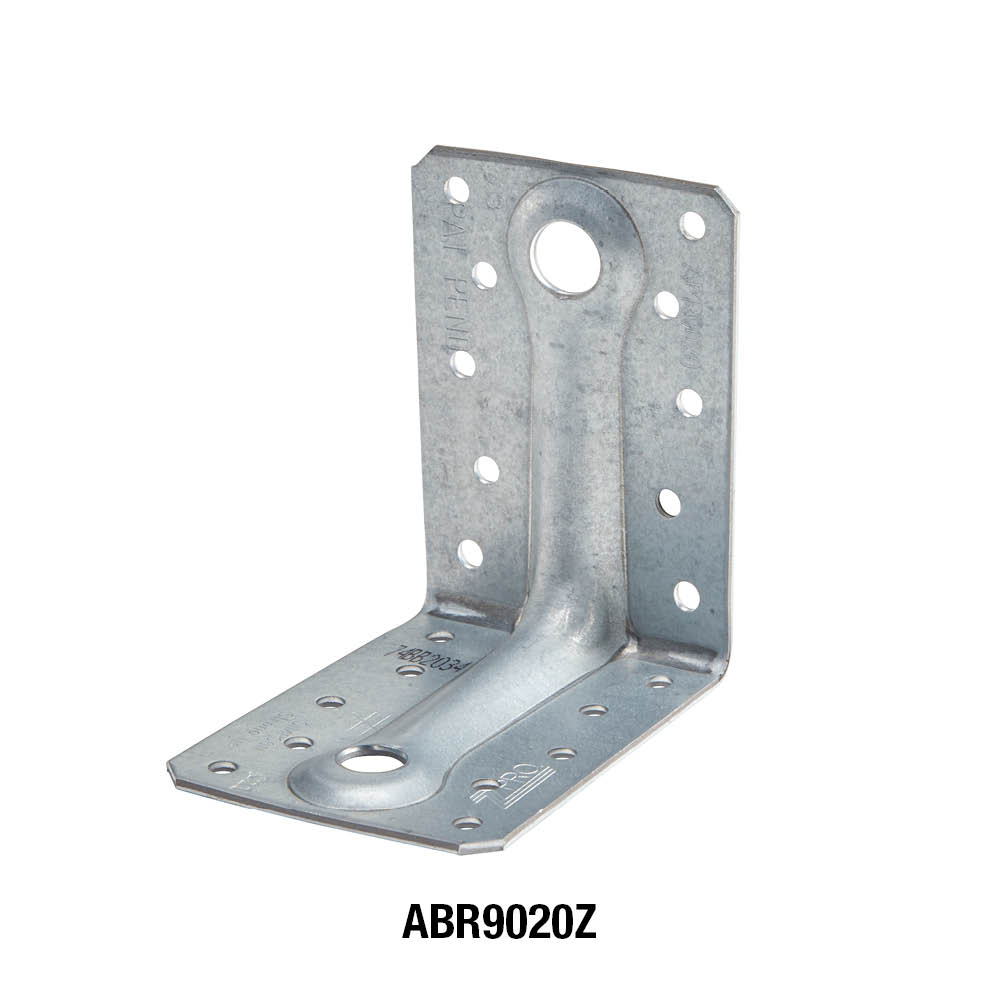

| ABR9020Z | 1938737 | 52950361 | 50.0 | 0.17 | 88 | 88 | 65 | 2 | 10 | - | 1 | - | 10 | - | 1 | - |

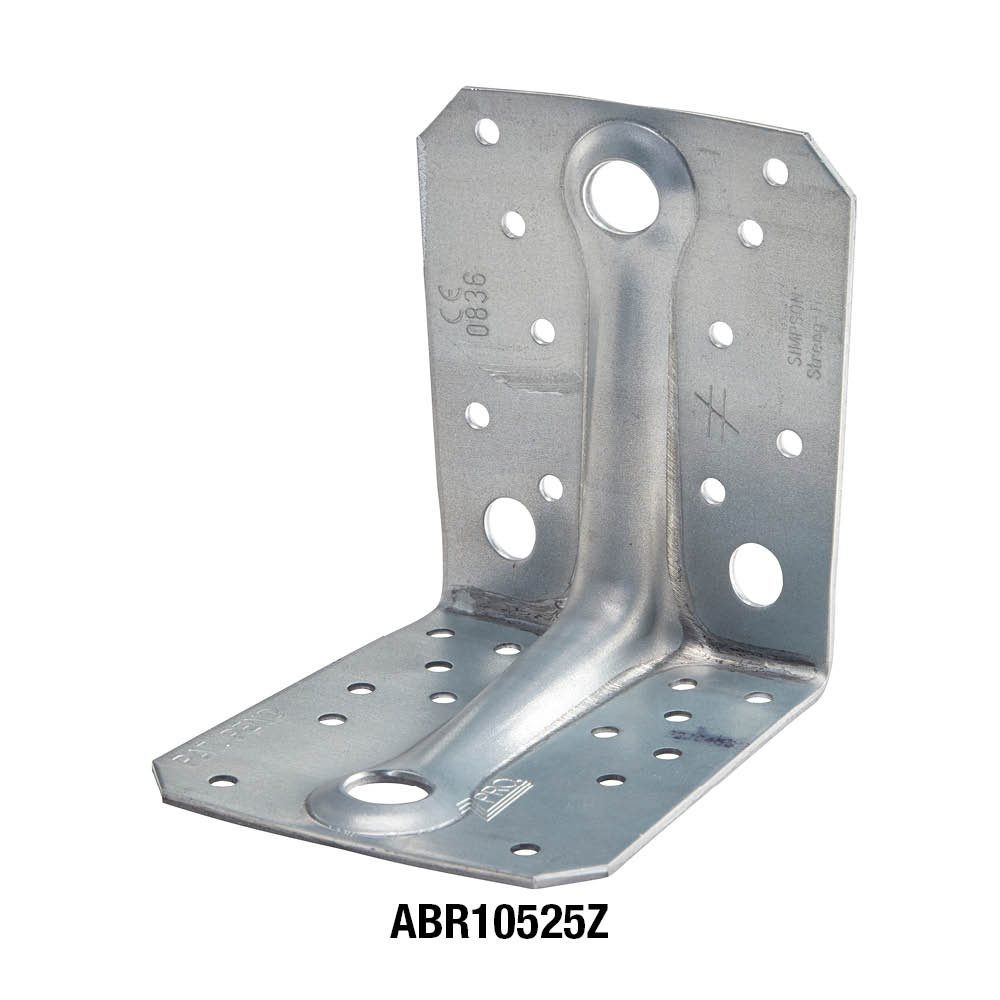

| ABR10525Z | 2048396 | 55360514 | 50.0 | 0.34 | 105 | 105 | 90 | 2.5 | 10 | - | 2 | 1 | 14 | - | - | 1 |
For combined loads:
Capacities wood-wood connection - Full Nailing
| Reference | Angle bracket capacity | ||||
|---|---|---|---|---|---|
| Product capacities - Timber to timber - Beam to beam - Full nailing | |||||
| Number of Fasteners | Characteristic capacity - 2 angle brackets per connection - full nailing[kN] | ||||
| Joist | Flange B | R₁.ₖ | R₂/₃.ₖ[kN] | R₄/₅.ₖ | |
| Qty | Qty | CSA5.0x40Z | CSA5.0x40Z | CSA5.0x40Z | |
| ABR7015Z | 6 | 8 | 5.2 | 6.7 | 4.2 /kmod^0,3 |
| ABR9020Z | 8 | 10 | 9.7 | 9.4 | 4.6 /kmod^0,7 |
| ABR10525Z | 10 | 14 | 12.7 | 10.7 | 10.6/kmod^0,2 |
R 4/5 with b=75mm and e=130mm
Capacities wood-wood connection / partialnailing
| Reference | Angle bracket capacity | ||||
|---|---|---|---|---|---|
| Product capacities - Timber to timber - Partial nailing | |||||
| Number of Fasteners | Characteristic Capacities - Timber C24 - 2 angle brackets per connection[kN] | ||||
| Joist | Flange B | R₁,ₖ | R2,k = R3,k | R4,k = R5,k(1) | |
| Qty | Qty | CSA5.0x40Z | CSA5.0x40Z | CSA5.0x40Z | |
| ABR9020Z | 4.0 | 6.0 | 4.9 | 5.9 | 4.6 /kmod^0,6 |
| ABR10525Z | 6.0 | 6.0 | 4.8 | 9.7 | Refer to ETA-06/0106 |
R 4/5 with b=75mm and e=130mm
Installation
Installation
Fixing
On wood:
- CNA annular ring-shank nails dia. 4.0 x 35 or dia. 4.0 x 50 mm.
- CSA screws dia. 5.0 x 35 mm or CSA screws dia. 5.0 x 40 mm.
- Bolts.
- LAG screws.
On concrete:
Concrete substrate
- Mechanical anchor: WA M10-78/5 OR WA M12-104/5 pin.
- Chemical anchor: AT-HP resin + LMAS M10-120/25 or LMAS M12-150/35 threaded rod.
Hollow masonry substrate:
- Chemical anchor: AT-HP or POLY-GP resin + LMAS M12-150/35 threaded rod + SH M16-130 screen.
On steel:
- Bolts.
Installation
c
Technical Notes
Technical Notes

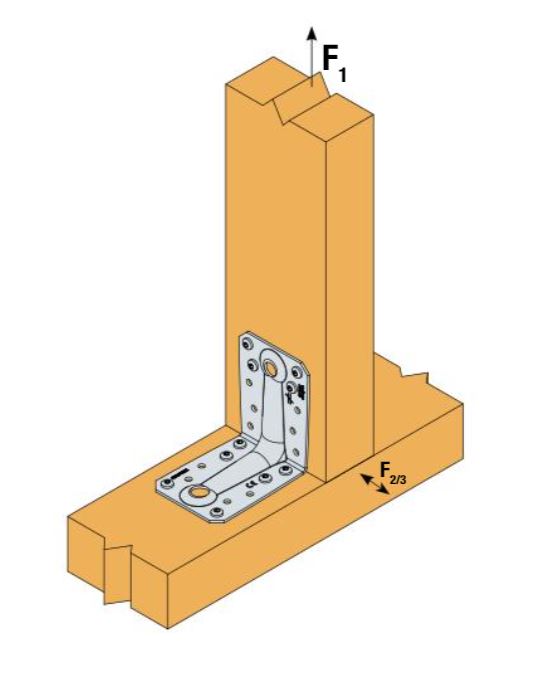

F1: tensile force in the central axis of the angle-bracket
Particular situation of a fastening with only one angle-bracket:
- If the overall structure prevents the rotation of the purlin or the post, the tensile strength is equal to half of the given value for two angle-brackets.
- Otherwise, the connection resistance depends on the « f » distance between the vertical contact surface and the point of load application.
F2 and F3: shear lateral force
Particular situation of a connection with only one angle-bracket:
- The resistance value to consider is equal to half of the one given for two angle-brackets.
F4 and F5: transversal force directed towards or opposite the angle-bracket
- The connection resistance depends on the « e » distance between the base of the angle-bracket and the point of load application.
- To consult corresponding loads, contact us.
Only F1, F2 and F3 forces for connections with 2 angle-brackets are present on this sheet.
For more information, contact us.
Certification
Declaration of Performance (DoP)
Show history
European Technical Assessment (ETA)
Show history
Environmental Product Declarations (EPD)
CAD and BIM Library
2D
ABR10525Z
-
-
-
-
-
-
-
-
ABR7015Z
-
-
-
-
-
-
-
-
ABR9020Z
-
-
-
-
-
-
-
-
3D
ABR10525Z
-
-
-
-
-
-
-
-
-
-
ABR7015Z
-
-
-
-
-
-
-
-
-
-
ABR9020Z
-
-
-
-
-
-
-
-
-
-
3D Simplified
ABR10525Z
-
-
-
-
-
-
-
-
-
-
ABR7015Z
-
-
-
-
-
-
-
-
-
-
ABR9020Z
-
-
-
-
-
-
-
-
-
-
Nailing Pattern
ABR9020Z
-
-
-
-
-
-
-
-
-
-
