PU

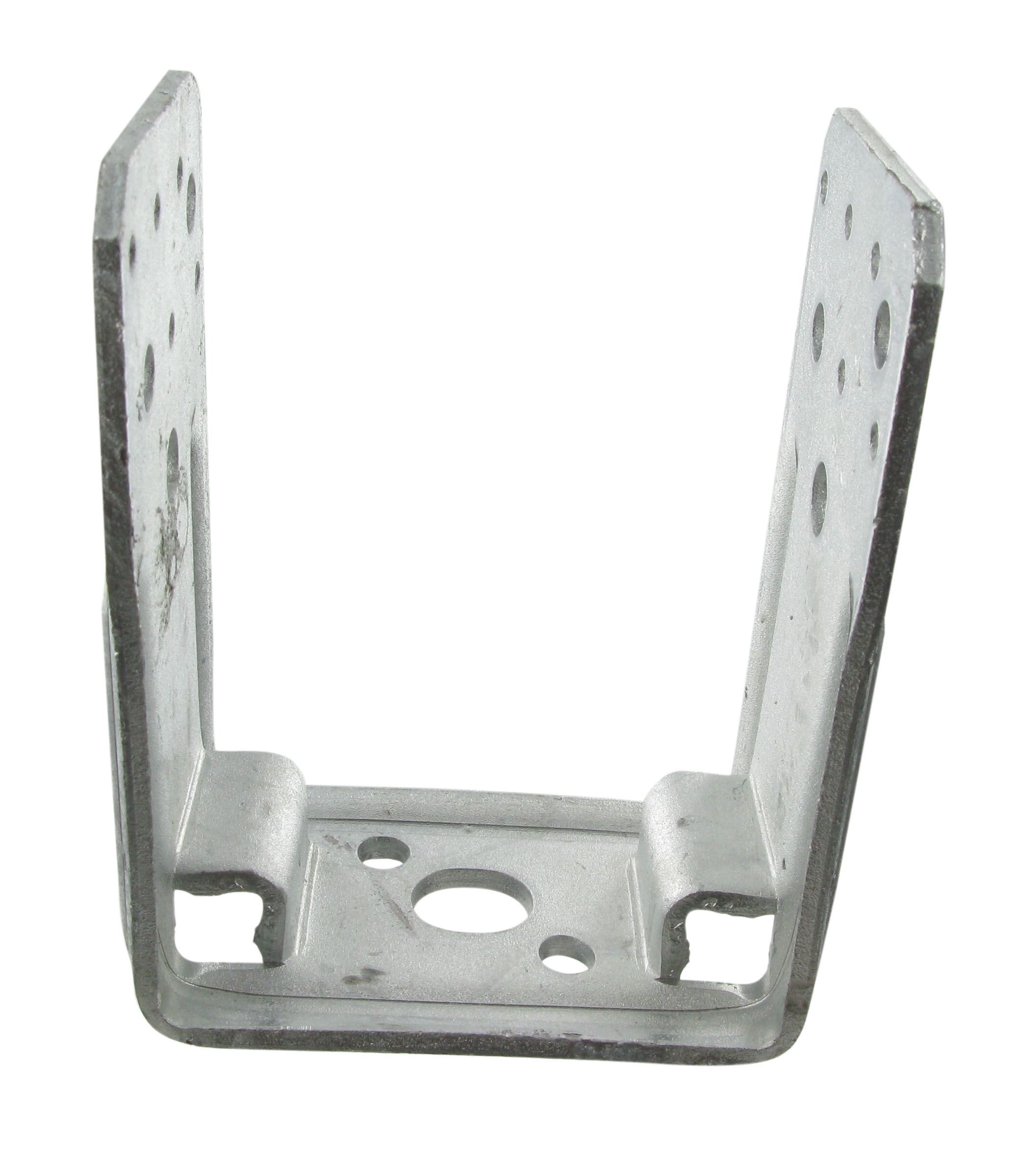

U-shaped post bases

EMBUs are used to fasten posts on an existing substrate (balcony, deck, etc.) and protect the post from rising damp (rest at 20 mm from the ground). They can be installed easily thanks to an obround drill hole at the bottom.


CE Marking
ETA
Service class 3
Hot-dip galvanised steel
Outdoor

Product Details

Images

Features

Material

  • S235JR steel according to NF EN 10025.
  • Hot-dip galvanized finish according to NF EN ISO 1461.

Benefits

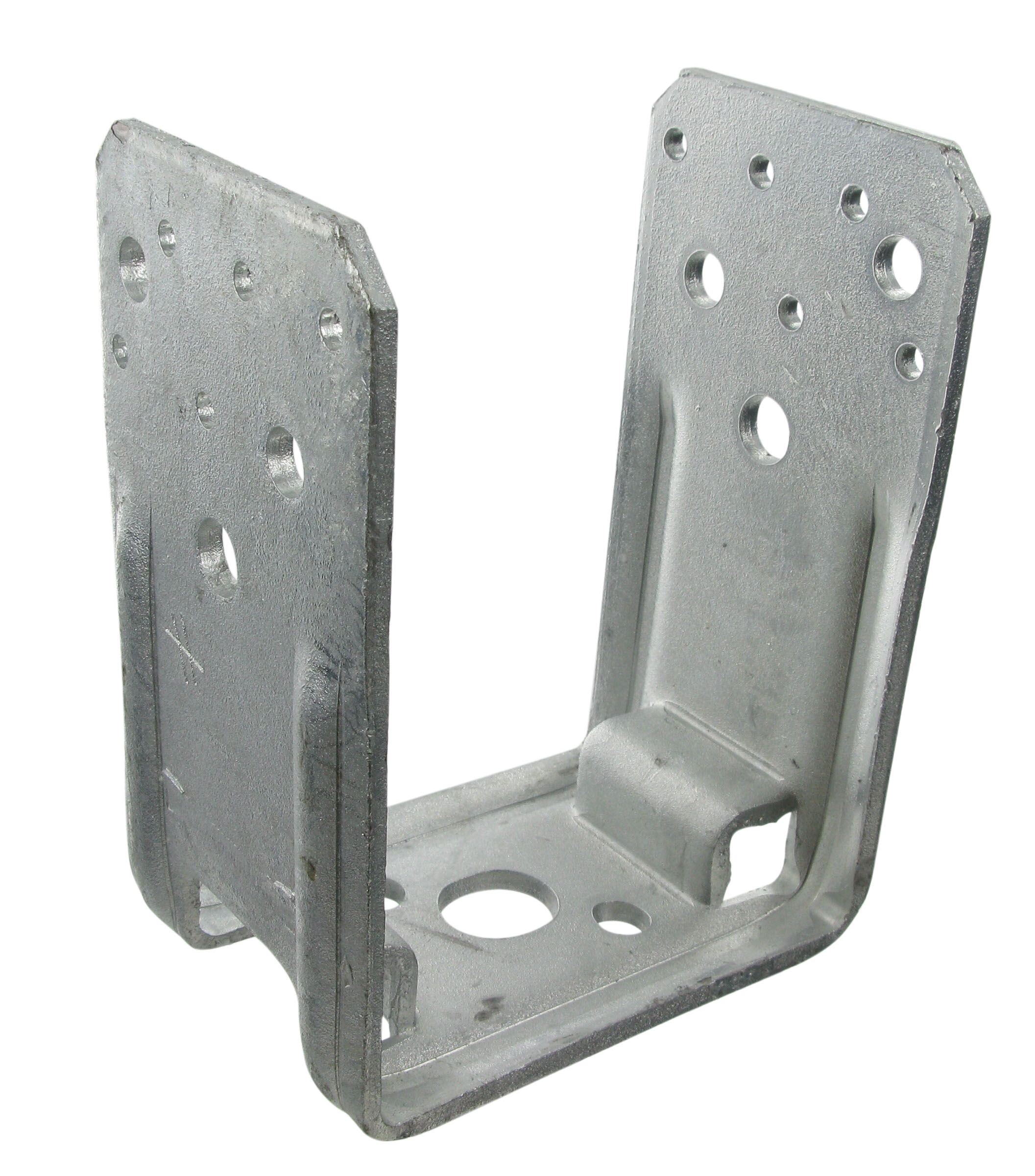

  • U post bases consist of a U-shaped profile with bead reinforcement and 2 support surfaces for the base.

Application

Suitable On

  • Supporting member: solid wood, composite lumber, glued-laminated wood.
  • Supported member: solid wood, composite lumber, glued-laminated wood.

When to Use

  • Awning.
  • Pergola.
  • Veranda.

Technical Data

Dimensions

Product Dimensions

References Dimensions and drill holes [mm] Holes Box Quantity
A B C F t Holes Bottom plate holes
Ø5 Bolts Ø9 17x20
PU70-B7170131244104-120
PU80-B8170126244104-120
PU90-B91701312441042120
PU100-B101701262441042120
PU120-B121701162441042120
PU140-B141701062441042120

Capacities

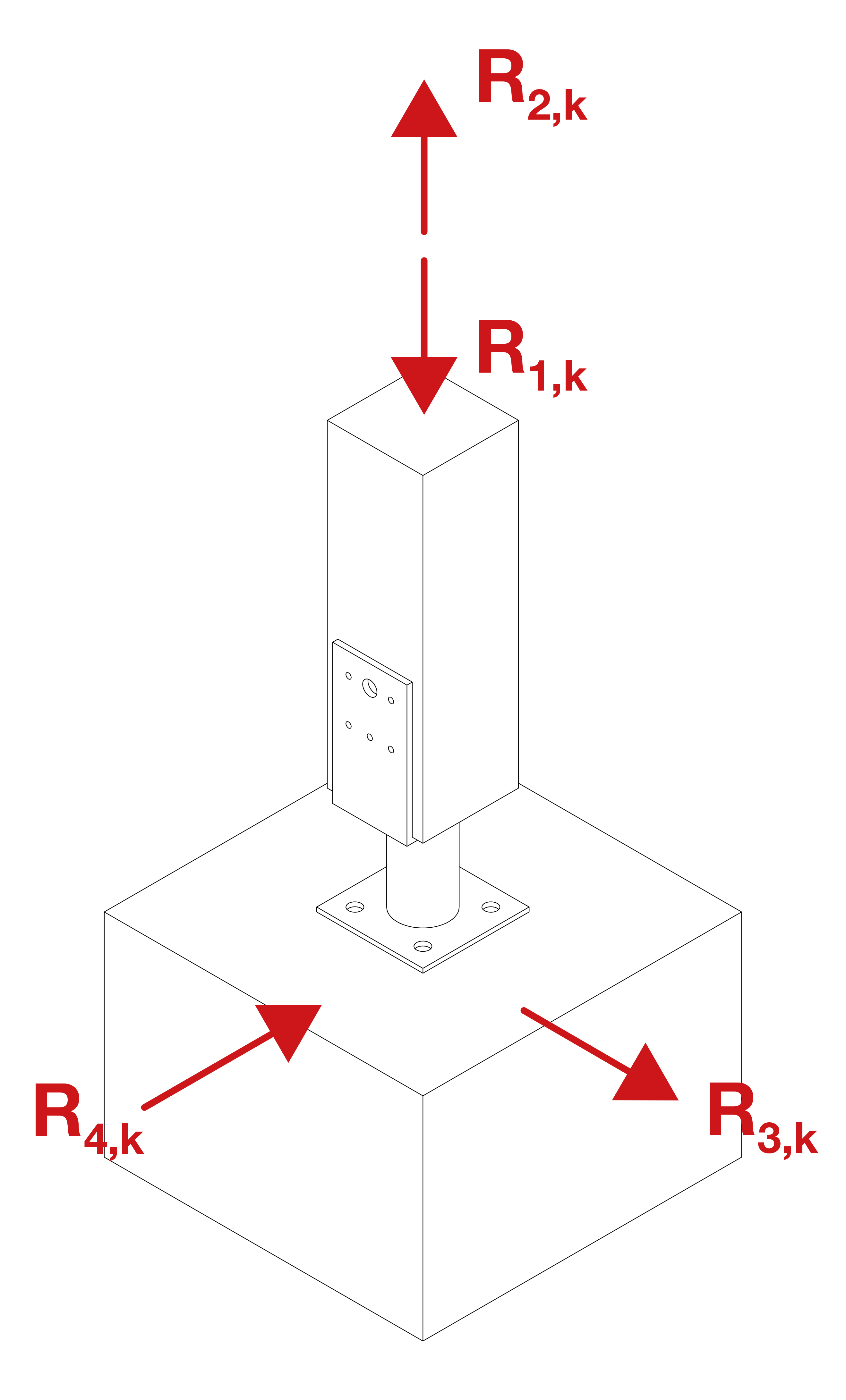

References Number of Fasteners Characteristic capacities - Timber C24 [kN]
On post On concrete R1.k R2.k
Qty Type Qty Type
PU70-BnCNA4,0x l1Ø16min (19.1 ; n x Rlat.k)min (n x Rlat.k ; 14.1/kmod)
PU80-BnCNA4,0x l1Ø16min (19.1 ; n x Rlat.k)min (n x Rlat.k ; 11.7/kmod)
PU90-BnCNA4,0x l1Ø16min (19.1 ; n x Rlat.k)min (n x Rlat.k ; 10.0/kmod)
PU100-BnCNA4,0x l1Ø16min (19.1 ; n x Rlat.k)min (n x Rlat.k ; 8.76/kmod)
PU120-BnCNA4,0x l1Ø16min (19.1 ; n x Rlat.k)min (n x Rlat.k ; 6.99/kmod)
PU140-BnCNA4,0x l1Ø16min (19.1 ; n x Rlat.k)min (n x Rlat.k ; 5.82/kmod)

Rlat.k = the lateral capacities of uses CNA nails

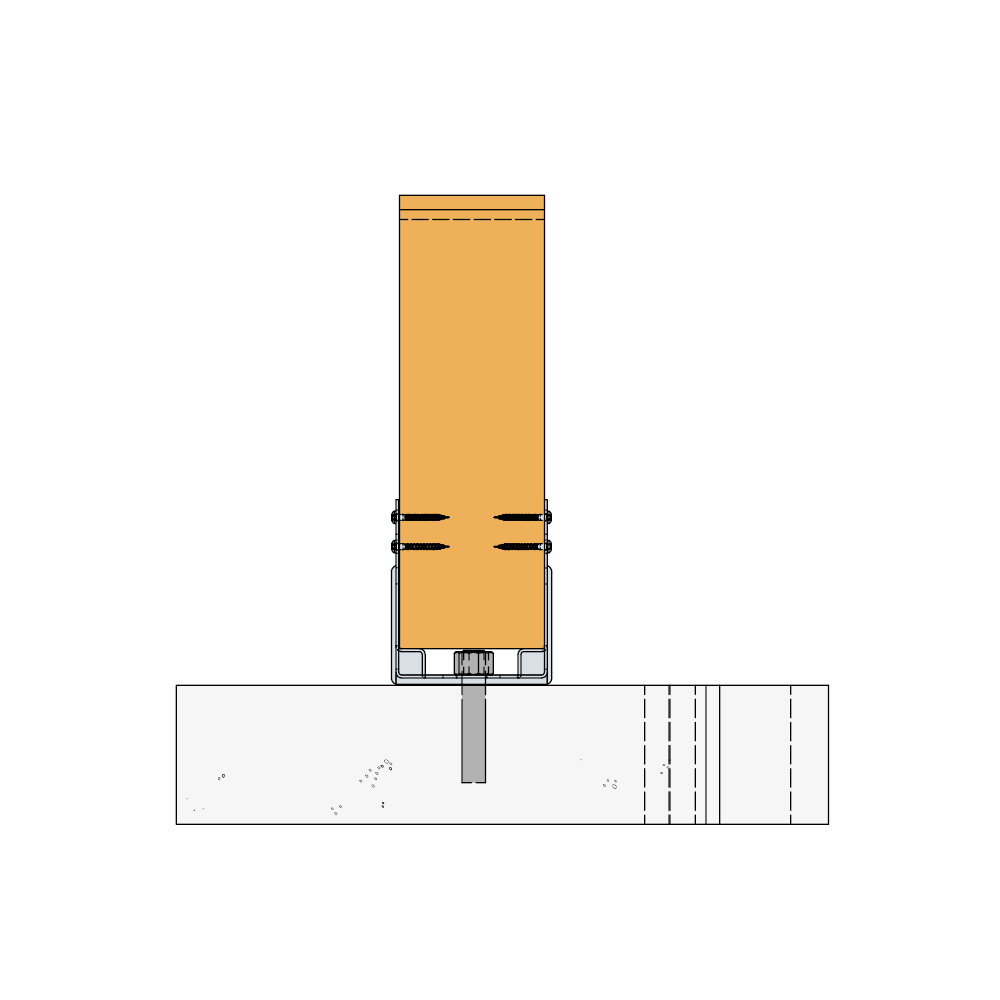

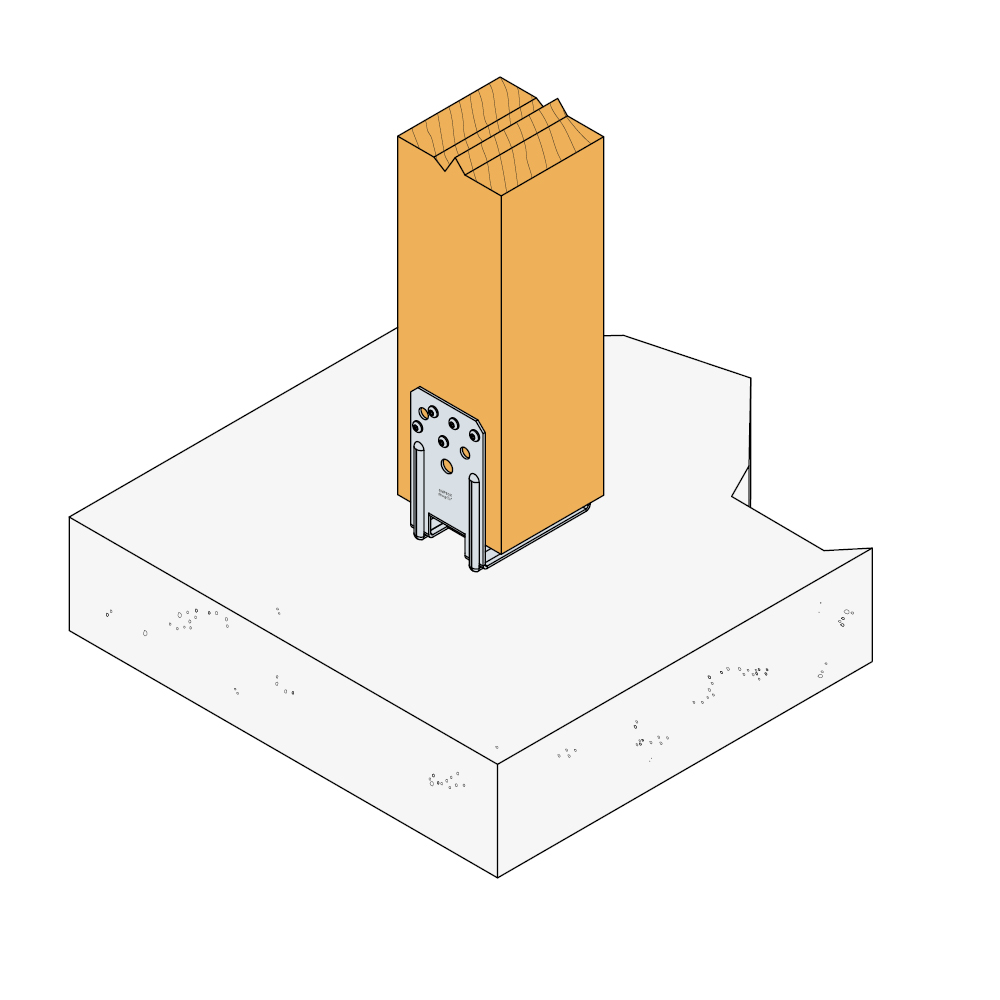

Installation

Installation

Fixing

On post:

  • CNA annular ring-shank nails dia. 4.0 x 50 mm.
  • Bolts dia. 10 or 12 mm.

On concrete:

  • Mechanical anchor: WA M16-110/5 pin.
  • Chemical anchor: AT-HP resin + LMAS M16-170/20 threaded rod.

Certification

Declaration of Performance (DoP)

European Technical Assessment (ETA)
