SPF-Z

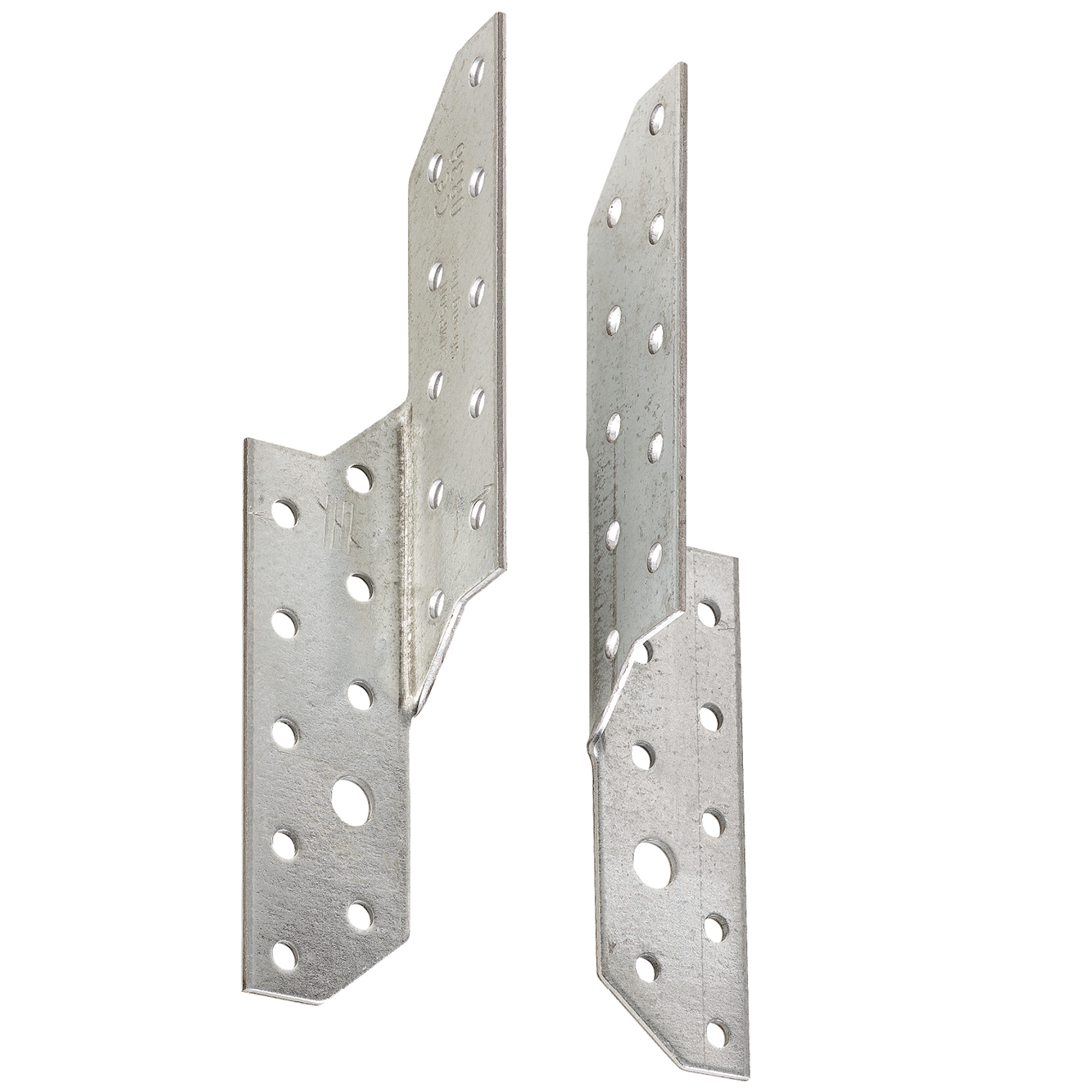

Purlin anchor ZPRO
ZPRO SPF purlin anchors are used for tensile anchorage of intersecting wood beams. The unique ZPRO coating creates the opportune properties for decking construcktions in non-marine environments.

CE Marking

ETA

New

ZPRO
EPD

Service class 3

Outdoor
Product Details
Features
Material
Steel:
S250GD + ZPRO
Corrosion protection:
ZPRO coating - corresponding to a zinc layer of approx. 55 μm
Benefits
- ZPRO is a unique corrosion-protective coating, which provides similar corrosion protection as with hot-dip galvanized steel with 55 μm zinc.
- Designed to accommodate high tensile loads with additional load bearing in horizontal directions.
Application
When to Use
- Wood / wood connections
Suitable On
Supporting member:
Treated wood
Supported member:
Treated wood
Technical Data
Product Dimensions
| Reference | Connector Dimensions | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Other | Product Dimensions[mm] | Joist | Flange B | ||||||||||
| DB. nr. | NOB nr. | Qty per Box | Weight[kg] | A[mm] | B[mm] | C[mm] | D[mm] | F[mm] | t[mm] | Round | Round | ||
| Ø5 | Ø5[mm] | Ø9 | |||||||||||
| SPF210LZ | - | 60047345 | 100 | 0.13 | 210 | 32.5 | 140 | 37.5 | 14 | 2 | 14 | 13 | 1 |
| SPF210RZ | - | 60047346 | 100 | 0.13 | 210 | 32.5 | 140 | 37.5 | 14 | 2 | 14 | 13 | 1 |
The Type "SPF...L" is the left version
The type "SPF...R" is the right version

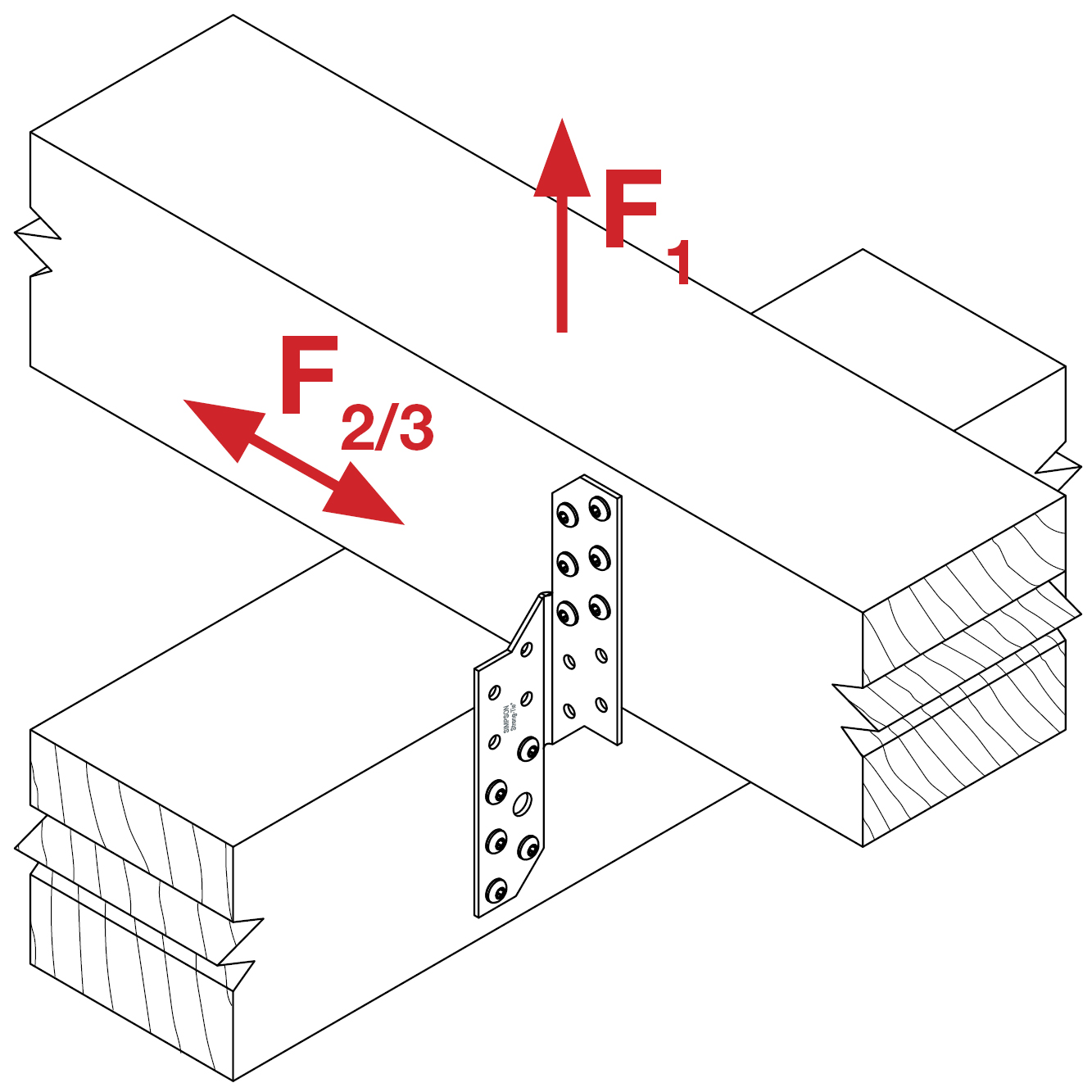

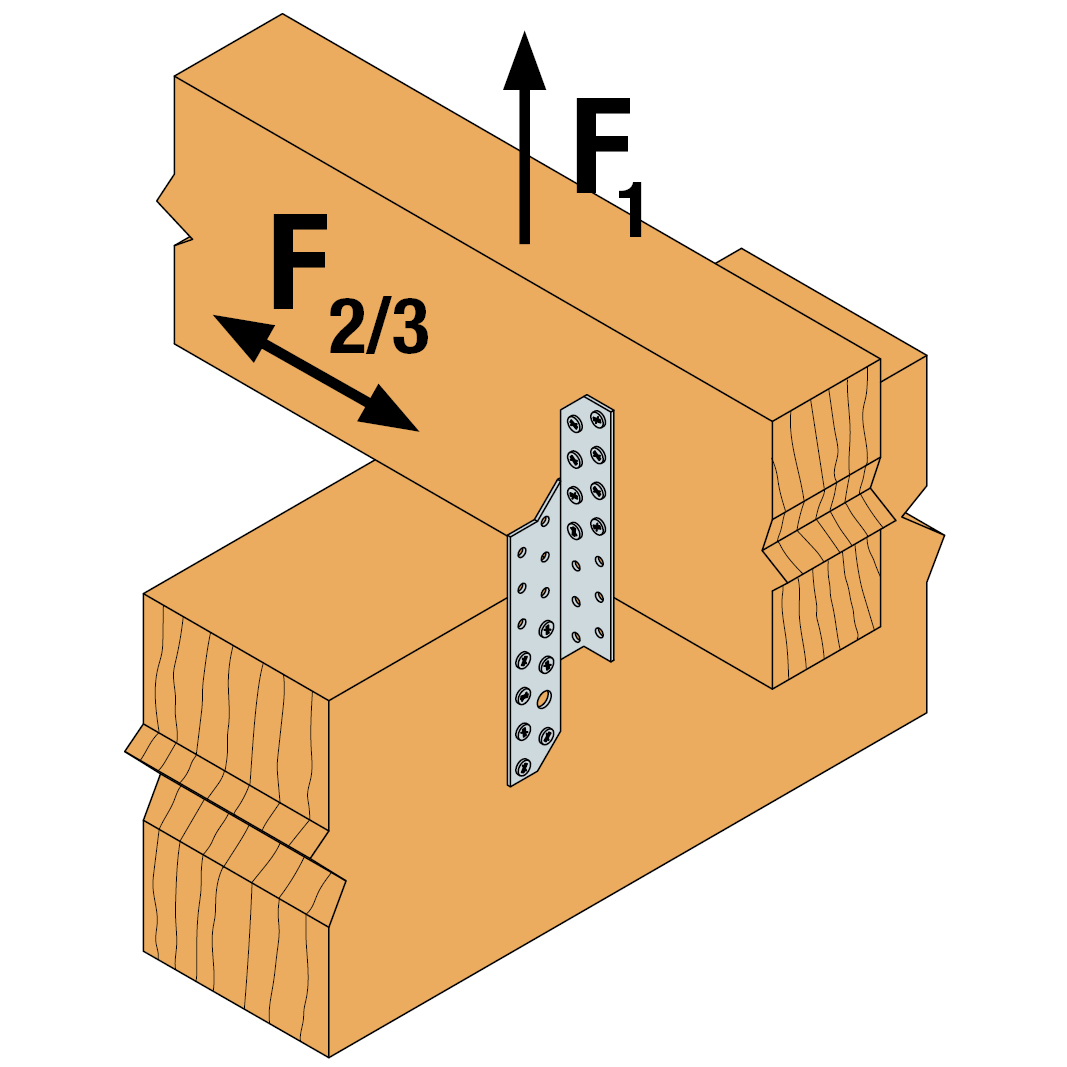

Product characteristic capacities - Timber beam to timber beam - 1 connector
| Reference | Ties capacity | |||||||
|---|---|---|---|---|---|---|---|---|
| Product Characteristic capacities - Timber to timber - Full nailing | ||||||||
| Number of Fasteners | Characteristic capacity - Timber C24 2 connectors[kN] | |||||||
| Header | Purlin | R₁,ₖ | R₂,ₖ | R₃,ₖ | ||||
| Qty | Qty | CNA4.0x40 | CNA4.0x60 | CNA4.0x40 | CNA4.0x60 | CNA4.0x40 | CNA4.0x60 | |
| SPF210LZ | 7.0 | 7.0 | min(9,7 ; 8,4 /kmod) | min(12,4 ; 8,4 /kmod) | 3.3 | 4.1 | 1.5 | 2.5 |
| SPF210RZ | 7.0 | 7.0 | min(9,7 ; 8,4 /kmod) | min(12,4 ; 8,4 /kmod) | 3.3 | 4.1 | 1.5 | 2.5 |
The capacities are given for one SPF, where the header and purlin are prevented against rotation
The capacity for connection with 2 SPF is the sum of the single capacities.

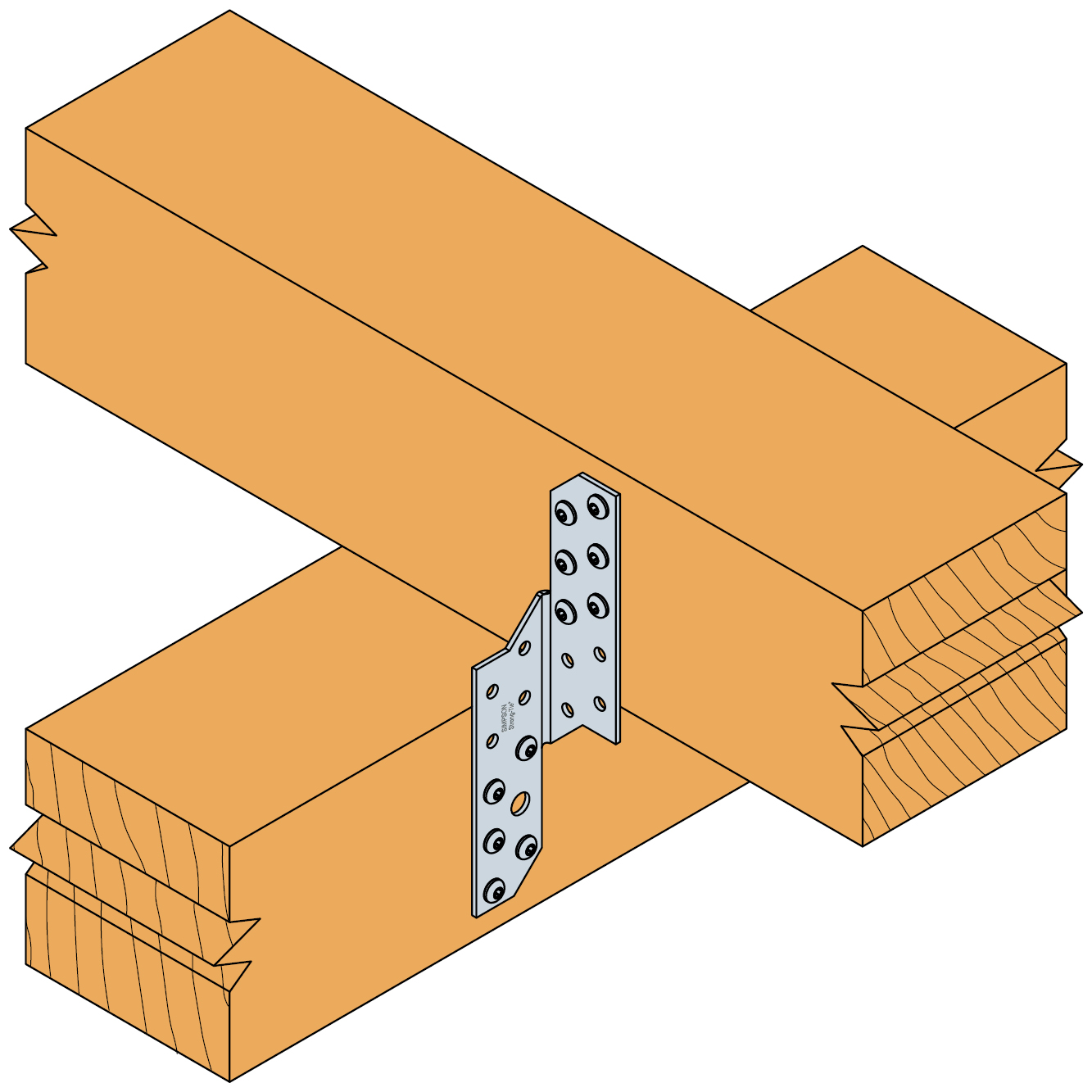

Installation
Installation
Fixing
- The fixing needs to be done with CNA HDG threaded nails or CSA-Z Impreg+ screws.

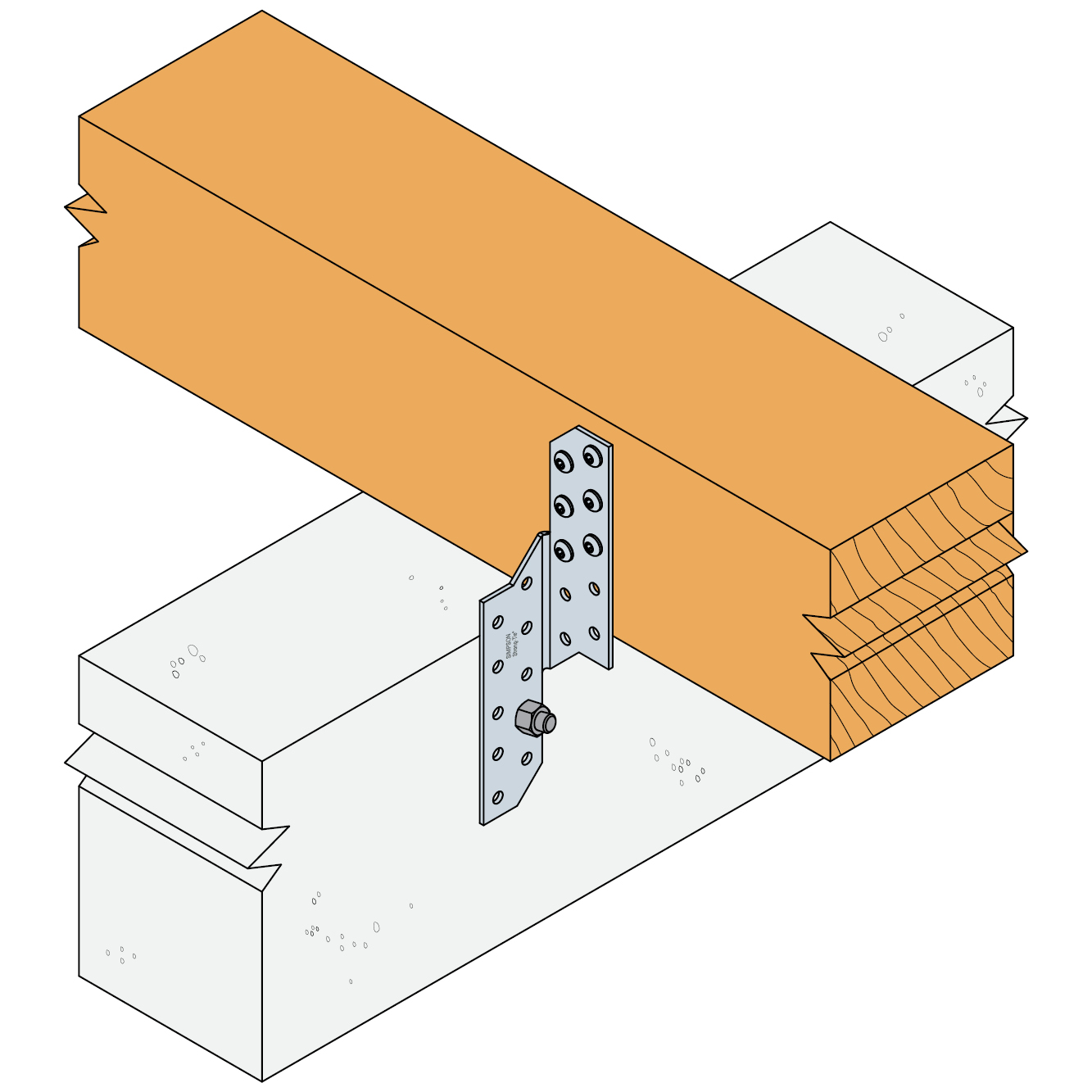

- For connection to concrete, the fixxing need to be done with Ø8mm anchor.
