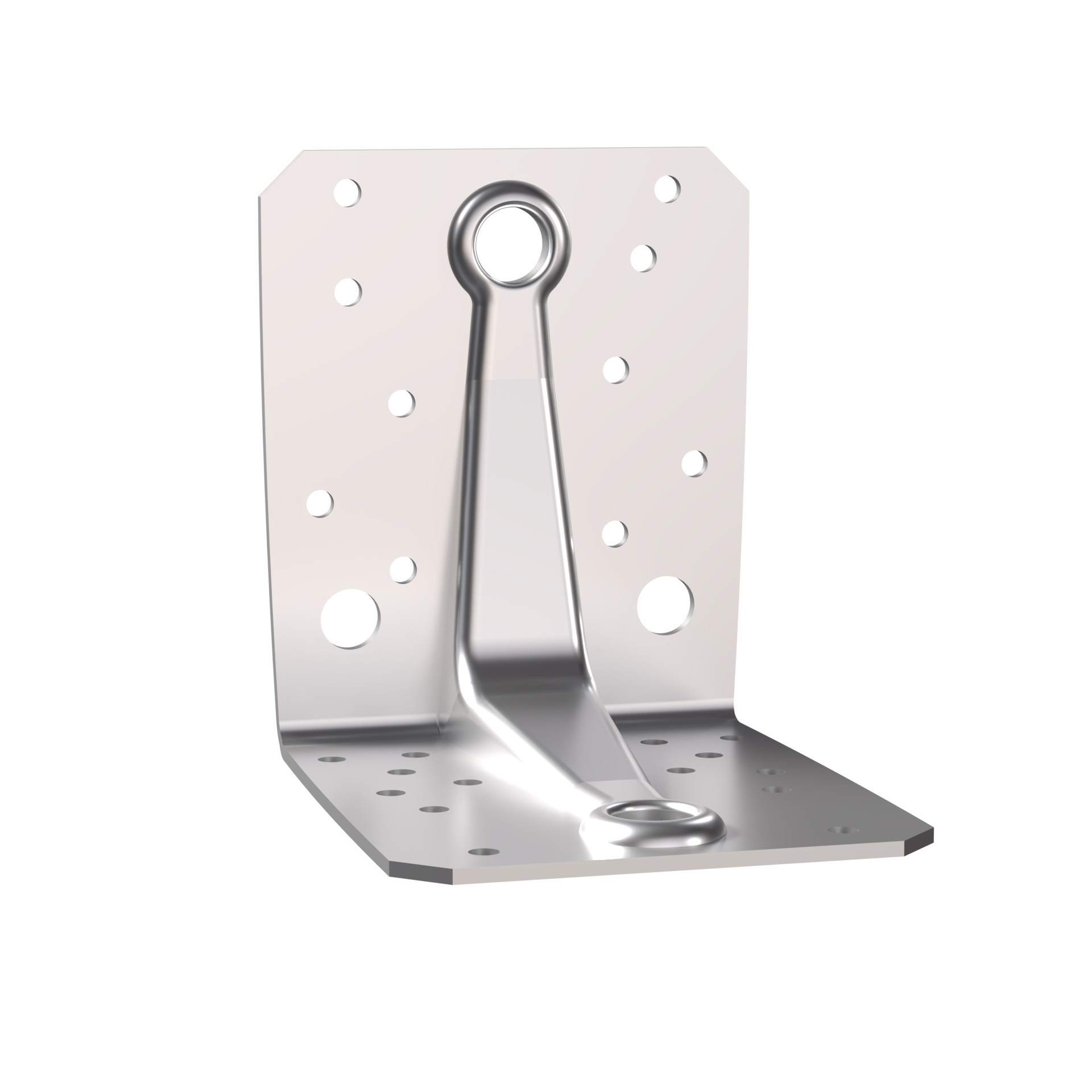

Stainless Steel Bracket

The ABR angle brackets with rib can be used in high loaded timber structures. These brackets are made of stainless steel and are recommended in aggressive atmospheres

Technical Data Sheet

CE Marking

ETA

Stainless steel A4

Severe

Service class 3

EPD

Product Details

Images

Features

Material

Steel quality:
• Stainless Steel 1.4401 or 1.4404 in accordance with EN10088 standards.
• Class III corrosion resistance

Benefits

• Reinforcing ribs provide enhanced performance

Application

When to use

• ABR angle bracket are particularly suitable for connections of crossed beams, e. g. for connections rafters on purlins and purlins on timber beams.

Applications

Supporting member:

Solid wood, engineered wood

Supported member:

Solid wood, engineered wood

Technical Data

Product Dimensions

Dimensions

Reference	Connector Dimensions
	Other				Product Dimensions[mm]				Joist[mm]				Flange B[mm]
	Tun / DB nr.	NOB nr.	Qty per Box	Weight[kg]	A[mm]	B[mm]	C[mm]	Thickness[mm]	Round				Round
	Tun / DB nr.	NOB nr.	Qty per Box	Weight[kg]	A[mm]	B[mm]	C[mm]	Thickness[mm]	Ø5[mm]	Ø7	Ø11[mm]	Ø14[mm]	Ø5[mm]	Ø9	Ø13[mm]	Ø14[mm]
ABR7015S	1901749	51738657	25.0	0.081	70	70	55	1.5	8	1	-	-	8	1	-	-

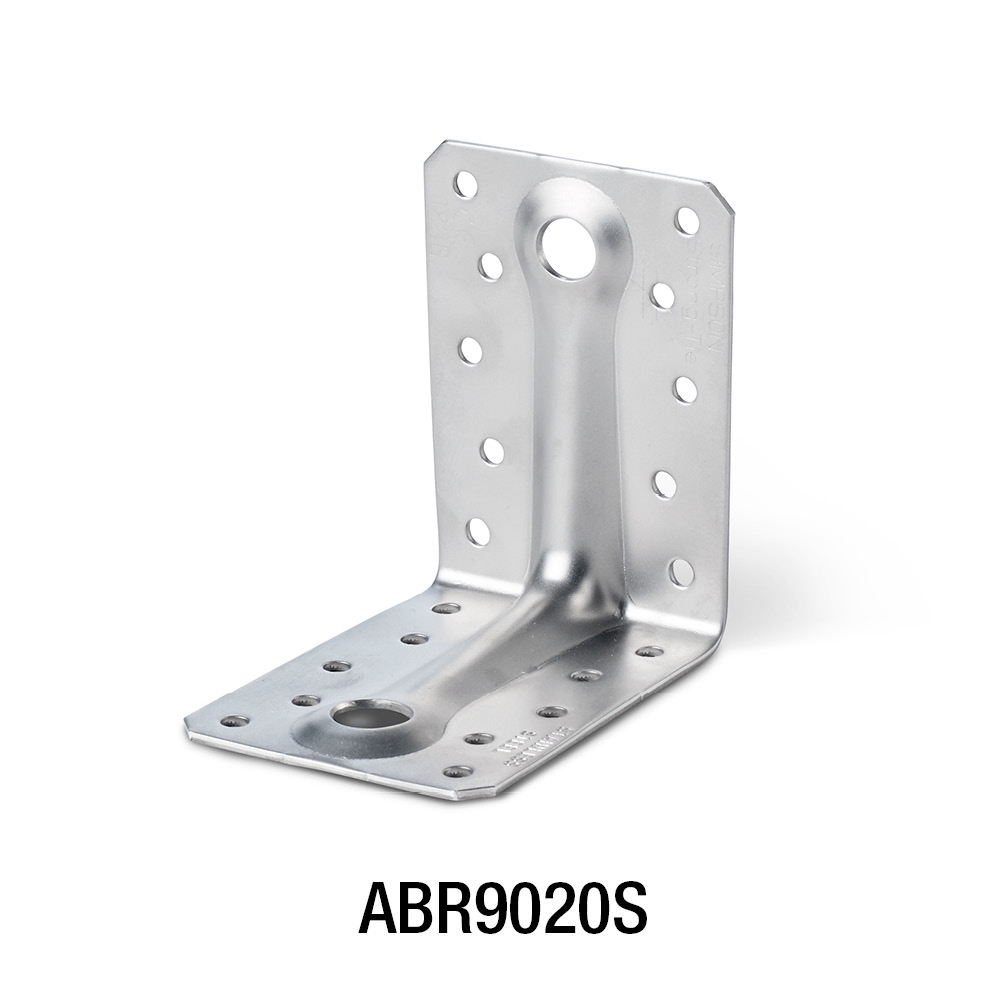

ABR9020S	1901752	51738680	25.0	0.17	88	88	65	2	10	-	1	-	10	-	1	-

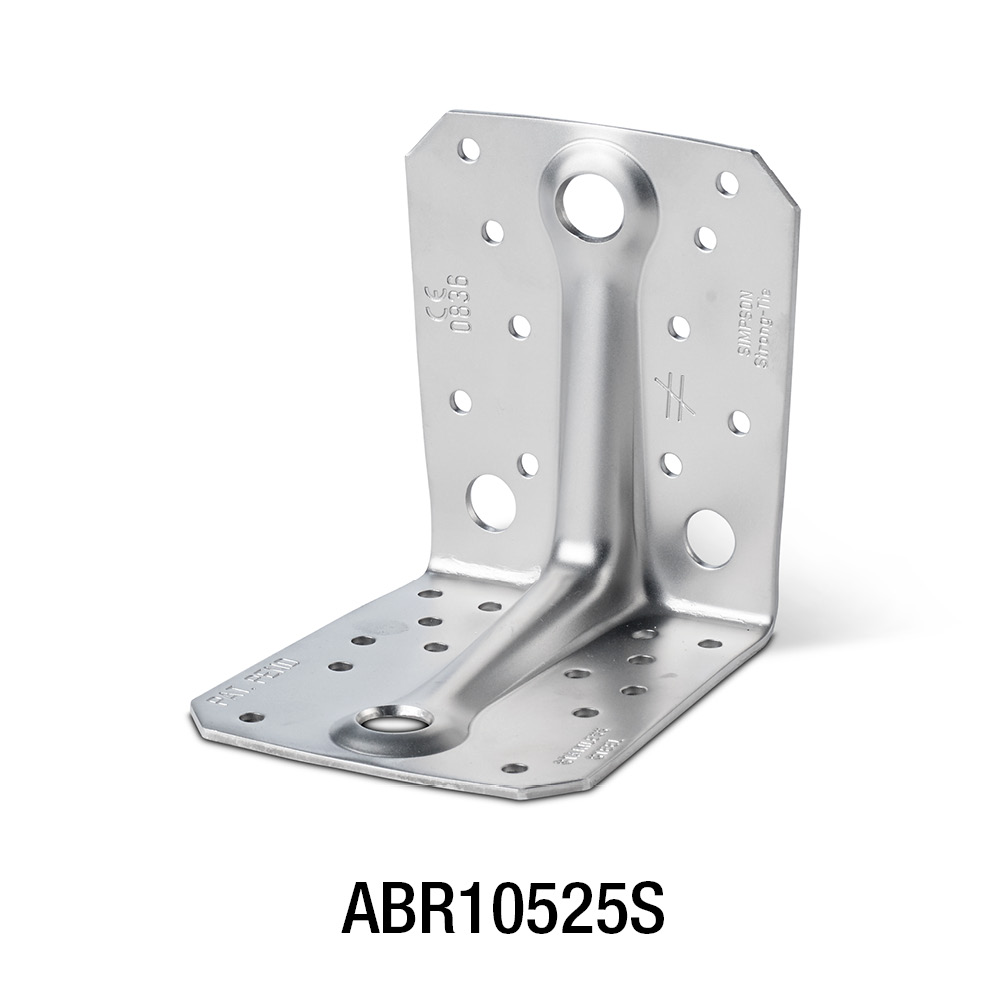

ABR10525S	1901755	51738714	25.0	0.34	105	105	90	2.5	10	-	2	1	14	-	-	1

Combined load:

$\sqrt{\left ( \frac {F_{1,d}} {R_{1,d}} + \frac {F_{4/5,d}}{R_{4/5,d}} \right )^2 + \left ( \frac{F_{2/3,d}}{R_{2/3,d}} \right )^2} \le 1$

Capacities wood-wood connection - Full Nailing

Dimensions

Reference	Angle bracket capacity
	Product capacities - Timber to timber - Beam to beam - Full nailing
	Number of Fasteners		Characteristic capacity - 2 angle brackets per connection - full nailing[kN]
	Joist	Flange B	R₁,ₖ				R₂,ₖ=R₃,ₖ[kN]				R4/5,k
	Qty	Qty	CNA4.0x35	CNA4.0x40S	CNA4.0x50	CNA4.0x60S	CNA4.0x35	CNA4.0x40S	CNA4.0x50	CNA4.0x60S	CNA4.0x35	CNA4.0x40S	CNA4.0x60S
ABR7015S	6	8	5.2	6.1	-	-	6.7	7.3	-	-	4.2 /kmod^0,3	4.8 /kmod^0,3	-
ABR9020S	8	10	9.7	10.8	12.9	14.9	9.4	10.3	11.7	13	4.6 /kmod^0,7	4.9 /kmod^0,7	5.8 /kmod^0,6
ABR10525S	10	14	12.7	17.2	23.3	29.5	10.7	12.2	15.9	19.7	10.6/kmod^0,2	11.5 /kmod^0,4	13.1 /kmod^0,8

R_4/5,k with b=75mm and e=130mm

For simplified R_4/5,k, the published characteristic capacity is based on short term load duration and service class 2 according to EC5 (EN 1995) – kmod = 0.9. For other load duration and service class, please refer to the ETA.

Combined load:

$\sqrt{\left ( \frac {F_{1,d}} {R_{1,d}} + \frac {F_{4/5,d}}{R_{4/5,d}} \right )^2 + \left ( \frac{F_{2/3,d}}{R_{2/3,d}} \right )^2} \le 1$

Capacities wood-wood connection / partialnailing

Dimensions

Reference	Angle bracket capacity
	Product capacities - Timber to timber - Partial nailing
	Number of Fasteners		Characteristic capacity - 2 angle brackets per connection - partial nailing[kN]
	Joist	Flange B	R₁,ₖ			R₂,ₖ=R₃,ₖ			R4/5,k
	Qty	Qty	CNA4.0x35	CNA4.0x40S	CNA4.0x60S	CNA4.0x35	CNA4.0x40S	CNA4.0x60S	CNA4.0x35	CNA4.0x40S	CNA4.0x60S
ABR9020S	4.0	6.0	4.9	5.9	9.8	5.9	6.4	8.1	4.6 /kmod^0,6	4.8 /kmod^0,7	5.8/kmod^0.6
ABR10525S	6.0	6.0	4.8	5.7	9.5	9.7	10.6	14.3	Refer to ETA-06/0106	Refer to ETA-06/0106	Refer to ETA-06/0106
