CSA-S
Screws for Torx head connectors - Stainless steel

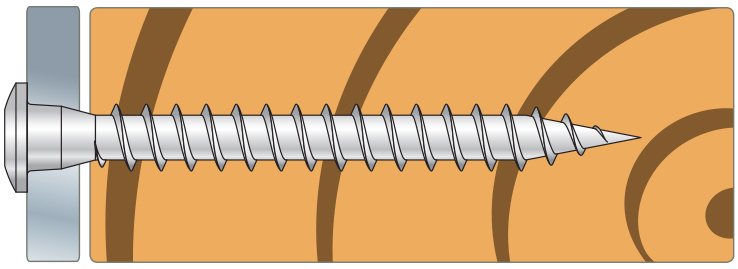

CSA-S connector screw is made from A4 marine grade stainless steel. It was developed for installing Simpson Strong-Tie stainless steel connectors to timber, in order to obtain the published load bearing capacities. The conical shape under the head ensures a full contact with the connector which increases the transfer of force. A fixed connection with larger cross-bearing capacity than for standard screws is obtained. The 6 lobe recess helps to fix the screw during insertion.

CE Marking

ETA
EPD

Severe

Stainless steel A4

Service class 3

Fastener Designer
Product Details
Features
Material
- A4 stainless steel
Features
- ETA approved (ETA-04/0013)
- T-20 6 lobe drive
- Conical shape under the head for secure fit in connector holes
- Type 17 point to prevent splitting of timber
- 250 screws per box
Application
Suitable On
- Supporting / Supported member: solid wood, composite lumber, glued-laminated wood.
Common Applications
Fixing stainless steel connectors to timber
- Stainless steel joist hangers
- Stainless steel angle brackets
- Stainless steel straps
Technical Data
Product Dimensions
| Reference | Fasteners Dimensions | Screw Loads | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Other | Fastener dimensions[mm] | Product characteristic capacities - Timber to Timber C24[kN] | Characteristic capacities - Timber C24 acc to ETA-04/0013[kN] | ||||||||||
| Stocked in UK | Qty/box | Weight[kg] | l[mm] | lg[mm] | d₁[mm] | d[mm] | dₕ[mm] | bit[mm] | Characteristic lateral capacities Rlat,k/material thicknes[kN] | Rₐₓ.ₖ[kN] | |||
| 1.2mm | 1.5 to 2.0mm | 2.5 to 4.0mm | |||||||||||
| CSA5.0X25S | 1.5 | 250.0 | 0.002 | 25 | 19 | 3.15 | 4.85 | 8.3 | T-20 | 1.5 | 1.5 | 1.4 | Yes |
| CSA5.0X35S | 2 | 250.0 | 0.004 | 35 | 29 | 3.15 | 4.85 | 8.3 | T-20 | 2 | 1.9 | 2.1 | Yes |
| CSA5.0X40S | 2.3 | 250.0 | 0.004 | 40 | 34 | 3.15 | 4.85 | 8.3 | T-20 | 2.3 | 2.2 | 2.5 | Yes |
Characteristic Capacities
| Reference | Screw Loads |
|---|---|
| Characteristic capacities - Timber C24 acc to ETA-04/0013[kN] | |
| Rₗₐₜ.ₖ | |
| CSA5.0X25S | 1.49 |
| CSA5.0X35S | 1.99 |
| CSA5.0X40S | 2.25 |
Characteristic Capacities - used in timber C24
Rax = axial withdrawal capacity
Rlat = lateral capacity
