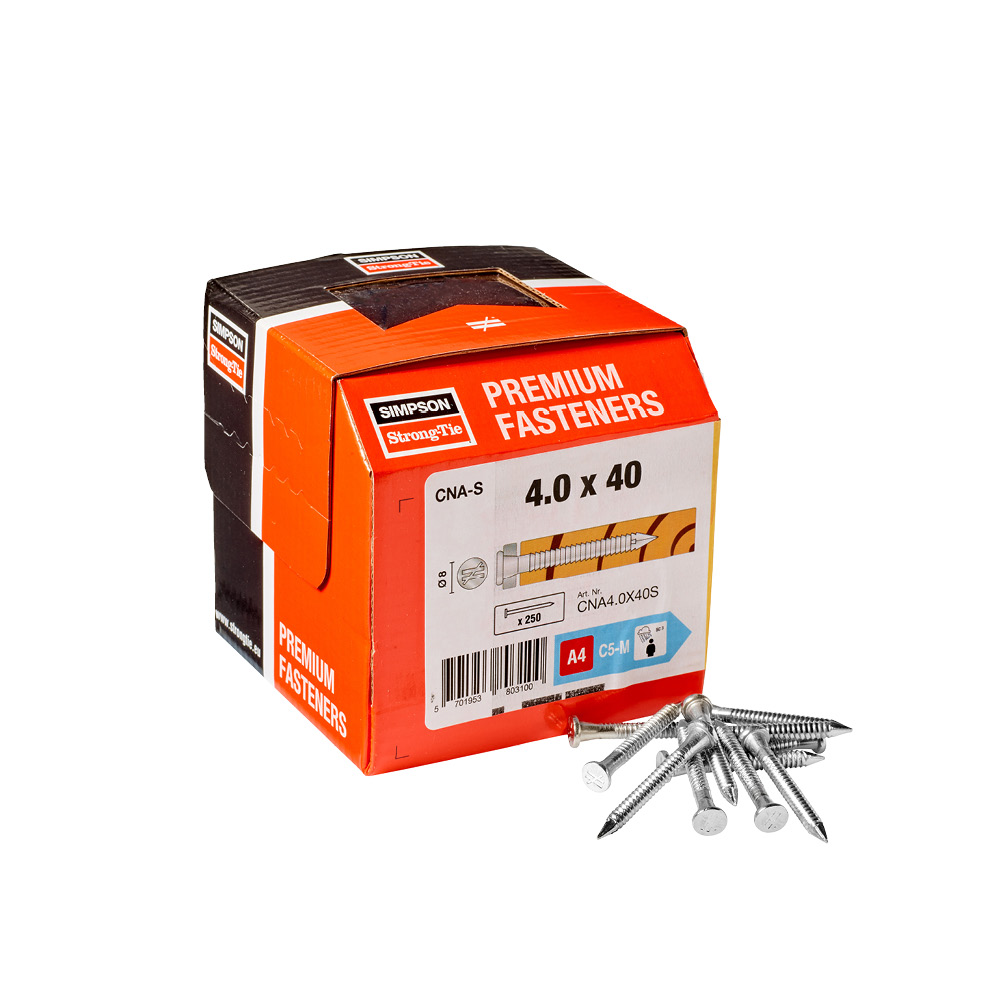

CNA-S

Connector Nail Stainless

CNA-S nails are annular ring shank connector nails with a conical shape under the head. These are identical to standard CNA nails but are made from A4 marine grade stainless steel. These nails are recommended for structural assemblies and installation of Simpson Strong-Tie connectors to timber, in order to obtain the published load bearing capacities. All tests were performed with this type of nail. CNA-S nails are stamped ≠ "no equal". Suitable for use with stainless steel connectors and in severe weather environments.

CE Marking
ETA
Service class 3
Stainless steel A4
Severe
Solid Wood

Product Details

Images

Features

Material

  • A4 stainless steel

Features

  • ETA approved (ETA-04/0013)

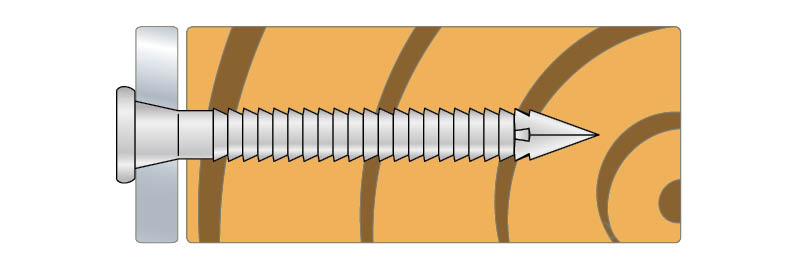

  • Conical shape under the head for secure fit in connector holes
  • High pull-out resistance
  • A4 stainless steel

Application

Benefits

• Conical nails securing guarantees transmission of power between the steel and wooden surfaces.
• The resistance is governed by ETA or EN.



Common Applications

Fixing connectors to timber including solid wood, composite lumber and glued-laminated timber.

  • Joist hanger fastening
  • Angle brackets
  • Straps
  • Nail plates

Technical Data

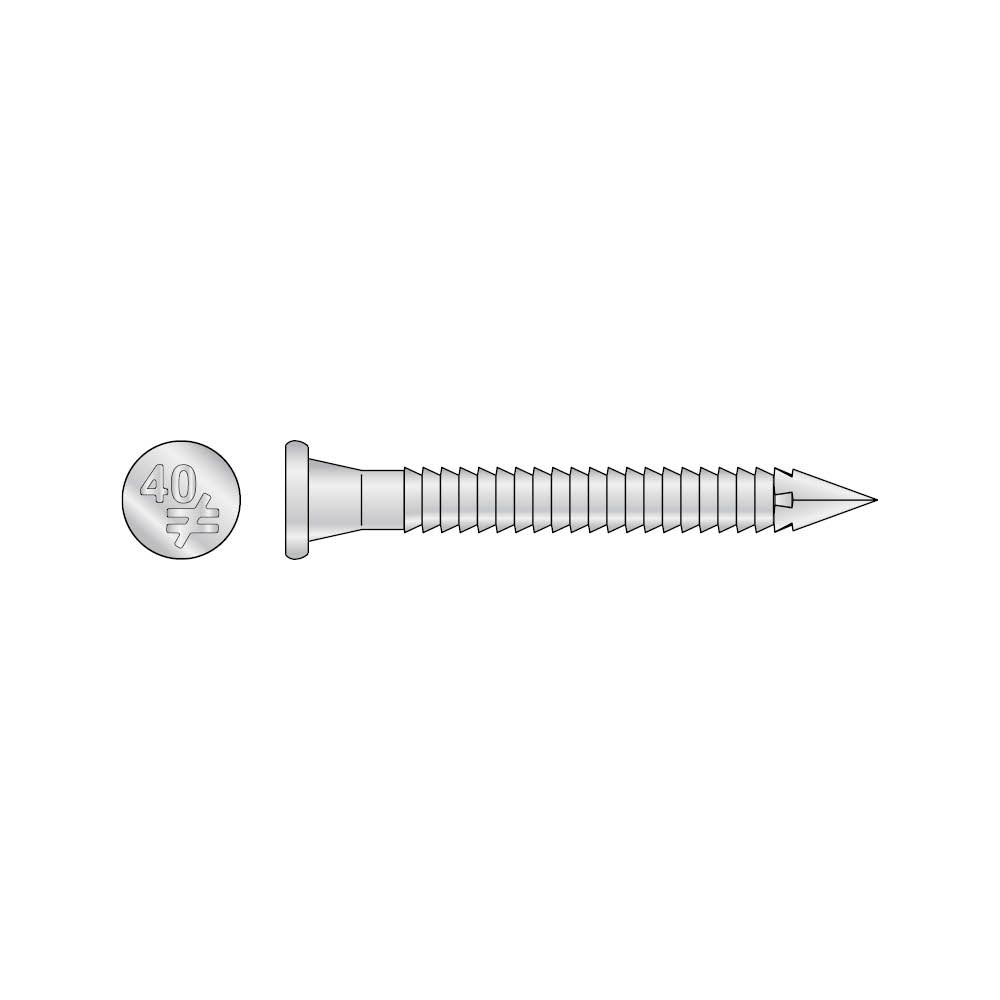

Dimensions

Product Dimensions

References Fastener Dimensions [mm]
l lg d dh ht
CNA4.0X35S3519481.5
CNA4.0X40S4024481.5
CNA4.0X50S5034481.5
CNA4.0X60S6044481.5

Capacities are for 2mm thick steel plates with Grade C24 timber. Please refer to ETA-04/0013 for capacities of other thicknesses and timber grades

Performance Values - ETA-04/0013

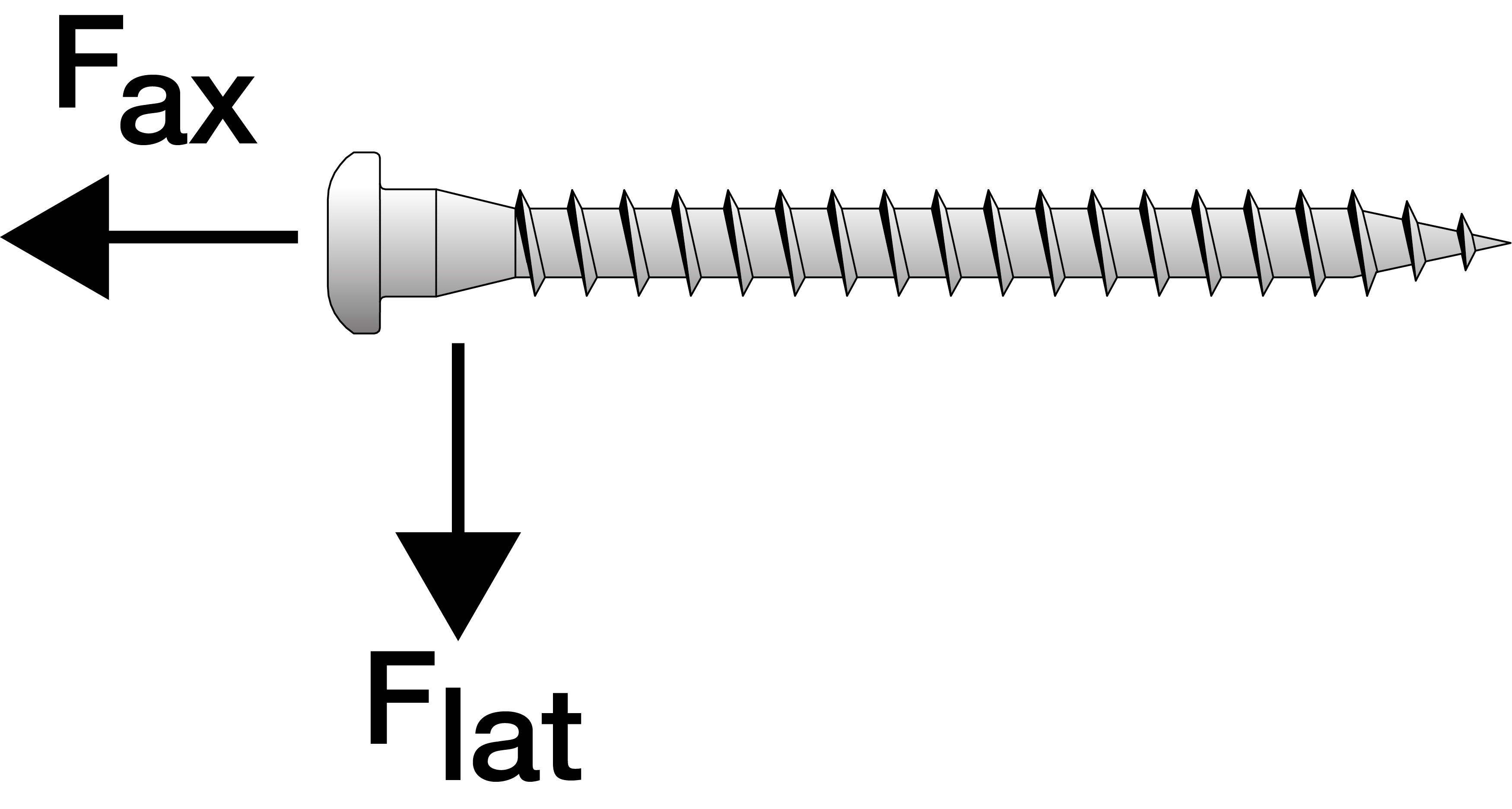

References Characteristic Lateral Capacities Flat,k
/ Material Thickness [mm] [kN]
Characteristic Axial Capacity Fax,k  [kN] Characteristic capacities [kN]
1.2mm 1.5 to 2.0mm 2.5 to 4.0mm Rax,k Rlat,k
CNA4.0X35S1.71.71.60.6--
CNA4.0X40S1.91.91.80.70.71.9
CNA4.0X50S2.22.22.2112.2
CNA4.0X60S2.42.42.41.21.22.4

(1)   Performance values based upon timber density of 350 kg/m3

Certification

Declaration of Performance (DoP)

European Technical Assessment (ETA)
