ABR

Reinforced angle brackets

Reinforced angle brackets are suitable for structural applications in framing and wood-frame houses.

CE Marking
ETA
Service class 2
Indoor
Electrogalvanized steel Z275

Product Details

Features

Material

  • Galvanized steel S250GD + Z275 according to NF EN 10346.

Benefits

  • High rigidity through double-sided splash back
  • High load values

Application

Suitable On

  • Supporting member: solid wood, glued-laminated wood, concrete, steel, etc.
  • Supported member: solid wood, composite lumber, glued-laminated wood, triangular trusses, profiles, etc.

When to Use

  • Fastening of small trusses.
  • Cladding plates, cladding uprights.
  • Rafter anchors, cantilevers, headers, etc.

Technical Data

Dimensions

Product Dimensions

References Tun / DB nr. NOB nr. Product Dimensions [mm] Joist [mm] Holes flange B [mm]
A B C t Ø5 Ø12 Ø13 Ø12x32 Ø5 Ø12 Ø13
ABR90151241530413270818989601.510-1-10-1
ABR100132923542424786103103902101-1141-

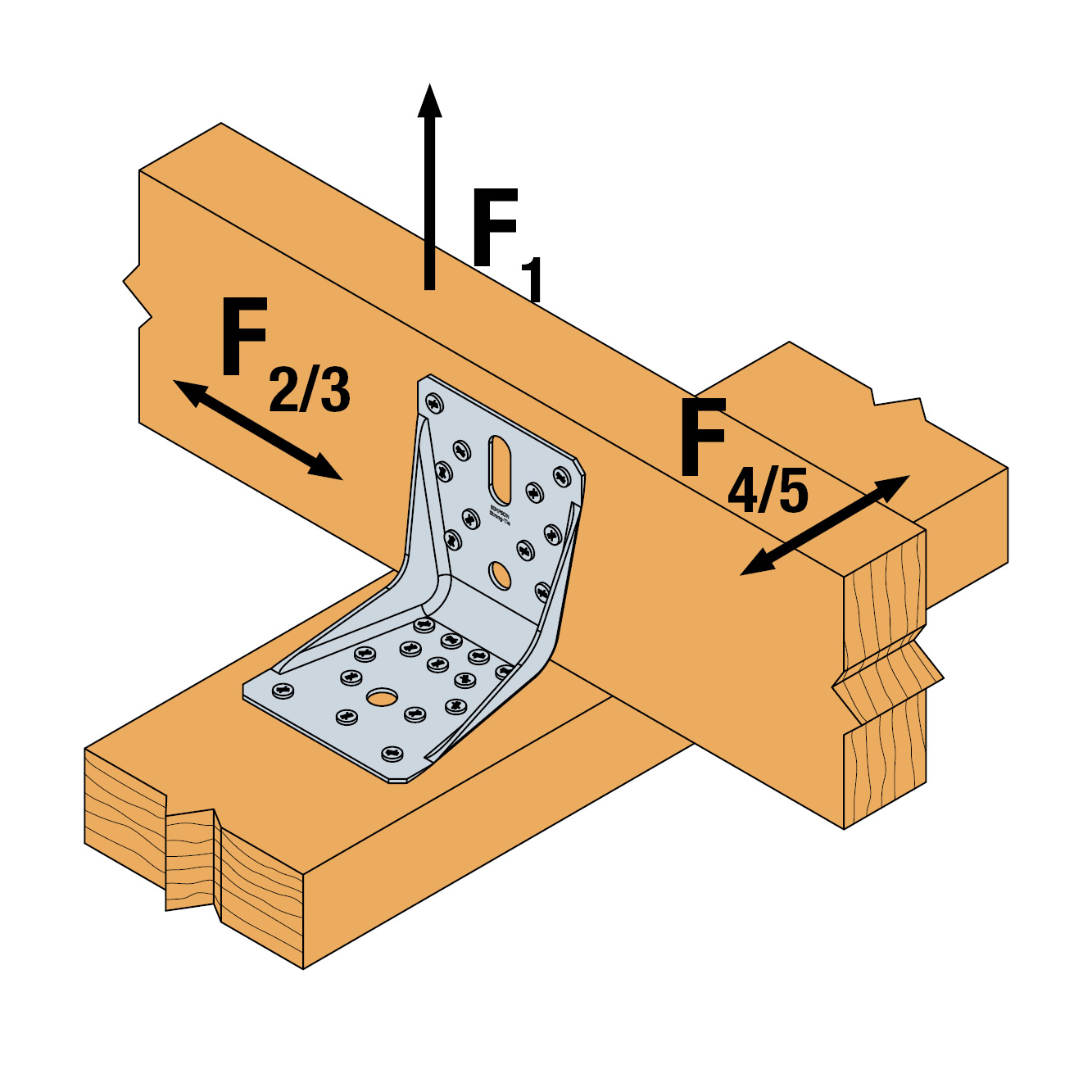

Wood/wood connection beam/beam type - assembly with 2 angle brackets

References Product capacities - Timber to timber - Full nailing
Number of Fasteners Characteristic capacities - Timber C24 - 2 angle brackets per connection [kN]
Joist Flange B R1.k R2.k = R3.k R4.k = R5.k(1)
Qty Qty CNA4.0x35 CNA4.0x40 CNA4.0x50 CNA4.0x60 CSA5.0x40 CNA4.0x35 CNA4.0x40 CNA4.0x50 CNA4.0x60 CSA5.0x40 CNA4.0x35 CNA4.0x40 CNA4.0x50 CNA4.0x60 CSA5.0x40
ABR90158103.454.15.46.613.26.37.189.610.5----5 /kmod^0,4
ABR10010149.711.715.719.7min (26,7/kmod^0,2 ; 27 /kmod)9.612.814.216.720.32.44.25.15.15.1

1)  b = 75 mm ; e = 130 mm

To obtain the resistance values for a single bracket, the values in the above table should be divided by two, provided that the supported beam is locked in rotation. Please consult our ETA-06/0106 if the beam is free to rotate.

Wood/wood connection post/beam type - assembly with 2 angle brackets

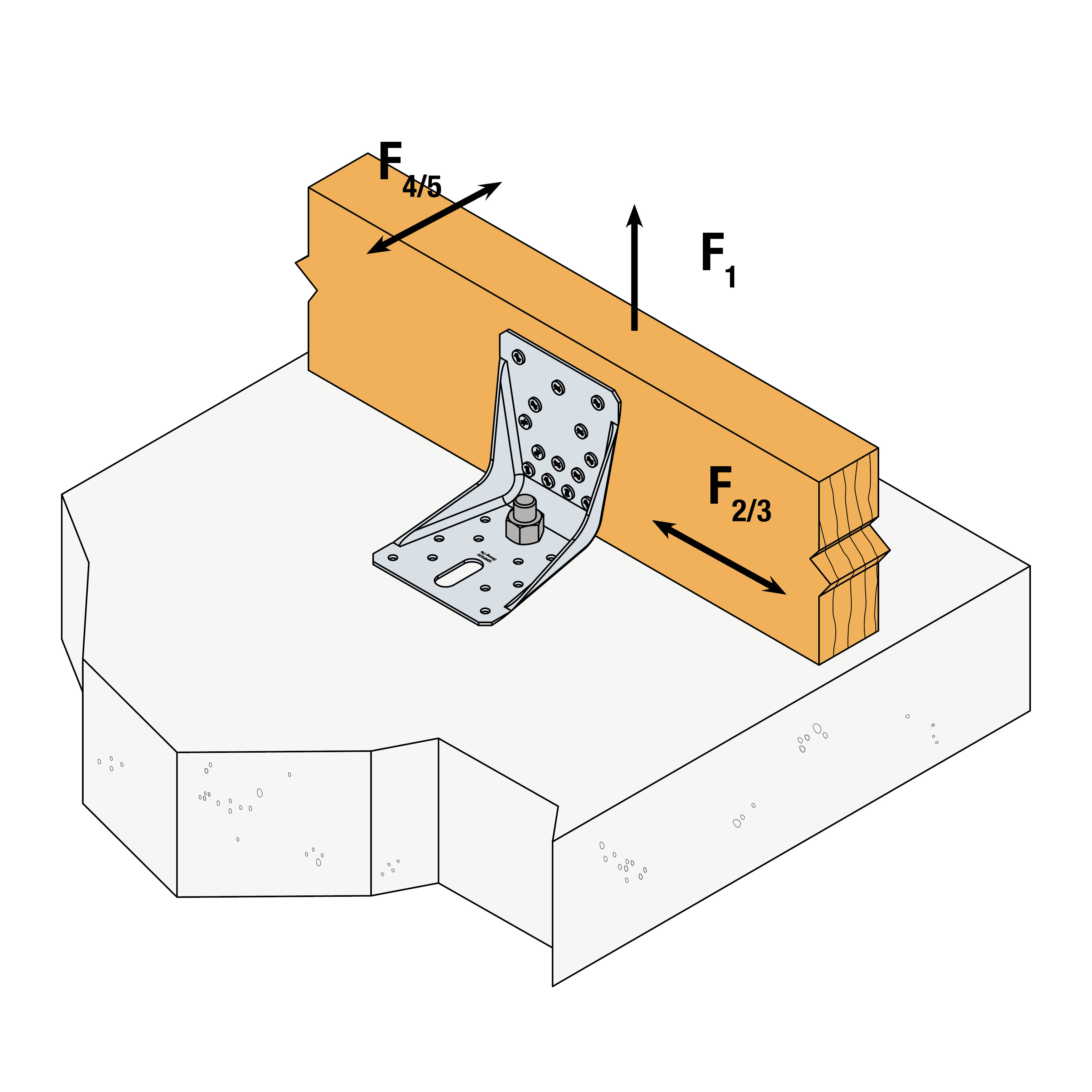

References Product capacities - Timber beam to Concrete
Number of Fasteners Characteristic capacities - Timber C24 - 2 angle brackets per connection [kN]
Joist Flange B R1.k R2.k = R3.k R4.k = R5.k
Qty Type Qty Type CNA4.0x35 CNA4.0x40 CNA4.0x50 CNA4.0x35 CNA4.0x40 CNA4.0x50 CNA4.0x35 CNA4.0x40
ABR1001Ø1010CNA*min (17,1; 21,6 /kmod)min (20,6; 21,6 /kmod)min (26,6; 21,6 /kmod)7.28.710.98.610.4

* Refer to Characteristic Capacity table columns for type of fasteners that can be used in Flange A. Capacities vary depending on fastener type used.
To obtain the resistance values for a single bracket, the values in the above table should be divided by two, provided that the supported beam is locked in rotation. Please consult our ETA-06/0106 if the beam is free to rotate.

Characteristic capacities - Timber to steel - Connection with 2 brackets

References Product capacities - Timber to Steel
Number of Fasteners Characteristic capacities - Timber C24 - 2 angle brackets per connection [kN]
Joist Flange B R1.k
Qty Type Qty Type CNA4.0x60
ABR10010CNA*4PDPA-7521.5

To obtain the resistance values for a single bracket, the values in the above table should be divided by two, provided that the supported beam is locked in rotation. Please consult our ETA-06/0106 if the beam is free to rotate.

Simplified characteristic capacities - Timber to concrete - Connection with 2 brackets

References Simplified product capacities - Timber to Concrete
Number of Fasteners Simplified characteristic capacities - Timber C24 - 2 angle brackets per connection [kN]
Joist Flange B R1.k** R2.k = R3.k
Qty Type Qty Type CNA4.0x35 CNA4.0x40 CNA4.0x50 CNA4.0x35 CNA4.0x40 CNA4.0x50
ABR1001Ø1010CNA*17.120.6247.28.710.9

* Refer to Characteristic Capacity table columns for type of fasteners that can be used in Flange A. Capacities vary depending on fastener type used.

Refer to the Simpson Strong-Tie anchor product range for suitable anchors. Typical anchor solutions deepend on the concrete type, spacing and edge distances.

** The published characteristic capacity is based on short term load duration and service class 2 according to EC5 (EN 1995) – kmod = 0.9. For other load duration and service class, please refer to the ETA to get more accurate capacities

With combined loads, the following formula shall be fulfilled



To obtain the resistance values for a single bracket, the values in the above table should be divided by two, provided that the supported beam is locked in rotation. Please consult our ETA-06/0106 if the beam is free to rotate.

Characteristic capacities - Timber beam to timber beam - Ø10 connector screws - 2 angle brackets

References Product capacities - Timber beam to timber beam - Ø10 connector screws - 2 angle brackets
Fasteners Characteristic capacities - Timber C24 - 2 angle brackets per connection [kN]
Flange A Flange B R1.k R2.k = R3.k
Qty Type Qty Type SSH10x40 SSH10x40
ABR1002SSH1SSH5.22.7

Characteristic capacities - Timber beam to concrete - Ø10 connector screws - 2 angle brackets

References Product capacities - Timber beam to rigid support - Ø10 connector screws - 2 angle brackets
Fasteners Characteristic capacities - Timber C24 - 2 angle brackets per connection [kN]
Flange A Flange B R1.k R2.k = R3.k
Qty Type Qty Type SSH10x40 SSH10x40
ABR1001Ø101SSH5.74.1

Refer to the Simpson Strong-Tie anchor product range for suitable anchors. Typical anchor solutions are BOAXII, SET-XP, WA, AT-HP, depending on the concrete type, spacing and edge distances.

Installation

Installation

Fixing

On wood:

  • CNA annular ring-shank nails dia. 4.0 x 35 or dia. 4.0 x 50 mm.
  • CSA screws dia. 5.0 x 35 mm or CSA screws dia. 5.0 x 40 mm.
  • Bolts.
  • LAG screws.

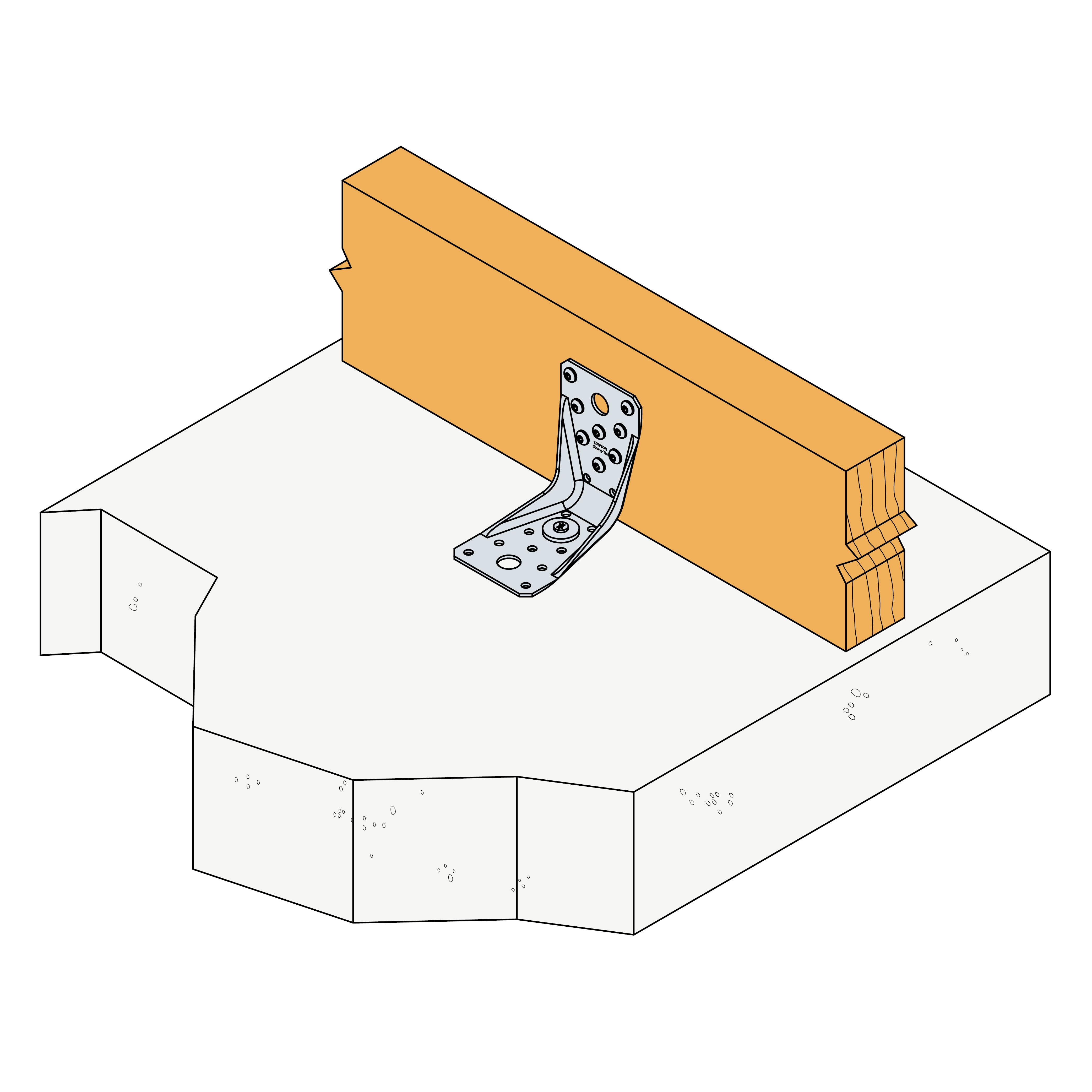

On concrete:
Concrete substrate

  • Mechanical anchor: WA M10-78/5 OR WA M12-104/5 pin.
  • Chemical anchor: AT-HP resin + LMAS M10-120/25 or LMAS M12-150/35 threaded rod.

Hollow masonry substrate:

  • Chemical anchor: AT-HP or POLY-GP resin + LMAS M12-150/35 threaded rod + SH M16-130 screen.

On steel:

  • Bolts.

Technical Notes

Certification

Declaration of Performance (DoP)

European Technical Assessment (ETA)
