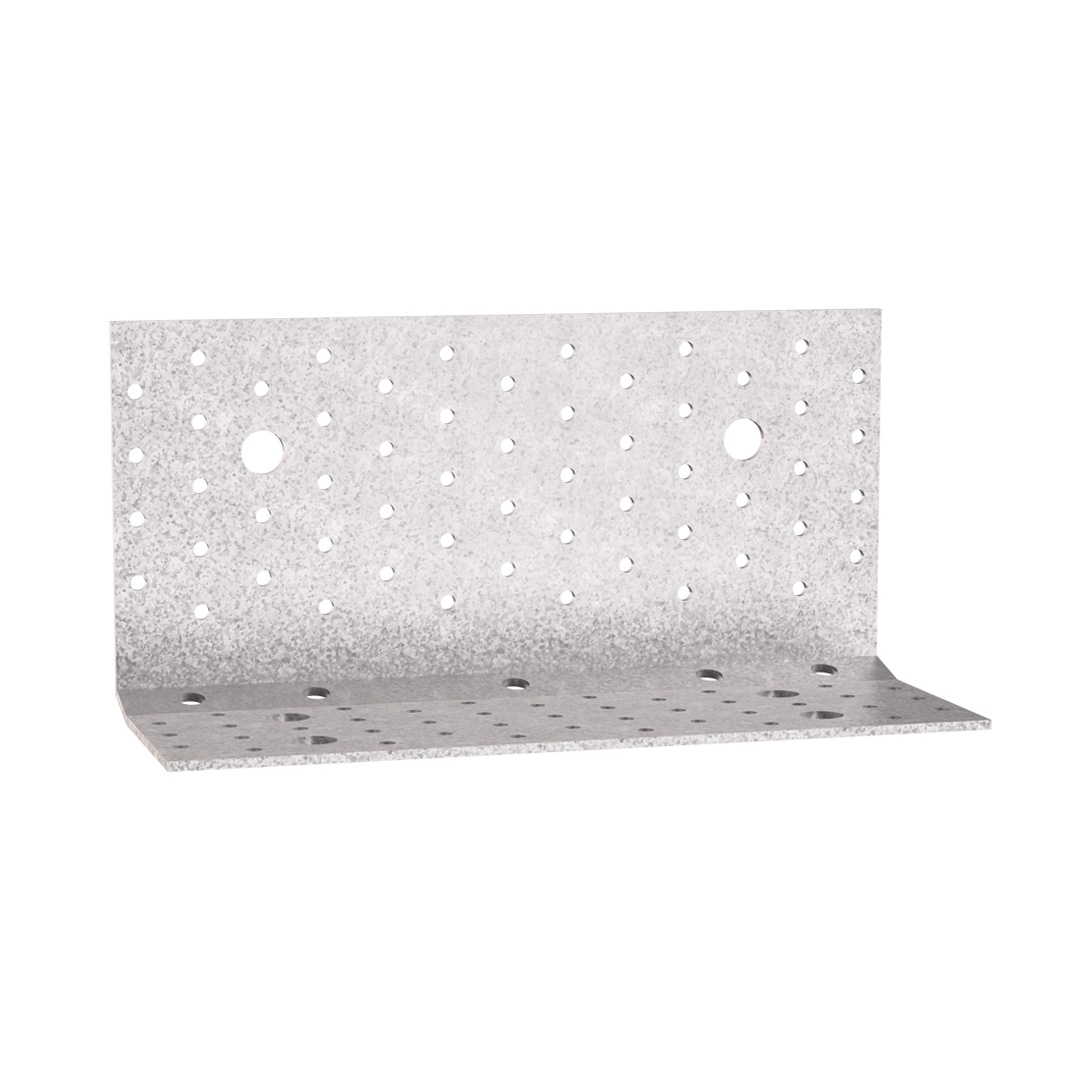

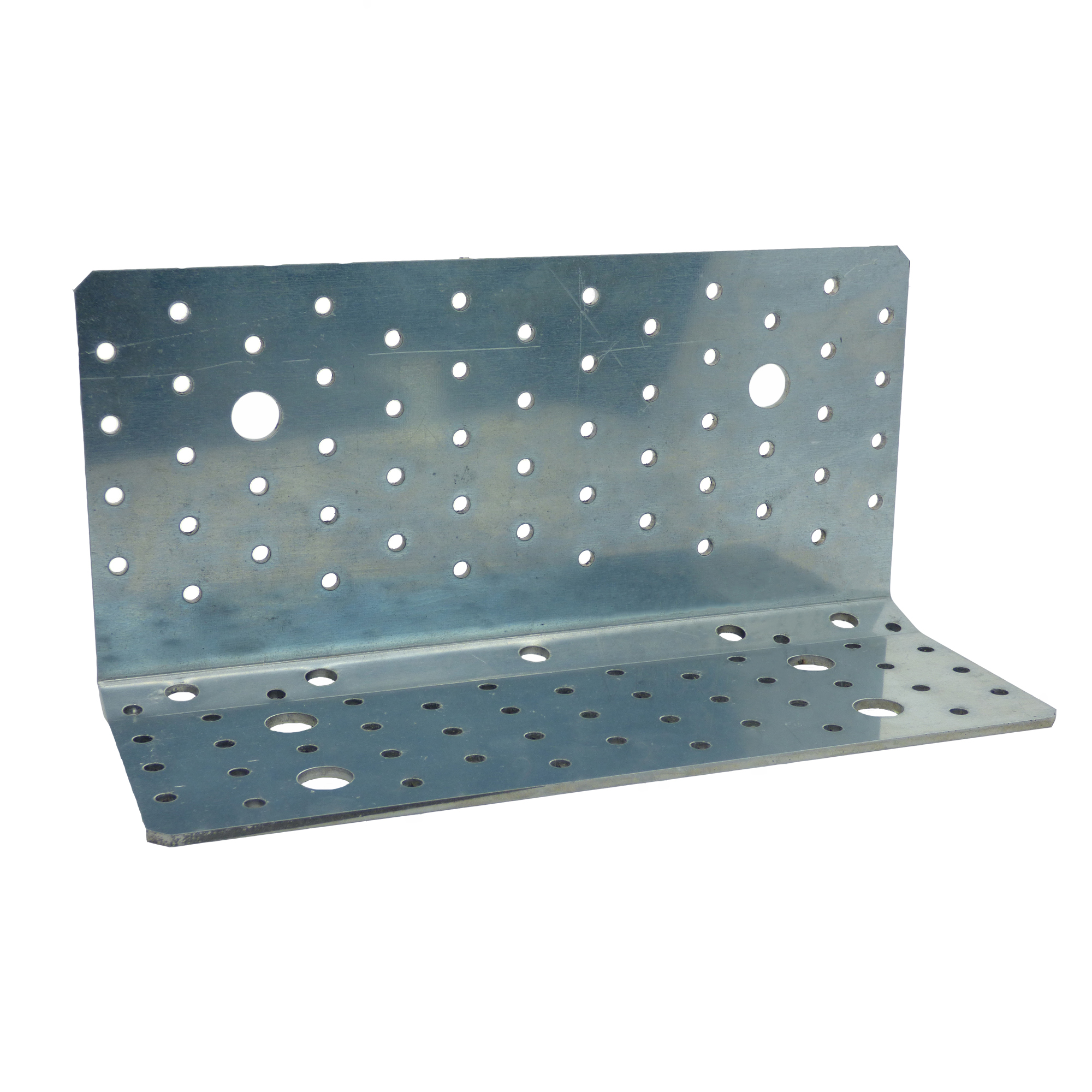

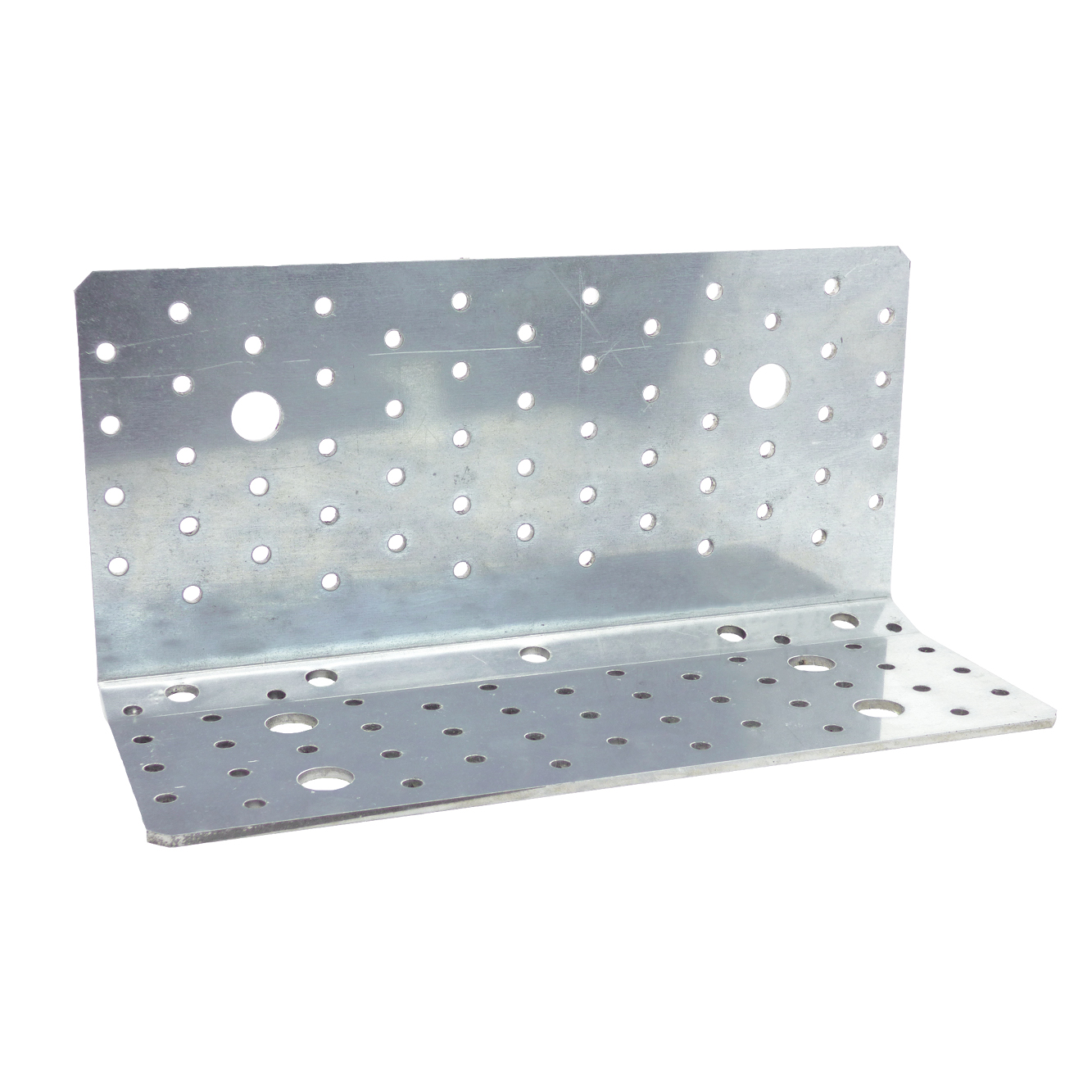

AB255HD
Reinforced Angle Bracket for CLT

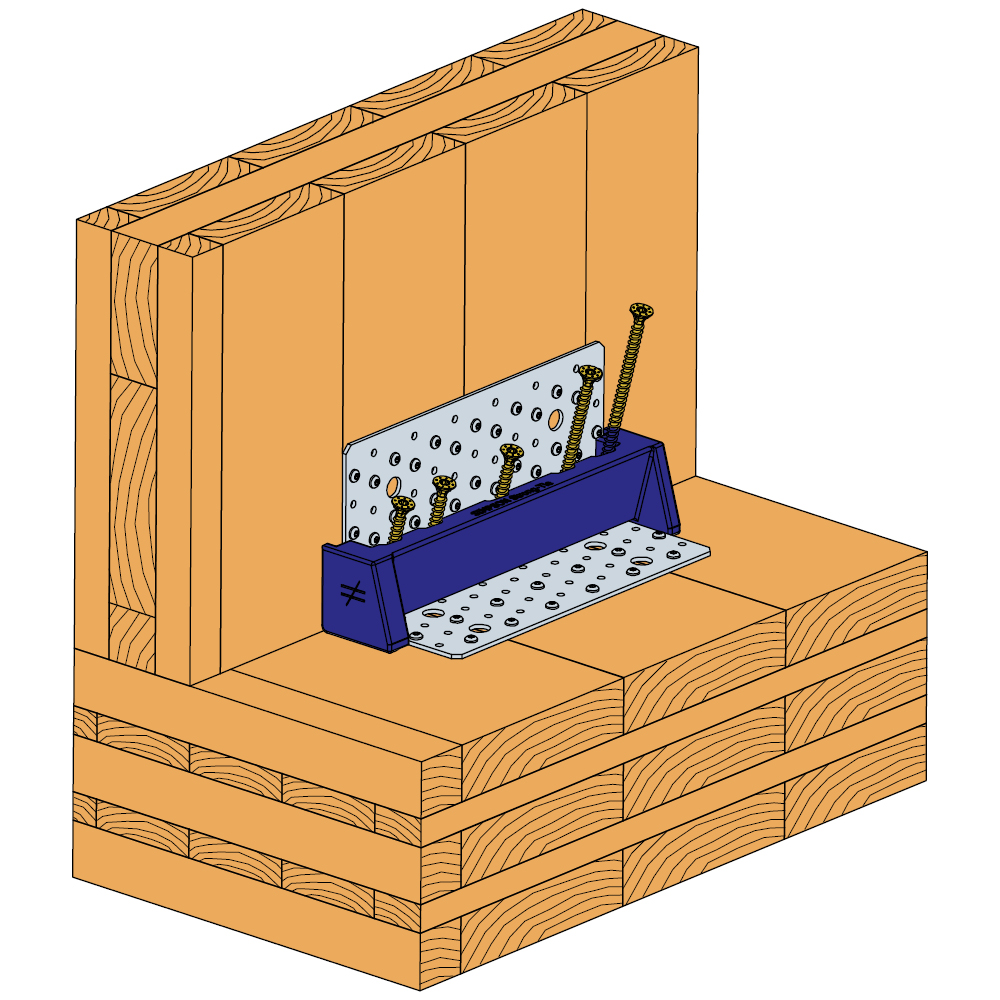

The AB255HD angle bracket is developped for CLT construction. Flexible, it is designed for both shear and vertical loading. With skewed full threaded screws, it enables very high uplift capacities and it can be hidden under concrete screed.
CE Marking
ETA
Service class 2
Indoor
Electrogalvanized steel Z275
Product Details
Images
Features
Application
Technical Data
Dimensions

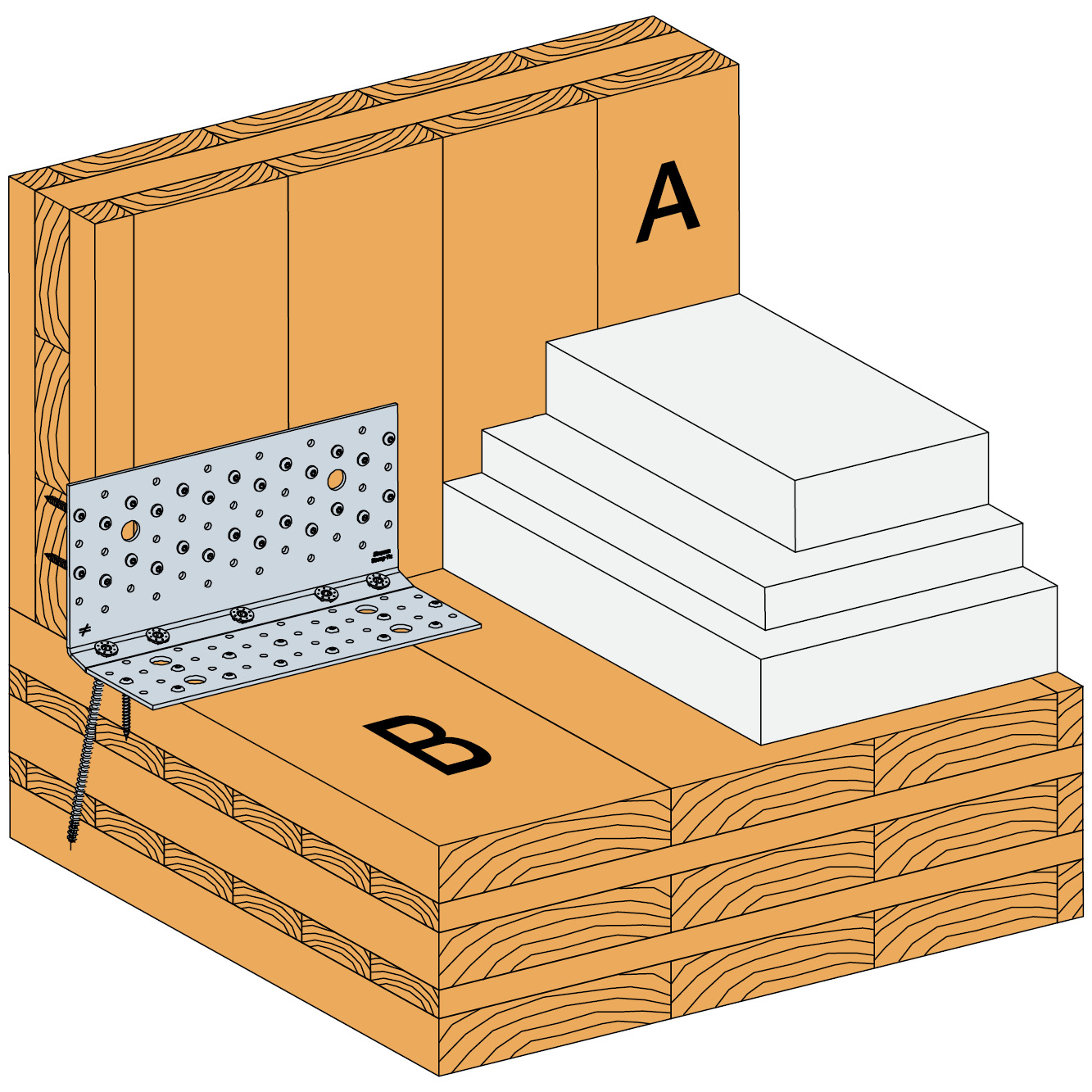

Product characteristic capacities - Timber to timber - 1 angle bracket - Nailing pattern 1
| References | Product capacities - Timber to timber - Nail pattern 1 | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Fasteners | Characteristic capacities - Timber C24 - 1 angle bracket per connection [kN] | |||||||||||||||||
| Flange A | Flange B | R1.k | R2.k = R3.k | R4.k | R5.k | |||||||||||||
| Qty | Type | Qty | Type | Qty | Type | CNA4.0x40 | CNA4.0x50 | CNA4.0x60 | CNA4.0x40 | CNA4.0x50 | CNA4.0x60 | CNA4.0x40 | CNA4.0x50 | CNA4.0x60 | CNA4.0x40 | CNA4.0x50 | CNA4.0x60 | |
| AB255HD | 26 | CNA/CSA | 5 | ESCRFTC8.0x140 | 13 | CNA/CSA | min (47.0 ; 56/kmod) | min (51.0 ; 56/kmod) | min (51.0 ; 56/kmod) | 35 | 42.9 | 45.7 | 13.9/kmod^0.8 | 13.9/kmod^0.8 | 13.9/kmod^0.8 | min (6.6 ; 9.2/kmod) | min (8.7 ; 9.2/kmod) | min (10.9 ; 9.2/kmod) |
The value in the table above can be used if the panel can't rotate.
The R1.k values are valid for any quantity of CNA/CSA fasteners on flange B.
Values with other ESCRFTC length are availables in ETA.
Simplified characteristic capacities - Timber to timber - 1 angle bracket - Nailing pattern 1
| AB255HD |
- The published characteristic capacity is based on short term load duration and service class 2 according to EC5 (EN 1995) – kmod = 0.9. For other load duration and service class, please refer to the ETA to get more accurate capacities.
- The value in the table above can be used if the panel can't rotate.
- The R1,k values are valid for any quantity of CNA/CSA fasteners on flange B.
- Values with other ESCRFTC length are availables in ETA.
Product characteristic capacities - Timber to timber - 1 angle bracket - Nailing pattern 2
| References | Product capacities - Timber to timber - Nail pattern 2 | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Fasteners | Characteristic capacities - Timber C24 - 1 angle bracket per connection [kN] | |||||||||||||||||||
| Flange A | Flange B | R1.k | R2.k = R3.k | R4.k | R5.k | |||||||||||||||
| Qty | Type | Qty | Type | Qty | Type | CNA4.0x40 | CNA4.0x50 | CNA4.0x60 | CSA5.0x50 | CNA4.0x40 | CNA4.0x50 | CNA4.0x60 | CSA5.0x50 | CNA4.0x40 | CNA4.0x50 | CNA4.0x60 | CNA4.0x40 | CNA4.0x50 | CNA4.0x60 | |
| AB255HD | 30 | CNA/CSA | 5 | ESCRFTC8.0x200 | 13 | CNA/CSA | min (54.2 ; 56/kmod) | min (66.4 ; 56/kmod) | min (70.8 ; 56/kmod) | min (72.4 ; 56/kmod) | 37.7 | 46.5 | 49.7 | 53.5 | 13.9/kmod^0.8 | 13.9/kmod^0.8 | 13.9/kmod^0.8 | min (10.2 ; 9.2/kmod) | min (13.5 ; 9.2/kmod) | min (16.8 ; 9.2/kmod) |
The value in the table above can be used if the panel can't rotate.
The R1.k values are valid for any quantity of CNA/CSA fasteners on flange B.
Values with other ESCRFTC length are availables in ETA.
Simplified characteristic capacities - Timber to timber - 1 angle bracket - Nailing pattern 2
| AB255HD |
- The published characteristic capacity is based on short term load duration and service class 2 according to EC5 (EN 1995) – kmod = 0.9. For other load duration and service class, please refer to the ETA to get more accurate capacities.
- The value in the table above can be used if the panel can't rotate.
- The R1,k values are valid for any quantity of CNA/CSA fasteners on flange B.
- Values with other ESCRFTC length are availables in ETA.
Product characteristic capacities - Timber to timber - 1 angle bracket - Nailing pattern 3
| References | Product capacities - Timber to timber - Nail pattern 3 | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Fasteners | Characteristic capacities - Timber C24 - 1 angle bracket per connection [kN] | |||||||||||||||||||
| Flange A | Flange B | R1.k | R2.k = R3.k | R4.k | R5.k | |||||||||||||||
| Qty | Type | Qty | Type | Qty | Type | CNA4.0x40 | CNA4.0x50 | CNA4.0x60 | CSA5.0x50 | CNA4.0x40 | CNA4.0x50 | CNA4.0x60 | CSA5.0x50 | CNA4.0x40 | CNA4.0x50 | CNA4.0x60 | CNA4.0x40 | CNA4.0x50 | CNA4.0x60 | |
| AB255HD | 26 | CNA/CSA | 3 | ESCRFTC8.0x200 | 13 | CNA/CSA | min (46.8 ; 56/kmod) | min (46.8 ; 56/kmod) | min (46.8 ; 56/kmod) | min (46.8 ; 56/kmod) | 28.3 | 32.4 | 32.4 | 43.4 | 13.9/kmod^0.8 | 13.9/kmod^0.8 | 13.9/kmod^0.8 | min (6.5 ; 9.2/kmod) | min (8.7 ; 9.2/kmod) | min (10.8 ; 9.2/kmod) |
The value in the table above can be used if the panel can't rotate.
The R1.k values are valid for any quantity of CNA/CSA fasteners on flange B.
Values with other ESCRFTC length are availables in ETA.
Simplified characteristic capacities - Timber to timber - 1 angle bracket - Nailing pattern 3
| AB255HD |
- The published characteristic capacity is based on short term load duration and service class 2 according to EC5 (EN 1995) – kmod = 0.9. For other load duration and service class, please refer to the ETA to get more accurate capacities.
- The value in the table above can be used if the panel can't rotate.
- The R1,k values are valid for any quantity of CNA/CSA fasteners on flange B.
- Values with other ESCRFTC length are availables in ETA.

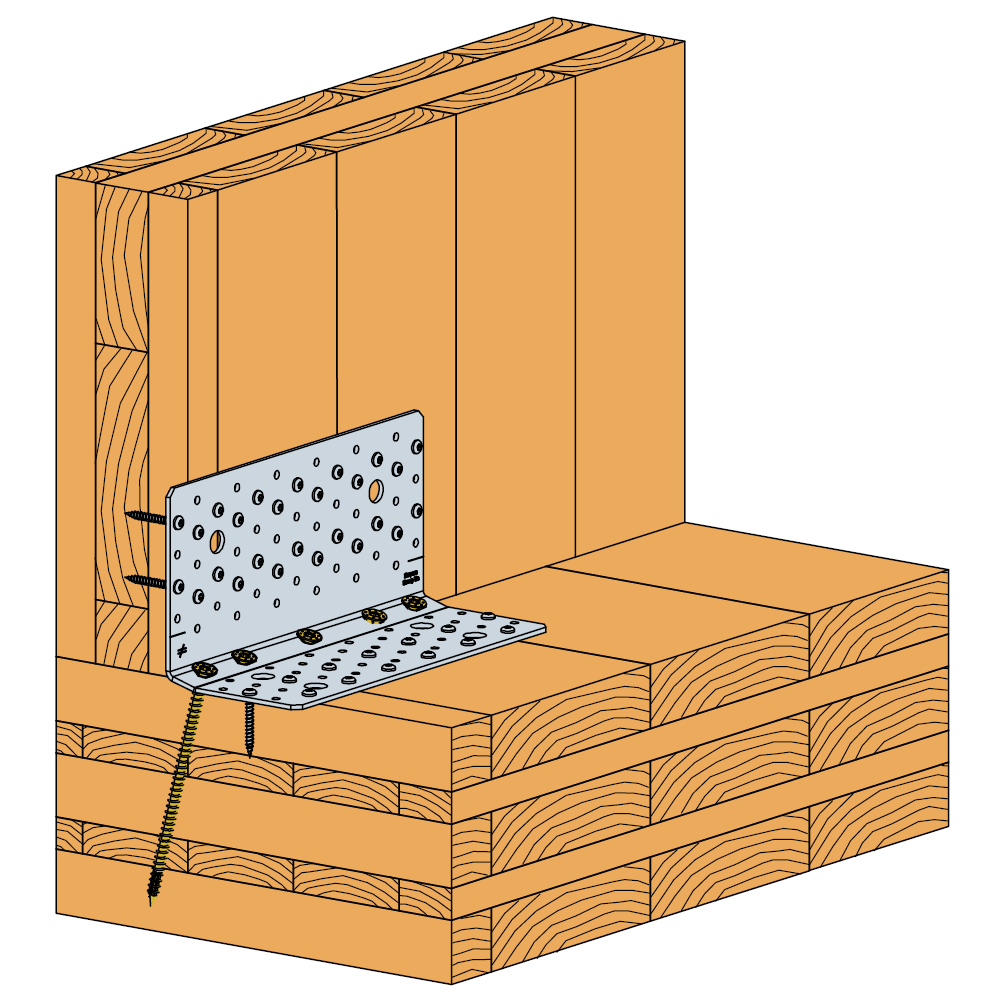

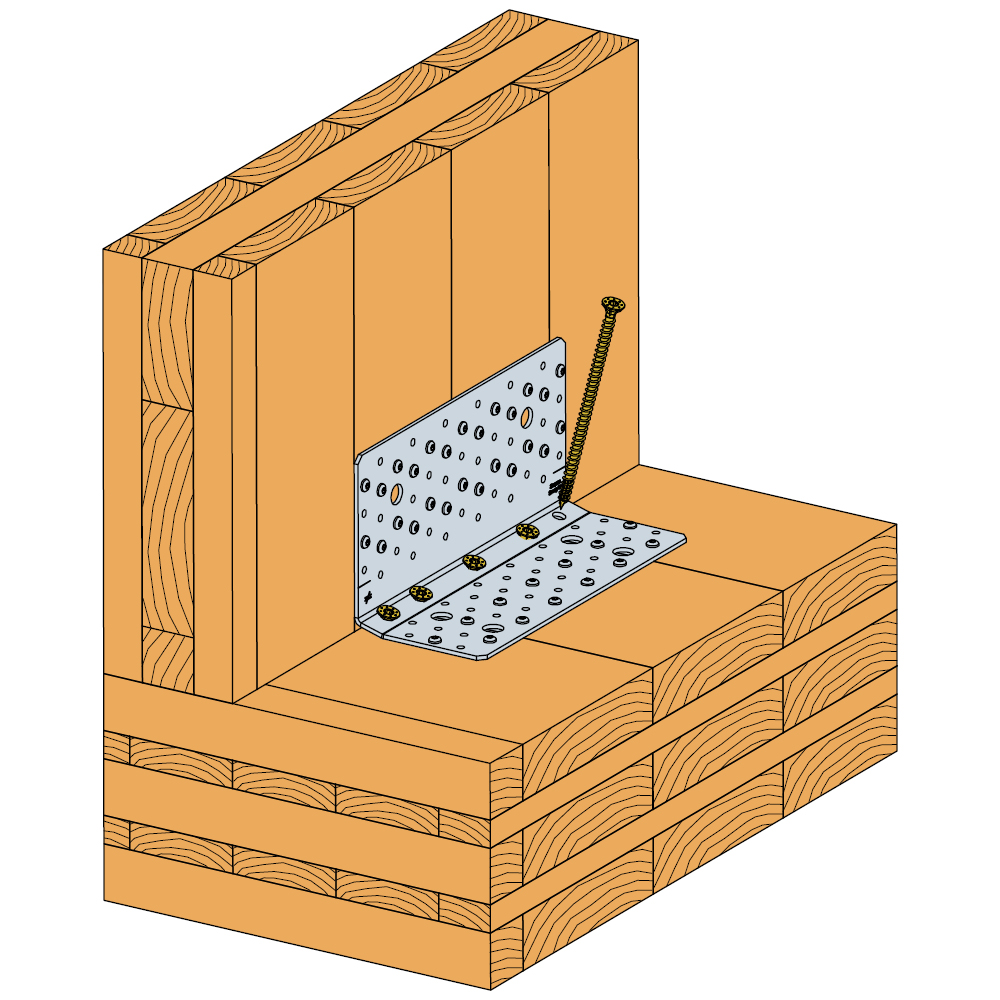

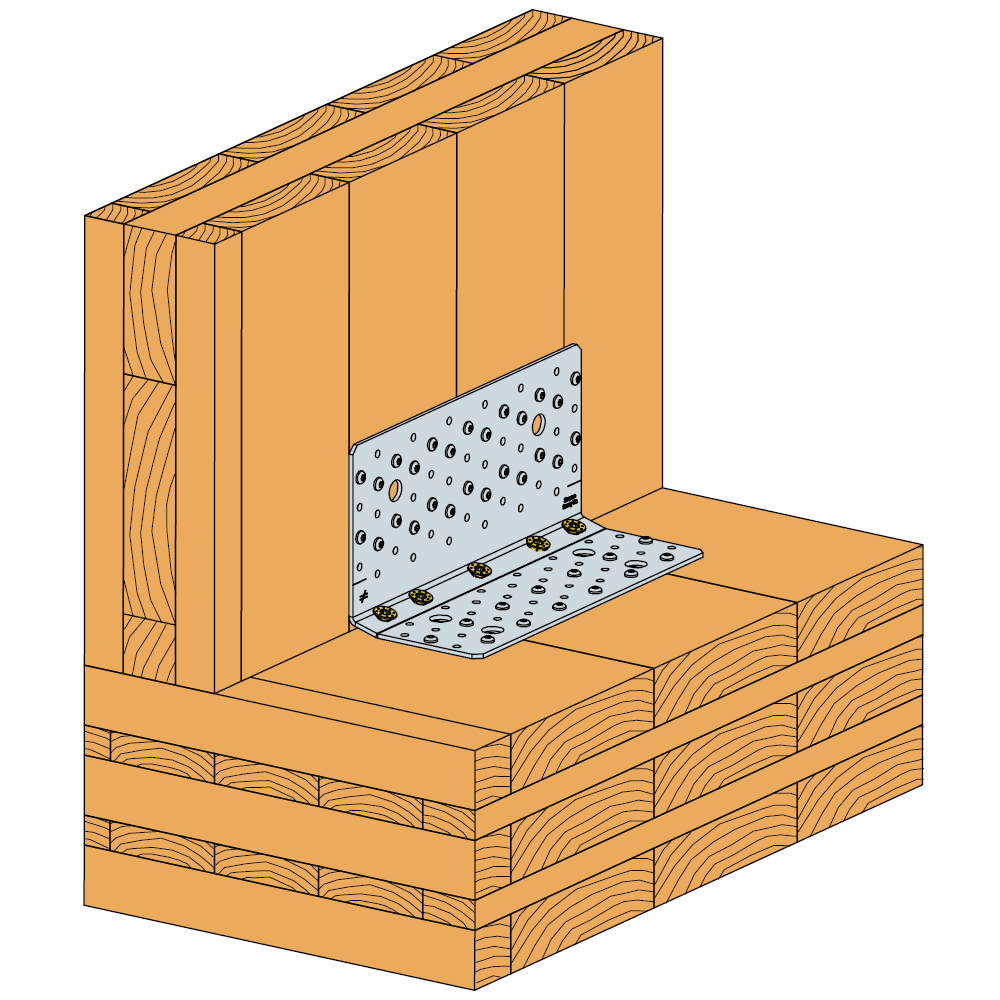

Installation
Installation

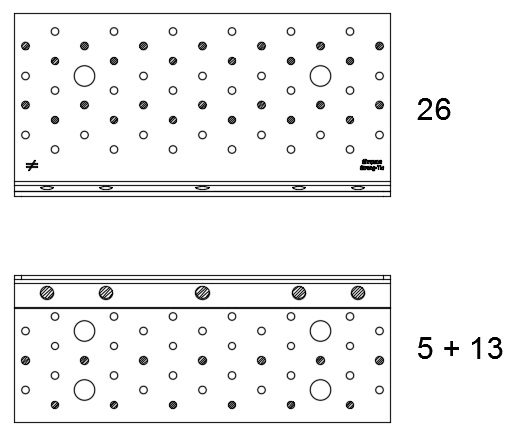

Nail Pattern 1

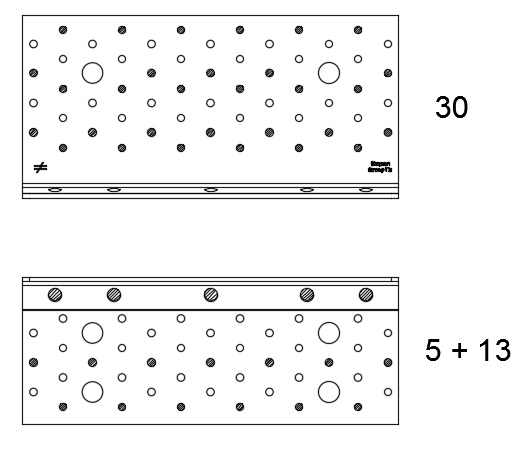

Nail Pattern 2

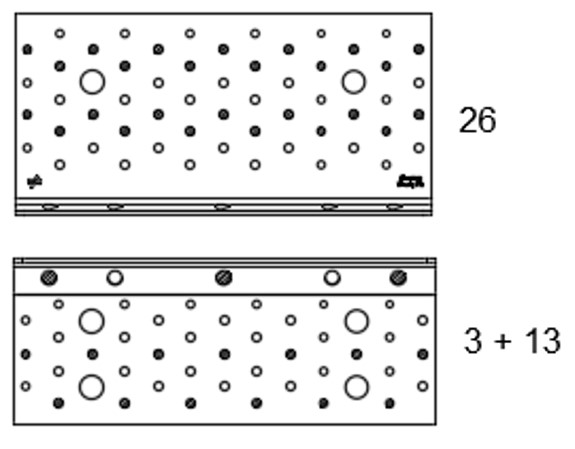

Nail Pattern 3
