ESCRFTC

Fully Threaded Countersunk Structural Wood Screw

ESCRFTC is a fully threaded structural screw with a countersunk head, suitable for hidden timber to timber assembly. This ETA approved screw can also be used for timber reinforcement and load bearing timber structures.

Technical Data Sheet
CE Marking
CE Marking
ETA
ETA
Yellow electro-galvanised steel
Yellow electro-galvanised steel
Service class 2
Service class 2
Indoor
Indoor
EPD
EPD
Fastener Designer
Fastener Designer

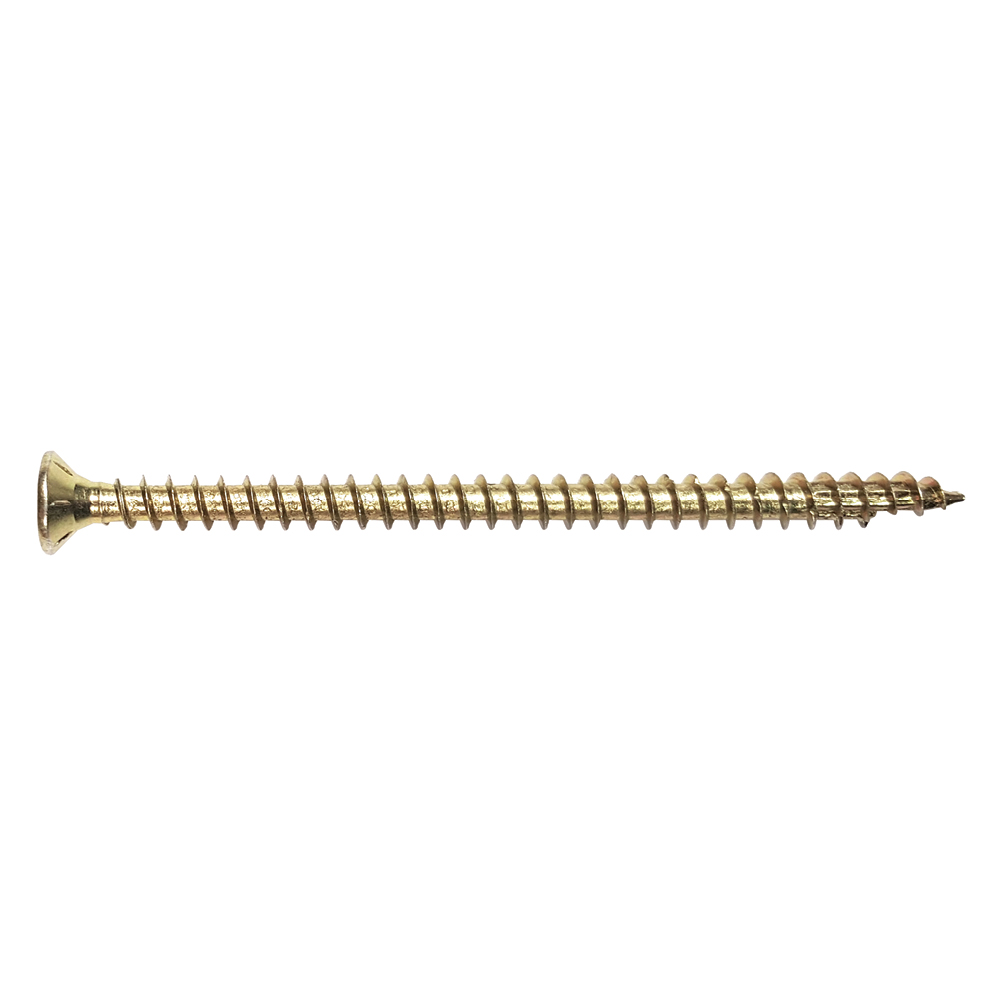

ESCRFTC main image.jpg

Product Details

Images

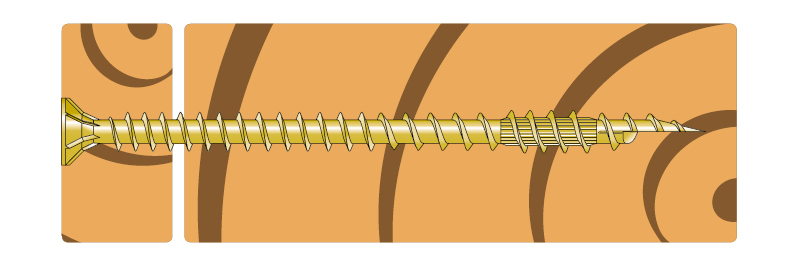

ESCRFTC install image.jpg

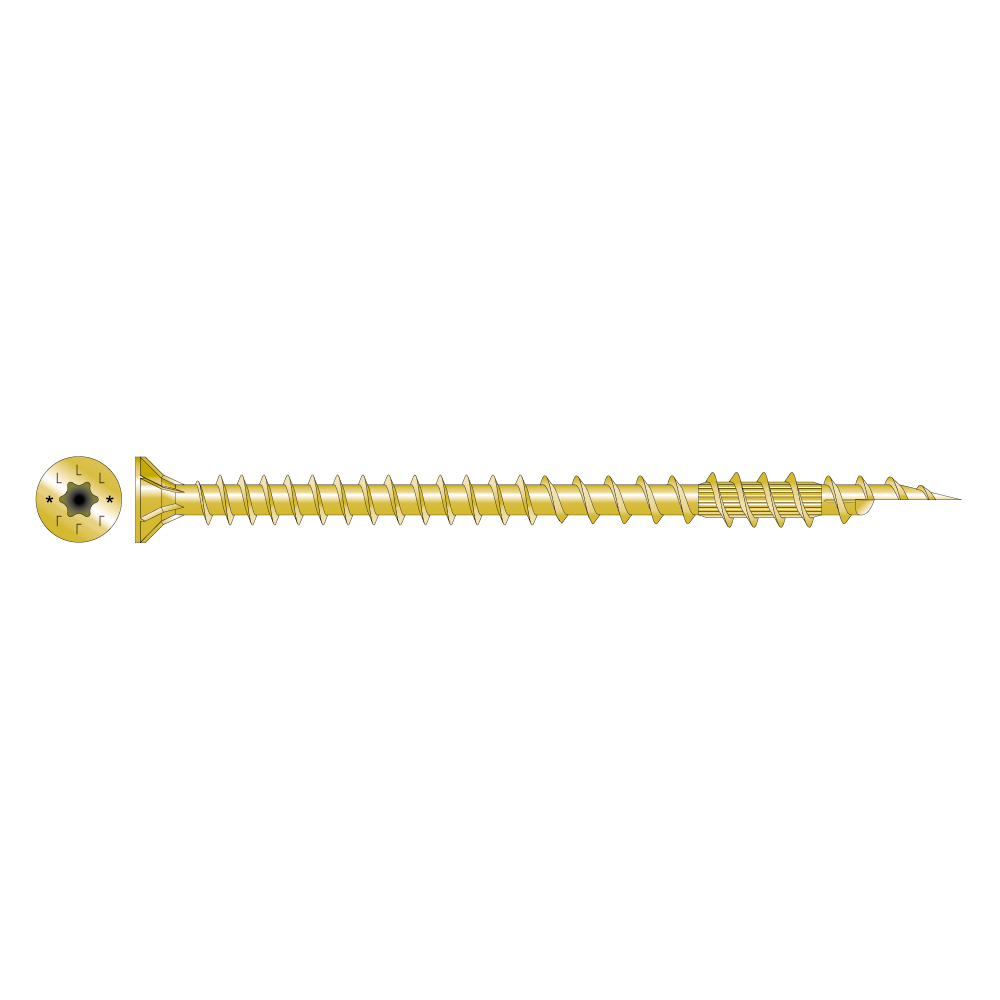

ESCRFTC photo gallery.jpg

Features

Material

Steel - Electrogalvanised yellow zinc coating

Features

  • ETA approved (ETA-13/0796)
  • No pre-drilling required
  • High withdrawal resistance
  • Fully threaded
  • Countersunk head
  • Half cut point reduces splitting effect and allows smaller minimum spacings and edge distances. Easier installation when skewed
  • 6 lobe drive

Application

Suitable for

  • Solid Timber, Glulam timber, CLT, Wood-based panels
  • Pre-drilled steel plate

Common Applications

  • Timber to timber assembly
  • Timber reinforcement (to transversile tension or compression)
  • Solid Timber
  • Glulam timber
  • CLT
  • Wood-based panels
  • Pre-drilled steel plate

Technical Data

Product Dimensions

Dimensions

Product Dimensions
Product Dimensions
ReferenceFasteners Dimensions[mm]
OtherProduct information[mm]
Tun / DB nr.NOB nr.Weight[kg]l[mm]Thread Length[mm]d1[mm]d[mm]dh[mm]Driver Bit[mm]
ESCRFTC8.0X1401965717600073780.031401305.1815T-40
ESCRFTC8.0X1601965718600073670.0351601505.1815T-40
ESCRFTC8.0X1801965719600073550.0391801705.1815T-40
ESCRFTC8.0X2001965720600073560.0432001905.1815T-40
ESCRFTC8.0X2202396034600073790.0472202105.1815T-40
ESCRFTC8.0X2401965721600073570.0512402305.1815T-40
ESCRFTC8.0X260-600073640.0552602505.1815T-40
ESCRFTC8.0X3002396035600073820.0633002905.1815T-40
ESCRFTC8.0X3502396036600073860.0723503405.1815T-40
ESCRFTC10.0X240-600073710.0742402286.31018.5T-50
ESCRFTC10.0X260-600073740.082602486.31018.5T-50
ESCRFTC10.0X280-600073930.0862802686.31018.5T-50
ESCRFTC10.0X300-600073690.0923002886.31018.5T-50
ESCRFTC10.0X350-600073800.113503386.31018.5T-50
ESCRFTC10.0X400-600074120.124003886.31018.5T-50
ESCRFTC12.0X260-600074060.1126024071220T-50
ESCRFTC12.0X280-600073950.128026071220T-50
ESCRFTC12.0X300-600074040.1130028071220T-50
ESCRFTC12.0X350-600073810.1335033071220T-50
ESCRFTC12.0X400-600074130.1540038071220T-50
ESCRFTC12.0X500-600074020.250048071220T-50

Structural Parameters - hEN14592

Table "Structural Parameters - hEN14592" cannot be displayed : no references available.

Certification

Declaration of Performance (DoP)

uk-dop-e13-0796-03.pdf
Show history
uk-dop-e13-0796-issue-2-0.pdf

European Technical Assessment (ETA)

eta-13-0796.pdf
No history available

Environmental Product Declarations (EPD)

epd-certificate-sst-screws
