MTLD

Mass Timber Lifting Device

The MTLD mass timber lifting device provides a fast and efficient method for erecting panels and beams. It quickly attaches to and detaches from a single screw anchored into the mass timber element, saving time during the rigging process.

Technical Data Sheet
CE Marking
Electrogalvanized steel 12µm

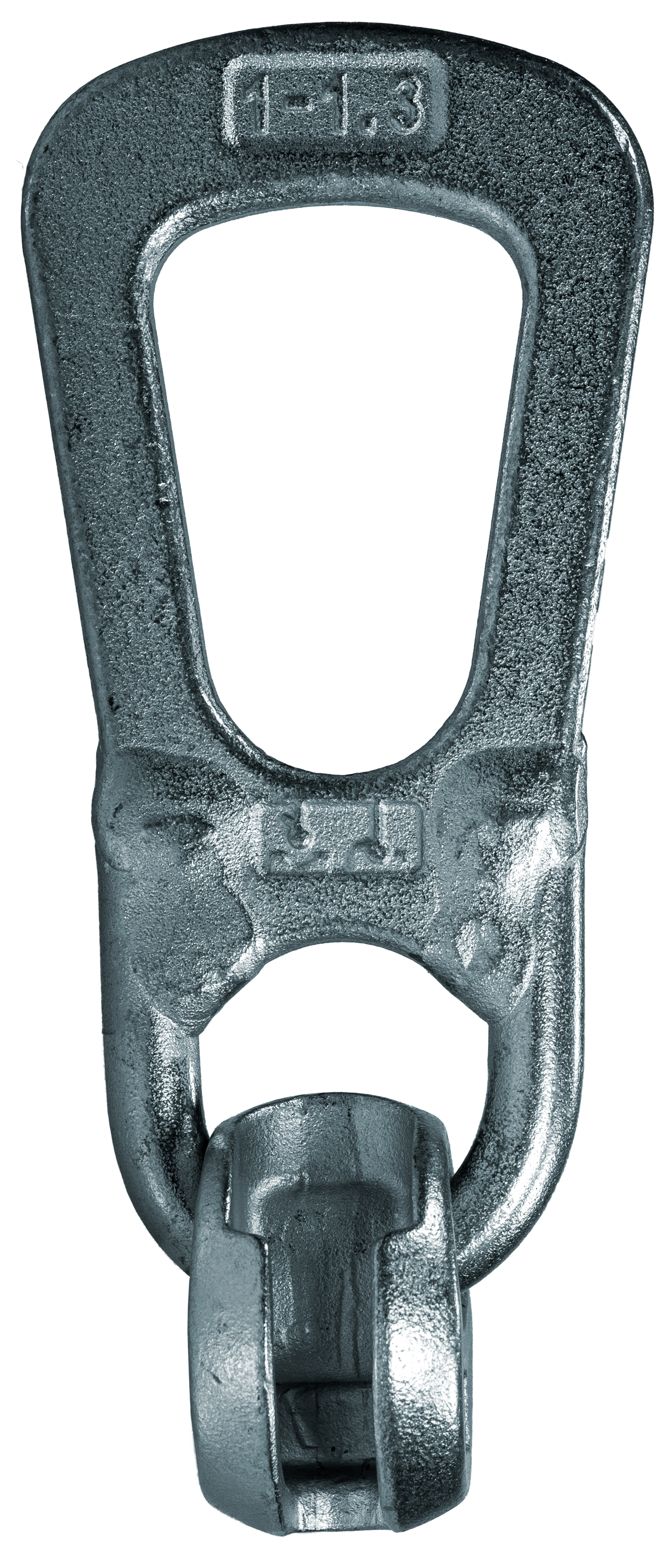

C_MTLD_ProdPho_Pho_Prod_LightLiftingDevice-MassTimber_C0

Product Details

Images

C_MTLD_InstPho_RI_Instld_LightLiftingDevice-MassTimber-CLTPanelRigging-Detail_C0

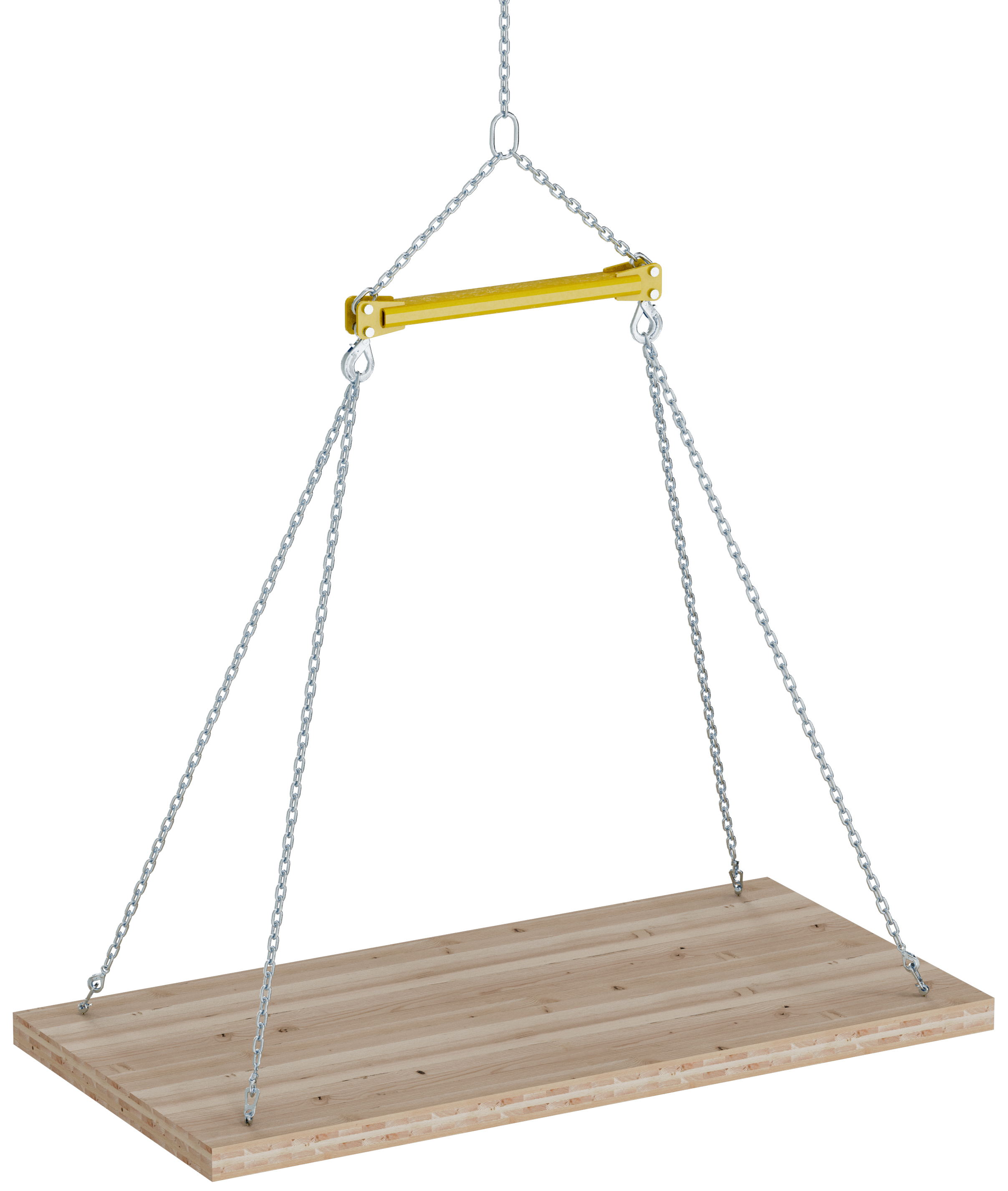

C_MTLD_InstPho_RI_Instld_LightLiftingDevice-MassTimber-CLTPanelRigging_C0

Features

Material

  • Steel
  • Zinc electroplated

Application

Advantage

  • Fast attachment and detachment
  • Attaches with a single screw
  • Load-rated with multiple screw options
  • Screw installed with or without milled pocket
  • Directive 2006/42/EC on machinery compliant

Installation

  • See Lifting Device Design Guide TEB-C-LIFTING-EU for warnings, installation instructions and information on rigging design considerations, loads, capacities, and maintenance of the MTLD.

  • Do not use the MTLD until you have read all warnings, disclaimers, instructions and information on this page and in technical bulletins TEB-C-LIFTING-EU and MANUAL-EU-MTLD.

  • A qualified design professional must specify screw (SSH or fully threaded screw with countersunk head in diameter 12mm ). Screws may be installed with drill motors in accordance with MANUAL-EU-MTLD.

Technical Data

Dimensions

C_MTLD_ProdIll_Ill_Prod_FR_CY

Product dimensions

References Product dimensions [mm] Weight [kg]
A B C Package content
MTLD-R2E78158532 lifting devices, 1 gauge0.93

Product allowable capacities - Installation without milled pocket

References Lifting capacity - Perpendicular screw - 1 screw
Allowable tension load [F] [kg]
θ = 90° θ = 60°
SSH12.0X100 SSH12.0X160 ESCRFTC12,0X260 SSH12.0X100 SSH12.0X160 ESCRFTC12,0X260
MTLD-R2E2825611126244486975

Other lengths are possible, the screw's capacity must be checked by a professional designer.

Product allowable capacities - Installation with milled pocket

References Lifting capacity - Perpendicular screw with milled pocket - 1 screw
Allowable tension load [F] [kg]
60° ≤ θ ≤ 90°
SSH12X100 SSH12.0X160 ESCRFTC12,0X260
MTLD-R2E2825611126

Other lengths are possible, the screw's capacity must be checked by a professional designer.
