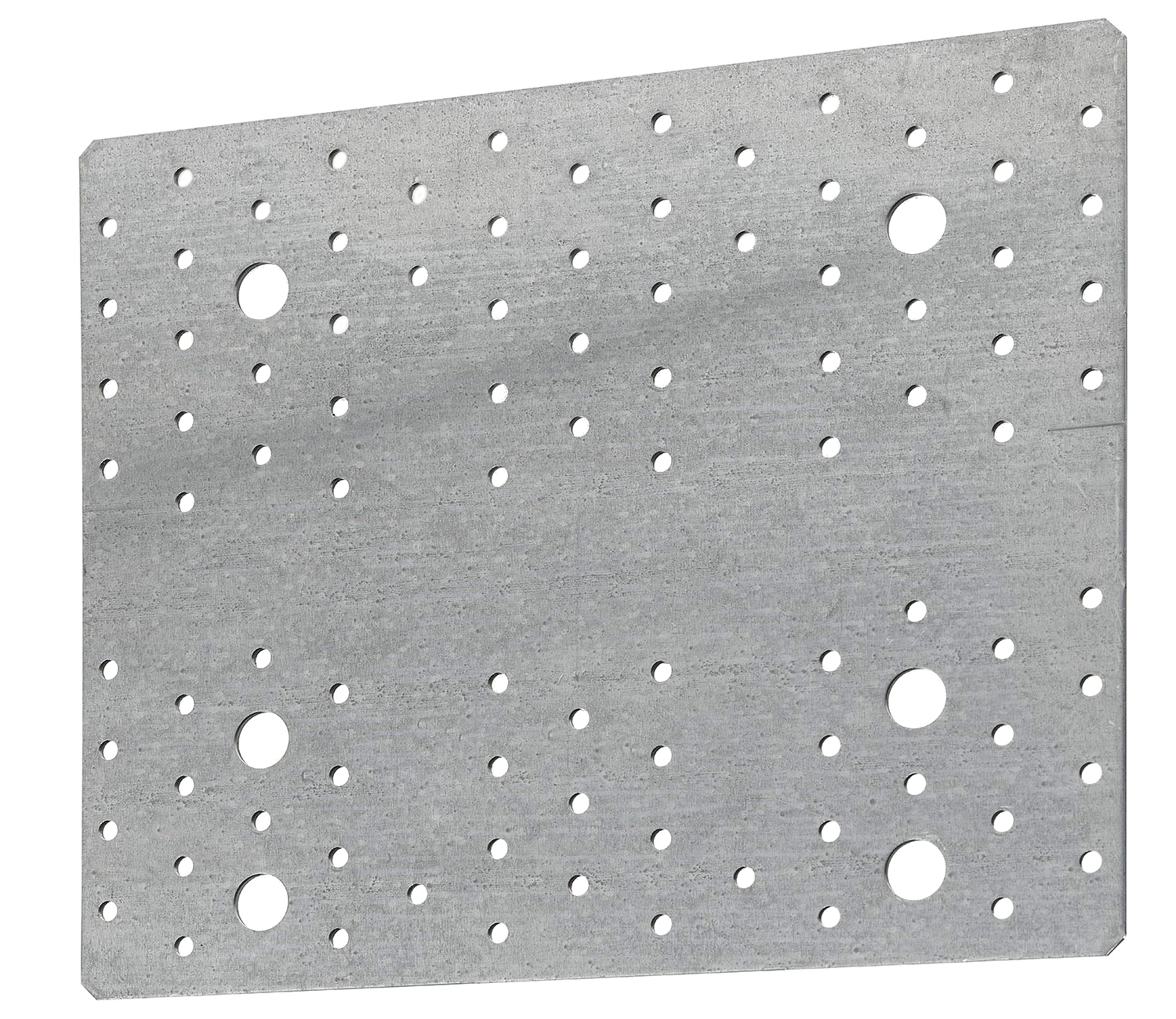

NPB255

Nail plate for CLT

Nail plate NPB255 has been developed to fix to provde support for and CLT panels to CLT Floors, timber supports or concrete supports.

Versatlie and simple to install, centre markings are stamped onto the plate to assist accurate positioning over the CLT panels.

CE Marking

ETA

Service class 2

Electrogalvanized steel 20 µm

Indoor

Product Details

Wood to wood

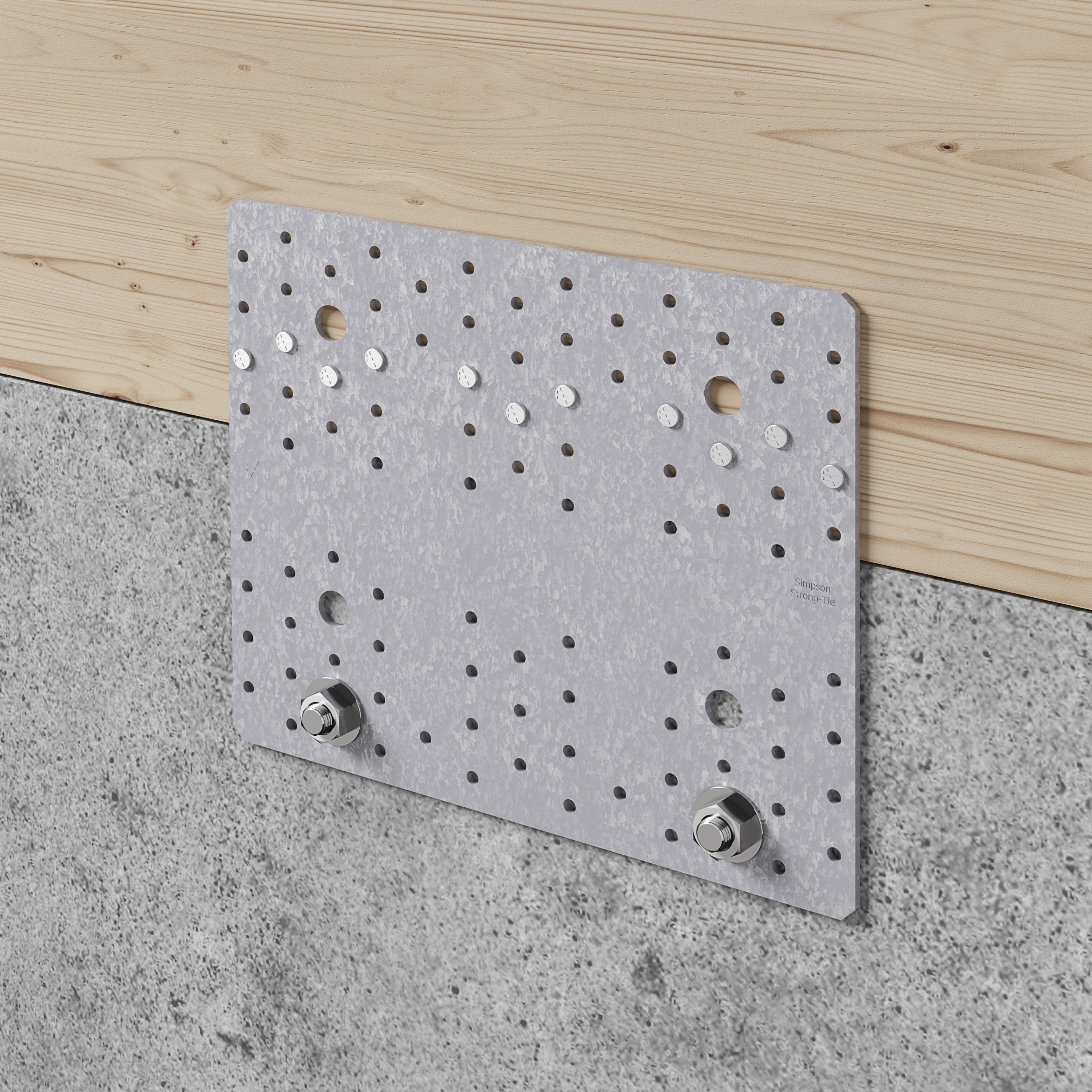

Wood to concrete

Ideal for use in Timber and CLT buildings

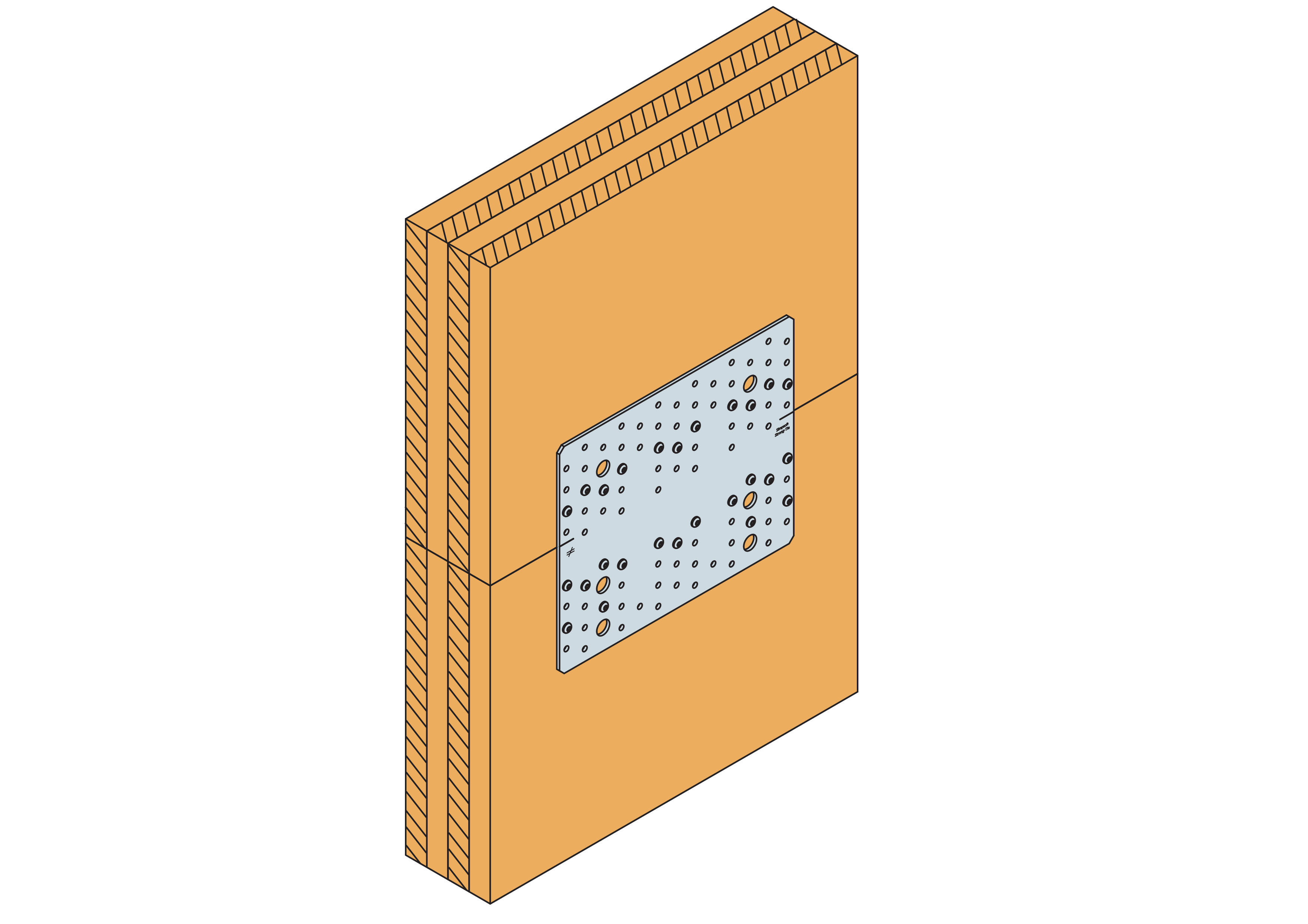

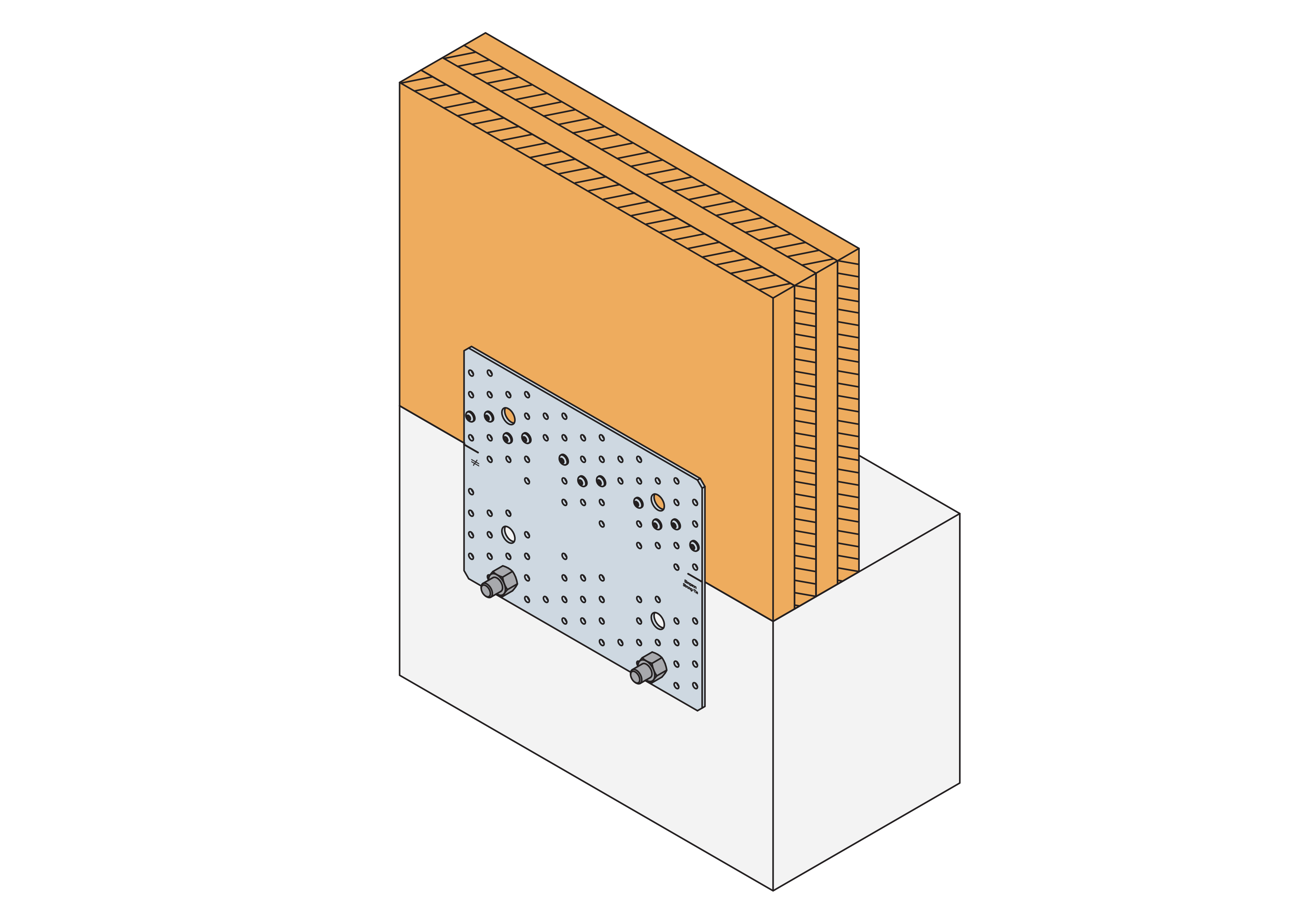

Great versatility: can be utilised for Timber to Timber , Timber to concrete, CLT to CLT or CLT to concrete connections,

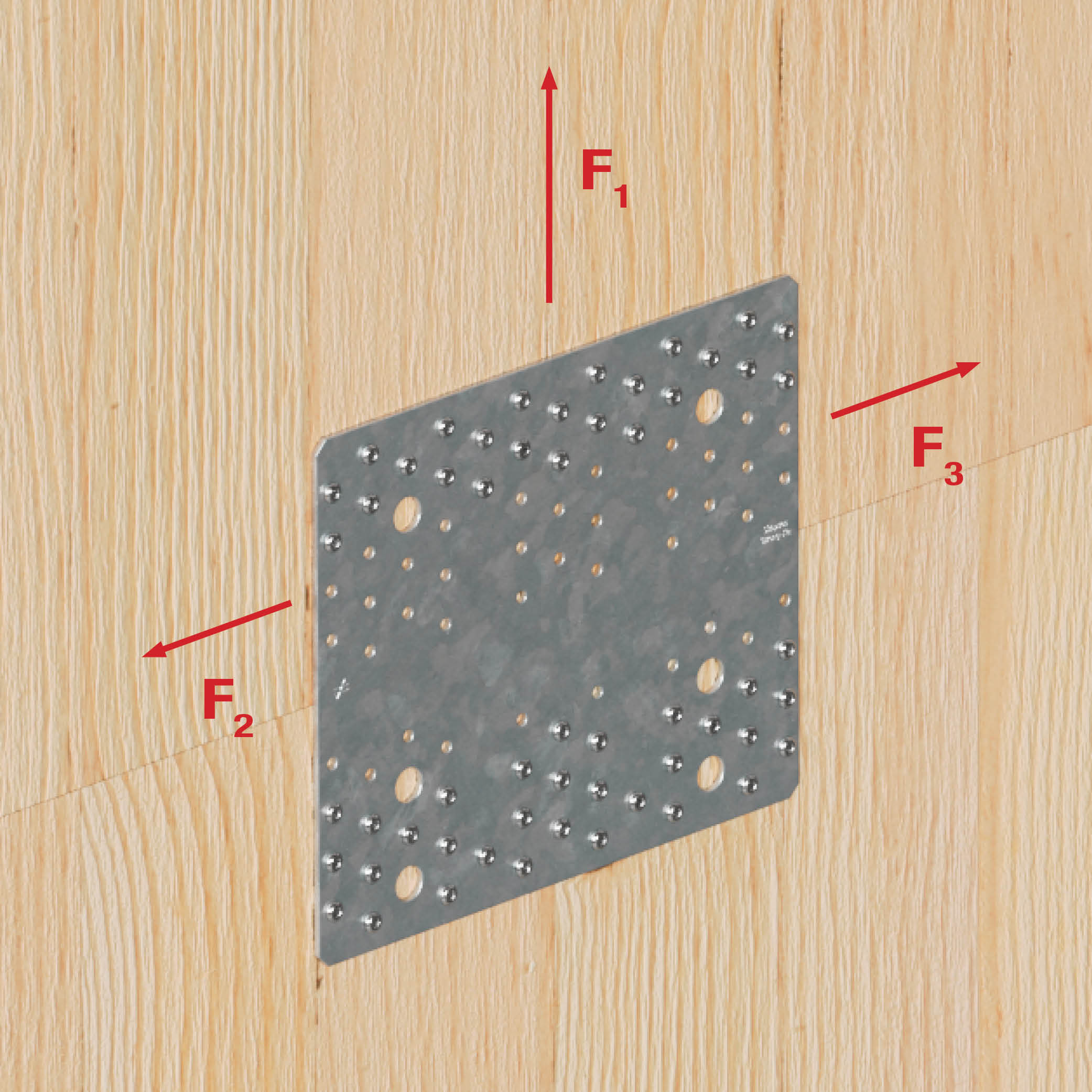

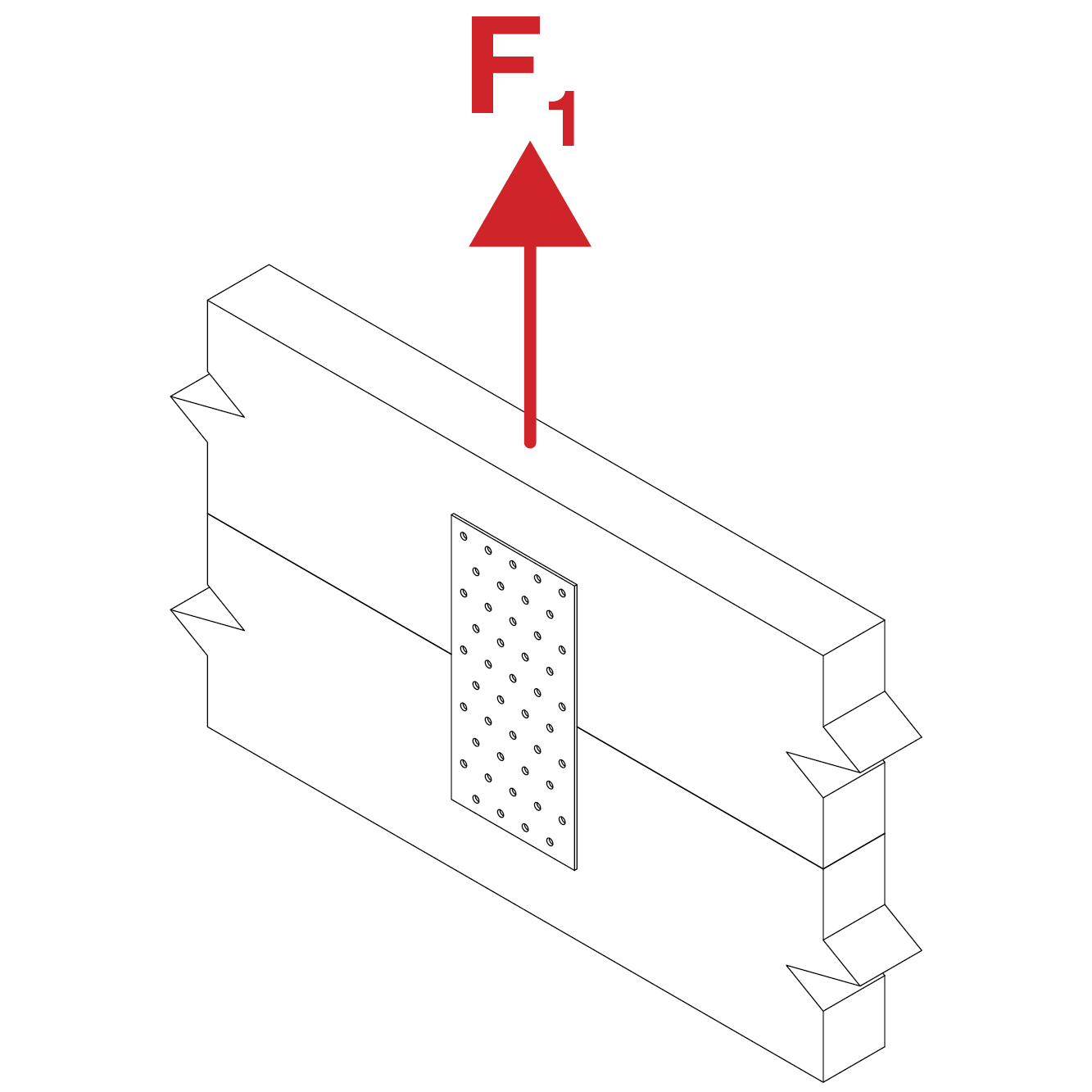

High performance for horizontal (F₂ / F₃) and vertical (F₁) loads directions.

References	Dimensions [mm]
References	A	B	t
NPB255	214	255	3

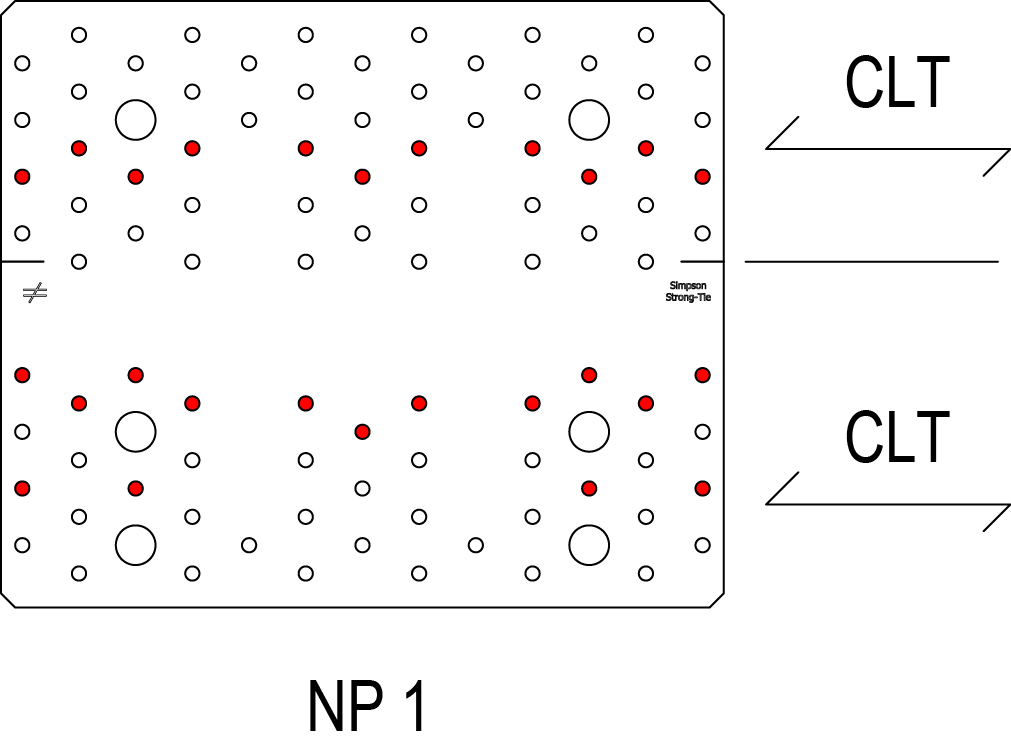

References	Product capacities - Timber to timber - Nailing pattern 1
	Fasteners		Product characteristic capacities - Timber C24 [kN]
	Top part	Bottom part	R_1.k		R_2.k
	Top part	Bottom part	CNA4.0x50	CSA5.0x50	CNA4.0x50	CSA5.0x50
NPB255	11	15	23.9	27.6	20.8	24

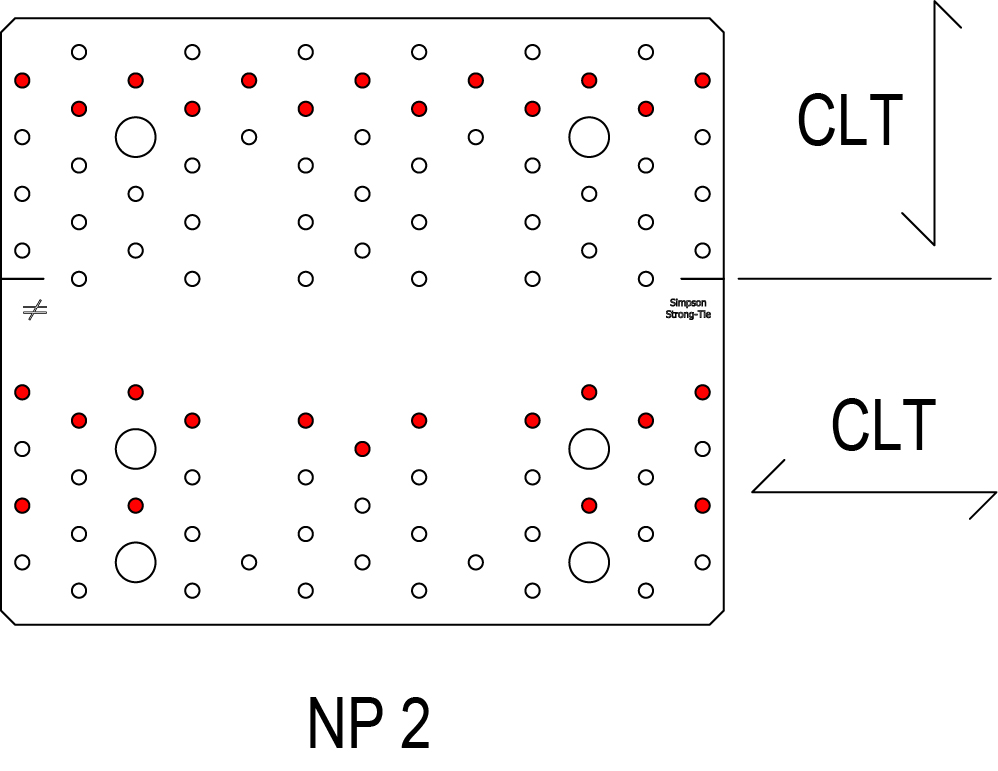

References	Product capacities - Timber to timber - Nailing pattern 2
	Fasteners		Product characteristic capacities - Timber C24 [kN]
	Top part	Bottom part	R_1.k		R_2.k
	Top part	Bottom part	CNA4.0x50	CSA5.0x50	CNA4.0x50	CSA5.0x50
NPB255	13	15	28.3	32.6	19.4	22.3

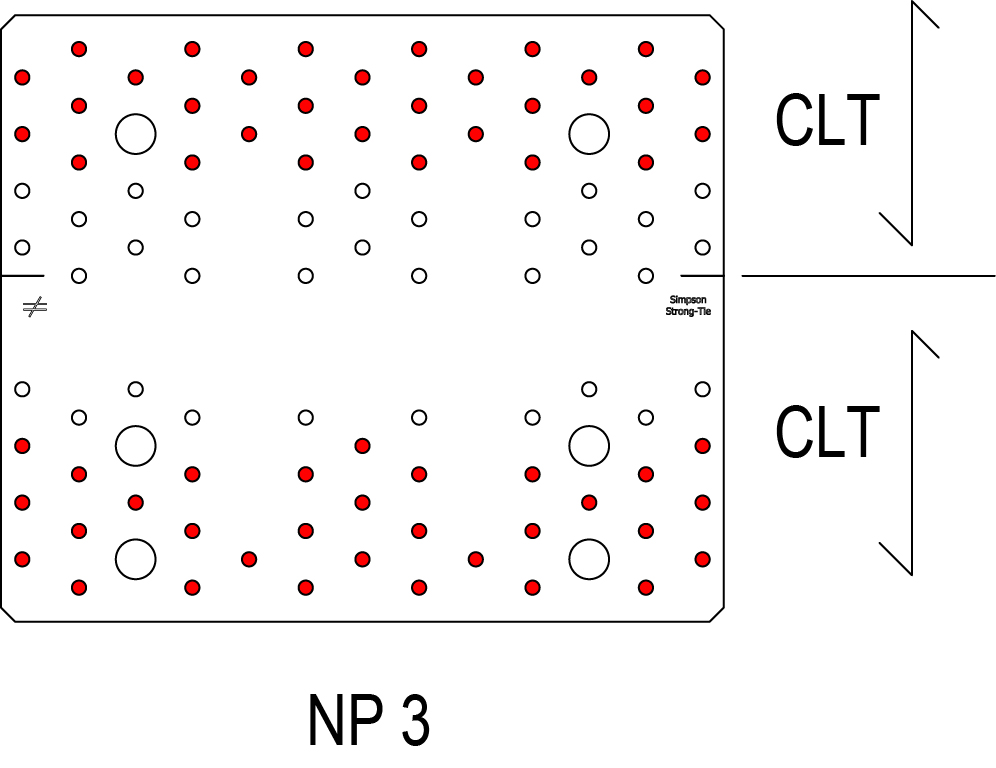

References	Product capacities - Timber to timber - Nailing pattern 3
	Fasteners		Product characteristic capacities - Timber C24 [kN]
	Top part	Bottom part	R_2.k
	Top part	Bottom part	CSA5.0x50
NPB255	11	15	20.7

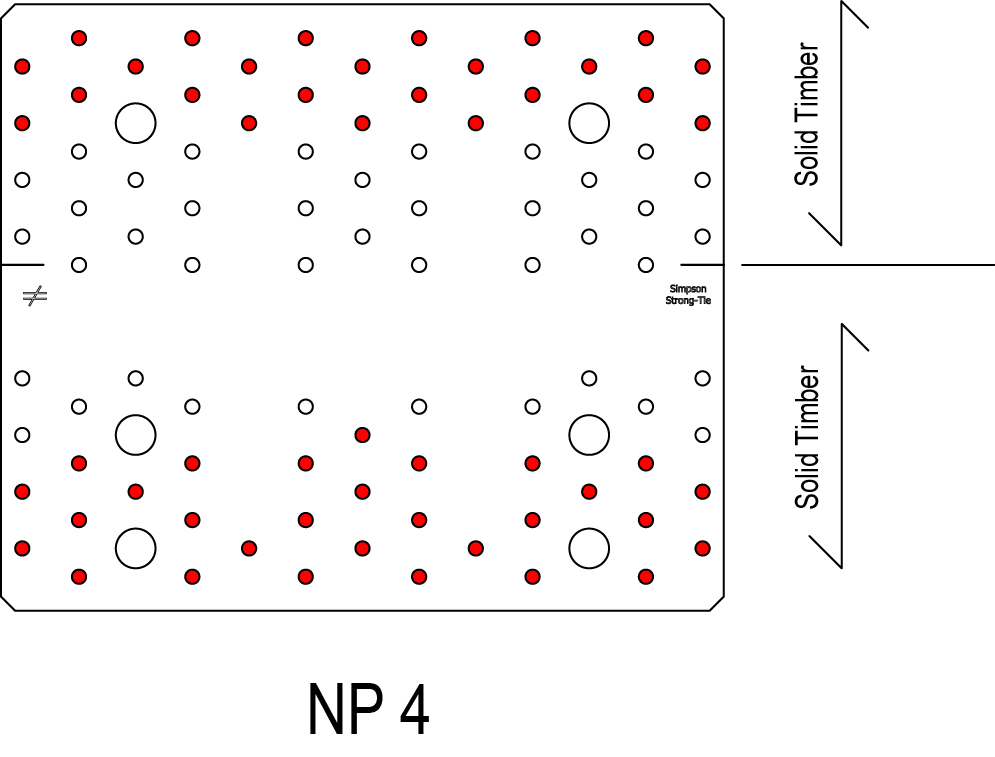

References	Product capacities - Timber to timber - Nailing pattern 4
	Fasteners		Product characteristic capacities - Timber C24 [kN]
	Top part	Bottom part	R_2.k
	Top part	Bottom part	CSA5.0x50
NPB255	17	24	27.8

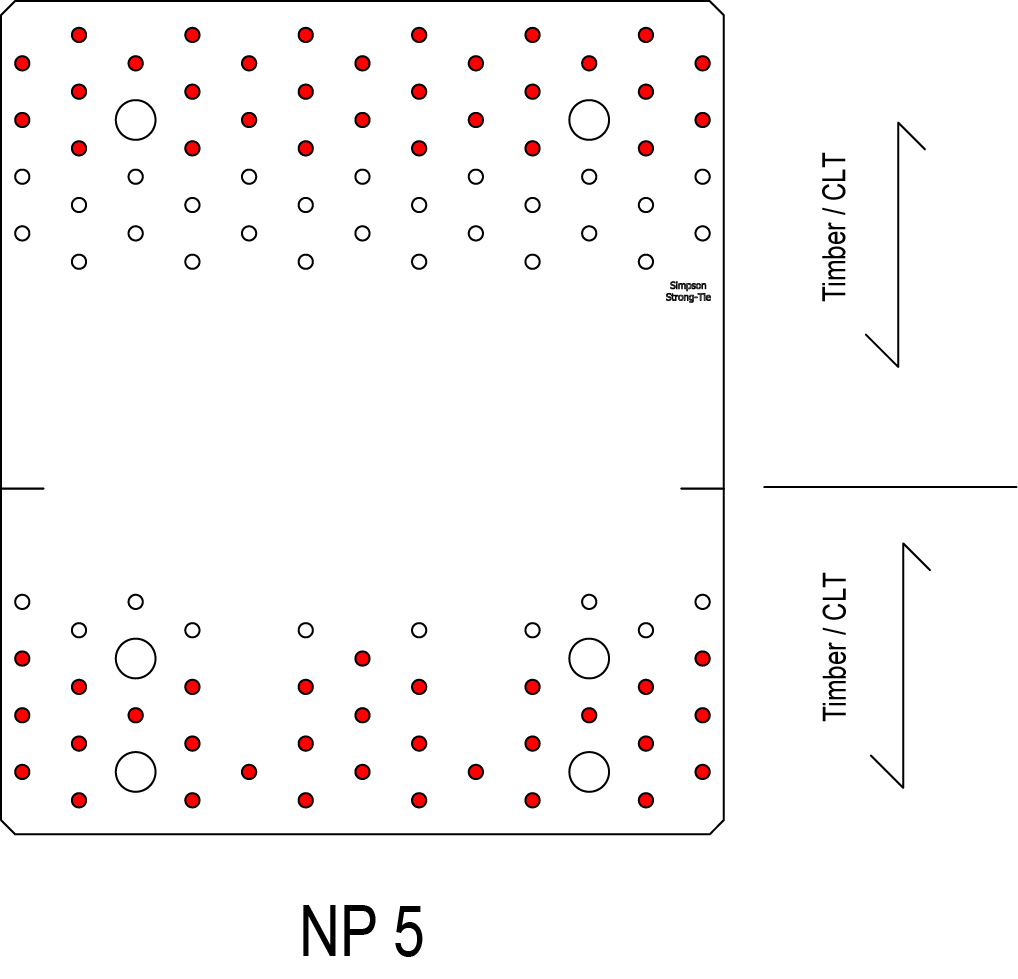

References	Product capacities - Timber to timber - Nailing pattern 5
	Fasteners		Product characteristic capacities - Timber C24 [kN]
	Top part	Bottom part	R_2.k
	Top part	Bottom part	CSA5.0x50
NPB255	16	23	30.6

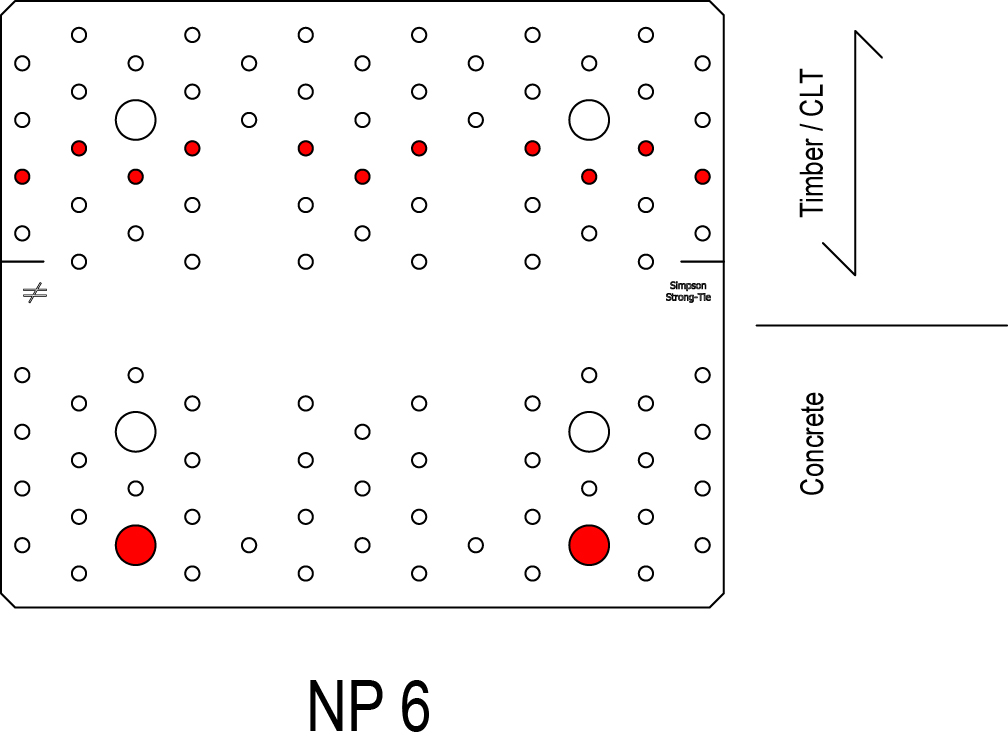

References	Product capacities - Timber to timber - Nailing pattern 6
	Fasteners		Product characteristic capacities - Timber C24 [kN]
	Top part	Bottom part	R_2.k
	Top part	Bottom part	CSA5.0x50
NPB255	30	34	44

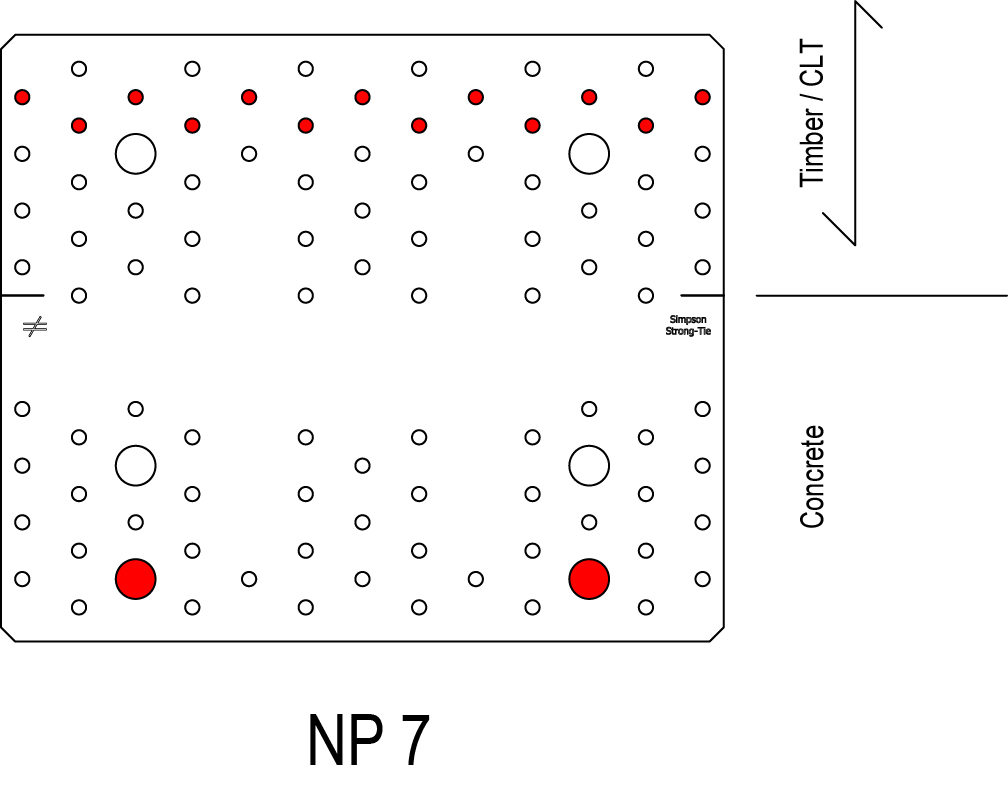

References	Product capacities - Timber to Rigid support - Nailing pattern 1
	Fasteners		Product characteristic capacities - Timber C24 [kN]
	Top part	Bottom part	R_1.k		R_2.k
	Top part	Bottom part	CNA4.0x50	CSA5.0x50	CNA4.0x50	CSA5.0x50
NPB255	11	2	23.9	27.6	22.8	26.3

The timber member must be prevented from rotation (by other means)
The group composed of two anchors shall be checked with shear loads F₁ and F₂, and a moment applied at the middle between the two anchor is equal to F₂*120mm (spacing of anchors:160 mm)

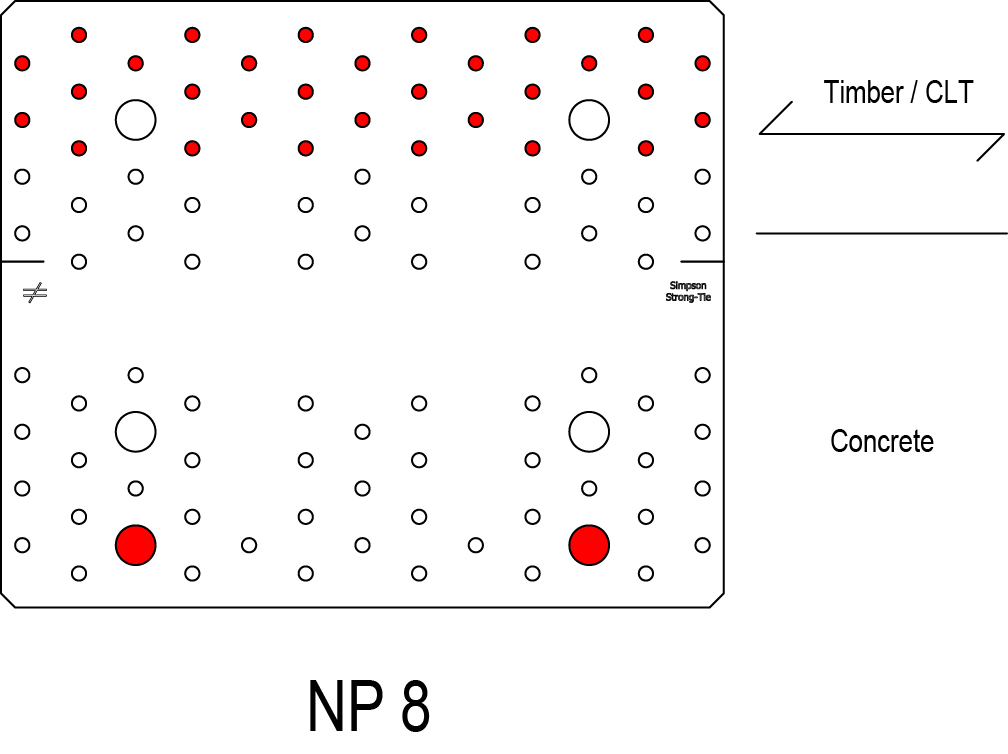

References	Product capacities - Timber to Rigid support - Nailing pattern 2
	Fasteners		Product characteristic capacities - Timber C24 [kN]
	Top part	Bottom part	R_1.k		R_2.k
	Top part	Bottom part	CNA4.0x50	CSA5.0x50	CNA4.0x50	CSA5.0x50
NPB255	-	-	-	-	-	-

The timber member must be prevented from rotation (by other means)
The group composed of two anchors shall be checked with shear loads F₁ and F₂, and a moment applied at the middle between the two anchor is equal to F₂*120mm (spacing of anchors:160 mm)
