Angle bracket for CLT

AB255SSH

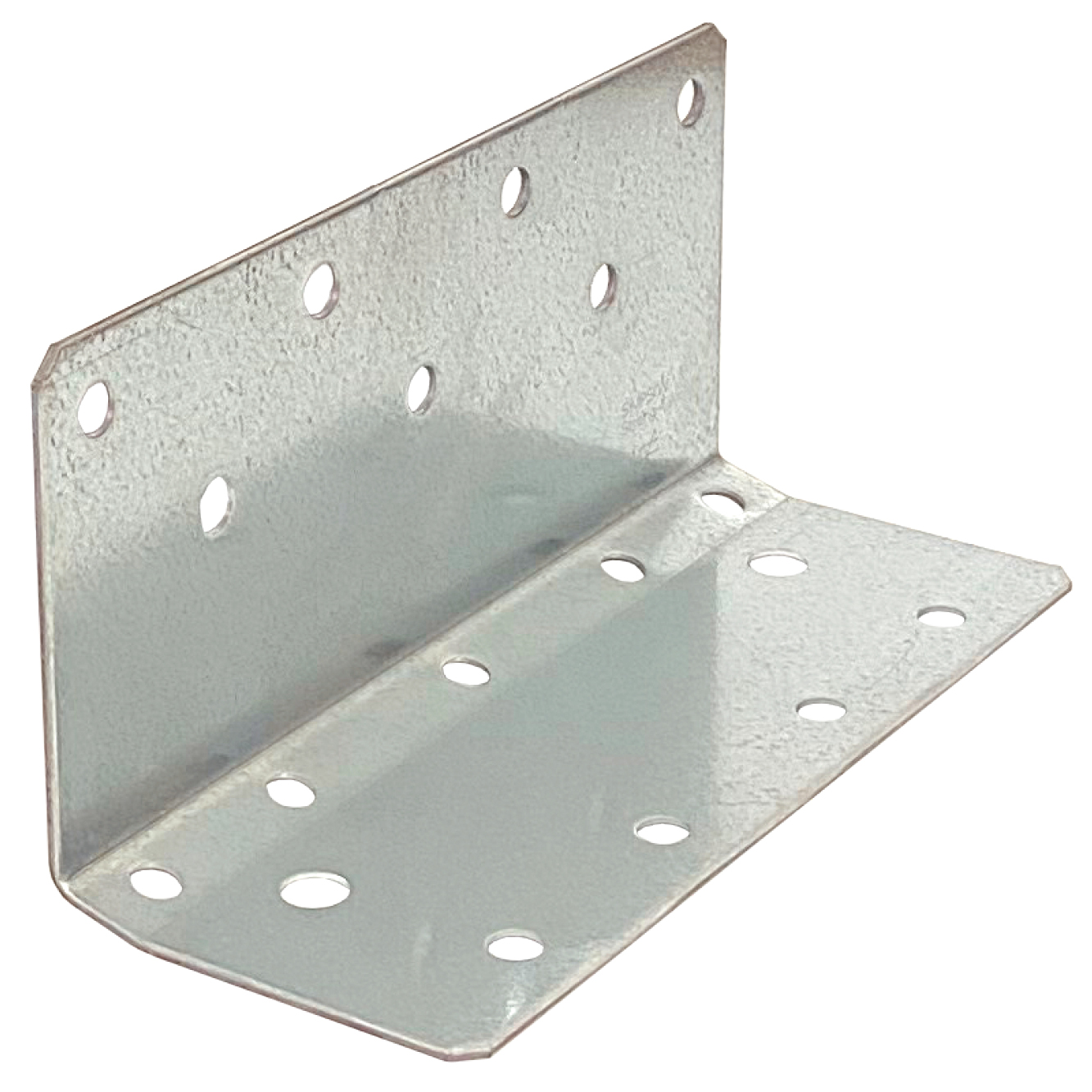

Heavy Duty Angle Bracket for CLT

The AB255SSH angle bracket has been developed specificaly for CLT construction.

It is designed for both shear and vertical loading.

Installed with large SSH connector screws and skewed screws, it enables high capacities and fast installation.

Technical Data Sheet

CE Marking

ETA

New

Service class 2

Electrogalvanized steel Z275

Indoor

EPD

AB255SSH_SSTBP_homepage_FI_fi

Product Details

Images

Features

Material

Pre-galvanised mild steel.
S250 GD + Z275 according to EN 10346

Benefits

Perfect for CLT building,
Very fast installation
Can be hidden in concrete screed

Application

Suitable On

Supporting member: solid wood, glued-laminated wood, CLT, etc.
Supported member: solid wood, composite lumber, glued-laminated wood, CLT

When to Use

Solid timber panels,
CLT panels.

Technical Data

Product Dimensions

Dimensions

Reference	Connector Dimensions
	Other	Product Dimensions[mm]				Joist[mm]	Flange B[mm]
	Qty per Box	A[mm]	B[mm]	C[mm]	Thickness[mm]	Round	Round
	Qty per Box	A[mm]	B[mm]	C[mm]	Thickness[mm]	Ø11[mm]	Ø11[mm]	Ø14[mm]
AB255SSH	10.0	123	100	255	3	7	9	2

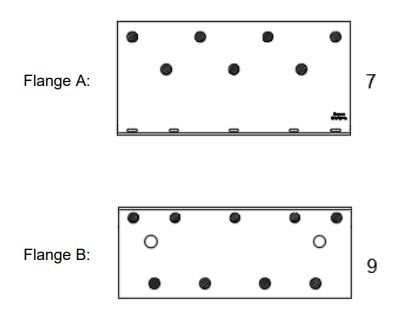

Product characteristic capacities - Timber to timber - 1 angle bracket - Full nailing

Reference	Angle bracket capacity
	Product capacities - Timber to timber - Full nailing
	Characteristic capacities - Timber C24 - 1 angle brackets per connection[kN]
	R2,k = R3,k					R₁,ₖ					R4,k (2)	R5,k
	10.0x40	10.0x50	10.0x100	10.0x120	10.0x160	10.0x40	10.0x50	10.0x100	10.0x120	10.0x160	10.0x160	10.0x160
AB255SSH	17.4	24.7	35	42.6	48.5	8.56 * kmod^0.25	19.3 * kmod^0.12	26.36 * kmod^0.09	42.6	56.2	13.9/kmod^0.76	5.32/kmod^0.24

The value in the table above can be used if the panel can't rotate.

Values with other SSH lengths are availables in ETA.

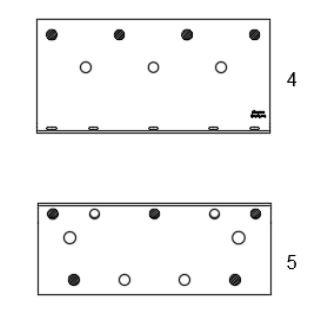

Product characteristic capacities - Timber to timber - 1 angle bracket - Partial nailing

Reference	Angle bracket capacity
	Product capacities - Timber to timber - Partial nailing
	Characteristic capacities - Timber C24 - 1 angle brackets per connection[kN]
	R₁,ₖ					R2,k = R3,k					R5,k	R4,k
	10.0x40	10.0x50	10.0x100	10.0x120	10.0x160	10.0x40	10.0x50	10.0x100	10.0x120	10.0x160	10.0x160	10.0x160
AB255SSH	4.12 * kmod^0.5	10.9 * kmod^0.2	15.36 * kmod^0.15	25.64 * kmod^0.1	25.4 * kmod^0.1	10.8	15.4	21.8	26.5	30.1	2.11/kmod^0.8	13.9/kmod^0.76

The value in the table above can be used if the panel can't rotate.

Values with other SSH lengths are availables in ETA.

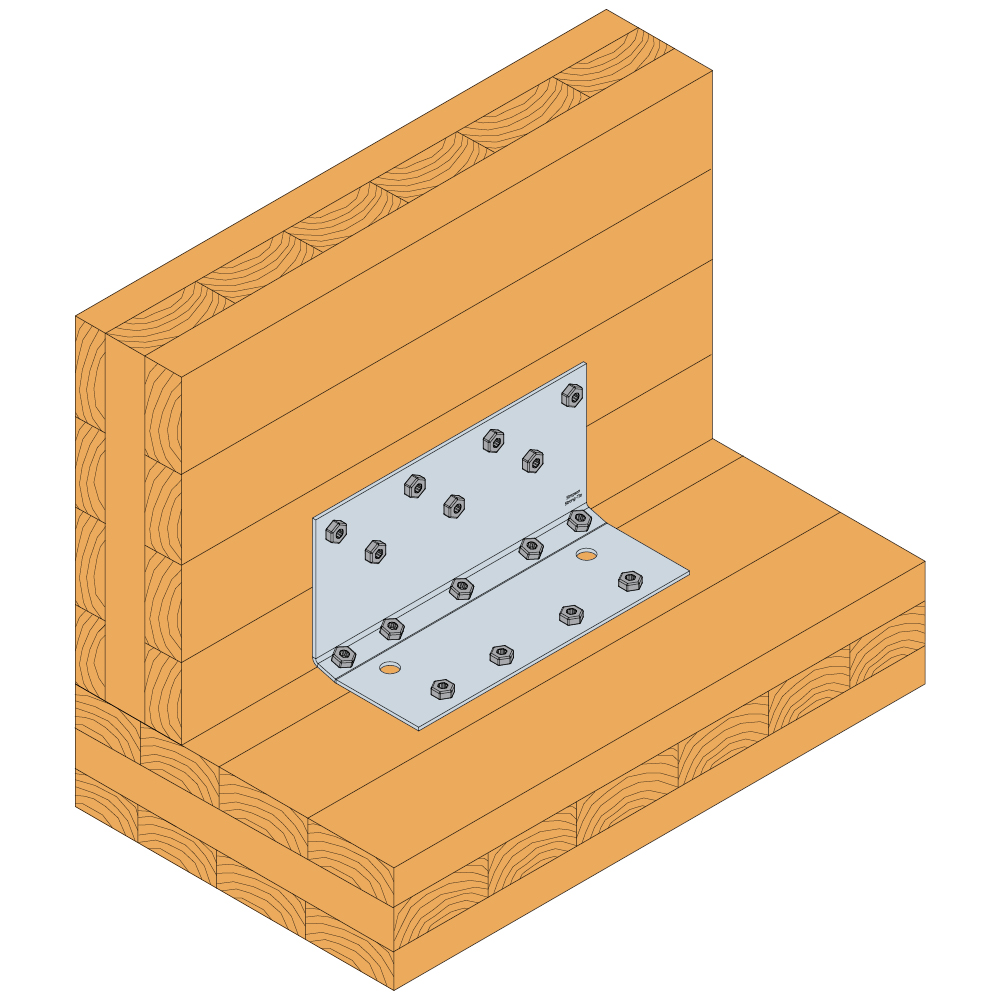

Installation

Fasteners

On timber:

SSH10.0xℓ (various length allowed, depending on the requested capacity)
