Fasteners

Nails

Fasteners

N3.75G

Square Twist Nail

N3.75 square twist nails are tested and approved for use when installing Simpson Strong-Tie connectors including joist hangers, brackets and straps. CE marked to EN14592.

Sheradised coating suitable for service class 2 environments.

Technical Data Sheet

CE Marking

Hot-dip galvanised steel

Outdoor

Service class 3

EPD

Fastener Designer

Product Details

Images

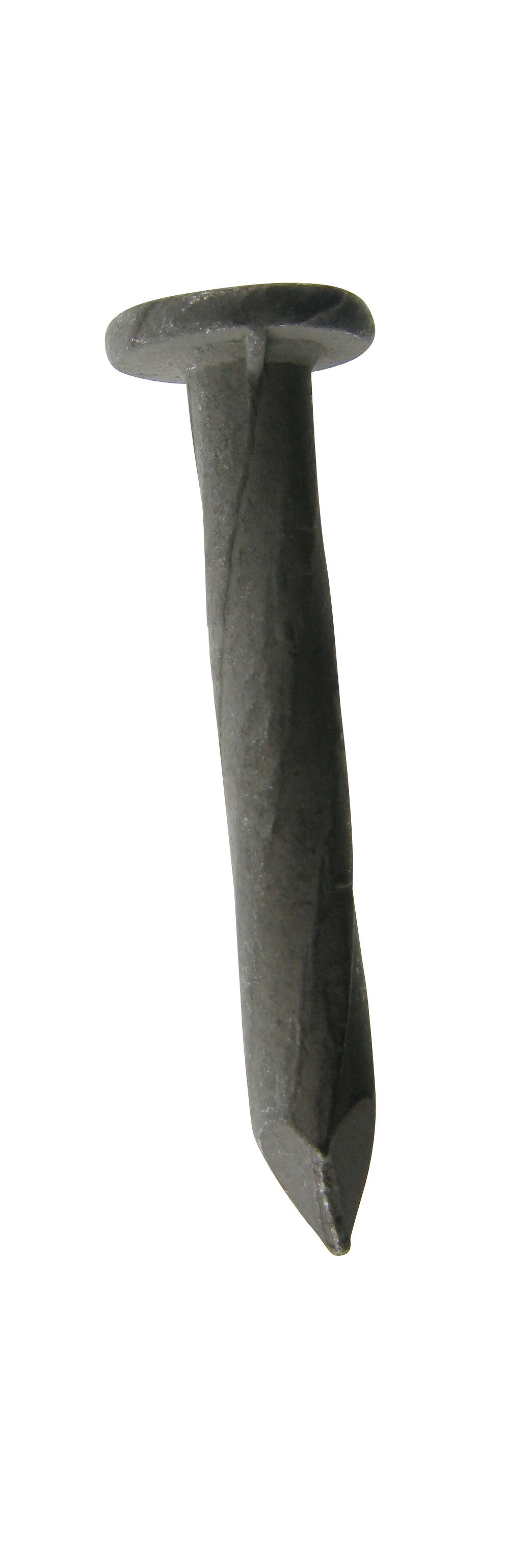

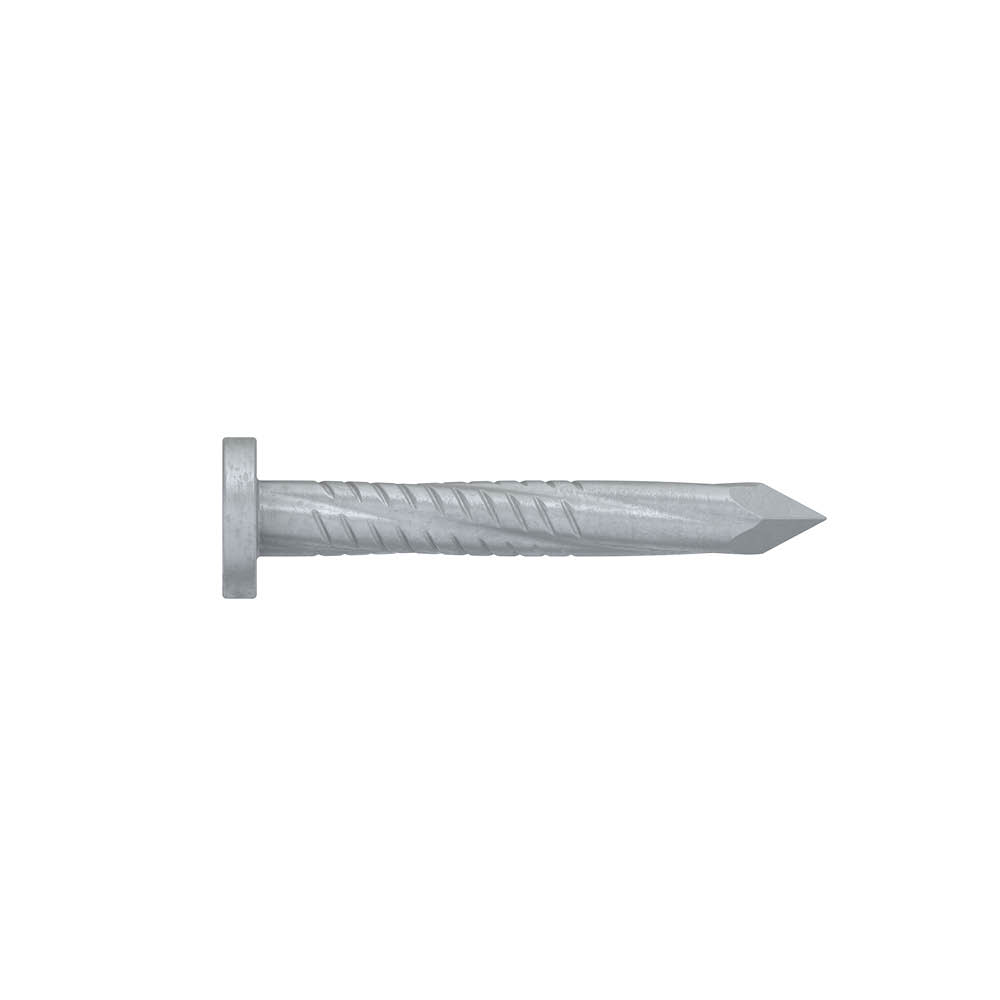

3.75x30mm Square Twist Nail

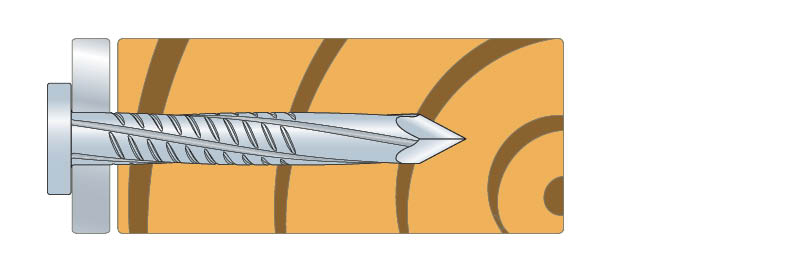

Fastening an adjustable strpas hangers with N3.75 nails

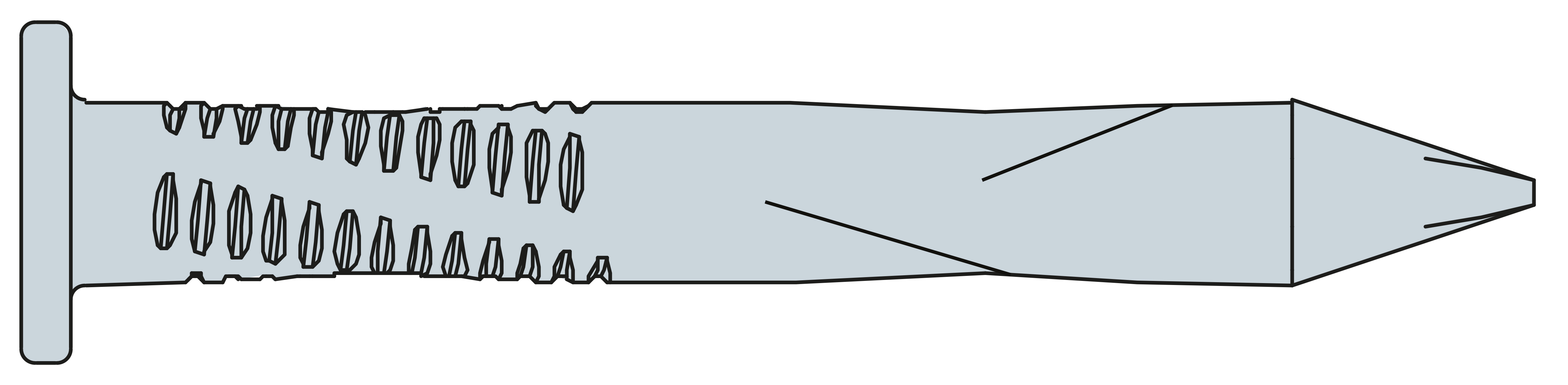

Square twist nails

Features

Material

Steel - sheradised coating

Features

CE marked to EN14592
Square twist profile
Sheradised coating

Application

Suitable On

Fastening hangers with straps
Fastening hangers with top flanges
Fastening ZS clip for I-beams

Common Applications

Fastening connectors to timber including solid wood, composite lumber and glued-laminated timber.

Joist hanger fastening
Angle brackets
Straps
Nail plates

Technical Data

Product Dimensions

Dimensions

Reference	Fasteners Dimensions[mm]
	Fastener dimensions[mm]				Other
	d[mm]	l[mm]	dh[mm]	ht[mm]	Weight[kg]
N3.75X30G/1KG	3.75	30	8	-	0.003

Structural Parameters - hEN14592

Reference	Nail characteristic parameters
	Characteristic parameters
	Characteristic Yield Moment My,k[Nm]	Characteristic Withdrawal Parameter fax,k,90°[N/mm²]	Characteristic Head Pull-Through Parameter fhead,k[N/mm²]	Characteristic tensile capacity - fₜₑₙₛ,ₖ[kN]
N3.75X30G/1KG	2.5	4.8	24.5	5.8

Certification

Declaration of Performance (DoP)

uk-dop-h13-0012-issue-2.pdf

Show history

2015-08-05

uk-dop-h13-0012-issue-1.pdf

Environmental Product Declarations (EPD)

epd-certificate-sst-nails

ZIP Packages

2D
2D DWG ZIP DXF ZIP PDF ZIP

3D/3D Simplified
IFC ZIP SAT ZIP SKP ZIP STL ZIP
