ZS

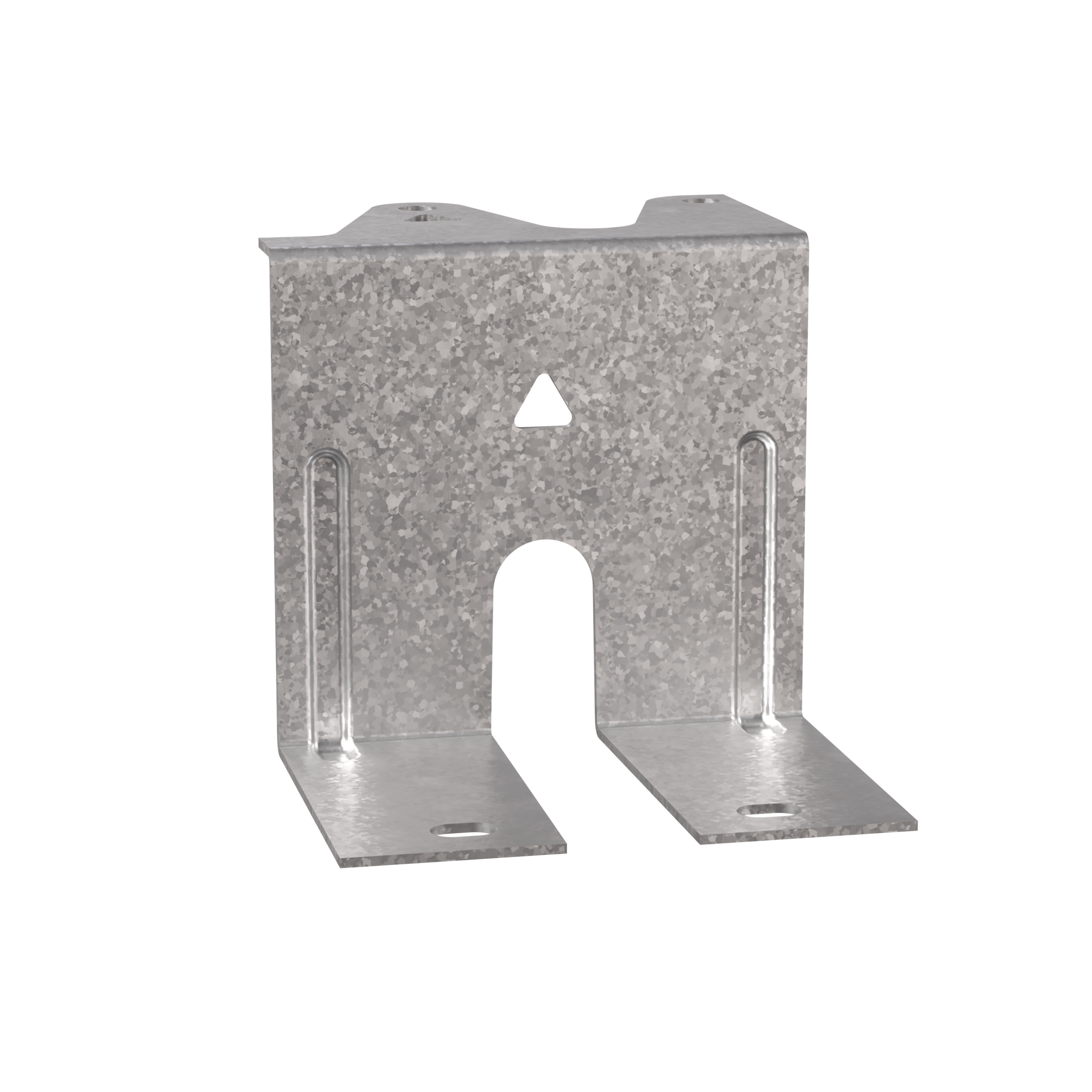

Slotted Z-Clip
The ZS clip allows I-joists off-cuts or solid sawn timber to be used as noggings between joists to support floor decks or partitions.
- Fully interlocking top flange works on all I-joist header widths to prevent overlapping of opposing clips.
- Slotted bottom flanges allows I-joist off-cuts to be used.

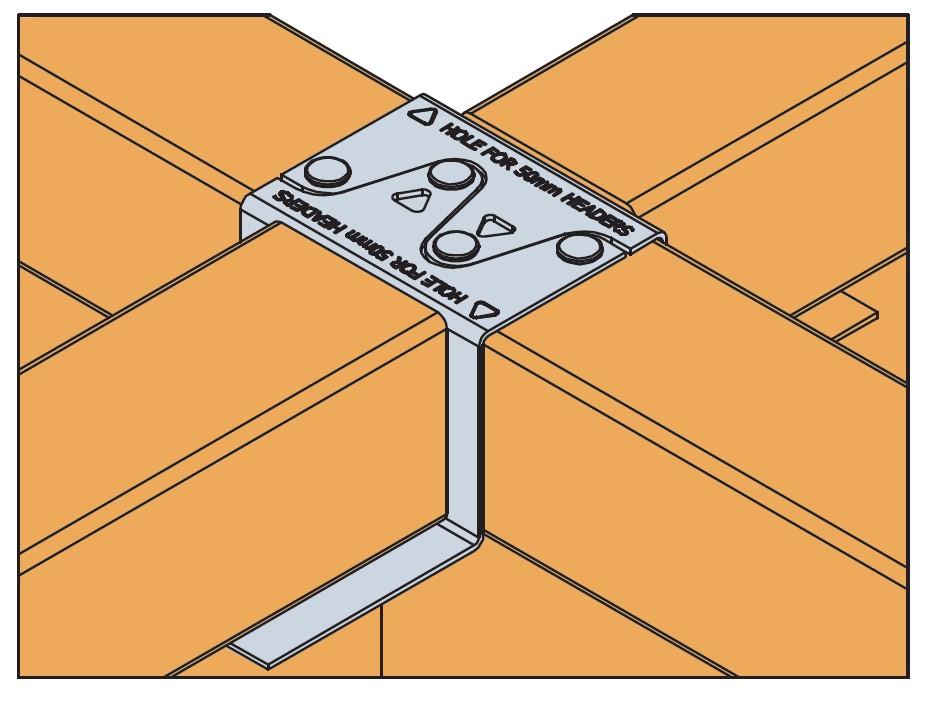

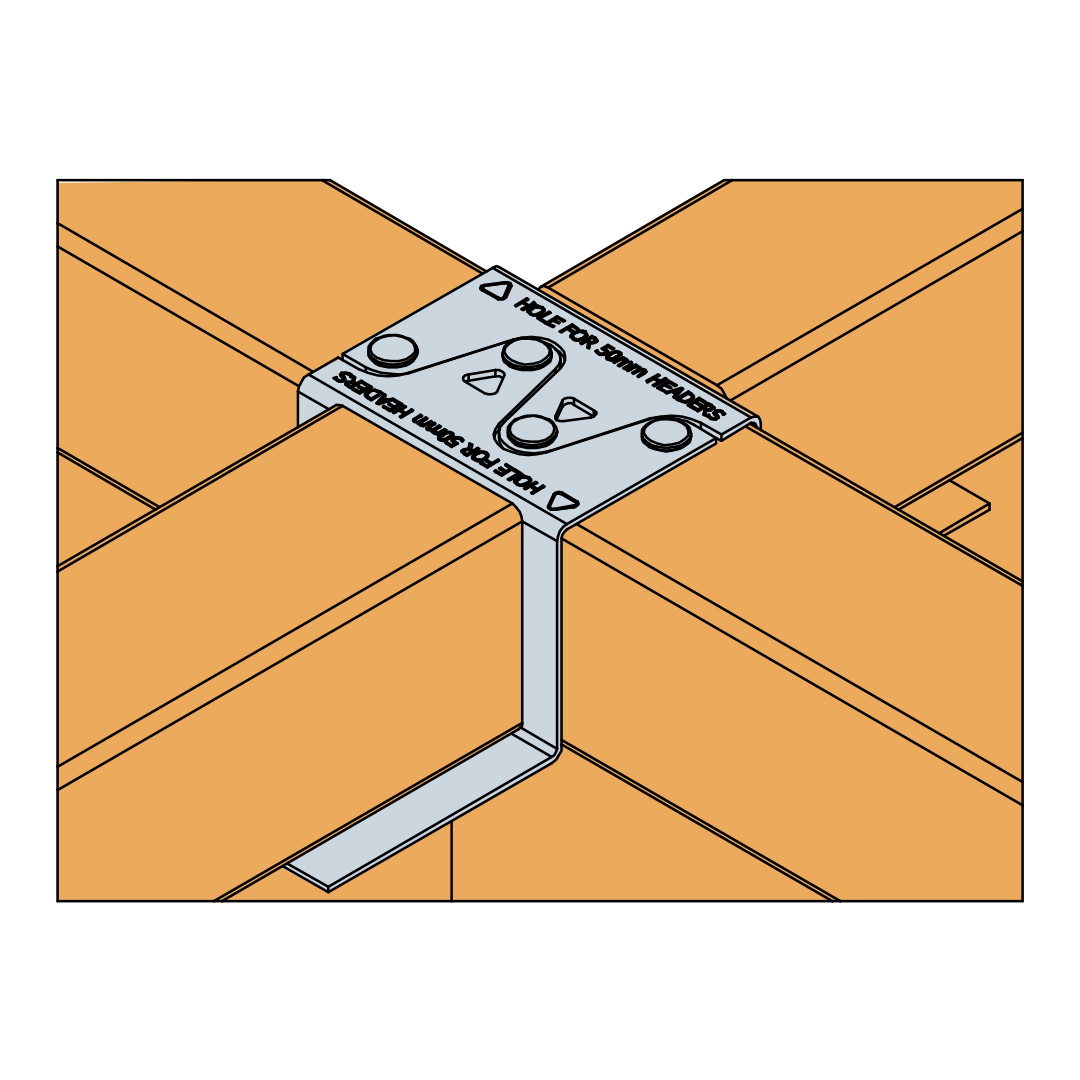

- Triangular nail hole for use with 50mm wide headers, also it ensures that nails can be staggered when ZS clips are interlocked.
- Embossed bottom flange provides greatly enhanced resistance to bending.
- Obround nail holes in the bottom flange ensure easier angled nailing.
CE Marking
ETA
Service class 2
Electrogalvanized steel 20 µm
EPD
Product Details
Images
Features
Application
Technical Data
Safe Working Loads
Dimensions
| Reference | Hanger capacity | Connector Dimensions | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Number of Fasteners | Safe Working Loads[kN] | Product Dimensions[mm] | Header Holes | Joist holes | Other | ||||||||
| Joist | Header | R₁,ₛWₗ,ₗₒₙg ₜₑᵣₘ | A[mm] | B[mm] | C[mm] | F[mm] | t[mm] | Triangular | Round | Obround | Box Quantity | ||
| Qty | Qty | N3.75x30 | Ø4 | Ø6x4 Obround | |||||||||
| C24 | I-Joist | ||||||||||||
| ZS38N | - | - | - | - | 52 | 38 | 46 | 31 | 0.9 | 1 | 2 | 2 | 200 |
| ZS45N | - | - | - | - | 52 | 45 | 39 | 31 | 0.9 | 1 | 2 | 2 | 200 |
Characteristic Loads
Dimensions
| Reference | Hanger capacity | Connector Dimensions | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Number of Fasteners | Characteristic Capacities[kN] | Product Dimensions[mm] | Header Holes | Joist holes | ||||||||
| Joist | Header | R₁,ₖ | A[mm] | B[mm] | C[mm] | F[mm] | t[mm] | Triangular | Round | Obround | ||
| Qty | Qty | N3.75x30 | Ø4 | Ø6x4 Obround | ||||||||
| C24 | I-Joist | |||||||||||
| ZS38N | - | - | - | - | 52 | 38 | 46 | 31 | 0.9 | 1 | 2 | 2 |
| ZS45N | - | - | - | - | 52 | 45 | 39 | 31 | 0.9 | 1 | 2 | 2 |

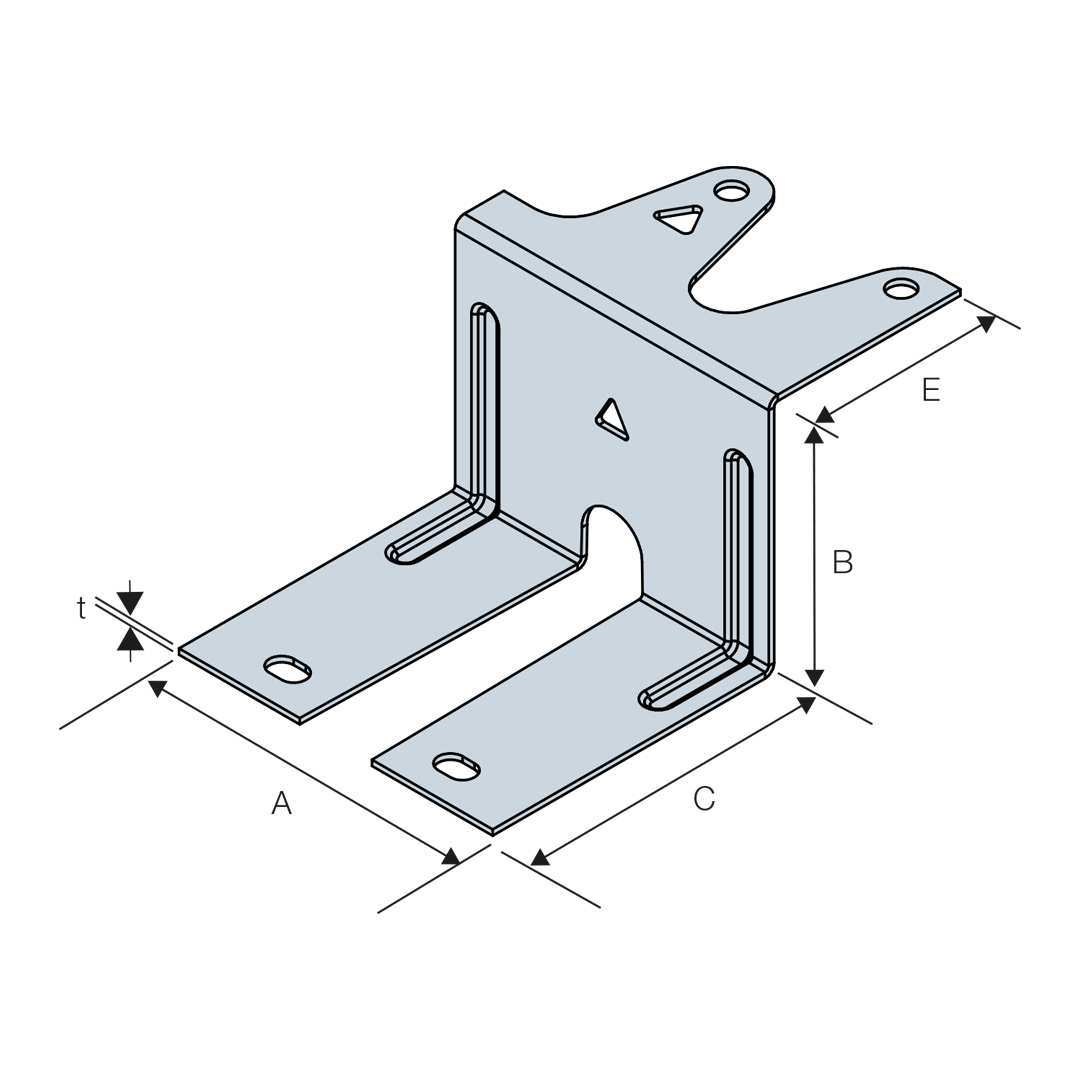

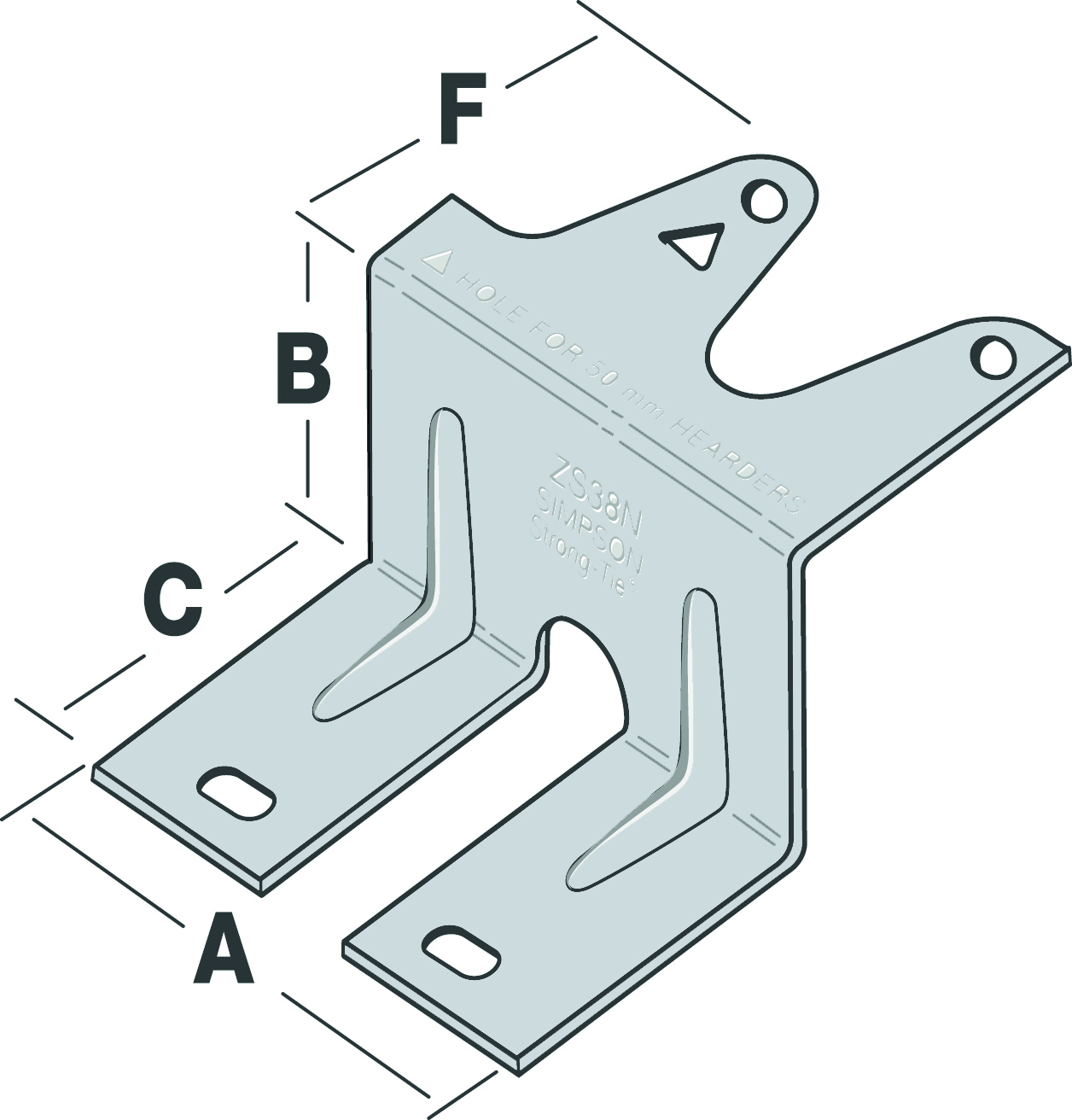

Product dimensions
Dimensions
| Reference | Connector Dimensions | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Other | Product Dimensions[mm] | Header Holes | Joist holes | ||||||||
| DB No. | NOBB no. | Weight[kg] | A[mm] | B[mm] | C[mm] | F[mm] | t[mm] | Triangular | Round | Obround | |
| Ø4 | Ø6x4 Obround | ||||||||||
| ZS38N | 1460840 | 42330725 | 0.034 | 52 | 38 | 46 | 31 | 0.9 | 1 | 2 | 2 |
| ZS45N | - | - | 0.034 | 52 | 45 | 39 | 31 | 0.9 | 1 | 2 | 2 |
Installation
Installation

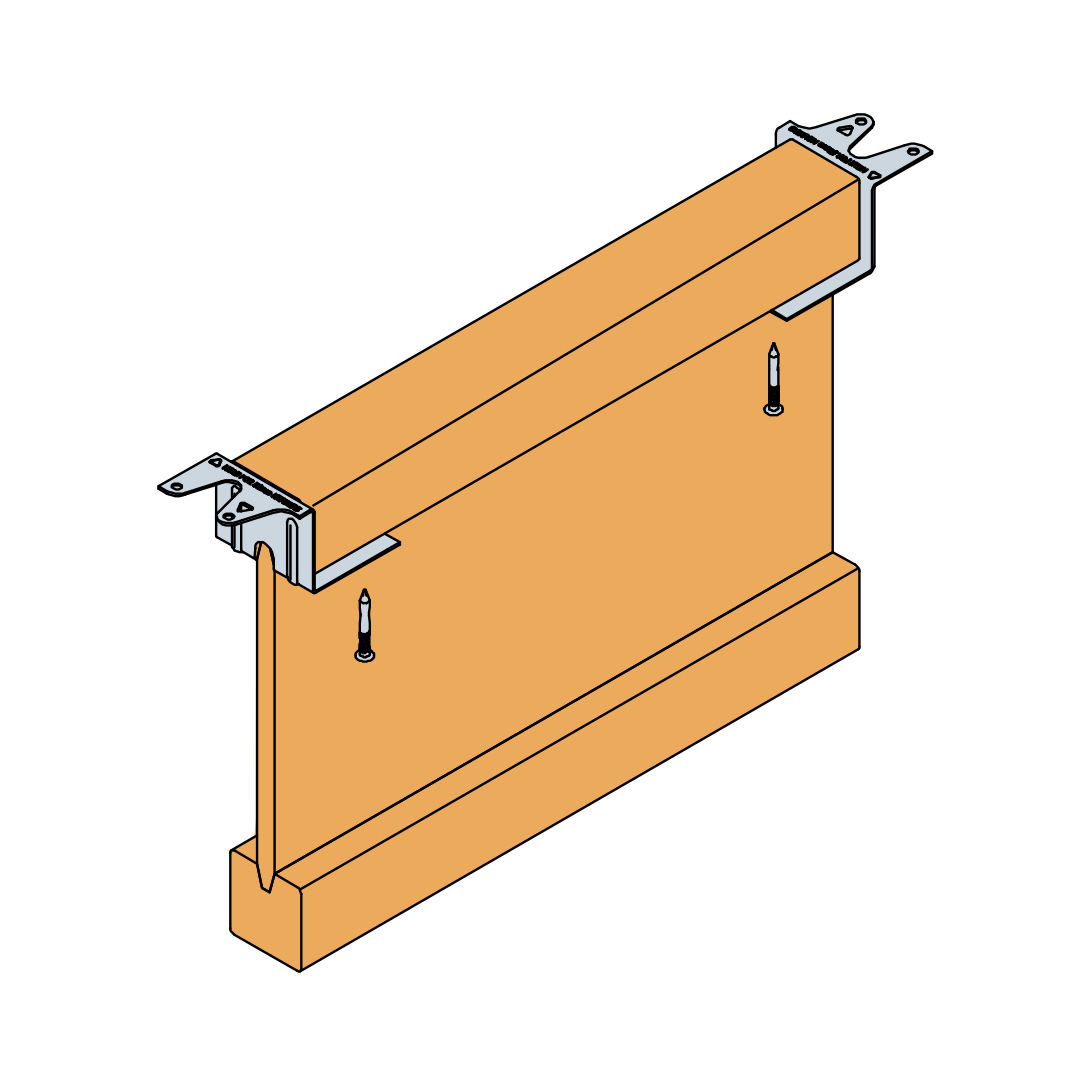

Step 1
Step 2
Step 3

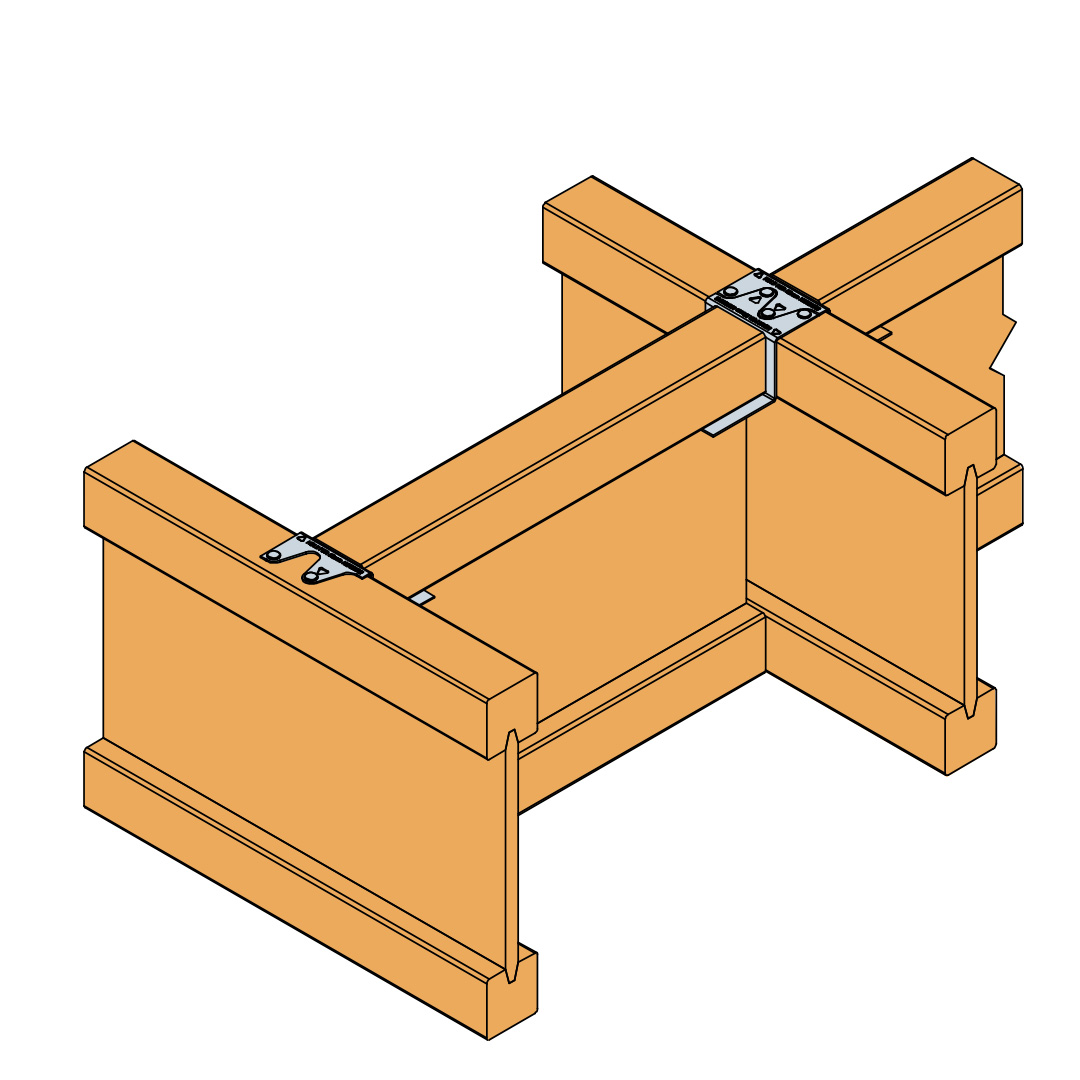

Step 4
CAD and BIM Library
2D
ZS38N
-
-
-
-
3D
ZS38N
-
-
-
-
-
ZS45N
-
-
-
-
-
3D Simplified
ZS38N
-
-
-
-
-
