SIT

Sound Insulation Tile

SIT acoustic isolating strips are recommended for CLT buildings that are required to deliver superior acoustic performance. They guarantee acoustic insulation between timber walls and floors. The choice of the strip's density depends on the weight of the wall.

Technical Data Sheet

New

Product Details

Images


Sample application

Features

Material

Polyurethane with closed cell structure
Thickness 6 or 12.5 mm

Advantages

Available in a strip 5m Length, width can be cut on demand,
Absorbs vibrations
Can be used in humid environments
Estimated service life of 50 years
Improved draught sealing

Application

When to use

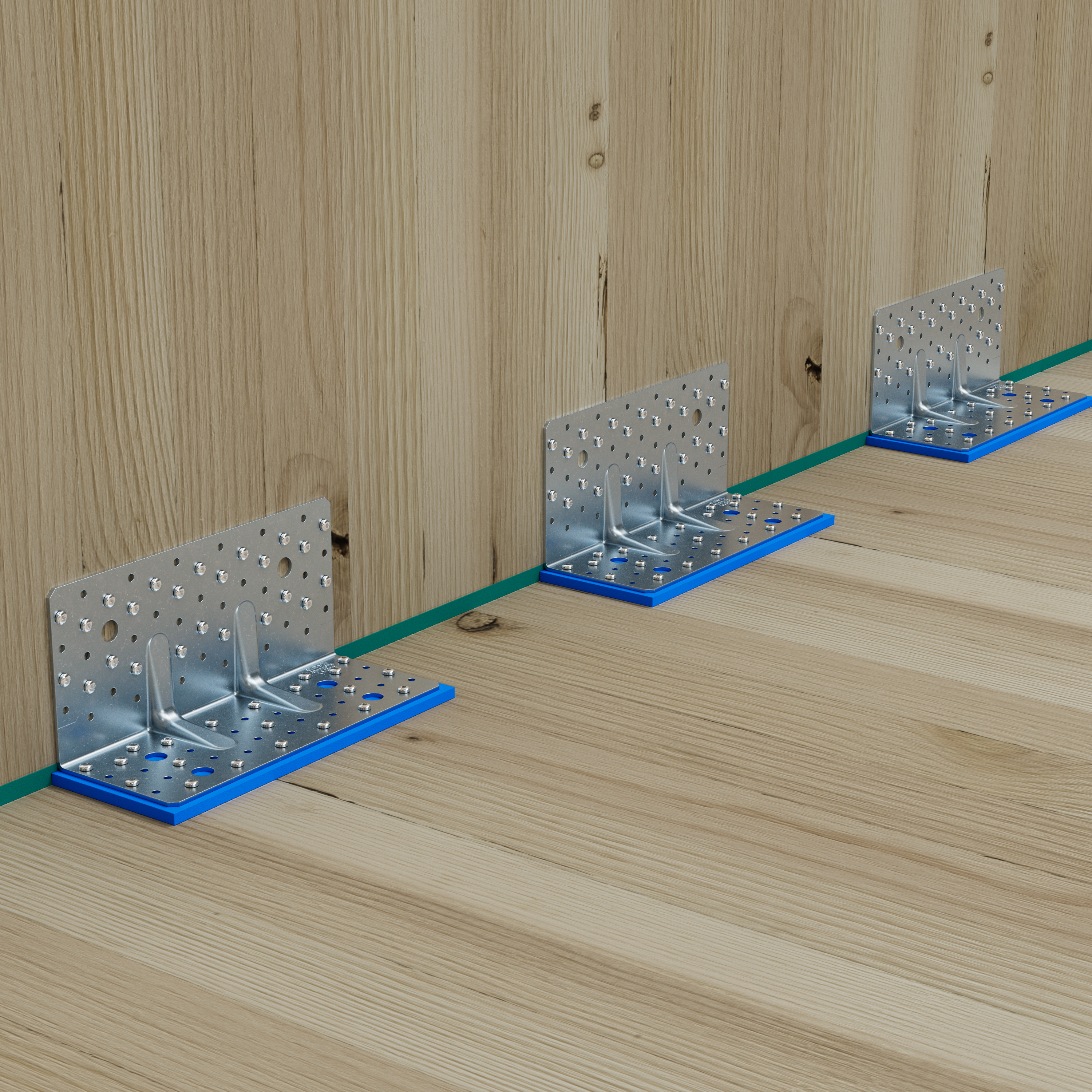

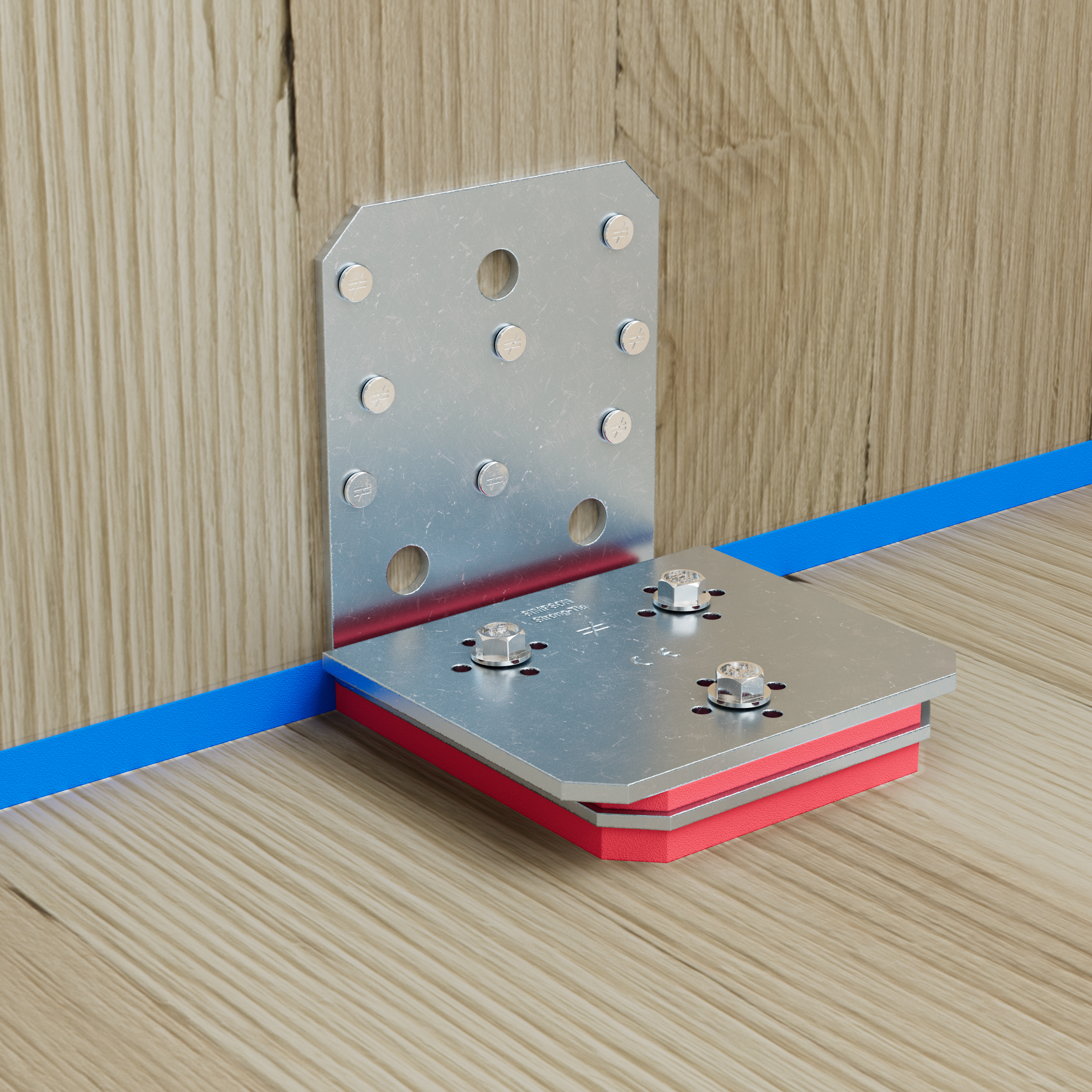

Suitable with Cross Laminated Timber (CLT) Brackets

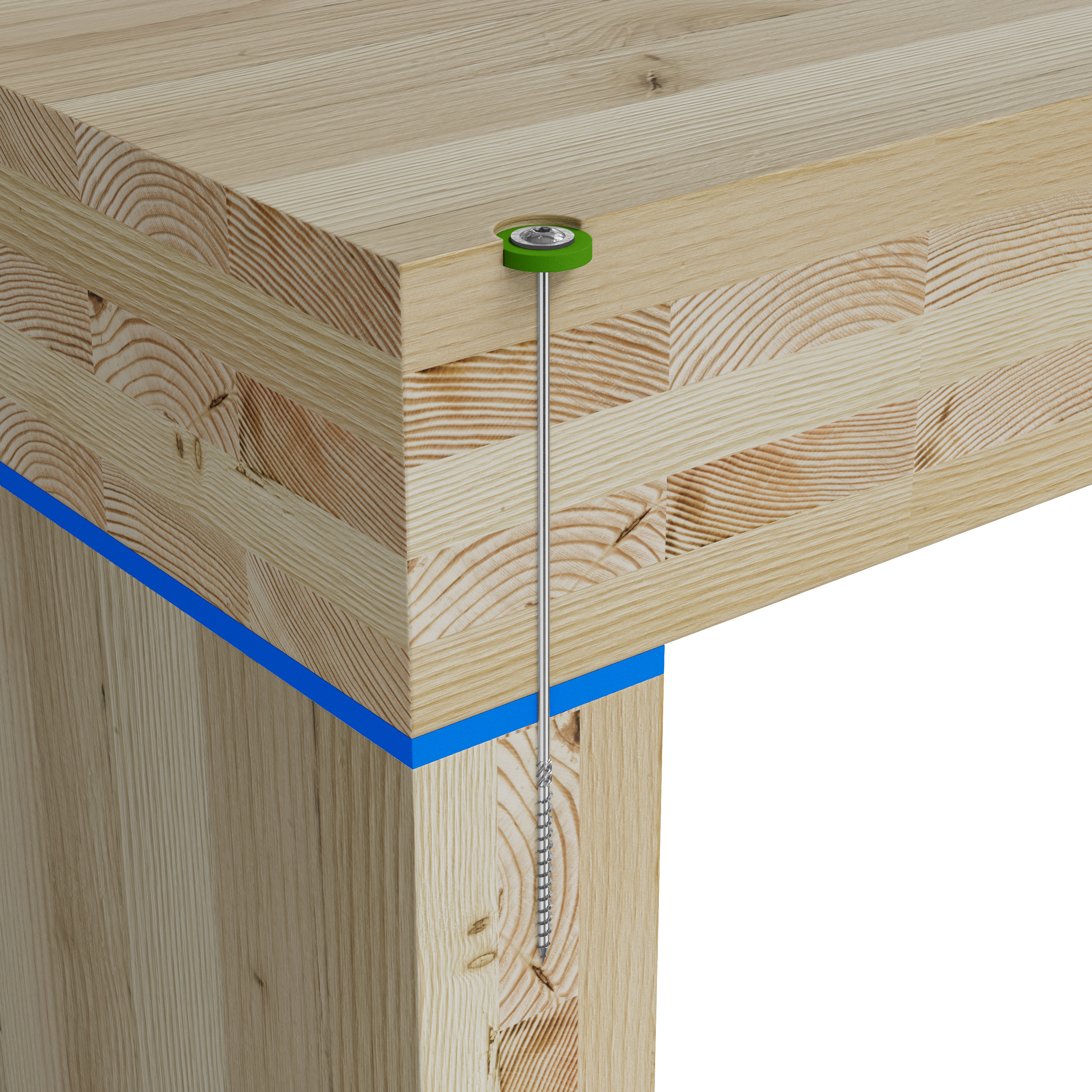

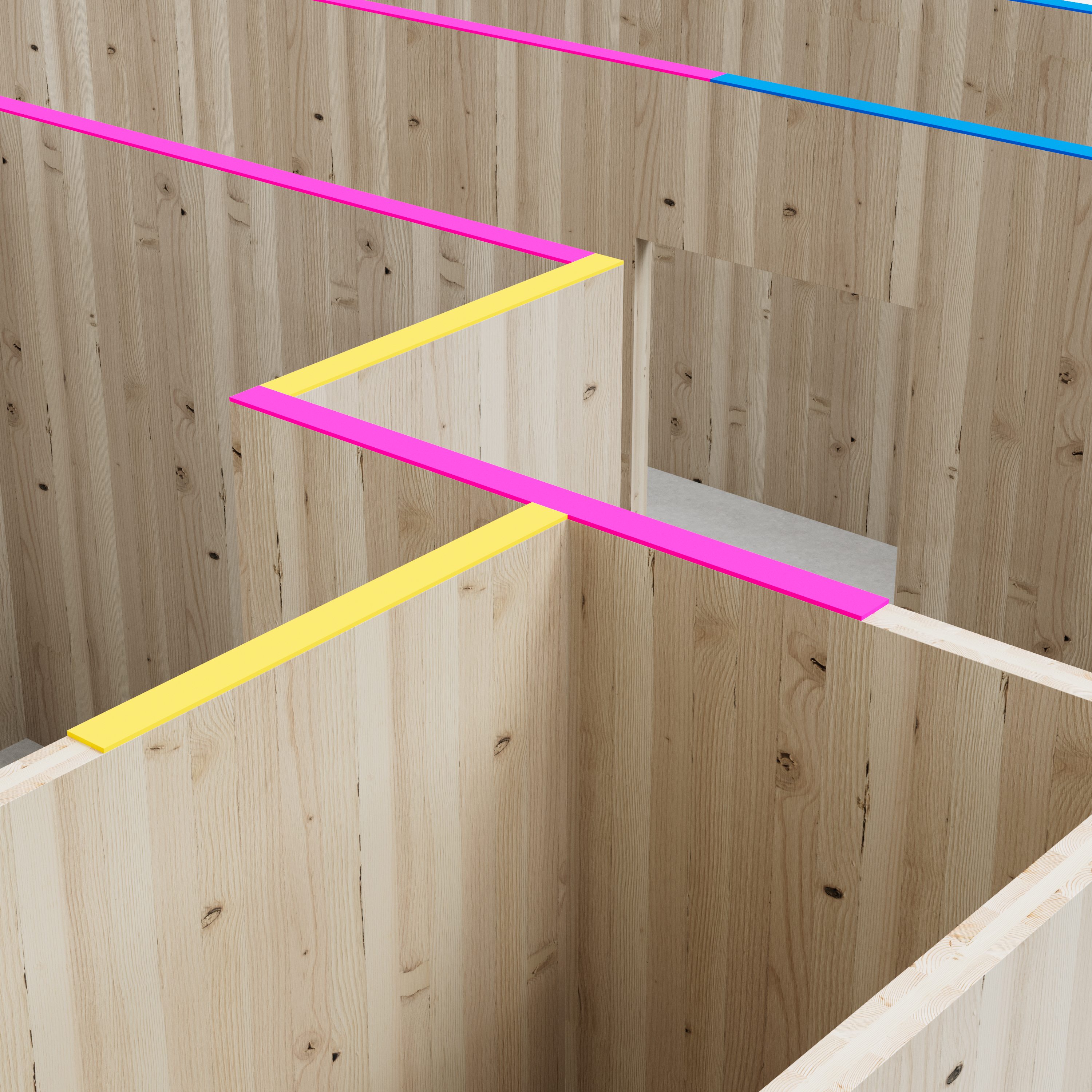

Connection of floors and walls in CLT Installations

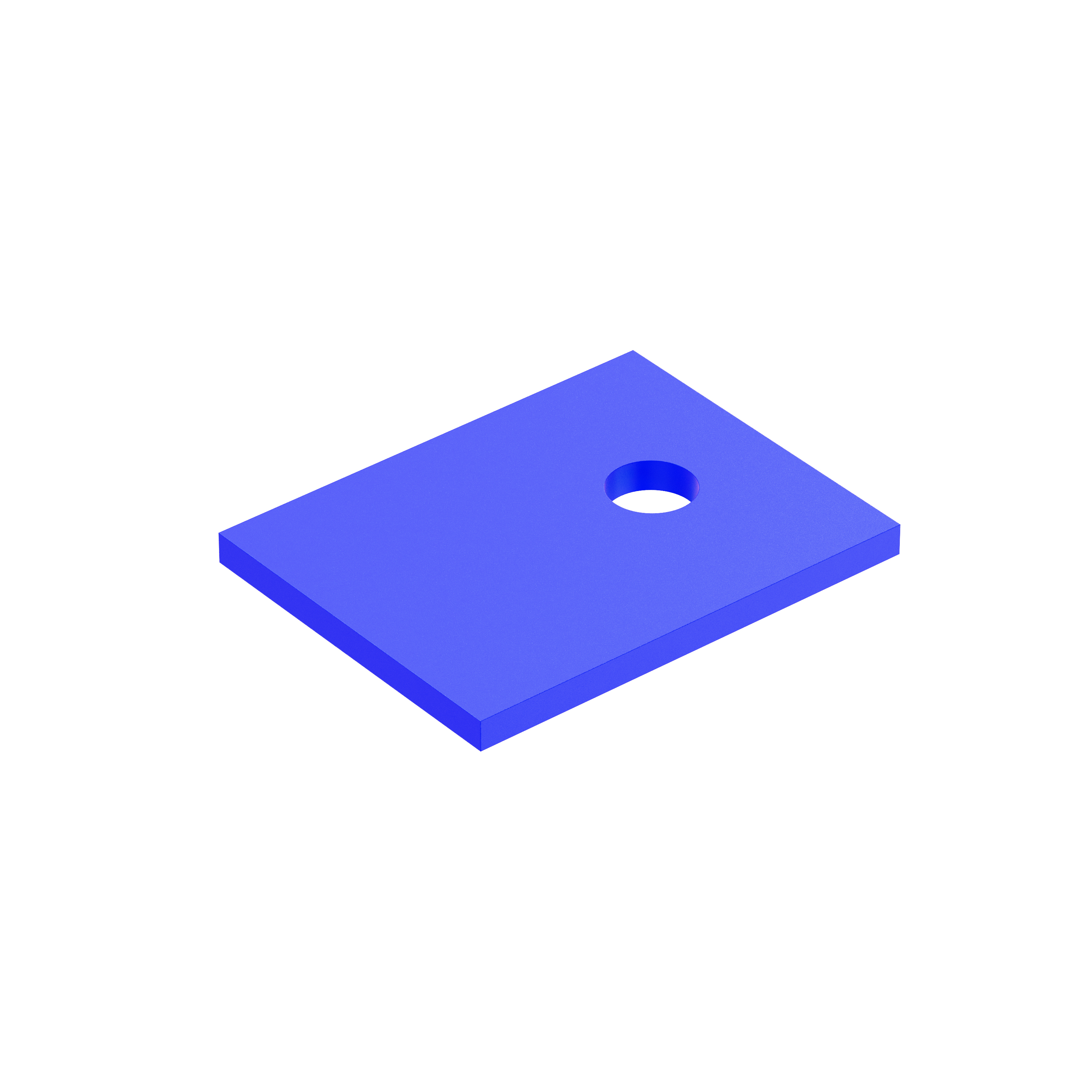

SIT Washer

SIT Washer 2

SIT Tile

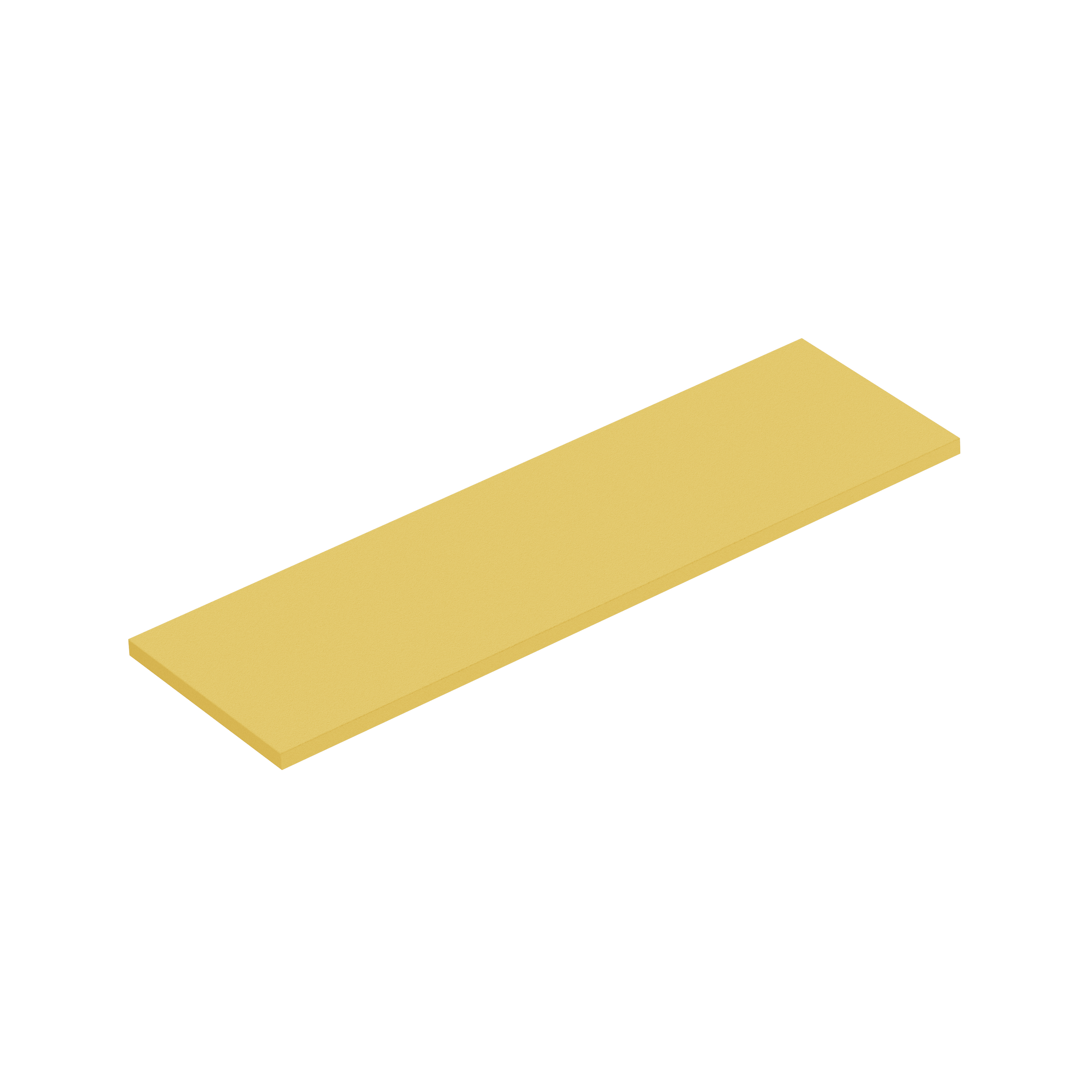

SIT Tile Yellow

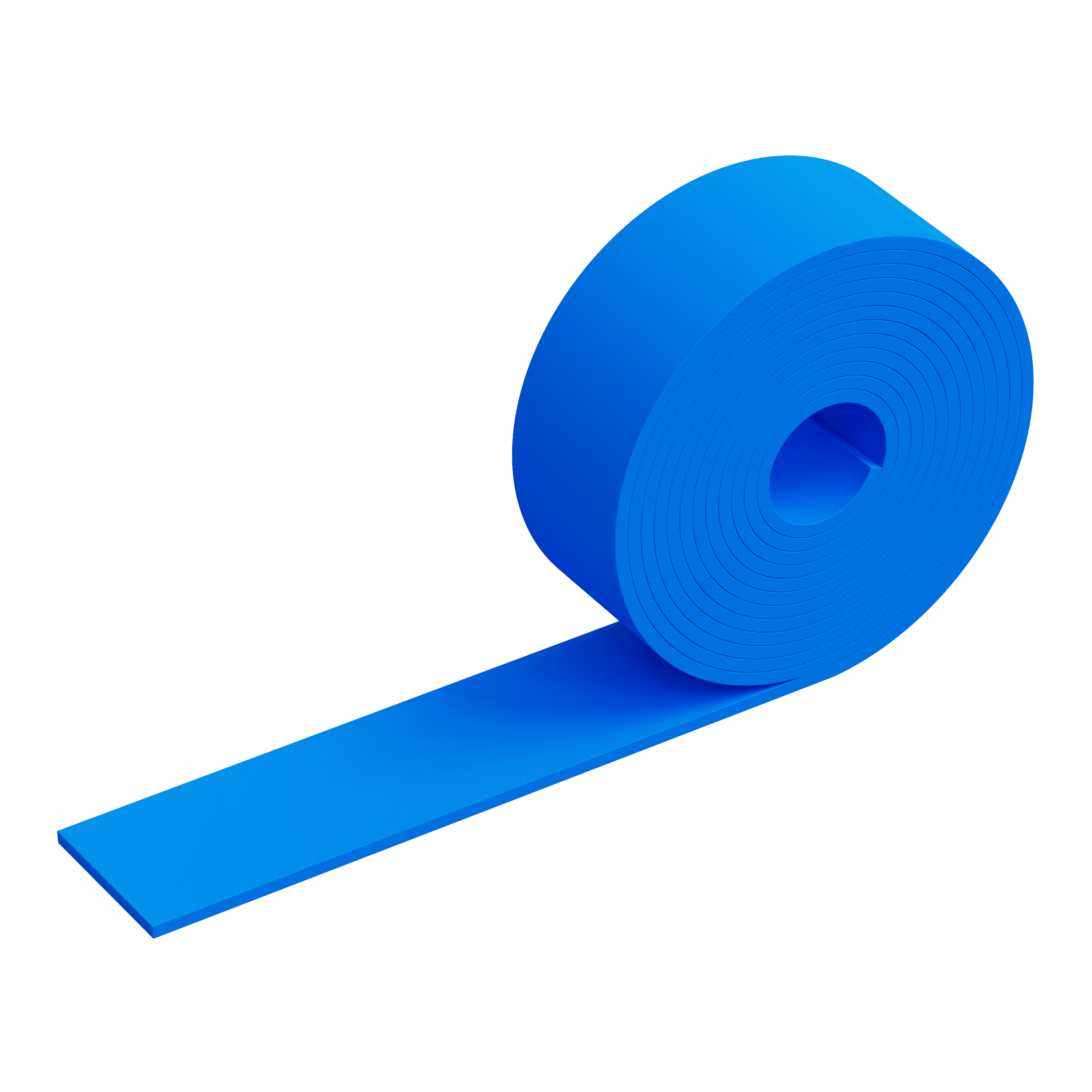

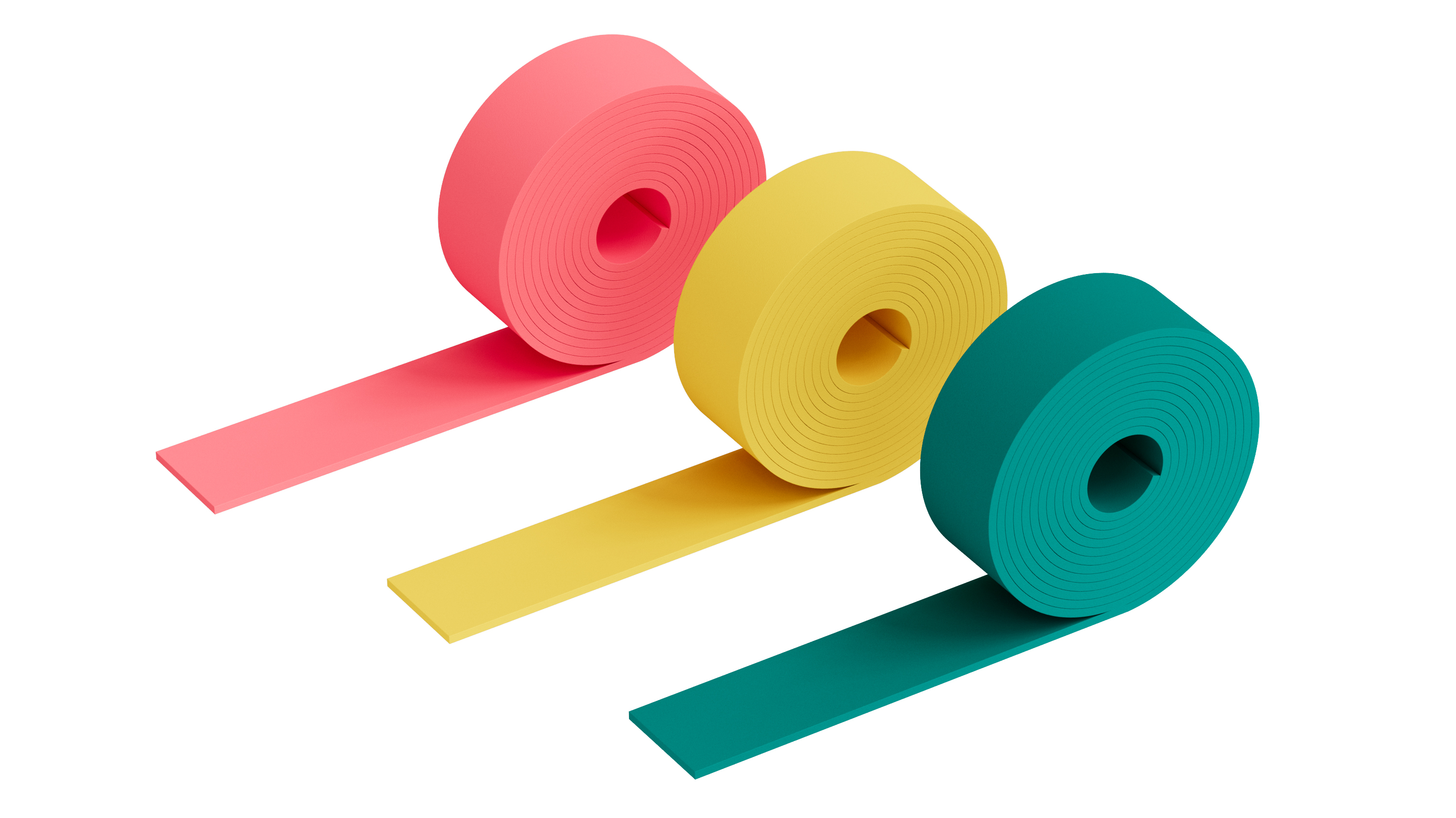

SIT Roll

Technical Data

Mechanical properties - Part 1

Reference	Other dimensions data	Acoustic capacity
	Colour	Static loads (¹)[N/mm²]		Dynamic loads (¹)[N/mm²]	Load peaks (¹)[N/mm²]	Mechanical loss factor (²)	Static E-modulus (²)[N/mm²]	Dynamic E-modulus (²)[N/mm²]	Static shear modulus (²)[N/mm²]	Dynamic shear modulus (²)[N/mm²]
	Colour	Min.	Max.	Dynamic loads (¹)[N/mm²]	Load peaks (¹)[N/mm²]	Mechanical loss factor (²)	Static E-modulus (²)[N/mm²]	Dynamic E-modulus (²)[N/mm²]	Static shear modulus (²)[N/mm²]	Dynamic shear modulus (²)[N/mm²]
SIT75	yellow	0.05	0.075	0.12	2	0.06	0.63	0.92	0.16	0.27
SIT150	green	0.1	0.15	0.25	3	0.03	1.25	1.65	0.22	0.35
SIT350	blue	0.23	0.35	0.5	4	0.03	2.53	3.25	0.35	0.52
SIT750	red	0.5	0.75	1.2	6	0.04	5.21	8.88	0.8	1.22
SIT1500	orange	1	1.5	2	8	0.05	9.21	16.66	1.15	1.69
SIT75/X/6	Red	0.05	0.075	-	2	0.07	0.75	0.85	0.12	0.17
SIT150/X/6	Yellow	0.1	0.15	-	3	0.07	1.13	1.32	0.19	0.26
SIT350/X/6	Green	0.23	0.35	-	4.2	0.08	3.01	3.42	0.38	0.55
SIT750/X/6	Blue	0.5	0.75	-	6	0.08	6.69	7.54	0.69	1.02
SIT1500/X/6	Purple	1	1.5	-	6.8	0.09	11.99	14.94	0.99	1.48
SIT75/X/12.5	Red	0.05	0.075	-	2	0.07	0.75	0.85	0.12	0.17
SIT150/X/12.5	Yellow	0.1	0.15	-	3	0.07	1.13	1.32	0.19	0.26
SIT350/X/12.5	Green	0.23	0.35	-	4.2	0.08	3.01	3.42	0.38	0.55
SIT750/X/12.5	Blue	0.5	0.75	-	6	0.08	6.69	7.54	0.69	1.02
SIT1500/X/12.5	Purple	1	1.5	-	6.8	0.09	11.99	14.94	0.99	1.48

⁽¹⁾Values apply to form factor q = 3

Mechanical properties - Part 2

Reference	Acoustic capacity
Reference	Resistance to strain at 10% deformation[N/mm²]	Residual compression set[%]	Tensile strength[N/mm²]	Elongation at break[%]	Tear resistance[N/mm]	Rebound elasticity[%]	Specific volume resistance[Ω.cm]
SIT75	0.083	< 5	> 1,5	> 500	> 1,6	70	> 10^11
SIT150	0.16	< 5	> 2	> 500	> 2,1	70	> 10^11
SIT350	0.32	< 5	> 3,5	> 500	> 2,5	70	> 10^11
SIT750	0.59	< 6	> 5	> 500	> 4,3	70	> 10^11
SIT1500	0.94	< 8	> 7	> 500	> 5,6	70	> 10^11
SIT75/X/6	0.09	< 5	1	300	-	70	> 10^10
SIT150/X/6	0.15	< 5	1.4	300	-	70	> 10^10
SIT350/X/6	0.34	< 5	2.4	300	-	70	> 10^10
SIT750/X/6	0.71	< 5	3.9	300	-	70	> 10^10
SIT1500/X/6	1.34	< 5	5	300	-	70	> 10^10
SIT75/X/12.5	0.09	< 5	1	300	-	70	> 10^10
SIT150/X/12.5	0.15	< 5	1.4	300	-	70	> 10^10
SIT350/X/12.5	0.34	< 5	2.4	300	-	70	> 10^10
SIT750/X/12.5	0.71	< 5	3.9	300	-	70	> 10^10
SIT1500/X/12.5	1.34	< 5	5	300	-	70	> 10^10

⁽²⁾Measured at maximum limit of static application range

Thermal properties

Reference	Acoustic capacity
Reference	Thermal conductivity[W/m.k]	Operating temperature[°C]	Temperature peak[°C]	Inflammability
SIT75	0.06	- 30 / + 70	+ 120	E / EN 13501-1
SIT150	0.075	- 30 / + 70	+ 120	E / EN 13501-1
SIT350	0.09	- 30 / + 70	+ 120	E / EN 13501-1
SIT750	0.1	- 30 / + 70	+ 120	E / EN 13501-1
SIT1500	0.11	- 30 / + 70	+ 120	E / EN 13501-1
SIT75/X/6	0.07	- 30 / + 70	+ 120	E / EN 13501-1
SIT150/X/6	0.08	- 30 / + 70	+ 120	E / EN 13501-1
SIT350/X/6	0.11	- 30 / + 70	+ 120	E / EN 13501-1
SIT750/X/6	0.13	- 30 / + 70	+ 120	E / EN 13501-1
SIT1500/X/6	0.15	- 30 / + 70	+ 120	E / EN 13501-1
SIT75/X/12.5	0.07	- 30 / + 70	+ 120	E / EN 13501-1
SIT150/X/12.5	0.08	- 30 / + 70	+ 120	E / EN 13501-1
SIT350/X/12.5	0.11	- 30 / + 70	+ 120	E / EN 13501-1
SIT750/X/12.5	0.13	- 30 / + 70	+ 120	E / EN 13501-1
SIT1500/X/12.5	0.15	- 30 / + 70	+ 120	E / EN 13501-1

⁽³⁾Test according to respective standards
