SITW

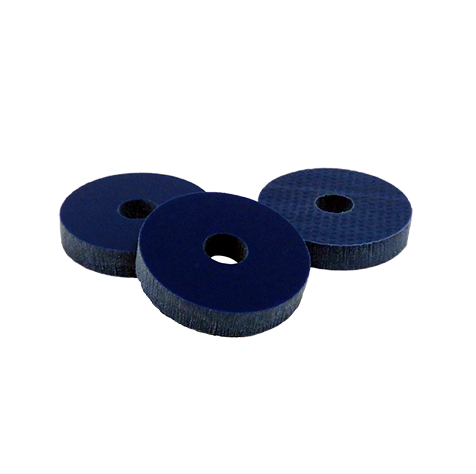

Sound Insulation washer
SITW washers are combined with SIT isolating strips to create a high-performance system in CLT buildings that are required to deliver superior acoustic performance. The isolating washer is fitted between a metal washer and the CLT when assembling with screws, which prevents vibrations from spreading through the fastenings.
Product Details
Images
Features
Application
Technical Data

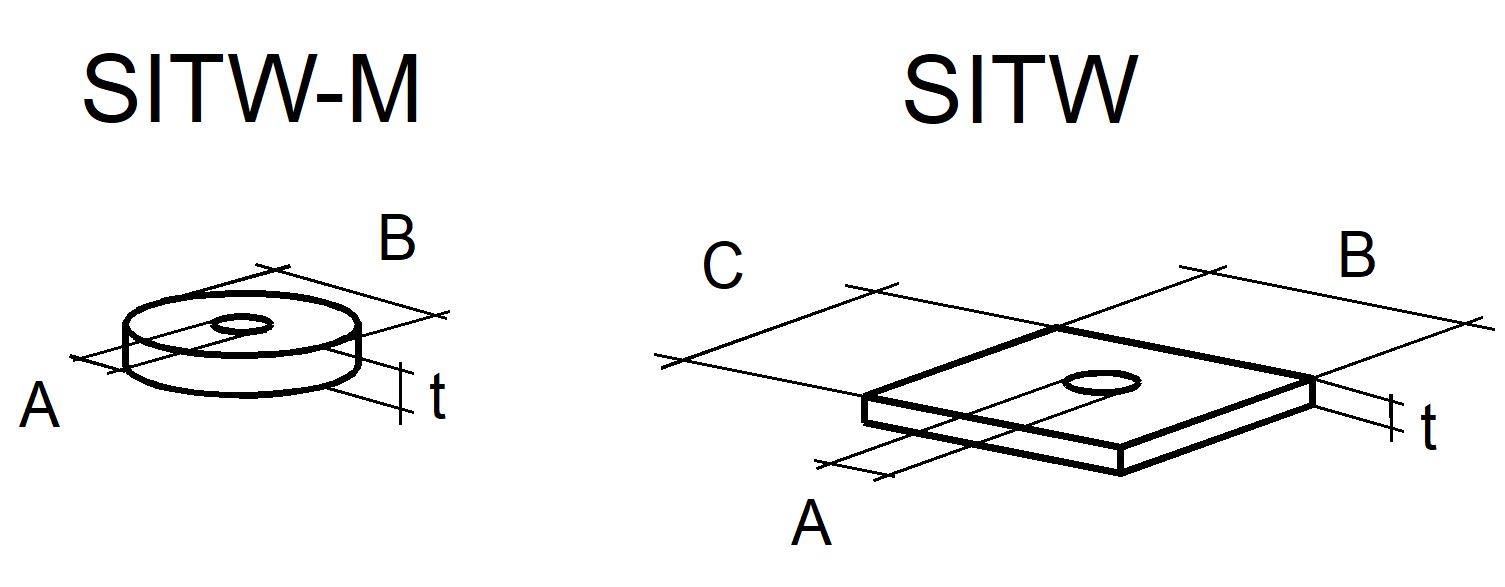

Dimensions
Dimensions
| References | Washer | Weight [kg] | ||||||
|---|---|---|---|---|---|---|---|---|
| Header | Dimensions and drill holes [mm] | Fixing | ||||||
| A | B | C | t | Header | Joist | |||
| SITW-M0608 | Ø6 or 8 | Ø8,5 | Ø34 | - | 6 | 8 or 10 | 35 | 0.04 |
| SITW-M1012 | Ø10 or 12 | Ø12,5 | Ø49 | - | 6 | 12 or 14 | 50 | 0.1 |
| SITW70/70 | HTT | Ø~16 | 70 | 70 | 6 | - | - | 0.27 |
| SITW70/90 | AKR | Ø~12 | 70 | 90 | 6 | - | - | 0.35 |
| SITW100/265 | ABR255 | - | 100 | 265 | 6 | - | - | 0.13 |

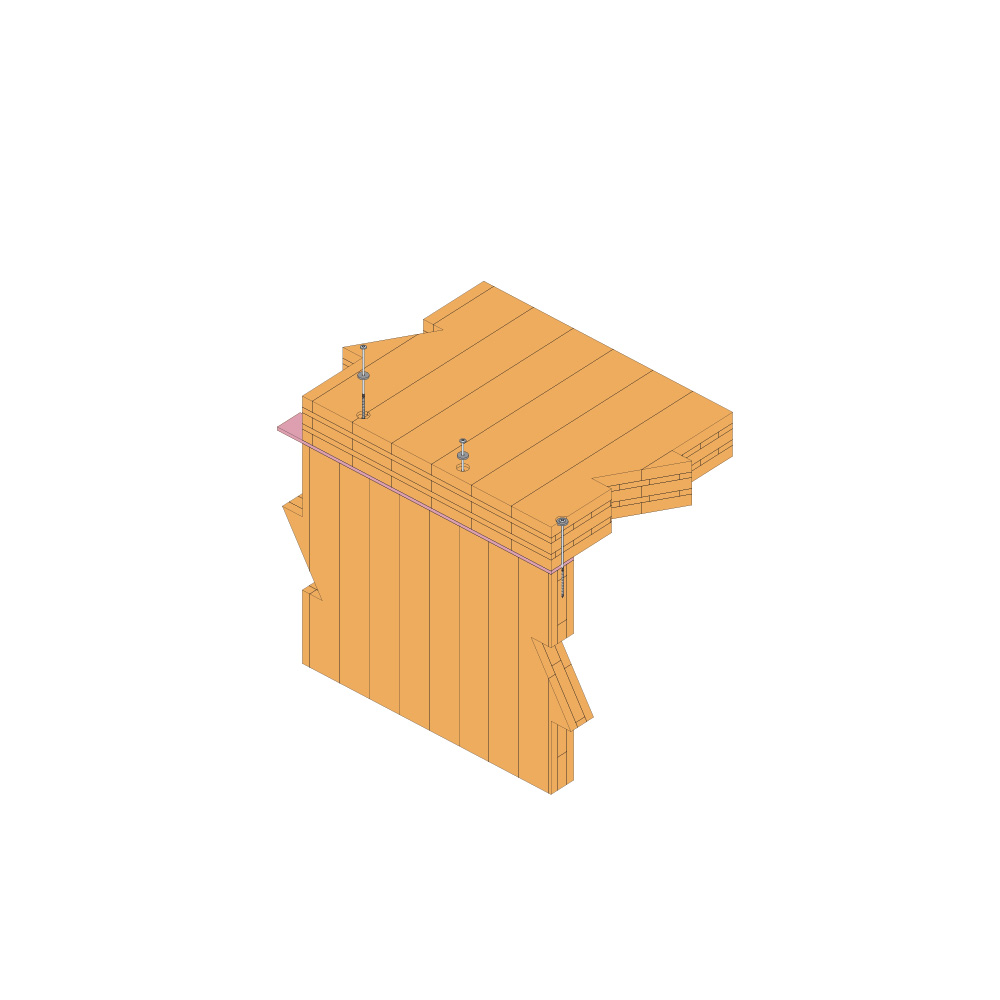

Simply drill pilot holes in the first CLT panel to avoid transferring vibrations through the flat part of the screw
