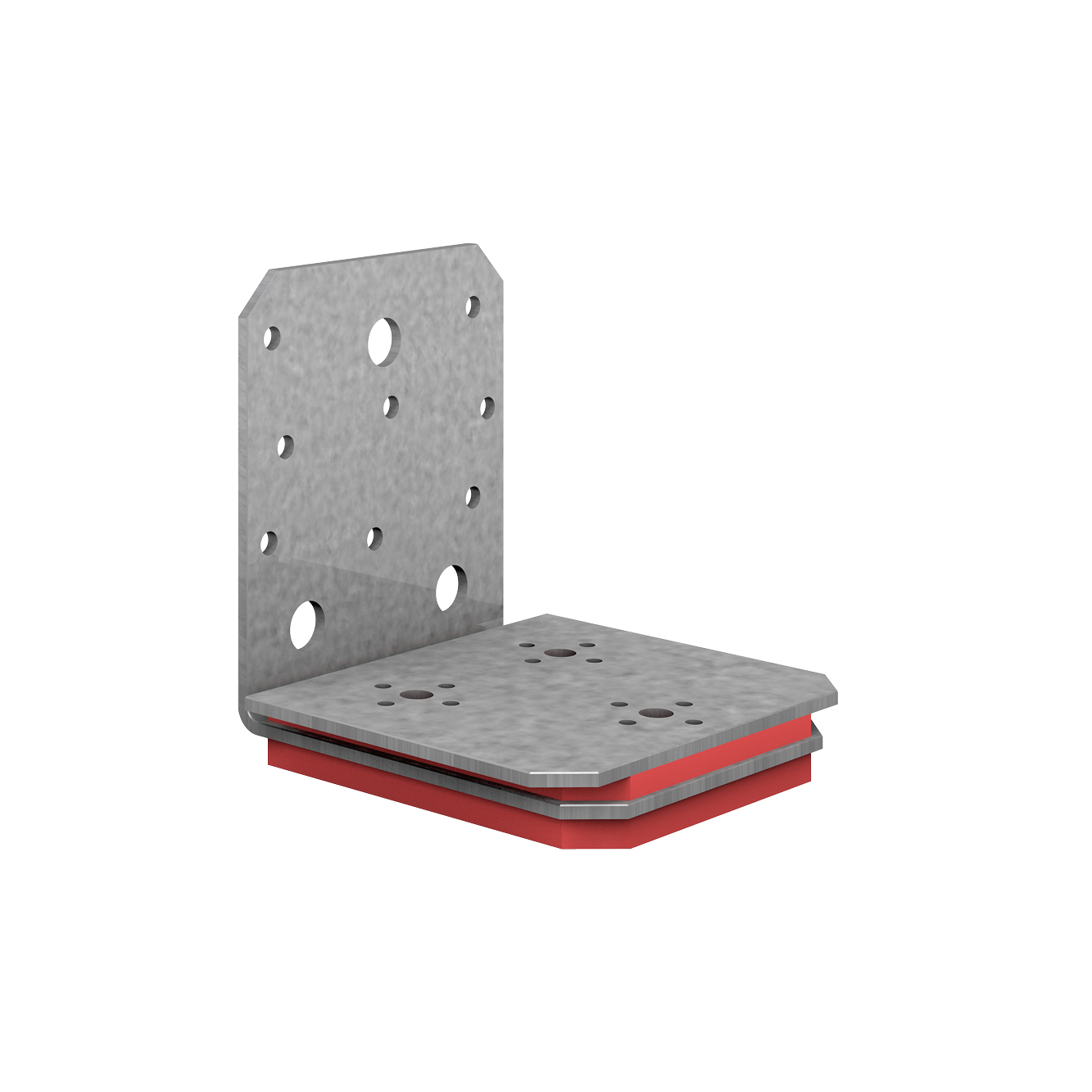

ABAI
Angle bracket for CLT
The ABAI is a bracket for static structural joints between wall and ceiling panels of laminated wood. They are separated by 12 mm thick sound insulation support.

CE Marking

ETA

Service class 2

Indoor
EPD

Electrogalvanized steel Z275
ABAI_SSTBP_homepage_DE_de
Product Details
Images
Features
Material
• Galvanized steel S250GD with zinc coating thickness of 20 microns
• Sylodyn®: Polyurethane Syloer SR220
Benefits
- Load capacity in all directions
- Saving time and cost to build, because there is no need for additional sound insulation
- Reduces sound transmission
- More living space because of additional sound insulation
- A positive impact on the indoor environment, greater wind resistance, due to isolation SYLODYN along the outer walls
Application
Applicatons
Supporting member:
Plywood boards
Supported member:
Plywood boards
Scope
- The ABAI soundproofing angles are used for connections between wall and ceiling elements made of plywood boards

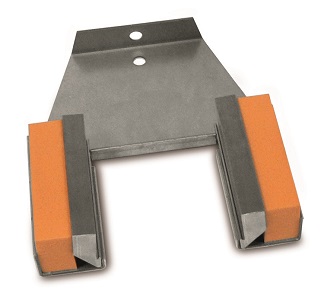

- The connection to the base plate by means of Simpson Strong-Tie® special screws. The MOABAI insertion device is to be used
- The connections can be made on one side or with opposing angle brackets.
Technical Data
Product Dimensions
| Reference | Connector Dimensions | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Other | Product Dimensions[mm] | Joist[mm] | Flange B[mm] | ||||||||||
| Tun / DB nr. | NOB nr. | Qty per Box | Weight[kg] | A[mm] | B[mm] | C[mm] | D[mm] | E[mm] | Thickness[mm] | Round | Round | ||
| Ø5[mm] | Ø11[mm] | Ø7 | |||||||||||
| ABAI105 | 1923004 | 46900855 | 20.0 | 0.81 | 113 | 103 | 90 | 106 | 18 | 3 | 8 | 3 | 3 |

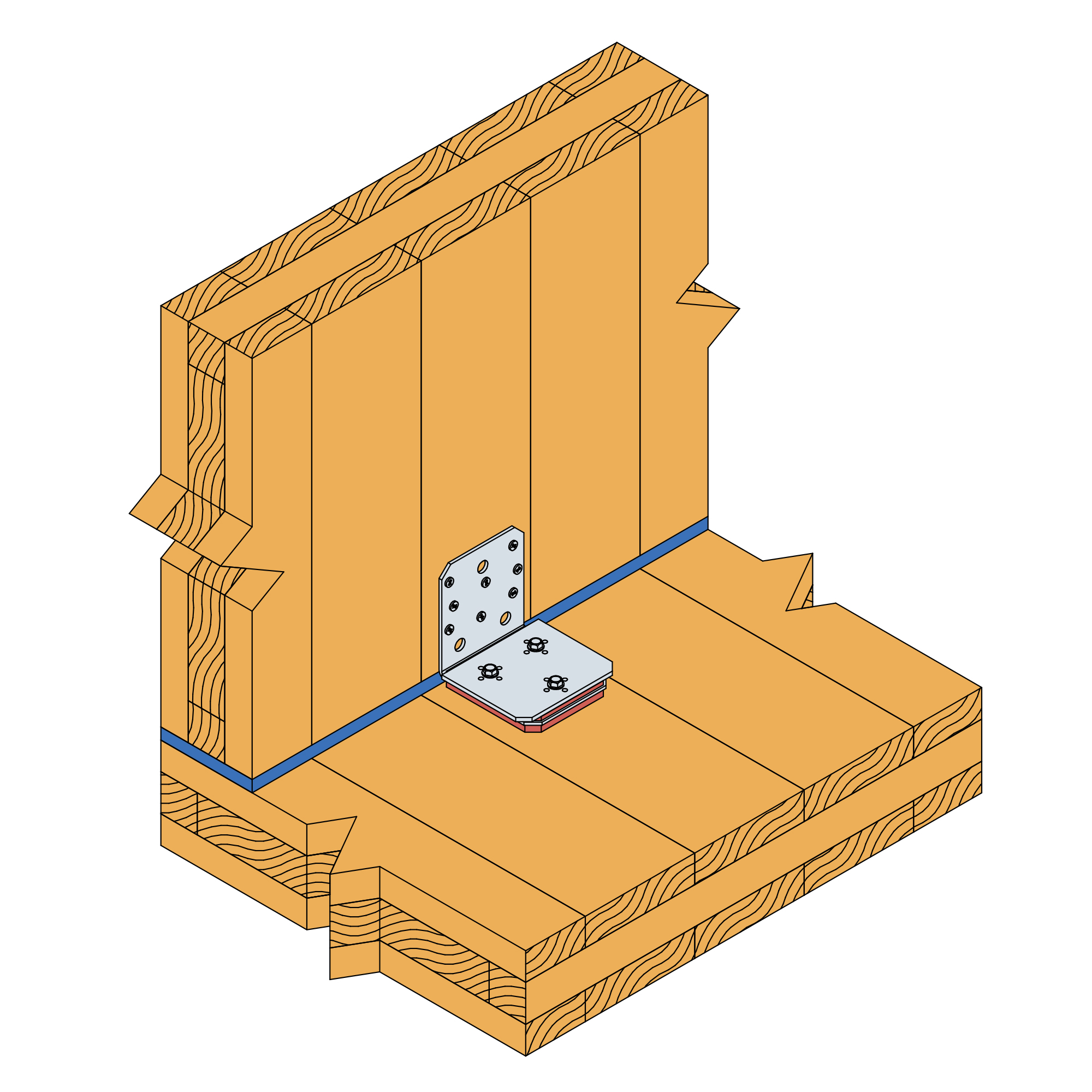

Single-sided connection with a Sylodyn insulation strips d = 12 mm between wall and ceiling
Product capacities - ABAI
| Reference | Angle bracket capacity | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product capacities - Timber to timber - Full nailing | ||||||||||||
| Number of Fasteners | Characteristic capacities - Timber C24 - 1 angle brackets per connection[kN] | Slip modulus Kser for load direction[kN/mm] | ||||||||||
| Joist | Flange B | R₁,ₖ | R₂/₃,ₖ | R₄.ₖ | R₅.ₖ | R₁,ₖ | R₂/₃,ₖ | R₄.ₖ | R₅.ₖ | |||
| Qty | Type | Qty | Type | |||||||||
| ABAI105 | 8.0 | CNA4,0x60 | 3.0 | SDS25600 | 2,0/kmod | 2,0/kmod | 3,3/kmod | 2,3/kmod | 0.8 | 0.68 | 1.16 | 0.8 |
Design:
For the overlap of the action must be proven:
Simplified characteristic capacities - Wood to wood - 1 bracket per connection
| Reference | Angle bracket capacity | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Simplified product capacities - Timber to timber – Full nailing | ||||||||||||
| Number of Fasteners | Characteristic Capacities - Timber C24 - 2 Angle Brackets per Connection[kN] | Slip modulus kser for load duration | ||||||||||
| Joist | Flange B | R₁,ₖ* | R₂/₃,ₖ | R₄.ₖ | R₅.ₖ | R₁,ₖ | R₂/₃,ₖ | R₄.ₖ | R₅.ₖ | |||
| Qty | Type | Qty | Type | |||||||||
| ABAI105 | 8.0 | CNA4,0x60 | 3.0 | SDS25600 | 2.2 | 2.2 | 3.7 | 2.6 | 0.8 | 0.68 | 1.16 | 0.8 |
The published characteristic capacity is based on short term load duration and service class 2 according to EC5 (EN 1995) – kmod = 0.9. For other load duration and service class, please refer to the ETA to get more accurate capacities
for load combination:
