PISBMAXI

Post Base with Stand Off

The PISBMAXI is a heavy duty elevated post base to suit various sizes of timber and Glulam posts.

Technical Data Sheet

CE Marking

ETA

Service class 3

Hot-dip galvanised steel

Outdoor

EPD

Product Details

Images

Features

Material

Material Grade

S235

Finish

Post hot dip galvanised.

Benefits

The post base is made of 15mm thick plates welded to a Ø70mm tube.
The column is fixed to an 8mm thick vertical plate with holes to suit Ø12mm dowels.

Application

Suitable On

Timber / Glulam columns to solid foundations

Scope

The PISBMAXI is a heavy duty elivated post base to suit various sizes of timber and Glulam posts.

Technical Data

Dimensions

Product Dimensions

References	Tun / DB nr.	NOB nr.	Product Dimensions [mm]										Top plate holes	Bottom plate holes	Box Quantity	Weight [kg]
References	Tun / DB nr.	NOB nr.	A	B	C	D	E	F	G	H	t₁	t₂	Ø13	Ø17	Box Quantity	Weight [kg]
PISBMAXIG-B	5650320	22998546	120	120	105	200	200	148	70	90	8	15	2	4	-	8.1

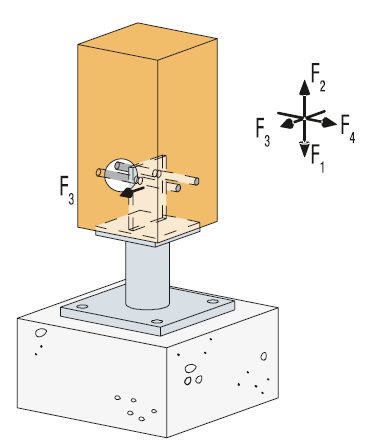

Capacities

References	Number of Fasteners				Characteristic capacities - Timber C24 [kN]
	On post		On concrete		R_1,k	R_2,k			R_3,k			R_4,k
	Qty	Type	Qty	Type		Dowel length [mm]			Dowel length [mm]			Dowel length [mm]
	Qty	Type	Qty	Type		120	140	160	120	140	160	120	140	160
PISBMAXIG-B	2	Ø12	4	Ø16*	min (272.2 ; 256.9/kmod)	34.5	38.5	42.1	22.5	min (25.2 ; 14.1/kmod)	min (27.5 ; 14.1/kmod)	7.7	9.9	12.3

b = Timber width [mm]

Combined load:

Simplified Characteristic Capacities - Timber to Concrete

References	Number of Fasteners				Simplified characteristic capacities - Timber C24 [kN]
	On post		On concrete		R_1,k**	R_2,k			R_3,k**			R_4,k
	Qty	Type	Qty	Type		Dowel length [mm]			Dowel length [mm]			Dowel length [mm]
	Qty	Type	Qty	Type		120	140	160	120	140	160	120	140	160
PISBMAXIG-B	2	Ø12	4	Ø16*	272.2	34.5	38.5	42.1	22.5	20.1	20.1	7.7	9.9	12.3

* Refer to the Simpson Strong-Tie anchor product range for suitable anchors. Typical anchor solutions are SET-XP and AT-HP, depending on the concrete type, spacing and edge distances.

** The published characteristic capacity is based on medium term load duration and service class 3 according to EC5 (EN 1995). For other load duration and service class, please refer to the ETA to get more accurate capacities

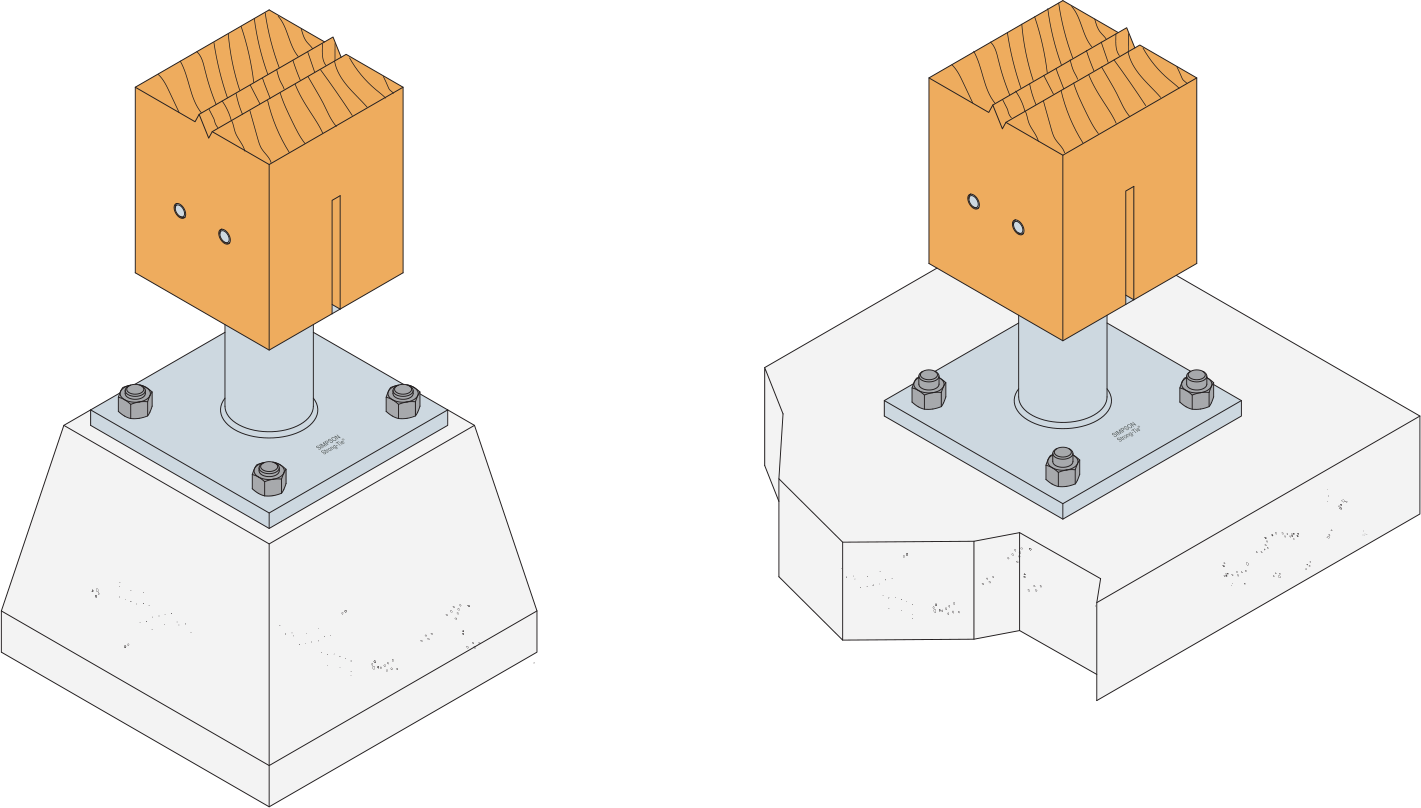

Installation

The posts must have a slot to suit the vertical metal plate and 2 holes for the Ø12mm dowels.

Installation

Timber install

Make a vertical notch in the base of the post
Mark out & drill dowel positions
Drill holes through the post with 12mm dia. Bits
Position the post on the post base & insert pins

Fixings

Fixing Installation to Concrete

Mechanical Fixing

SST Recommended Fixings: FM753 3DG – M16x145 (code 75320c1614500)

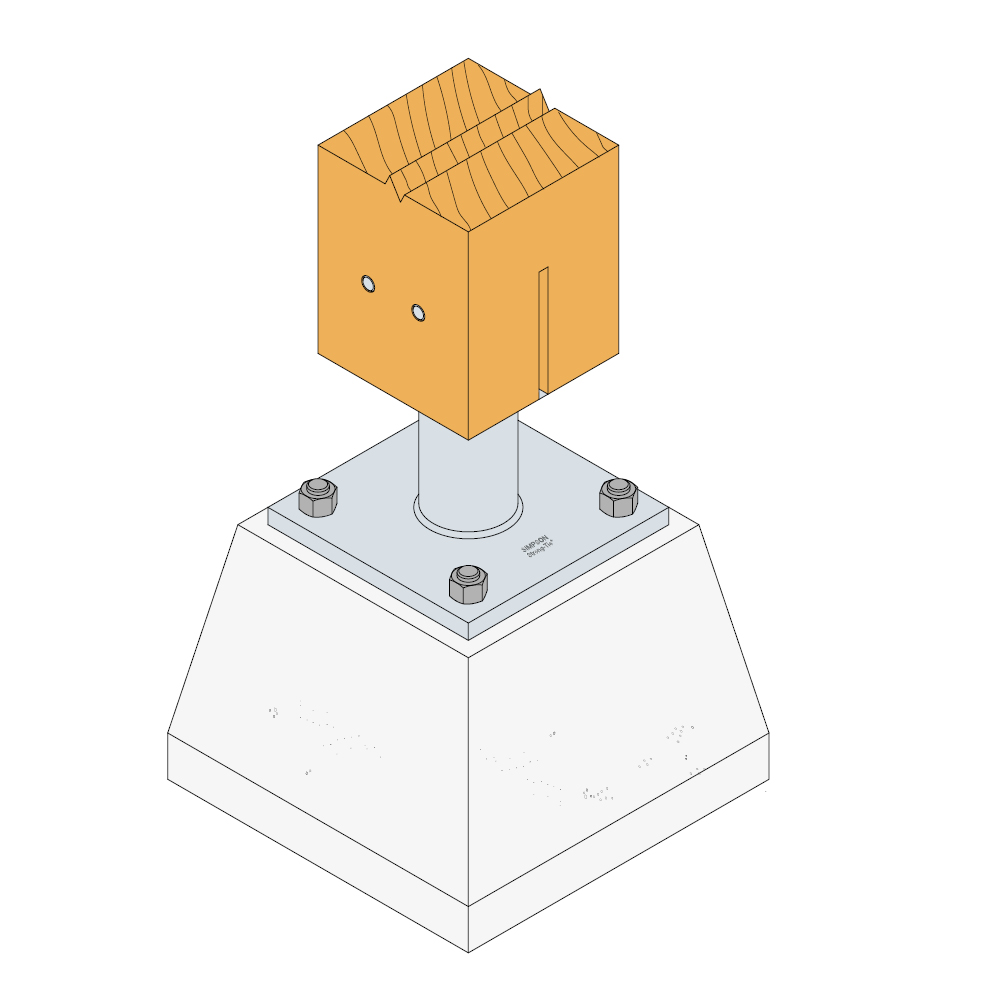

Recommended Concrete Pad Size: 450mm Wide x 450mm Long x 350mm Deep (see illustration below)

Recommended Concrete Grade: C25 (mixing ratio of 1:1.5:3 (Cement:Sharp Sand:Aggregate) with typically 0.5 water-cement ratio)

Installation Instructions:

Position the post-base centrally on the concrete pad.
Identify and mark out the position for the anchors.
Drill holes perpendicular to the concrete surface, Ø16 x 115mm deep.
Clean the dust from the holes 3 times using a brush, pump or vacuum. This is a crucial step.
Reposition the post base and insert the anchors (tap gently with a hammer if needed) and use a torque wrench to tighten to the recommended installation torque of 100Nm

Resin Fixing

SST Recommended Fixings: LMAS M16x170 (code LMAS1618130020)

SST Recommended Resin: ATHP

Recommended Concrete Pad Size: 450mm Wide x 450mm Long x 350mm Deep (see illustration below)

Recommended Concrete Grade: C25 (mixing ratio of 1:1.5:3 (Cement:Sharp Sand:Aggregate) with typically 0.5 water-cement ratio)

Installation Instructions:

Position the post-base centrally on the concrete pad.
Identify and mark out the position for the anchors.
Drill holes perpendicular to the concrete surface, Ø18 x 130mm deep.
Clean the dust from the holes 3 times using a brush, pump or vacuum. This is a crucial step.
Add Resin using dispenser and fill the hole half-way
Remove nut and washer from anchors, then Insert the anchors carefully into the holes
Once resin has hardened (check for a change in colour) reposition the post base over the top of the anchors, after carefully cleaning excess resin from the area
Use a torque wrench to tighten to the recommended installation torque of 100Nm

PLEASE NOTE – Anchor performance will only be valid when using Simpson AT-HP Resin
