STDG

Dowels for concealed connectors

The dowels complement concealed beam hangers ETNM, TU, TUB, TUBS and CBH. They are also used to fasten concealed post bases.

CE Marking
Service class 3
Outdoor
Galvanised steel

Product Details

Images

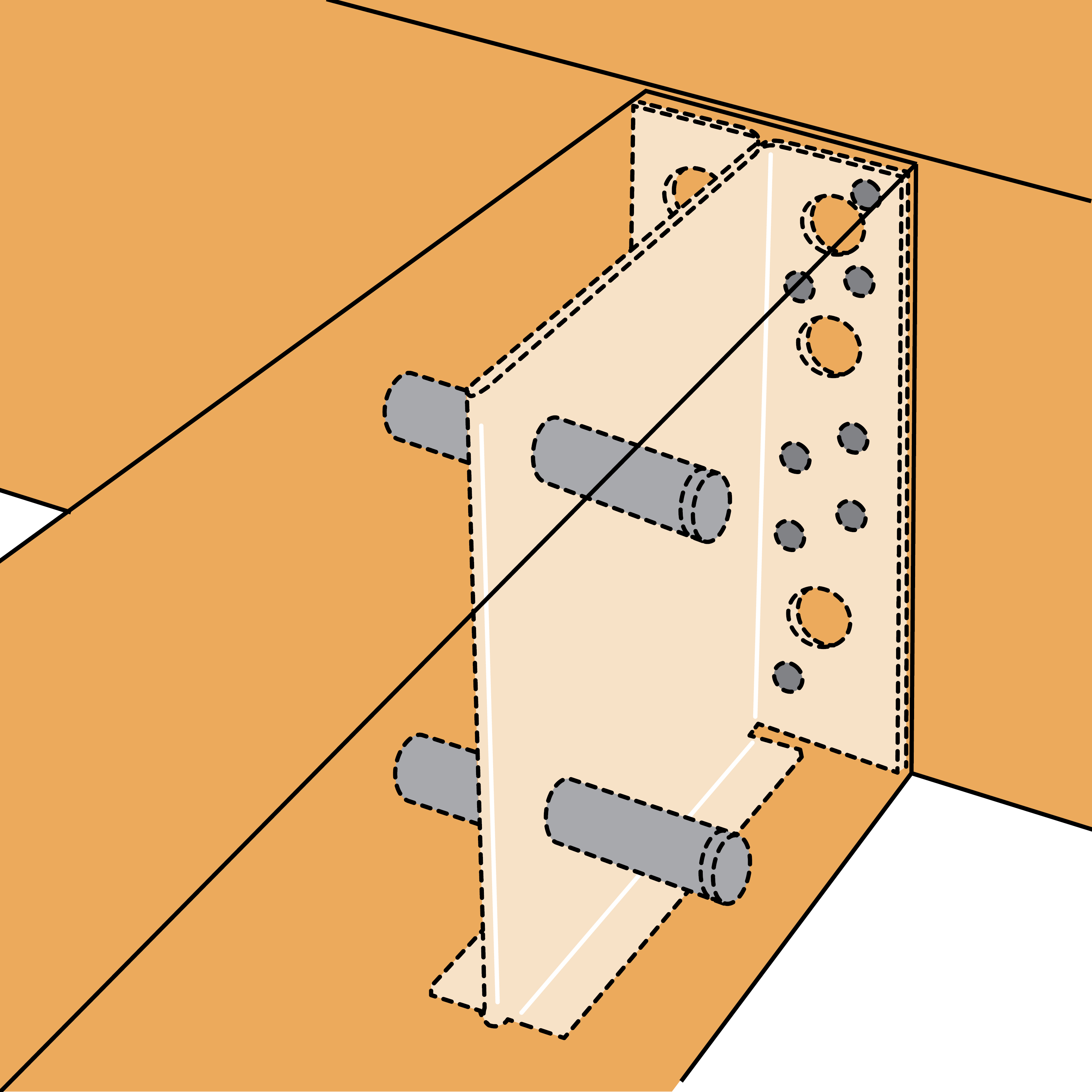

Fixation 2 broches
Joist connection

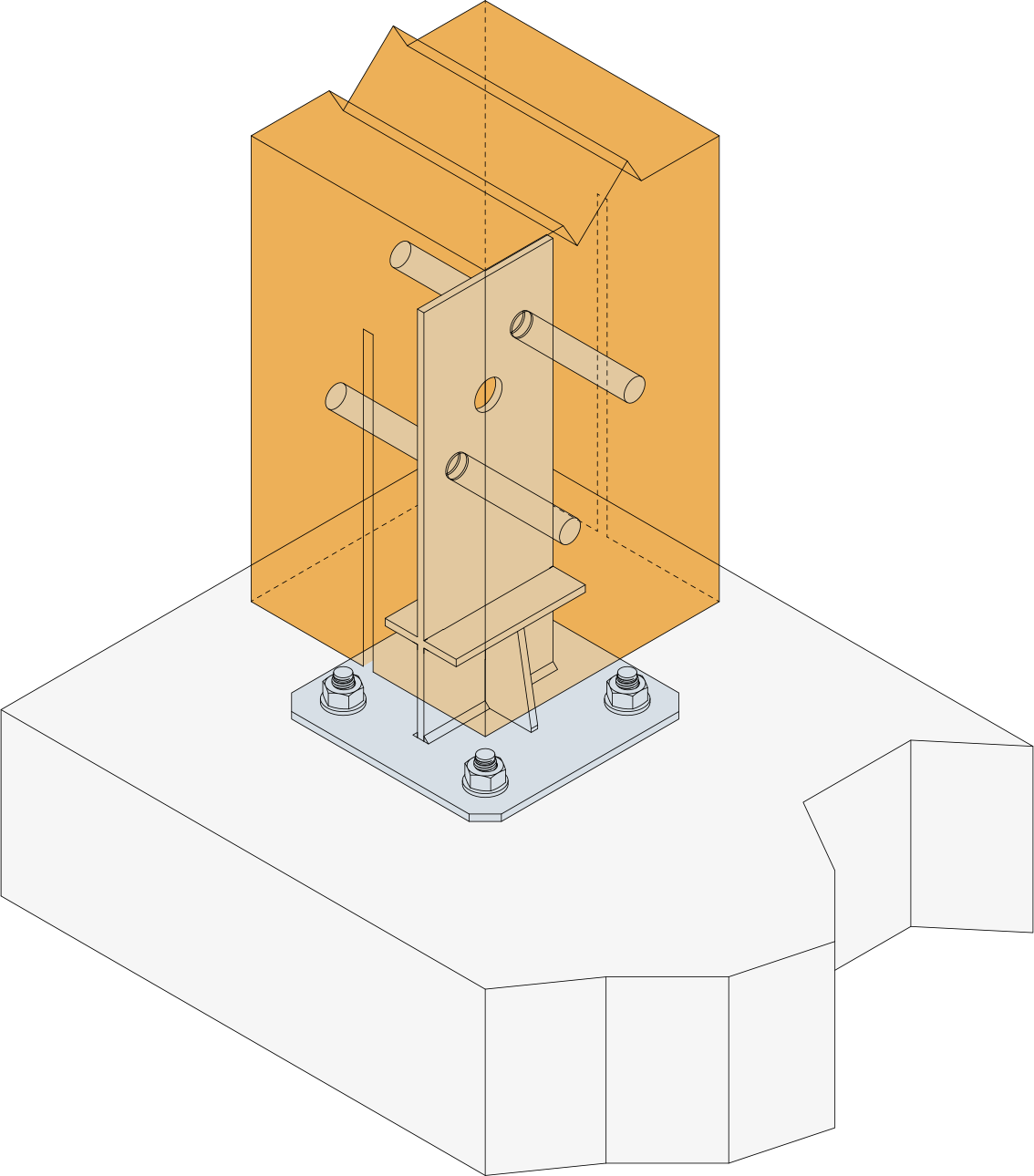

Fixing the postbase by sealing in the concrete. The horizontal plate must be at most 50 mm from the slab.

Features

Material

  • Steel S235JR according to NF EN 10025: 1993.
  • Zn12/A dichromate finish according to NF EN ISO 2081.

Benefits

  • Made in various lengths

Application

Suitable On

  • Concealed beam hangers.
  • Structural post bases.

When to Use

  • Used for mounting of concealed beam hangers and structural post bases
  • Used where incorporated steel plates are part of an assembly detail in timber

STD dowels complement the following products:

  • PI, PIL, BTN, PIS, PISB, PVI, PVIB



Technical Data

Dimensions

Product Dimensions

References Tun / DB nr. NOB nr. Fastener dimensions [mm]
d l
STD8X80G-B125232443811112880
STD8X90G-B125232743811138890
STD8X100G-B1252329438109648100
STD8X115G-B1252332438109838115
STD8X120G-B1252334438110028120
STD8X140G-B1252354438110218140
STD12X120G-B12523694381079412120
STD12X140G-B12523714381082412140
STD16X100G-B--16100

Product characteristic properties

References Product characteristic properties
Characteristic Yield Moment – My,k [My.k] [Nm]
STD8X80G-B22.7
STD8X90G-B22.7
STD8X100G-B22.7
STD8X115G-B22.7
STD8X120G-B22.7
STD8X140G-B22.7
STD12X120G-B65.2
STD12X140G-B65.2
STD16X100G-B137.8

Installation

Installation

Installation

  • The hole is pre-drilled with a diameter less than or equal to the nominal dowel diameter.
  • Chamfers make it easier to insert the elements into the wood.

The dowels contribute to the load bearing capacity of our connectors. Please follow the installation recommendations given in our ETAs: ETA-07/0245 (Concealed beam hangers) and ETA-07/0285 (Post bases).
