Light Duty Flat I Bracket

Light angle brackets are used in a large number of DIY applications and are commonly used for reinforcing furniture assemblies.

Technical Data Sheet
Service class 2
Service class 2
Indoor
Indoor
EPD
EPD
Electro-galvanized steel
Electro-galvanized steel

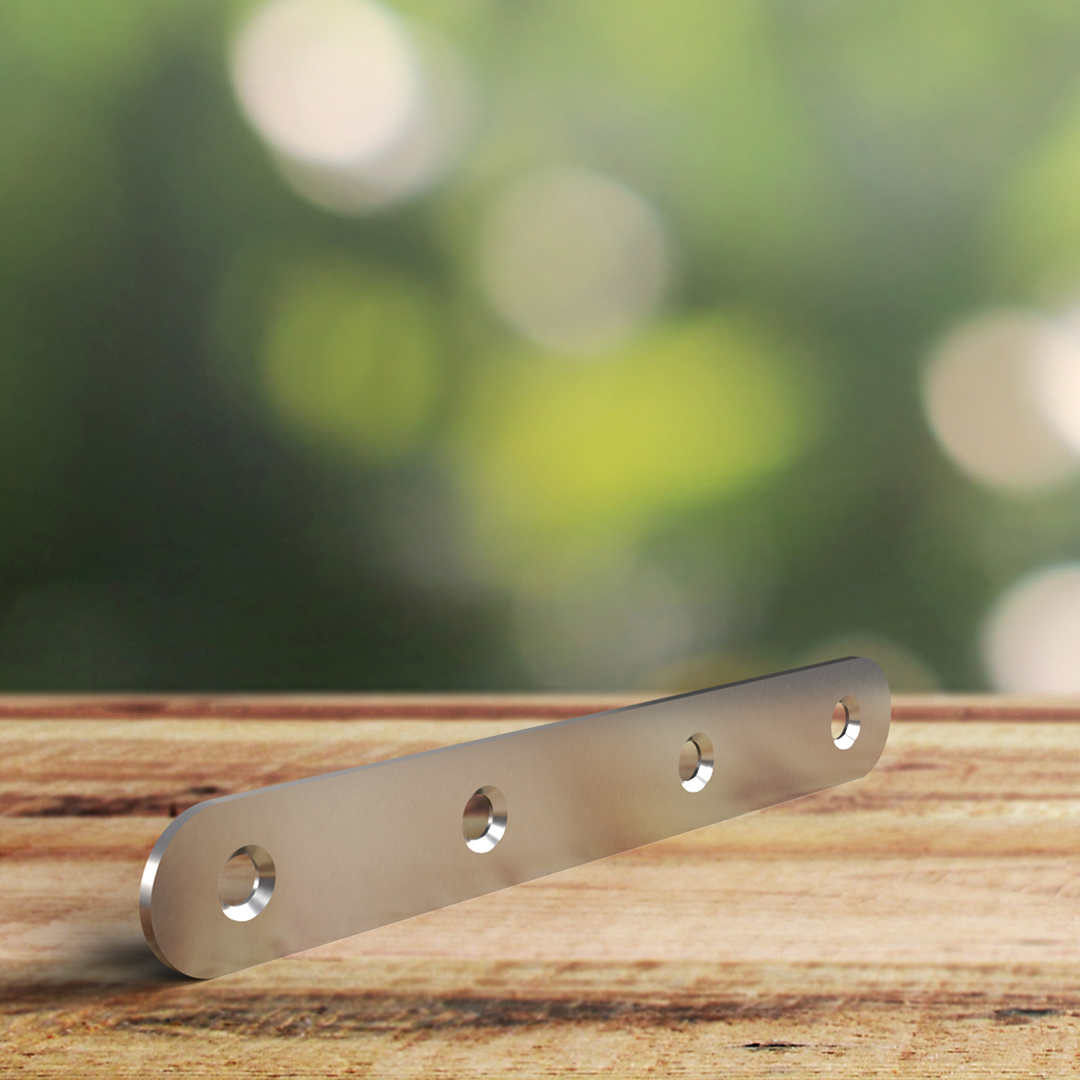

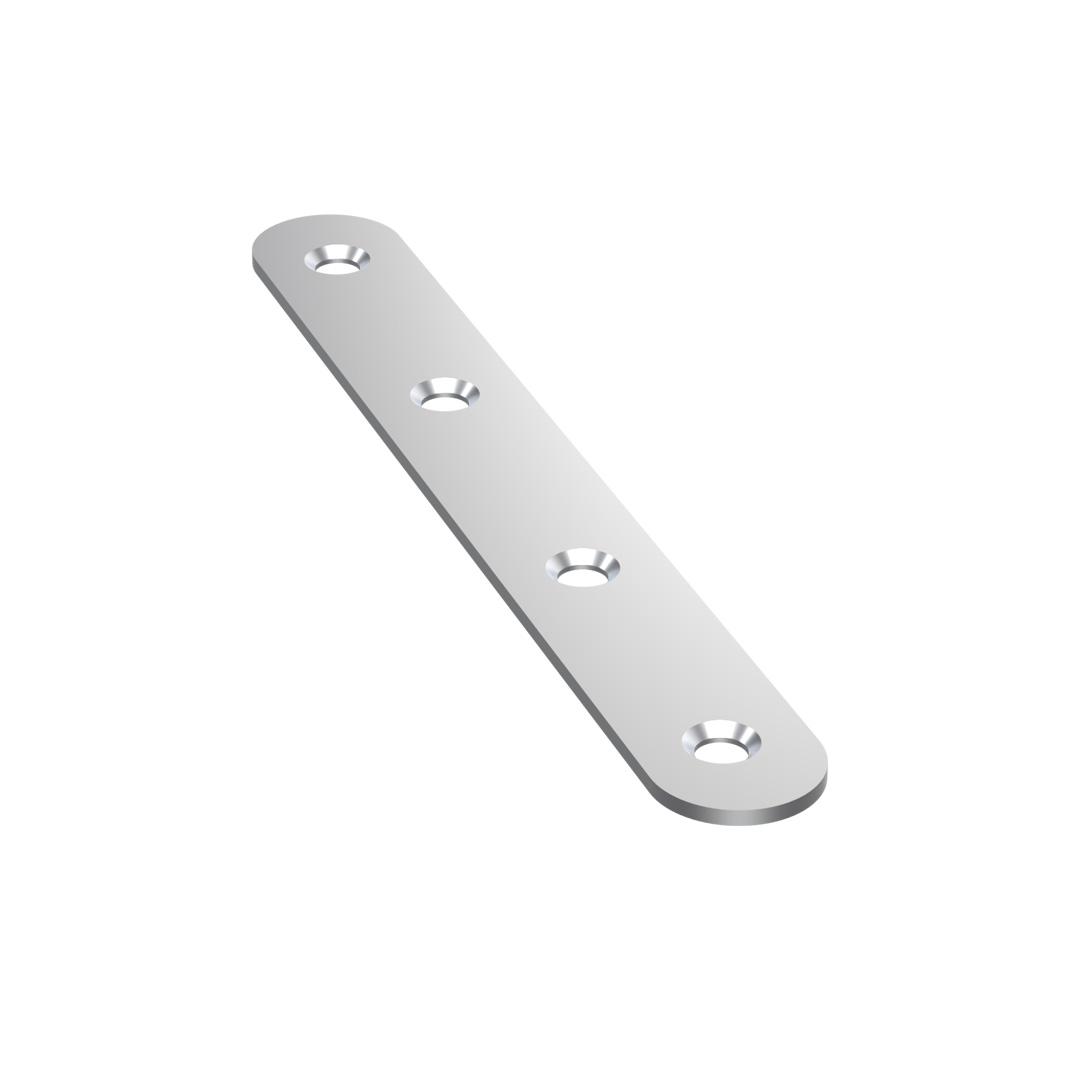

ECA main image

Product Details

Images

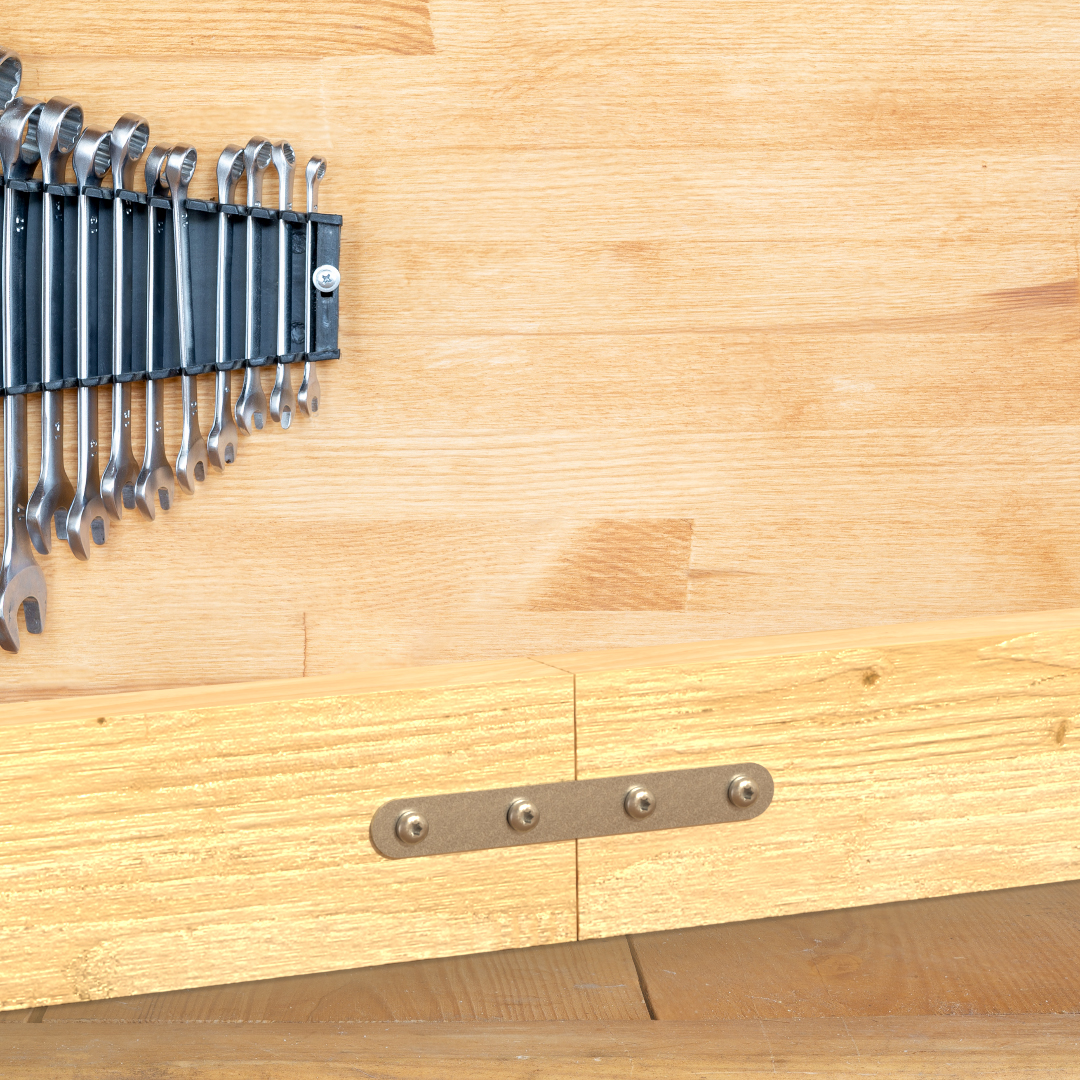

ECA install.jpg

Features

Material

  • Steel S235JR according to NF EN 10025, electro-galvanized finish.

Benefits

  • large range for large application range
  • Suitable on timber and concrete

Application

Suitable On

  • Supporting member: wood, etc.

Scope

  • Solid wood.
  • Panels.
  • PVC, etc.

Technical Data

Product Dimensions

Dimensions

Product Dimensions
Product Dimensions
ReferenceConnector Dimensions
Product Dimensions[mm]JoistOther
A[mm]B[mm]Thickness[mm]RoundWeight[kg]
Ø4Ø4.6Ø4.8Ø5.2Ø5.4
ECA55/255152-4---0.01
ECA75/275152---4-0.016
ECA95/295152--4--0.021
ECA115/21151524----0.026
ECA135/2135182----40.035
ECA155/2155182---4-0.038

Installation

Installation

Fasteners

Countersunk holes:

  • Type 30 to 80 dia. 4.2 mm.
  • Type 90 to 140 dia. 5.5 mm.

On wood:

  • CNA annular ring-shank nails dia. 3.1 x 35 mm and dia. 4.0 x 35 mm.
  • SD8 screws dia. 4.0 x 32 mm.

Installation

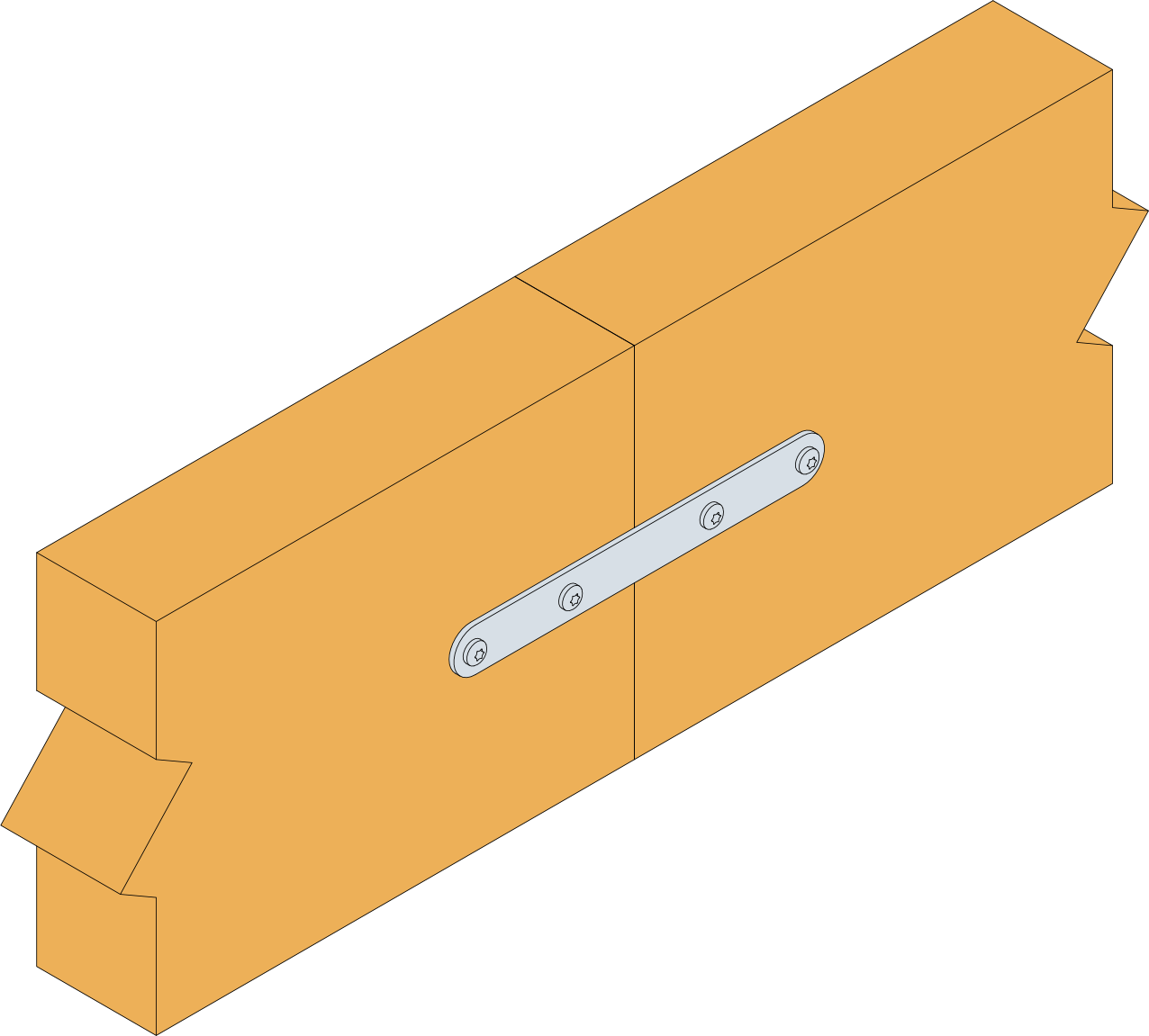

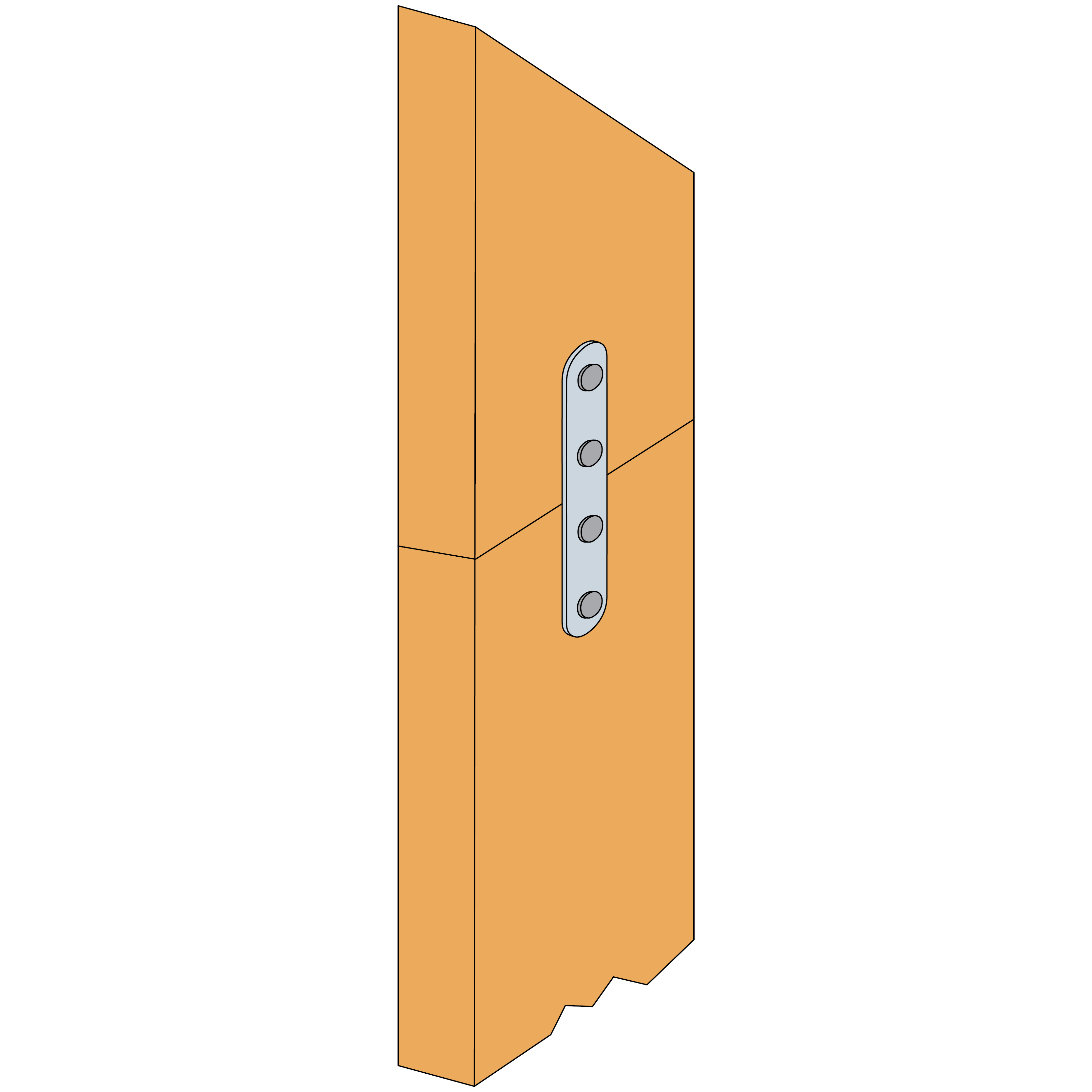

1. Place the elements together
2. Mark out positionsif required
3. Fix the elements with nail or screws

Panels assembly

Certification

Environmental Product Declarations (EPD)

epd-certificate-sst-connectors
