Light Duty Flat L Bracket

Light angle brackets are used in a large number of DIY applications and are commonly used for reinforcing furniture assemblies.

Technical Data Sheet
Service class 2
Service class 2
Indoor
Indoor
EPD
EPD
Electro-galvanized steel
Electro-galvanized steel
ECP main image

Product Details

Images

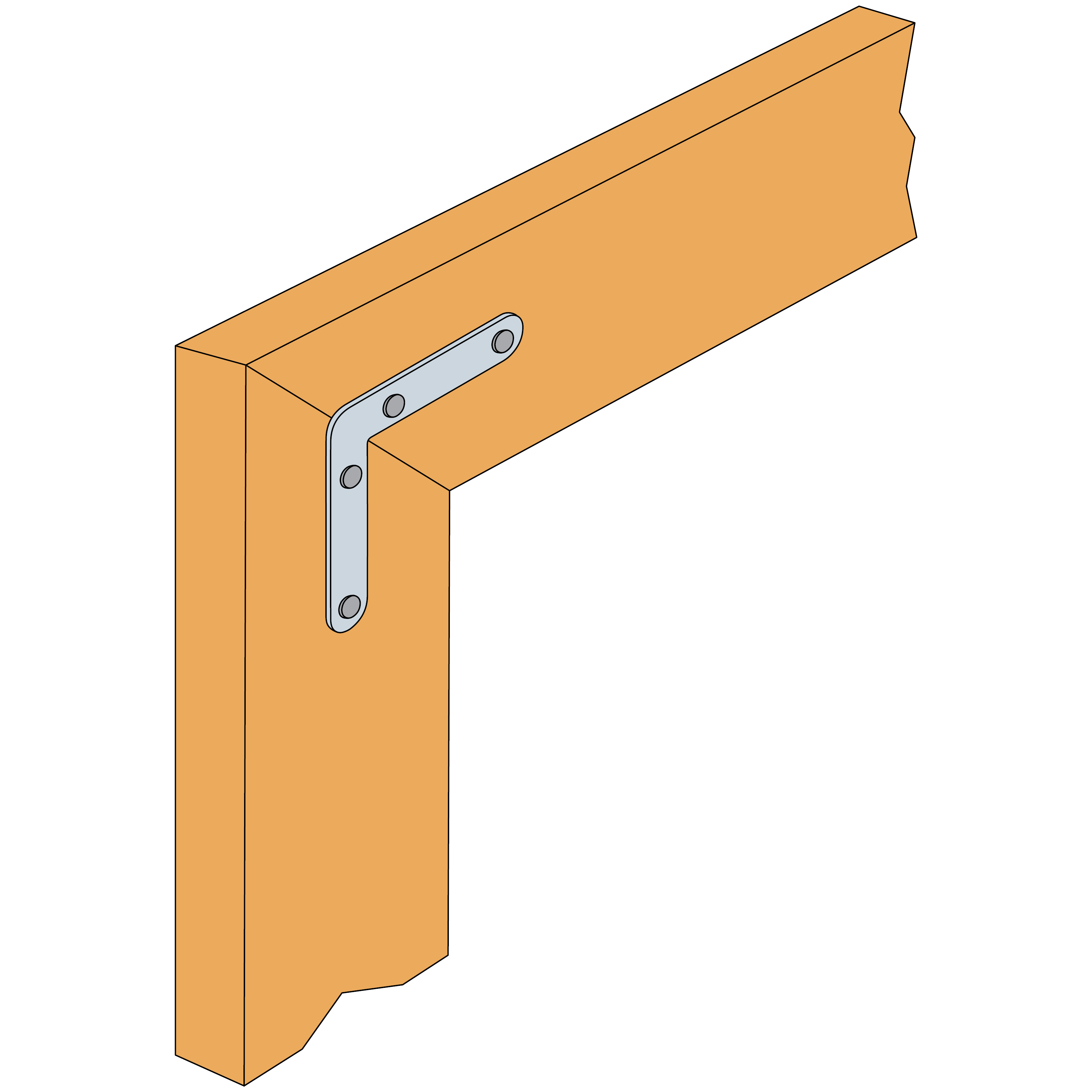

Timber connection

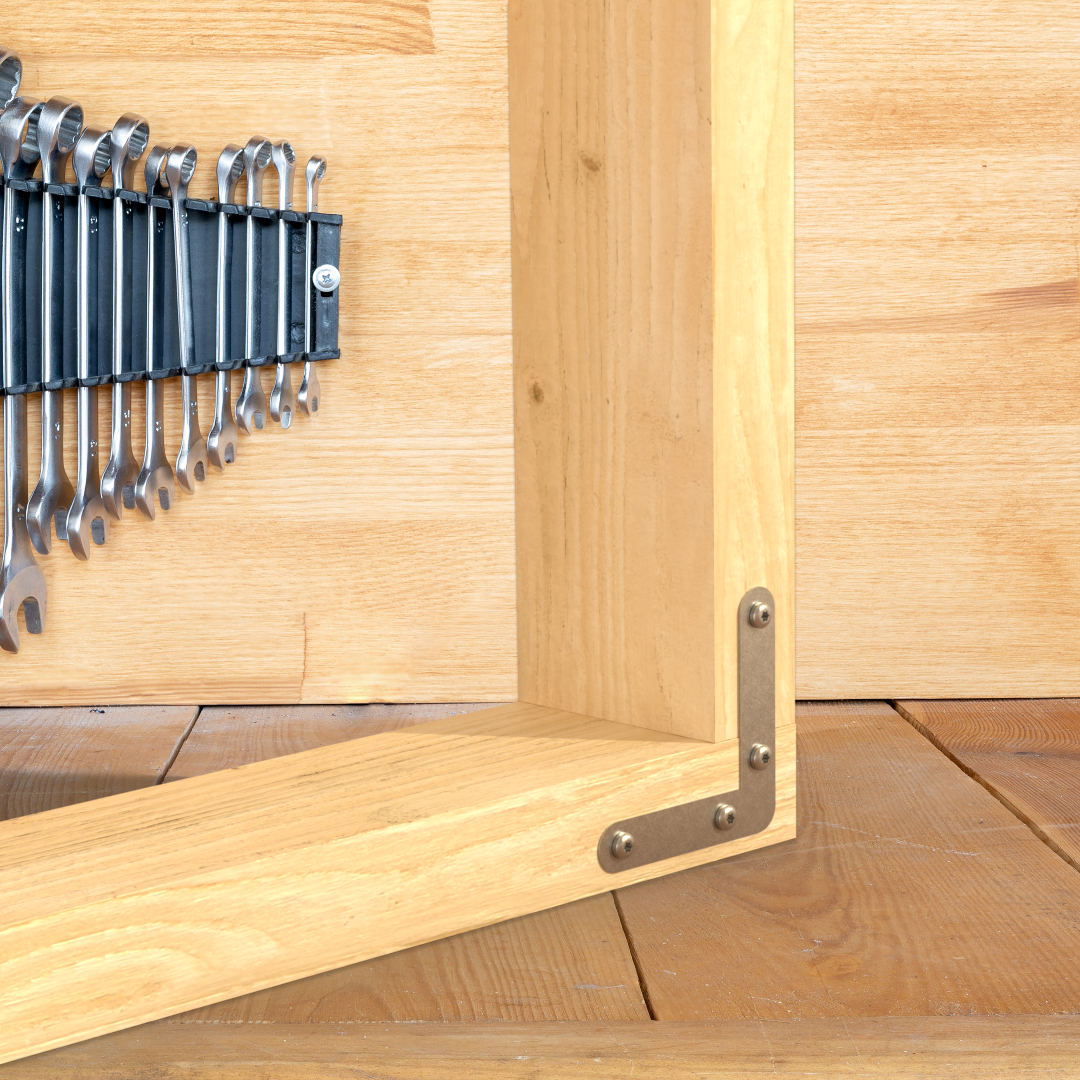

ECP install.jpg

Features

Material

  • Steel S235JR according to NF EN 10025, electro-galvanized finish.

Benefits

  • Large range for multi use.
  • Suitable for us on timber and concrete.

Application

Header member

  • Supporting member: wood, etc.

For Use With

  • Solid wood.
  • Panels.
  • PVC, etc.

Technical Data

Product Dimensions

Dimensions

Product Dimensions
Product Dimensions
ReferenceConnector Dimensions
Product Dimensions[mm]JoistHoles Flange BOther
A[mm]B[mm]C[mm]Thickness[mm]RoundRound Weight[kg]
Ø3.6Ø3.8Ø4Ø4Ø3.6Ø3.8
ECP30/1.23030101.2-2---20.005
ECP40/1.24040101.2-2---20.006
ECP60/1.56060161.5--22--0.018
ECP80/28080162--22--0.034
ECP100/2100100162--22--0.044

Installation

Installation

Fixing

Countersunk holes:

  • Type 30 to 80 dia. 4.2 mm.
  • Type 90 to 140 dia. 5.5 mm.

On wood:

  • CNA annular ring-shank nails dia. 3.1 x 35 mm and dia. 4.0 x 35 mm.
  • SD8 screws dia. 4.0 x 32 mm.

Installation

1. Place the elements together
2. Mark out positionsif required
3. Fix the elements with nail or screws

Timber connection

Certification

Environmental Product Declarations (EPD)

epd-certificate-sst-connectors
