GSE 4

Joist hanger

The GSE joist hanger is a connector which has been tested and proved to be Fire Resistance R30 in combustion chamber tests. The GSE hanger is used in structures where fire resistance is essential.

Technical Data Sheet

CE Marking

ETA

external fender

Service class 2

Electrogalvanized steel Z275

Fire resistance R 30

EPD

Product Details

Images

Partial nailing on timber

Full nailing on timber

On rigid support

Features

Material

S250GD + Z275 according to NF EN 10346.
Thickness: 4 mm.

Benefits

Wide range of products
Easy to install
Statically calculated
Fire resistance

Application

Header member

Supporting member:

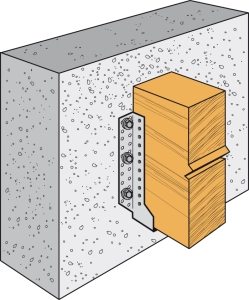

Solid wood, composite wood, glued laminated wood, concrete

Supported member:
Solid wood, composite wood, glued laminated wood.

When to Use

Joists, purlins.
Cladding plates and uprights.
Rafter ends.
Refurbishment of existing assemblies,etc.

Technical Data

Sheet dimensions

Reference	Connector Dimensions
	Product Dimensions[mm]
	Blank[mm]	Width[mm]	Depth[mm]
GSE300/4X	300	32 - 110	110
GSE340/4X	340	32 - 110	110
GSE380/4X	380	32 - 136	110
GSE440/4X	440	32 - 136	110
GSE500/4X	500	32 - 136	110
GSE500/4X-AL	500	137 - 200	110
GSE540/4X	540	32 - 136	110
GSE540/4X-AL	540	137 - 200	110
GSE600/4X	600	32 - 136	110
GSE600/4X-AL	600	137 - 200	110
GSE660/4X	660	32 - 136	110
GSE660/4X-AL	660	137 - 200	110
GSE720/4X	720	32 - 136	110
GSE720/4X-AL	720	137 - 200	110
GSE780/4X	780	32 - 136	110
GSE780/4X-AL	780	137 - 200	110
GSE840/4X	840	32 - 136	110
GSE840/4X-AL	840	137 - 200	110
GSE900/4X	900	32 - 136	110
GSE900/4X-AL	900	137 - 200	110
GSE960/4X	960	32 - 136	110
GSE960/4X-AL	960	137 - 200	110
GSE1020/4X	1020	32 - 136	110
GSE1020/4X-AL	1020	137 - 200	110

Product Dimensions

Dimensions

Reference	Connector Dimensions
	Timber size[mm]			Product Dimensions[mm]						Header holes		Joist holes	Other
	Width[mm]	Height		A[mm]	B[mm]	C[mm]	d[mm]	F[mm]	Thickness[mm]	Round		Round	Weight[kg]
	Width[mm]	Min[mm]	Max.[mm]	A[mm]	B[mm]	C[mm]	d[mm]	F[mm]	Thickness[mm]	Ø5	Ø13	Ø5	Weight[kg]
GSE300/32/4	32	144	201	32	134	110	45.5	118	4	12	2	6	1
GSE340/32/4	32	164	231	32	154	110	45.5	118	4	16	2	8	1.2
GSE300/38/4	38	141	197	38	131	110	45.5	118	4	12	2	6	1
GSE340/38/4	38	161	227	38	151	110	45.5	118	4	16	2	8	1.2
GSE440/38/4	38	211	302	38	201	110	45.5	118	4	22	4	12	1.5
GSE300/50/4	50	135	188	50	125	110	45.5	118	4	12	2	6	1
GSE340/50/4	50	155	218	50	145	110	45.5	118	4	16	2	8	1.2
GSE500/50/4	50	235	338	50	225	110	45.5	118	4	28	4	14	1.6
GSE300/64/4	64	128	177	64	118	110	45.5	118	4	12	2	6	1
GSE340/64/4	64	148	207	64	138	110	45.5	118	4	16	2	8	1.2
GSE380/64/4	64	168	237	64	158	110	45.5	118	4	16	4	8	1.3
GSE380/70/4	70	165	233	70	155	110	45.5	118	4	16	4	8	1.3
GSE440/70/4	70	195	278	70	185	110	45.5	118	4	22	4	12	1.5
GSE500/70/4	70	225	323	70	215	110	45.5	118	4	28	4	14	1.6
GSE380/76/4	76	162	228	76	152	110	45.5	118	4	16	4	8	1.3
GSE440/76/4	76	192	273	76	182	110	45.5	118	4	22	4	12	1.5
GSE500/76/4	76	222	318	76	212	110	45.5	118	4	28	4	14	1.6
GSE380/80/4	80	160	225	80	150	110	45.5	118	4	16	4	8	1.3
GSE440/80/4	80	190	270	80	180	110	45.5	118	4	22	4	12	1.5
GSE500/80/4	80	220	315	80	210	110	45.5	118	4	28	4	14	1.6
GSE540/80/4	80	240	345	80	230	110	45.5	118	4	32	4	16	1.8
GSE600/80/4	80	270	390	80	260	110	45.5	118	4	38	4	20	2
GSE660/80/4	80	300	435	80	290	110	45.5	118	4	44	6	22	2.1
GSE720/80/4	80	330	480	80	320	110	45.5	118	4	50	6	26	2.3
GSE780/80/4	80	360	525	80	350	110	45.5	118	4	56	6	28	2.7
GSE840/80/4	80	390	570	80	380	110	45.5	118	4	62	6	32	2.9
GSE900/80/4	80	420	615	80	410	110	45.5	118	4	68	6	36	3
GSE960/80/4	80	450	660	80	440	110	45.5	118	4	74	6	38	3.2
GSE1020/80/4	80	480	705	80	470	110	45.5	118	4	80	6	40	3.4
GSE380/90/4	90	155	218	90	145	110	45.5	118	4	16	4	8	1.3
GSE440/90/4	90	185	263	90	175	110	45.5	118	4	22	4	12	1.5
GSE500/90/4	90	215	308	90	205	110	45.5	118	4	28	4	14	1.6
GSE540/90/4	90	235	338	90	225	110	45.5	118	4	32	4	16	1.8
GSE600/90/4	90	265	383	90	255	110	45.5	118	4	38	4	20	2
GSE660/90/4	90	295	428	90	285	110	45.5	118	4	44	6	22	2.1
GSE720/90/4	90	325	473	90	315	110	45.5	118	4	50	6	26	2.3
GSE780/90/4	90	355	518	90	345	110	45.5	118	4	56	6	28	2.7
GSE840/90/4	90	385	563	90	375	110	45.5	118	4	62	6	32	2.9
GSE900/90/4	90	415	608	90	405	110	45.5	118	4	68	6	36	3
GSE960/90/4	90	445	653	90	435	110	45.5	118	4	74	6	38	3.2
GSE1020/90/4	90	475	698	90	465	110	45.5	118	4	80	6	40	3.4
GSE380/100/4	100	150	210	100	140	110	45.5	118	4	16	2	8	1.3
GSE440/100/4	100	180	255	100	170	110	45.5	118	4	22	4	12	1.5
GSE500/100/4	100	210	300	100	200	110	45.5	118	4	28	4	14	1.6
GSE540/100/4	100	230	330	100	220	110	45.5	118	4	32	4	16	1.9
GSE600/100/4	100	260	375	100	250	110	45.5	118	4	38	4	20	2
GSE660/100/4	100	290	420	100	280	110	45.5	118	4	44	6	22	2.1
GSE720/100/4	100	320	465	100	310	110	45.5	118	4	50	6	26	2.3
GSE780/100/4	100	350	510	100	340	110	45.5	118	4	56	6	28	2.7
GSE840/100/4	100	380	555	100	370	110	45.5	118	4	62	6	32	2.9
GSE900/100/4	100	410	600	100	400	110	45.5	118	4	68	6	36	3
GSE960/100/4	100	440	645	100	430	110	45.5	118	4	74	6	38	3.2
GSE1020/100/4	100	470	690	100	460	110	45.5	118	4	80	6	40	3.4
GSE540/120/4	120	220	315	120	210	110	45.5	118	4	32	4	16	1.9
GSE600/120/4	120	250	360	120	240	110	45.5	118	4	38	4	20	2
GSE660/120/4	120	280	405	120	270	110	45.5	118	4	44	6	22	2.1
GSE720/120/4	120	310	450	120	300	110	45.5	118	4	50	6	26	2.3
GSE780/120/4	120	340	495	120	330	110	45.5	118	4	56	6	28	2.7
GSE840/120/4	120	370	540	120	360	110	45.5	118	4	62	6	32	2.9
GSE900/120/4	120	400	585	120	390	110	45.5	118	4	68	6	36	3
GSE960/120/4	120	430	630	120	420	110	45.5	118	4	74	6	38	3.2
GSE1020/120/4	120	460	675	120	450	110	45.5	118	4	80	6	40	3.4
GSE500/140/4	140	190	270	140	180	110	45.5	118	4	22	2	12	1.6
GSE540/140/4	140	210	300	140	200	110	45.5	118	4	26	4	14	1.8
GSE600/140/4	140	240	345	140	230	110	45.5	118	4	32	4	18	2
GSE660/140/4	140	270	390	140	260	110	45.5	118	4	38	4	20	2.1
GSE720/140/4	140	300	435	140	290	110	45.5	118	4	44	6	24	2.3
GSE780/140/4	140	330	480	140	320	110	45.5	118	4	50	6	26	2.7
GSE840/140/4	140	360	525	140	350	110	45.5	118	4	56	6	30	2.9
GSE900/140/4	140	390	570	140	380	110	45.5	118	4	62	6	32	3
GSE960/140/4	140	420	615	140	410	110	45.5	118	4	68	6	34	3.2
GSE1020/140/4	140	450	660	140	440	110	45.5	118	4	74	6	38	3.4
GSE500/160/4	160	180	255	160	170	110	45.5	118	4	22	2	12	1.6
GSE540/160/4	160	200	285	160	190	110	45.5	118	4	26	4	14	1.8
GSE600/160/4	160	230	330	160	220	110	45.5	118	4	32	4	18	2
GSE660/160/4	160	260	375	160	250	110	45.5	118	4	38	4	20	2.1
GSE720/160/4	160	290	420	160	280	110	45.5	118	4	44	6	24	2.3
GSE780/160/4	160	320	465	160	310	110	45.5	118	4	50	6	26	2.7
GSE840/160/4	160	350	510	160	340	110	45.5	118	4	56	6	30	2.9
GSE900/160/4	160	380	555	160	370	110	45.5	118	4	62	6	32	3
GSE960/160/4	160	410	600	160	400	110	45.5	118	4	68	6	34	3.2
GSE1020/160/4	160	440	645	160	430	110	45.5	118	4	74	6	38	3.4
GSE500/180/4	180	170	240	180	160	110	45.5	118	4	22	2	12	1.6
GSE540/180/4	180	190	270	180	180	110	45.5	118	4	26	4	14	1.8
GSE600/180/4	180	220	315	180	210	110	45.5	118	4	32	4	18	2
GSE660/180/4	180	250	360	180	240	110	45.5	118	4	38	4	20	2.1
GSE720/180/4	180	280	405	180	270	110	45.5	118	4	44	6	24	2.3
GSE780/180/4	180	310	450	180	300	110	45.5	118	4	50	6	26	2.7
GSE840/180/4	180	340	495	180	330	110	45.5	118	4	56	6	30	2.9
GSE900/180/4	180	370	540	180	360	110	45.5	118	4	62	6	32	3
GSE960/180/4	180	400	585	180	390	110	45.5	118	4	68	6	34	3.2
GSE1020/180/4	180	430	630	180	420	110	45.5	118	4	74	6	38	3.4
GSE500/200/4	200	160	225	200	150	110	45.5	118	4	22	2	12	1.6
GSE540/200/4	200	180	255	200	170	110	45.5	118	4	26	4	14	1.8
GSE600/200/4	200	210	300	200	200	110	45.5	118	4	32	4	18	2
GSE660/200/4	200	240	345	200	230	110	45.5	118	4	38	4	20	2.1
GSE720/200/4	200	270	390	200	260	110	45.5	118	4	44	6	24	2.3
GSE780/200/4	200	300	435	200	290	110	45.5	118	4	50	6	26	2.7
GSE840/200/4	200	330	480	200	320	110	45.5	118	4	56	6	30	2.9
GSE900/200/4	200	360	525	200	350	110	45.5	118	4	62	6	32	3
GSE960/200/4	200	390	570	200	380	110	45.5	118	4	68	6	34	3.2
GSE1020/200/4	200	420	615	200	410	110	45.5	118	4	74	6	38	3.4

Product capacities - Timber to timber - Partial nailing

Dimensions

Reference	Hanger capacity
	Characteristic capacities - Timber to timber - Partial nailing -
	Number of Fasteners		Product characteristic capacities - Timber C24[kN]
	Header	Joist	R₁,ₖ		R₂,ₖ		R₃,ₖ		R4,k
	Qty	Qty	CNA4.0x35	CNA4.0x50	CNA4.0x35	CNA4.0x50	CNA4.0x35	CNA4.0x50	CNA4.0x35	CNA4.0x50
GSE300/32/4	6.0	4.0	4.9	-	1.3	-	1.3	-	1.8	-
GSE340/32/4	8.0	4.0	6.8	-	2.1	-	1.3	-	2.5	-
GSE300/38/4	6.0	4.0	4.8	-	1.3	-	1.5	-	1.8	-
GSE340/38/4	8.0	4.0	6.7	-	2.1	-	1.4	-	2.5	-
GSE440/38/4	12.0	6.0	10.9	-	4.3	-	2	-	3.7	-
GSE300/50/4	6.0	4.0	4.6	-	1.3	-	1.7	-	1.8	-
GSE340/50/4	8.0	4.0	6.4	-	2.1	-	1.7	-	2.5	-
GSE500/50/4	14.0	8.0	13	-	5.6	-	2.9	-	4.3	-
GSE300/64/4	6.0	4.0	-	6.5	-	2	-	2.8	-	2.9
GSE340/64/4	8.0	4.0	-	9.1	-	3.3	-	2.8	-	3.9
GSE380/64/4	8.0	4.0	-	10.5	-	3.3	-	2.8	-	3.9
GSE380/70/4	8.0	4.0	-	10.3	-	3.3	-	2.9	-	3.9
GSE440/70/4	12.0	6.0	-	14.7	-	6.7	-	4.1	-	5.9
GSE500/70/4	14.0	8.0	-	18.3	-	8.8	-	5.1	-	6.9
GSE380/76/4	8.0	4.0	-	10.1	-	3.3	-	3	-	3.9
GSE440/76/4	12.0	6.0	-	14.5	-	6.7	-	4.3	-	5.9
GSE500/76/4	14.0	8.0	-	18	-	8.8	-	5.4	-	6.9
GSE380/80/4	8.0	4.0	-	9.9	-	3.3	-	3.1	-	3.9
GSE440/80/4	12.0	6.0	-	14.3	-	6.7	-	4.4	-	5.9
GSE500/80/4	14.0	8.0	-	17.8	-	8.8	-	5.5	-	6.9
GSE540/80/4	16.0	8.0	-	19.9	-	11.1	-	5.3	-	7.8
GSE600/80/4	20.0	10.0	-	23.9	-	16.3	-	6.2	-	9.8
GSE660/80/4	22.0	12.0	-	27.9	-	19.2	-	7	-	10.8
GSE720/80/4	26.0	14.0	-	31.9	-	24.8	-	7.6	-	12.7
GSE780/80/4	28.0	14.0	-	31.9	-	24.8	-	7.1	-	13.7
GSE840/80/4	32.0	16.0	-	35.9	-	28.4	-	7.6	-	15.7
GSE900/80/4	34.0	18.0	-	39.9	-	31.9	-	8	-	16.7
GSE960/80/4	38.0	20.0	-	43.9	-	35.5	-	8.4	-	18.6
GSE1020/80/4	40.0	20.0	-	43.9	-	35.5	-	7.9	-	19.6
GSE380/90/4	8.0	4.0	-	9.6	-	3.3	-	3.2	-	3.9
GSE440/90/4	12.0	6.0	-	13.8	-	6.7	-	4.6	-	5.9
GSE500/90/4	14.0	8.0	-	17.3	-	8.8	-	5.8	-	6.9
GSE540/90/4	16.0	8.0	-	19.9	-	11.1	-	5.6	-	7.8
GSE600/90/4	20.0	10.0	-	23.9	-	16.3	-	6.6	-	9.8
GSE660/90/4	22.0	12.0	-	27.9	-	19.2	-	7.5	-	10.8
GSE720/90/4	26.0	14.0	-	31.9	-	24.8	-	8.2	-	12.7
GSE780/90/4	28.0	14.0	-	31.9	-	24.8	-	7.7	-	13.7
GSE840/90/4	32.0	16.0	-	35.9	-	28.4	-	8.3	-	15.7
GSE900/90/4	34.0	18.0	-	39.9	-	31.9	-	8.8	-	16.7
GSE960/90/4	38.0	20.0	-	43.9	-	35.5	-	9.2	-	18.6
GSE1020/90/4	40.0	20.0	-	43.9	-	35.5	-	8.7	-	19.6
GSE380/100/4	8.0	4.0	-	9.2	-	3.3	-	3.3	-	3.9
GSE440/100/4	12.0	6.0	-	13.3	-	6.7	-	4.8	-	5.9
GSE500/100/4	14.0	8.0	-	16.8	-	8.8	-	6.1	-	6.9
GSE540/100/4	16.0	8.0	-	19.9	-	11.1	-	5.9	-	7.8
GSE600/100/4	20.0	10.0	-	23.9	-	16.3	-	7	-	9.8
GSE660/100/4	22.0	12.0	-	27.9	-	19.2	-	8	-	10.8
GSE720/100/4	26.0	14.0	-	31.9	-	24.8	-	8.8	-	12.7
GSE780/100/4	28.0	14.0	-	31.9	-	24.8	-	8.3	-	13.7
GSE840/100/4	32.0	16.0	-	35.9	-	28.4	-	8.9	-	15.7
GSE900/100/4	34.0	18.0	-	39.9	-	31.9	-	9.5	-	16.7
GSE960/100/4	38.0	20.0	-	43.9	-	35.5	-	10	-	18.6
GSE1020/100/4	40.0	20.0	-	43.9	-	35.5	-	9.5	-	19.6
GSE540/120/4	16.0	8.0	-	19	-	11.1	-	6.3	-	7.8
GSE600/120/4	20.0	10.0	-	23.9	-	16.3	-	7.6	-	9.8
GSE660/120/4	22.0	12.0	-	27.9	-	19.2	-	8.7	-	10.8
GSE720/120/4	26.0	14.0	-	31.9	-	24.8	-	9.7	-	12.7
GSE780/120/4	28.0	14.0	-	31.9	-	24.8	-	9.2	-	13.7
GSE840/120/4	32.0	16.0	-	35.9	-	28.4	-	10	-	15.7
GSE900/120/4	34.0	18.0	-	39.9	-	31.9	-	10.7	-	16.7
GSE960/120/4	38.0	20.0	-	43.9	-	35.5	-	11.4	-	18.6
GSE1020/120/4	40.0	20.0	-	43.9	-	35.5	-	10.8	-	19.6
GSE500/140/4	12.0	6.0	-	14.3	-	6.7	-	5.2	-	5.9
GSE540/140/4	14.0	8.0	-	16.8	-	8.8	-	6.9	-	6.9
GSE600/140/4	18.0	10.0	-	21.8	-	13.6	-	8.3	-	8.8
GSE660/140/4	20.0	10.0	-	23.9	-	16.3	-	8	-	9.8
GSE720/140/4	24.0	12.0	-	27.9	-	21.3	-	9.3	-	11.8
GSE780/140/4	26.0	13.0	-	31.9	-	24.8	-	10.4	-	12.7
GSE840/140/4	30.0	15.0	-	35.9	-	28.4	-	11.4	-	14.7
GSE900/140/4	32.0	16.0	-	35.9	-	28.4	-	10.9	-	15.7
GSE960/140/4	36.0	17.0	-	39.9	-	31.9	-	11.8	-	16.7
GSE1020/140/4	38.0	19.0	-	43.9	-	35.5	-	12.5	-	18.6
GSE500/160/4	12.0	6.0	-	13.3	-	6.7	-	5.4	-	5.9
GSE540/160/4	14.0	8.0	-	15.8	-	8.8	-	7.1	-	6.9
GSE600/160/4	18.0	10.0	-	23.9	-	16.3	-	8.6	-	8.8
GSE660/160/4	20.0	10.0	-	23.9	-	16.3	-	8.4	-	9.8
GSE720/160/4	24.0	12.0	-	27.9	-	21.3	-	9.7	-	11.8
GSE780/160/4	26.0	13.0	-	31.9	-	24.8	-	11	-	12.7
GSE840/160/4	30.0	15.0	-	35.9	-	28.4	-	12.1	-	14.7
GSE900/160/4	32.0	16.0	-	35.9	-	28.4	-	11.7	-	15.7
GSE960/160/4	36.0	17.0	-	39.9	-	31.9	-	12.6	-	16.7
GSE1020/160/4	38.0	19.0	-	43.9	-	35.5	-	13.5	-	18.6
GSE500/180/4	12.0	6.0	-	12.2	-	6.7	-	5.5	-	5.9
GSE540/180/4	14.0	8.0	-	14.7	-	8.8	-	7.2	-	6.9
GSE600/180/4	18.0	10.0	-	23.9	-	16.3	-	8.8	-	8.8
GSE660/180/4	20.0	10.0	-	23.9	-	16.3	-	8.6	-	9.8
GSE720/180/4	24.0	12.0	-	27.9	-	21.3	-	10.1	-	11.8
GSE780/180/4	26.0	13.0	-	31.9	-	24.8	-	11.4	-	12.7
GSE840/180/4	30.0	15.0	-	35.9	-	28.4	-	12.6	-	14.7
GSE900/180/4	32.0	16.0	-	35.9	-	28.4	-	12.2	-	15.7
GSE960/180/4	36.0	17.0	-	39.9	-	31.9	-	13.3	-	16.7
GSE1020/180/4	38.0	19.0	-	43.9	-	35.5	-	14.3	-	18.6
GSE500/200/4	12.0	6.0	-	11.1	-	6.7	-	5.5	-	5.9
GSE540/200/4	14.0	8.0	-	13.5	-	8.8	-	7.3	-	6.9
GSE600/200/4	18.0	10.0	-	22.7	-	16.3	-	9	-	8.8
GSE660/200/4	20.0	10.0	-	22.7	-	16.3	-	8.8	-	9.8
GSE720/200/4	24.0	12.0	-	27.9	-	21.3	-	10.3	-	11.8
GSE780/200/4	26.0	13.0	-	31.9	-	24.8	-	11.8	-	12.7
GSE840/200/4	30.0	15.0	-	35.9	-	28.4	-	13.1	-	14.7
GSE900/200/4	32.0	16.0	-	35.9	-	28.4	-	12.7	-	15.7
GSE960/200/4	36.0	17.0	-	39.9	-	31.9	-	13.9	-	16.7
GSE1020/200/4	38.0	19.0	-	43.9	-	35.5	-	15	-	18.6

Values given in the table above are valid for a joist to joist and joist to column application, subject to respecting the partial nailing plans specific to each configuration given in our ETA-06/0270 page 17.

Product capacities - Timber to concrete

Dimensions

Reference	Hanger capacity
	Characteristic capacities - Timber to concrete or steel
	Number of Fasteners				Product characteristic capacities - Timber C24[kN]
	Header		Joist		R₁,ₖ		R₂,ₖ		R₃,ₖ		R4,k
	Qty	Type	Qty	Type	CNA4.0x35	CNA4.0x50	CNA4.0x35	CNA4.0x50	CNA4.0x35	CNA4.0x50	CNA4.0x35	CNA4.0x50
GSE300/32/4	2.0	Ø12*	6.0	CNA	12.1	-	8	-	20	-	10.4	-
GSE340/32/4	2.0	Ø12*	8.0	CNA	15.1	-	10.7	-	20	-	10.4	-
GSE300/38/4	2.0	Ø12*	6.0	CNA	12.1	-	8	-	20	-	10.4	-
GSE340/38/4	2.0	Ø12*	8.0	CNA	15.1	-	10.7	-	20	-	10.4	-
GSE440/38/4	4.0	Ø12*	12.0	CNA	21.1	-	16.1	-	20	-	20.8	-
GSE300/50/4	2.0	Ø12*	8.0	CNA	12.1	-	8	-	20	-	10.4	-
GSE340/50/4	2.0	Ø12*	8.0	CNA	15.1	-	10.7	-	20	-	10.4	-
GSE500/50/4	4.0	Ø12*	14.0	CNA	24.1	-	18.8	-	20	-	20.8	-
GSE300/64/4	2.0	Ø12*	6.0	CNA	-	16	-	10.6	-	20	-	10.4
GSE340/64/4	2.0	Ø12*	8.0	CNA	-	19.9	-	14.2	-	20	-	10.4
GSE380/64/4	4.0	Ø12*	8.0	CNA	-	19.9	-	14.2	-	20	-	17.8
GSE380/70/4	2.0	Ø12*	8.0	CNA	-	19.9	-	14.2	-	20	-	17.8
GSE440/70/4	4.0	Ø12*	12.0	CNA	-	27.9	-	21.3	-	20	-	20.8
GSE500/70/4	4.0	Ø12*	12.0	CNA	-	31.9	-	24.8	-	20	-	20.8
GSE380/76/4	2.0	Ø12*	8.0	CNA	-	19.9	-	14.2	-	20	-	17.8
GSE440/76/4	4.0	Ø12*	12.0	CNA	-	27.9	-	21.3	-	20	-	20.8
GSE500/76/4	4.0	Ø12*	14.0	CNA	-	31.9	-	24.8	-	20	-	20.8
GSE380/80/4	2.0	Ø12*	8.0	CNA	-	19.9	-	14.2	-	20	-	17.8
GSE440/80/4	4.0	Ø12*	12.0	CNA	-	27.9	-	21.3	-	20	-	20.8
GSE500/80/4	4.0	Ø12*	12.0	CNA	-	31.9	-	24.8	-	20	-	20.8
GSE540/80/4	4.0	Ø12*	16.0	CNA	-	59.1	-	28.4	-	20	-	20.8
GSE600/80/4	4.0	Ø12*	20.0	CNA	-	67.9	-	35.5	-	20	-	20.8
GSE660/80/4	6.0	Ø12*	22.0	CNA	-	72.4	-	39	-	24.1	-	31.2
GSE720/80/4	6.0	Ø12*	26.0	CNA	-	81.2	-	46.1	-	24.1	-	31.2
GSE780/80/4	6.0	Ø12*	28.0	CNA	-	85.7	-	49.6	-	24.1	-	31.2
GSE840/80/4	6.0	Ø12*	32.0	CNA	-	94.5	-	56.7	-	24.1	-	31.2
GSE900/80/4	6.0	Ø12*	38.0	CNA	-	107.8	-	67.4	-	24.1	-	31.2
GSE960/80/4	6.0	Ø12*	38.0	CNA	-	107.8	-	67.4	-	24.1	-	31.2
GSE1020/80/4	6.0	Ø12*	40.0	CNA	-	112.3	-	70.9	-	24.1	-	31.2
GSE380/90/4	2.0	Ø12*	8.0	CNA	-	19.9	-	14.2	-	20	-	17.8
GSE440/90/4	4.0	Ø12*	12.0	CNA	-	27.9	-	21.3	-	20	-	20.8
GSE500/90/4	4.0	Ø12*	14.0	CNA	-	31.9	-	24.8	-	20	-	20.8
GSE540/90/4	4.0	Ø12*	16.0	CNA	-	62	-	28.4	-	20	-	20.8
GSE600/90/4	4.0	Ø12*	20.0	CNA	-	70.9	-	35.5	-	20	-	20.8
GSE660/90/4	6.0	Ø12*	22.0	CNA	-	75.3	-	39	-	24.1	-	31.2
GSE720/90/4	6.0	Ø12*	26.0	CNA	-	84.2	-	46.1	-	24.1	-	31.2
GSE780/90/4	6.0	Ø12*	28.0	CNA	-	88.6	-	49.6	-	24.1	-	31.2
GSE840/90/4	6.0	Ø12*	32.0	CNA	-	97.5	-	56.7	-	24.1	-	31.2
GSE900/90/4	6.0	Ø12*	38.0	CNA	-	110.8	-	67.4	-	24.1	-	31.2
GSE960/90/4	6.0	Ø12*	38.0	CNA	-	110.8	-	67.4	-	24.1	-	31.2
GSE1020/90/4	6.0	Ø12*	40.0	CNA	-	115.2	-	70.9	-	24.1	-	31.2
GSE380/100/4	2.0	Ø12*	8.0	CNA	-	19.9	-	14.2	-	20	-	17.8
GSE440/100/4	4.0	Ø12*	12.0	CNA	-	27.9	-	21.3	-	20	-	20.8
GSE500/100/4	4.0	Ø12*	14.0	CNA	-	31.9	-	24.8	-	20	-	20.8
GSE540/100/4	4.0	Ø12*	16.0	CNA	-	65	-	28.4	-	20	-	20.8
GSE600/100/4	4.0	Ø12*	20.0	CNA	-	73.8	-	35.5	-	20	-	20.8
GSE660/100/4	6.0	Ø12*	22.0	CNA	-	78.3	-	39	-	24.1	-	31.2
GSE720/100/4	6.0	Ø12*	26.0	CNA	-	87.1	-	46.1	-	24.1	-	31.2
GSE780/100/4	6.0	Ø12*	28.0	CNA	-	91.6	-	49.6	-	24.1	-	31.2
GSE840/100/4	6.0	Ø12*	32.0	CNA	-	100.4	-	56.7	-	24.1	-	31.2
GSE900/100/4	6.0	Ø12*	38.0	CNA	-	113.7	-	67.4	-	24.1	-	31.2
GSE960/100/4	6.0	Ø12*	38.0	CNA	-	113.7	-	67.4	-	24.1	-	31.2
GSE1020/100/4	6.0	Ø12*	40.0	CNA	-	118.2	-	70.9	-	24.1	-	31.2
GSE540/120/4	4.0	Ø12*	16.0	CNA	-	70.9	-	28.4	-	20	-	20.8
GSE600/120/4	4.0	Ø12*	20.0	CNA	-	79.7	-	35.5	-	20	-	20.8
GSE660/120/4	6.0	Ø12*	22.0	CNA	-	84.2	-	39	-	24.1	-	31.2
GSE720/120/4	6.0	Ø12*	26.0	CNA	-	93	-	46.1	-	24.1	-	31.2
GSE780/120/4	6.0	Ø12*	28.0	CNA	-	97.5	-	49.6	-	24.1	-	31.2
GSE840/120/4	6.0	Ø12*	32.0	CNA	-	106.3	-	56.7	-	24.1	-	31.2
GSE900/120/4	6.0	Ø12*	38.0	CNA	-	119.6	-	67.4	-	24.1	-	31.2
GSE960/120/4	6.0	Ø12*	38.0	CNA	-	119.6	-	67.4	-	24.1	-	31.2
GSE1020/120/4	6.0	Ø12*	40.0	CNA	-	120	-	70.9	-	24.1	-	31.2
GSE500/140/4	2.0	Ø12*	12.0	CNA	-	24.1	-	21.3	-	20	-	10.4
GSE540/140/4	4.0	Ø12*	14.0	CNA	-	72.3	-	24.8	-	20	-	20.8
GSE600/140/4	4.0	Ø12*	18.0	CNA	-	80	-	31.9	-	20	-	20.8
GSE660/140/4	4.0	Ø12*	20.0	CNA	-	80	-	35.5	-	24.1	-	31.2
GSE720/140/4	6.0	Ø12*	24.0	CNA	-	94.5	-	42.6	-	24.1	-	31.2
GSE780/140/4	6.0	Ø12*	26.0	CNA	-	98.9	-	46.1	-	24.1	-	31.2
GSE840/140/4	6.0	Ø12*	30.0	CNA	-	107.8	-	53.2	-	24.1	-	31.2
GSE900/140/4	6.0	Ø12*	32.0	CNA	-	112.2	-	56.7	-	24.1	-	31.2
GSE960/140/4	6.0	Ø12*	34.0	CNA	-	116.7	-	60.3	-	24.1	-	31.2
GSE1020/140/4	6.0	Ø12*	38.0	CNA	-	120	-	67.4	-	24.1	-	31.2
GSE500/160/4	2.0	Ø12*	12.0	CNA	-	27.9	-	21.3	-	20	-	10.4
GSE540/160/4	4.0	Ø12*	14.0	CNA	-	78.2	-	24.8	-	20	-	20.8
GSE600/160/4	4.0	Ø12*	18.0	CNA	-	80	-	31.9	-	20	-	20.8
GSE660/160/4	4.0	Ø12*	20.0	CNA	-	80	-	35.5	-	20	-	20.8
GSE720/160/4	6.0	Ø12*	24.0	CNA	-	100.4	-	42.6	-	24.1	-	31.2
GSE780/160/4	6.0	Ø12*	26.0	CNA	-	104.8	-	46.1	-	24.1	-	31.2
GSE840/160/4	6.0	Ø12*	30.0	CNA	-	113.7	-	53.2	-	24.1	-	31.2
GSE900/160/4	6.0	Ø12*	32.0	CNA	-	118.1	-	56.7	-	24.1	-	31.2
GSE960/160/4	6.0	Ø12*	34.0	CNA	-	120	-	60.3	-	24.1	-	31.2
GSE1020/160/4	6.0	Ø12*	38.0	CNA	-	120	-	67.4	-	24.1	-	31.2
GSE500/180/4	2.0	Ø12*	12.0	CNA	-	27.9	-	21.3	-	20	-	10.4
GSE540/180/4	4.0	Ø12*	14.0	CNA	-	80	-	24.8	-	20	-	20.8
GSE600/180/4	4.0	Ø12*	18.0	CNA	-	80	-	31.9	-	20	-	20.8
GSE660/180/4	4.0	Ø12*	20.0	CNA	-	80	-	35.5	-	20	-	20.8
GSE720/180/4	6.0	Ø12*	24.0	CNA	-	106.3	-	42.6	-	24.1	-	31.2
GSE780/180/4	6.0	Ø12*	26.0	CNA	-	110.7	-	46.1	-	24.1	-	31.2
GSE840/180/4	6.0	Ø12*	30.0	CNA	-	119.6	-	53.2	-	24.1	-	31.2
GSE900/180/4	6.0	Ø12*	32.0	CNA	-	120	-	56.7	-	24.1	-	31.2
GSE960/180/4	6.0	Ø12*	34.0	CNA	-	120	-	60.3	-	24.1	-	31.2
GSE1020/180/4	6.0	Ø12*	38.0	CNA	-	120	-	67.4	-	24.1	-	31.2
GSE500/200/4	2.0	Ø12*	12.0	CNA	-	27.9	-	21.3	-	20	-	10.4
GSE540/200/4	4.0	Ø12*	14.0	CNA	-	80	-	24.8	-	20	-	20.8
GSE600/200/4	4.0	Ø12*	18.0	CNA	-	80	-	31.9	-	20	-	20.8
GSE660/200/4	4.0	Ø12*	20.0	CNA	-	80	-	35.5	-	20	-	20.8
GSE720/200/4	6.0	Ø12*	24.0	CNA	-	112.2	-	42.6	-	24.1	-	31.2
GSE780/200/4	6.0	Ø12*	26.0	CNA	-	116.6	-	46.1	-	24.1	-	31.2
GSE840/200/4	6.0	Ø12*	30.0	CNA	-	120	-	53.2	-	24.1	-	31.2
GSE900/200/4	6.0	Ø12*	32.0	CNA	-	120	-	56.7	-	24.1	-	31.2
GSE960/200/4	6.0	Ø12*	34.0	CNA	-	120	-	60.3	-	24.1	-	31.2
GSE1020/200/4	6.0	Ø12*	38.0	CNA	-	120	-	67.4	-	24.1	-	31.2

A, B and C dimensions are the internal dimensions of the joist hanger.
Load capacities on concrete shown in this table are given in the case of a full slab fixing. In the context of a different application, it is advisable to the designer to ensure the good anchoring performance (a help for dimensioning is available on our Anchor Designer software, which can be downloaded for free on this website).
*Refer to the Simpson Strong-Tie anchor product range for suitable anchors. Typical anchor solutions depend on the concrete type, spacing and edge distances. For this case a possible solution is WA M12-104/5.

¹⁾ Capacities under fire condition are R30 characteristic values. The header anchor must be FM-753 CRACK 3DG in order to justify the fire resistance of the anchor group. The only allowed joist fasteners in this case are CNA Ø4,0x75 mm nails or CSA Ø5,0x80-DE screws.

Product characteristic capacities - Timber to Timber - Fire conditions - SSH

Reference	Hanger capacity
	Product characteristic capacities - Timber to Timber - Fire condition - SSH screws
	Number of Fasteners				Characteristic capacities - Timber C24[kN]		Characteristic capacities - Timber CGL24[kN]
	Header		Joist		R1,k,fi		R1,k,fi
	Qty	Type	Qty	Type	Width 100 to 136 mm	Width 137 to 200 mm	CNA4.0x75
GSE300/4X	2.0	SSH12.0x80	6.0	CNA4.0x75	-	-	2.3
GSE340/4X	2.0	SSH12.0x80	8.0	CNA4.0x75	-	-	3
GSE380/4X	2.0	SSH12.0x80	8.0	CNA4.0x75	2.7	-	3.2
GSE440/4X	4.0	SSH12.0x80	12.0	CNA4.0x75	4.6	-	5.3
GSE500/4X	4.0	SSH12.0x80	14.0	CNA4.0x75	5.3	-	6.1
GSE500/4X-AL	2.0	SSH12.0x80	12.0	CNA4.0x75	-	3.5	-
GSE540/4X	4.0	SSH12.0x80	16.0	CNA4.0x75	6.5	-	6.8
GSE540/4X-AL	4.0	SSH12.0x80	14.0	CNA4.0x75	-	5.2	-
GSE600/4X	4.0	SSH12.0x80	20.0	CNA4.0x75	6.8	-	7.1
GSE600/4X-AL	4.0	SSH12.0x80	18.0	CNA4.0x75	-	6.5	-
GSE660/4X	6.0	SSH12.0x80	22.0	CNA4.0x75	9.1	-	10.1
GSE660/4X-AL	4.0	SSH12.0x80	20.0	CNA4.0x75	-	6.5	-
GSE720/4X	6.0	SSH12.0x80	26.0	CNA4.0x75	10	-	10.5
GSE720/4X-AL	6.0	SSH12.0x80	24.0	CNA4.0x75	-	9.7	-
GSE780/4X	6.0	SSH12.0x80	28.0	CNA4.0x75	10.2	-	10.6
GSE780/4X-AL	6.0	SSH12.0x80	26.0	CNA4.0x75	-	10.1	-
GSE840/4X	6.0	SSH12.0x80	32.0	CNA4.0x75	10.3	-	10.7
GSE840/4X-AL	6.0	SSH12.0x80	30.0	CNA4.0x75	-	10.1	-
GSE900/4X	6.0	SSH12.0x80	36.0	CNA4.0x75	10.3	-	10.8
GSE900/4X-AL	6.0	SSH12.0x80	32.0	CNA4.0x75	-	10.2	-
GSE960/4X	6.0	SSH12.0x80	38.0	CNA4.0x75	10.4	-	10.8
GSE960/4X-AL	6.0	SSH12.0x80	34.0	CNA4.0x75	-	10.3	-
GSE1020/4X	6.0	SSH12.0x80	40.0	CNA4.0x75	10.4	-	10.8
GSE1020/4X-AL	6.0	SSH12.0x80	38.0	CNA4.0x75	-	10.3	-

Installation

Fasteners

Timber support:
Use system nails CNA 4.0 x 50

To ensure corect load-bearing capacity and fire resistance R30, use nails (CNA4.0x75). The use of SIMPSON Strong-Tie nails is a prerequisite for the full load-bearing capacity of the connection.
