HDCLT
Concealed solution for connecting CLT walls to concrete foundations.
High strength, low profile, seamlessly secure.

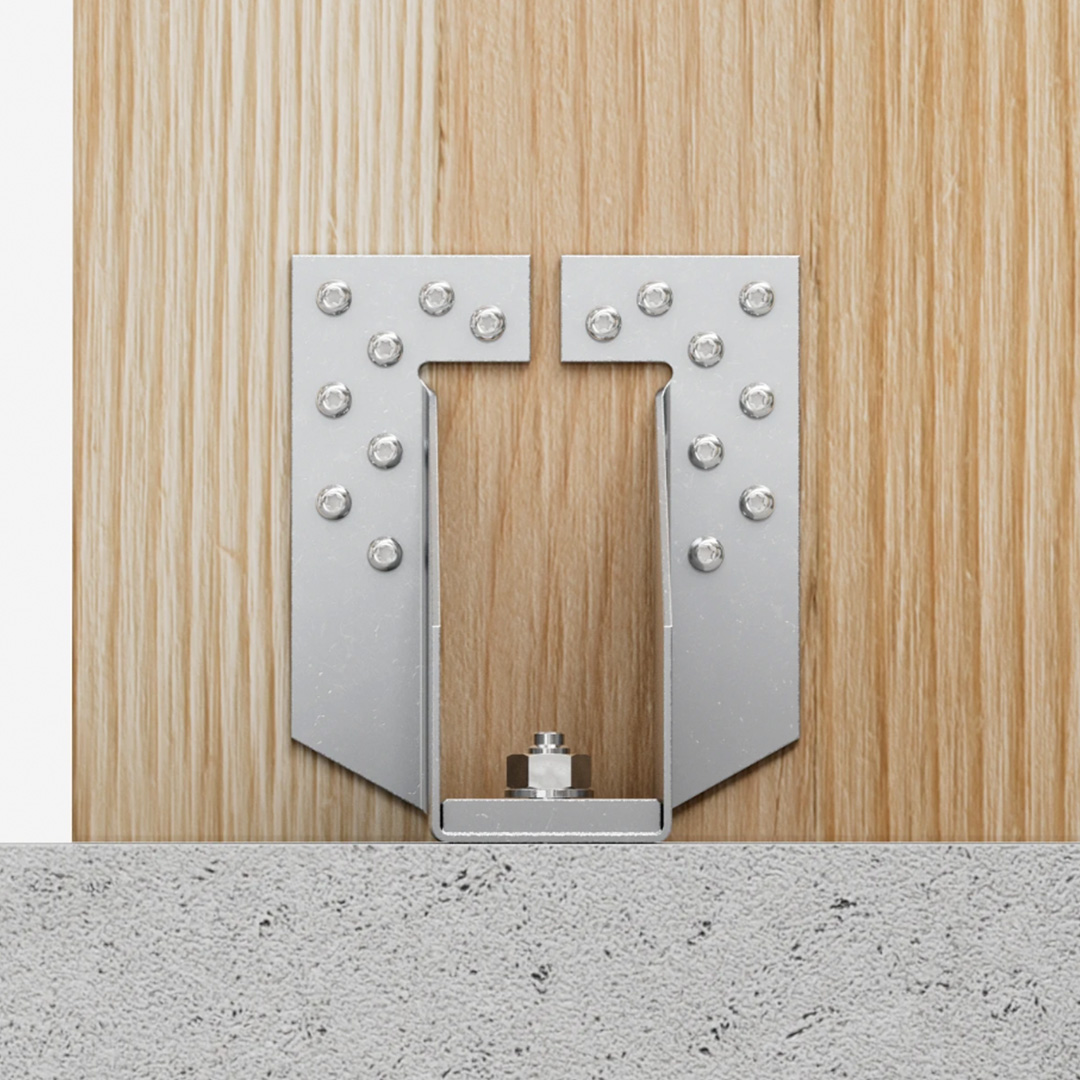

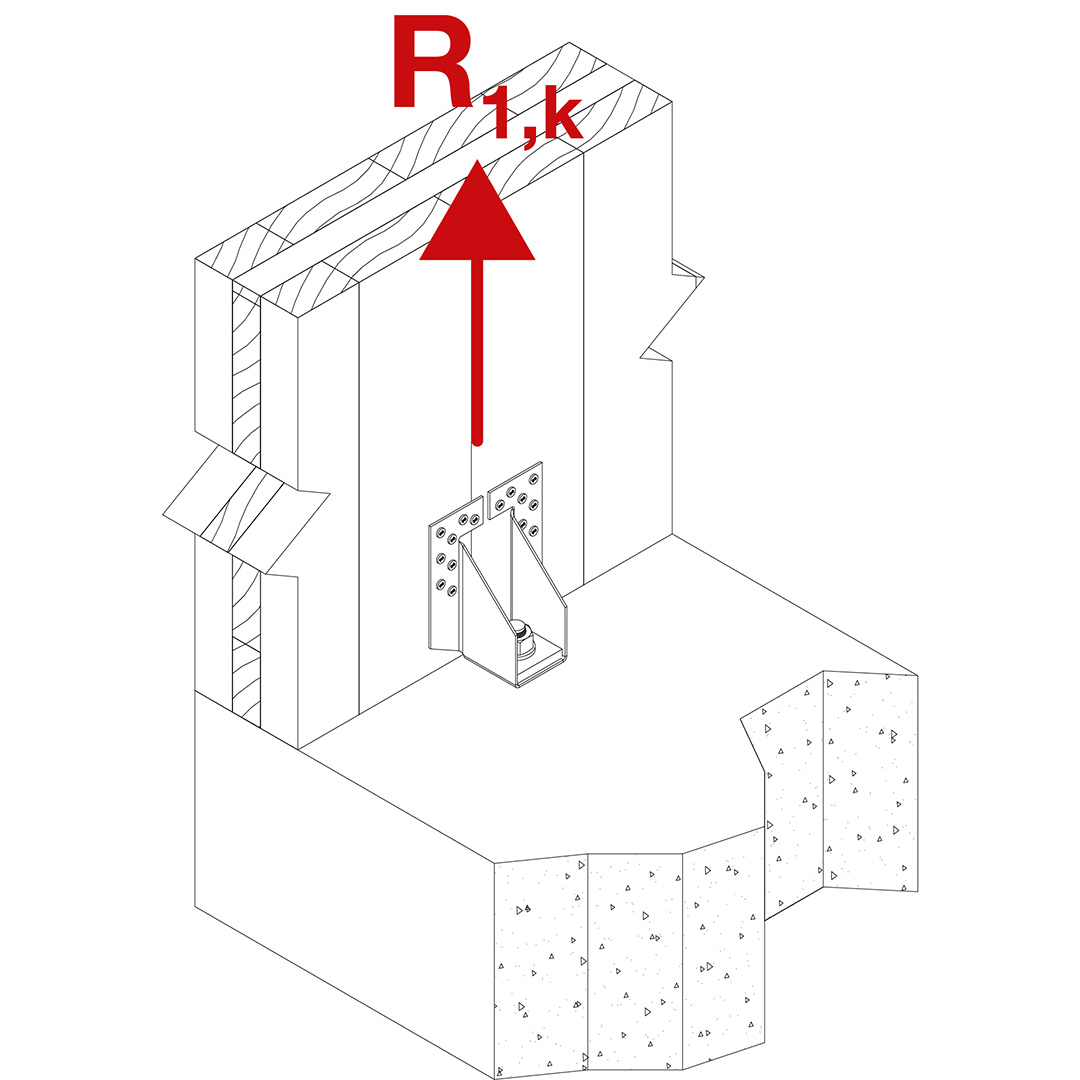

Designed specifically for connecting cross-laminated timber (CLT) wall panels to concrete foundations: the HDCLT tension tie provides a robust design uplift capacity of up to 18.6 kN, yet due to it’s low profile of just 140 mm, remains completely concealed within the subfloor and floor covering layers.
To help reduce installation time, the fastener configuration has been optimised for maximum performance with the most efficient screw quantity.
HDCLT includes an 8mm thick washer integrated with the tension tie seat, which provides additional strength where it is most needed. The profile design permits up to 25mm concrete-CLT panel interlayer thickness.
CE Marking
ETA
Service class 2
Indoor
Electrogalvanized steel Z275
Product Details
Images
Features
Application
Technical Data
Dimensions
Product capacities
| References | Characteristic capacities - Timber C24 [kN] | ||||
|---|---|---|---|---|---|
| R1.k | |||||
| CNA4.0x40 | CNA4.0x50 | CNA4.0x60 | CSA5.0x40 | CSA5.0x50 | |
| HDCLT140 | 7.6 | 10.1 | 12.6 | min(22.1; 24,2/kmod) | min(26.1; 24,2/kmod) |
| With Washer – US50/50/8 | ||||
| HDCLT140 | Fasteners (Flange A) | CSA5.0x50 CNA4.0x50 | ||
| Rd (kN) | 20.47 8.55 | |||
| Anchor (Flange B) | FM 753 EVO M16-151/30 | FM-753 CRACK 3DG M16-150/30 | AT-HP + LMAS M16 | |
| Concrete Option | 7 | 1 | 1 | |
| Effective embedment depth (hef) | 80 | 86 | 192 | |
| Min. Member thickness (hmin) | 160 | 170 | 222 | |
| Charac. Spacing (scr,N) | 240 | 258 | 576 | |
| Charac. Edge distance (ccr,N) | 120 | 120 | 288 | |
| NRd (kN) | 23.5 | 23.3 | 51.4 | |
Non-cracked concrete C20/25
No reinforcement for splitting
kmod: 1,1; service class : 2
