ABCLT
Low Profile Angle bracket for CLT

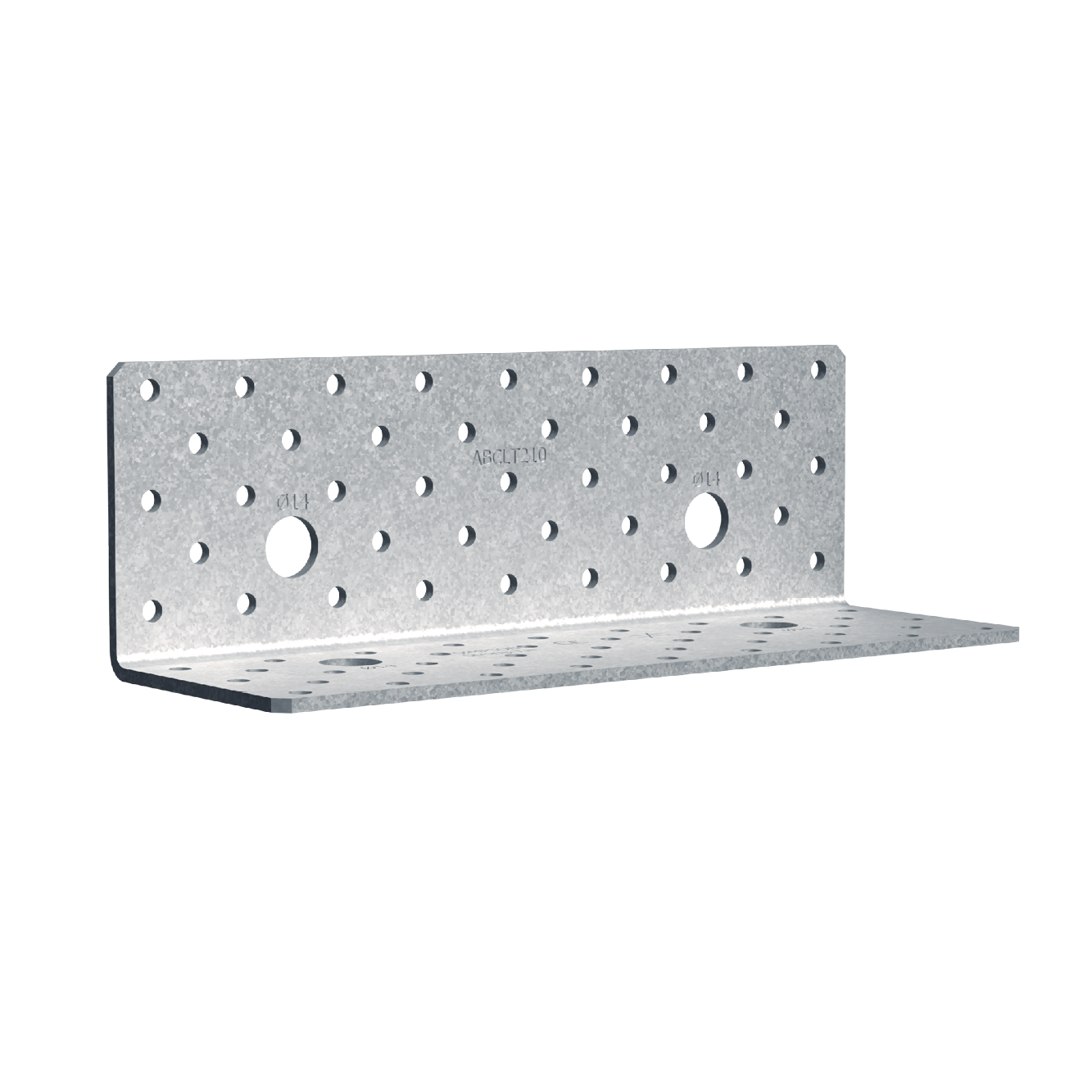

The ABCLT is an low profile angle bracket dedicated to CLT application.

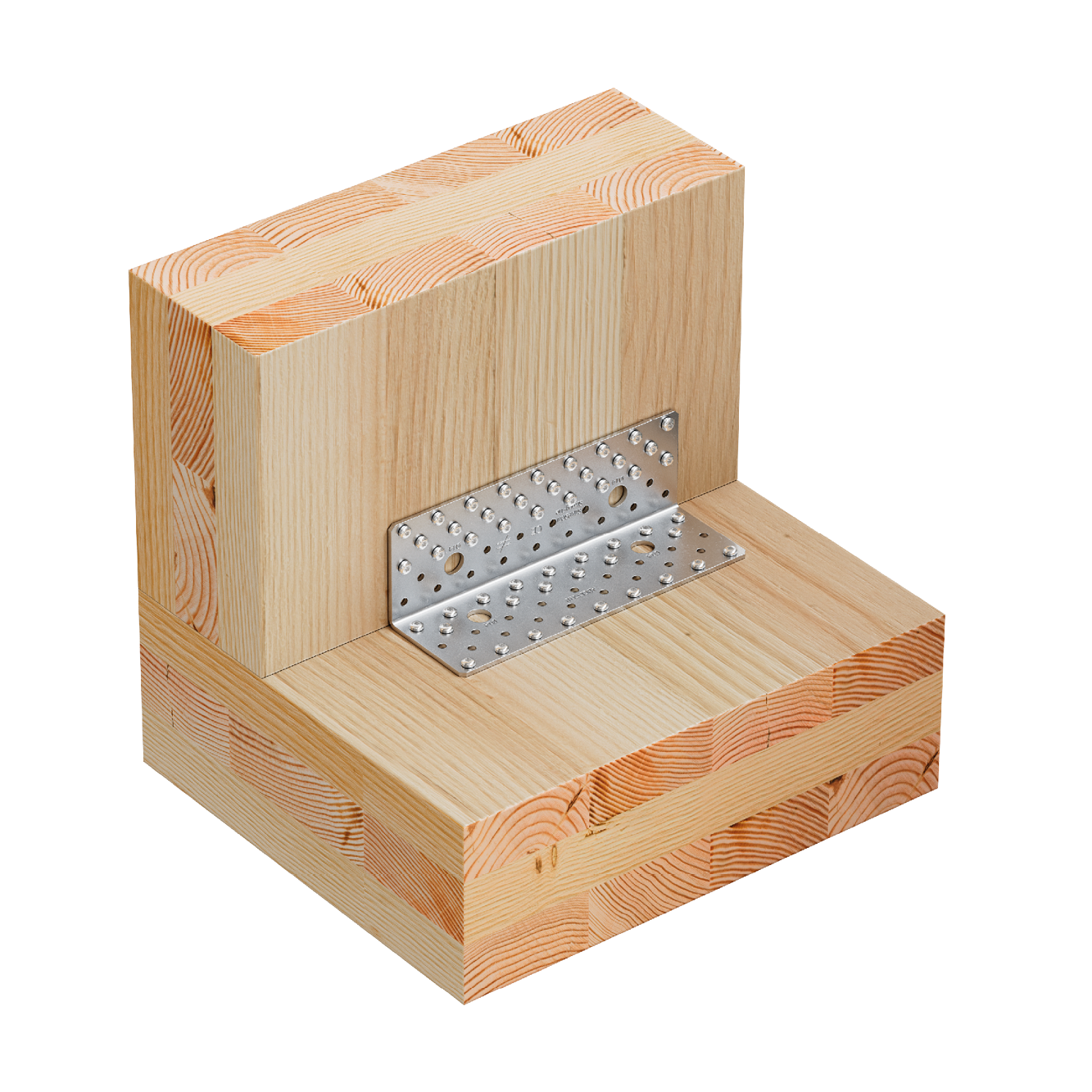

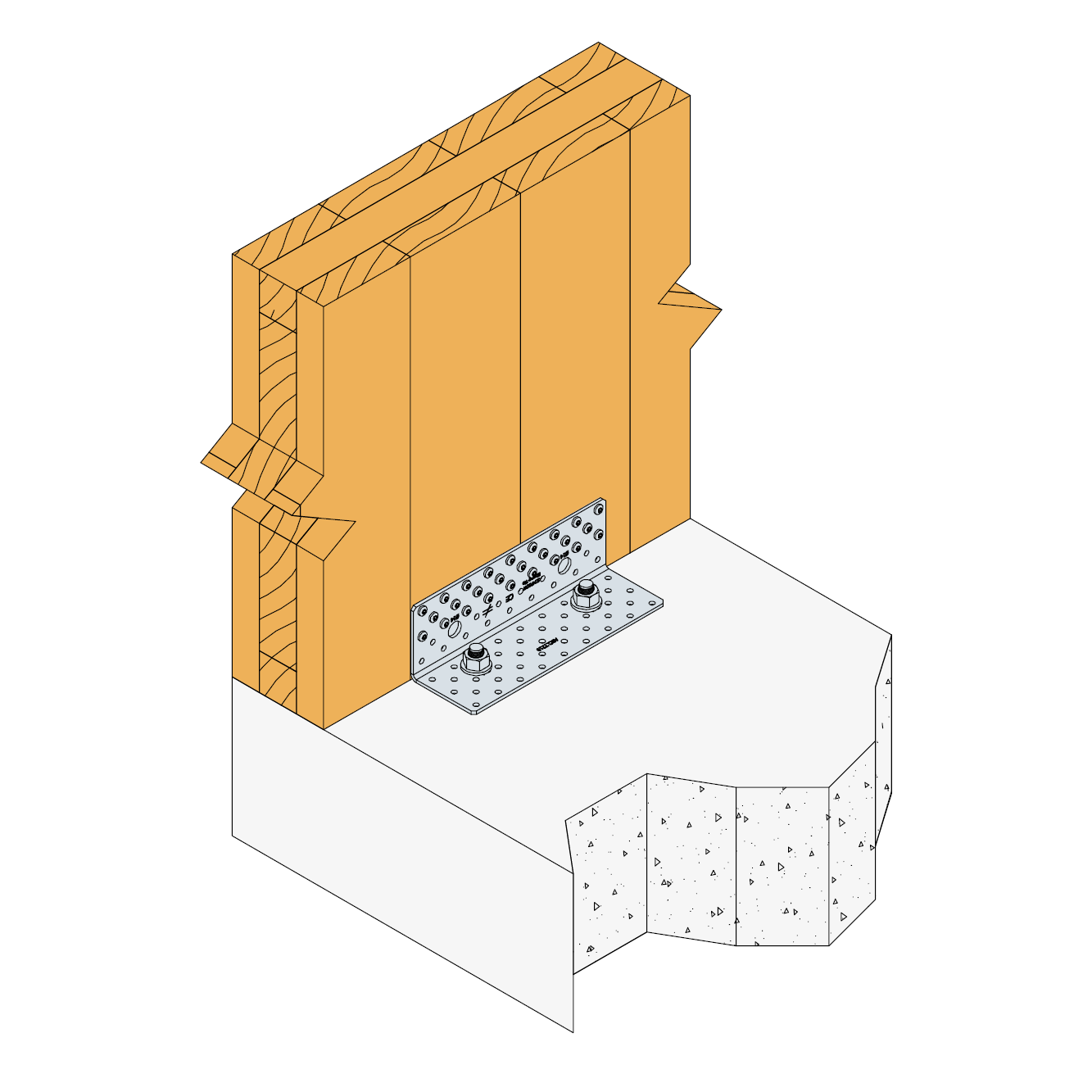

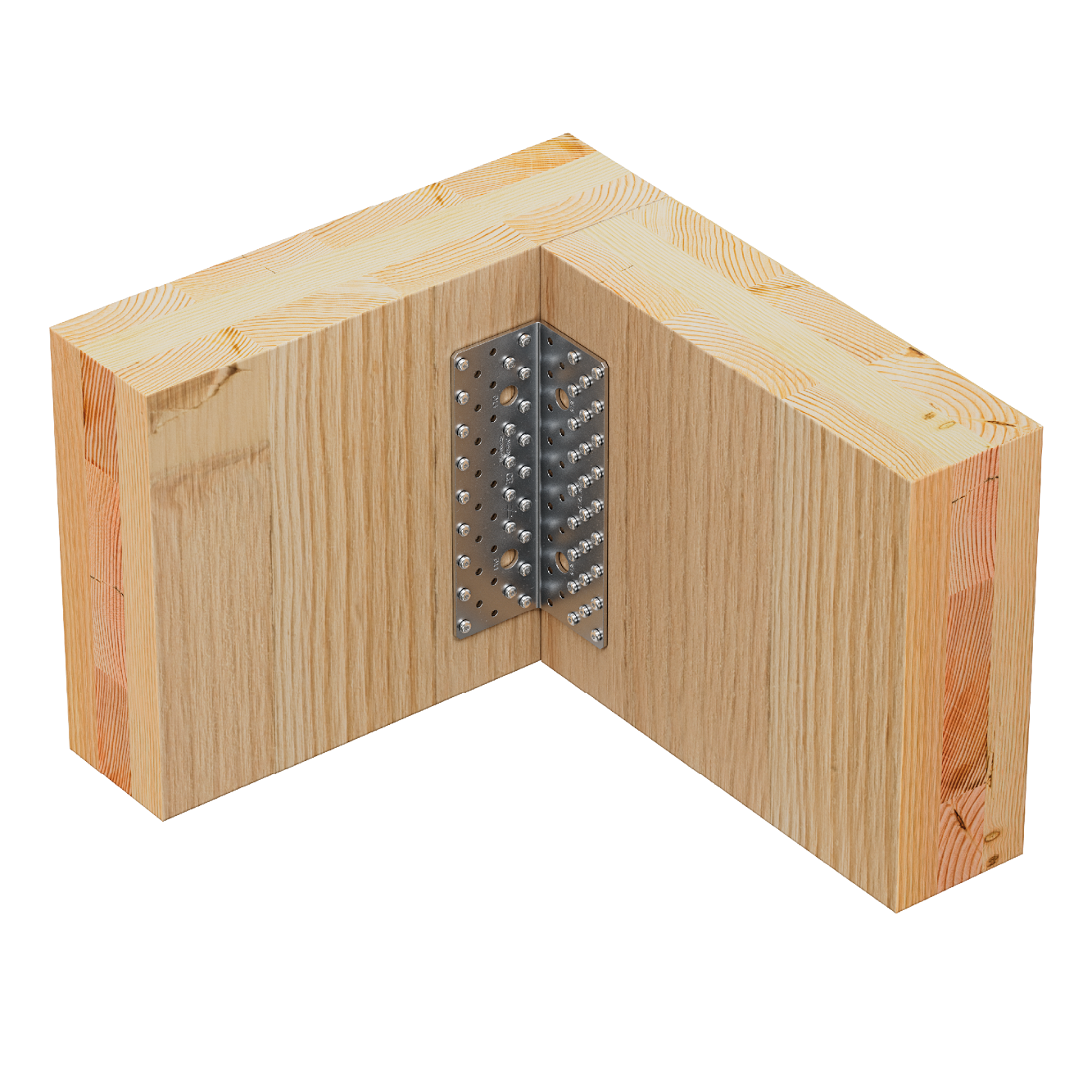

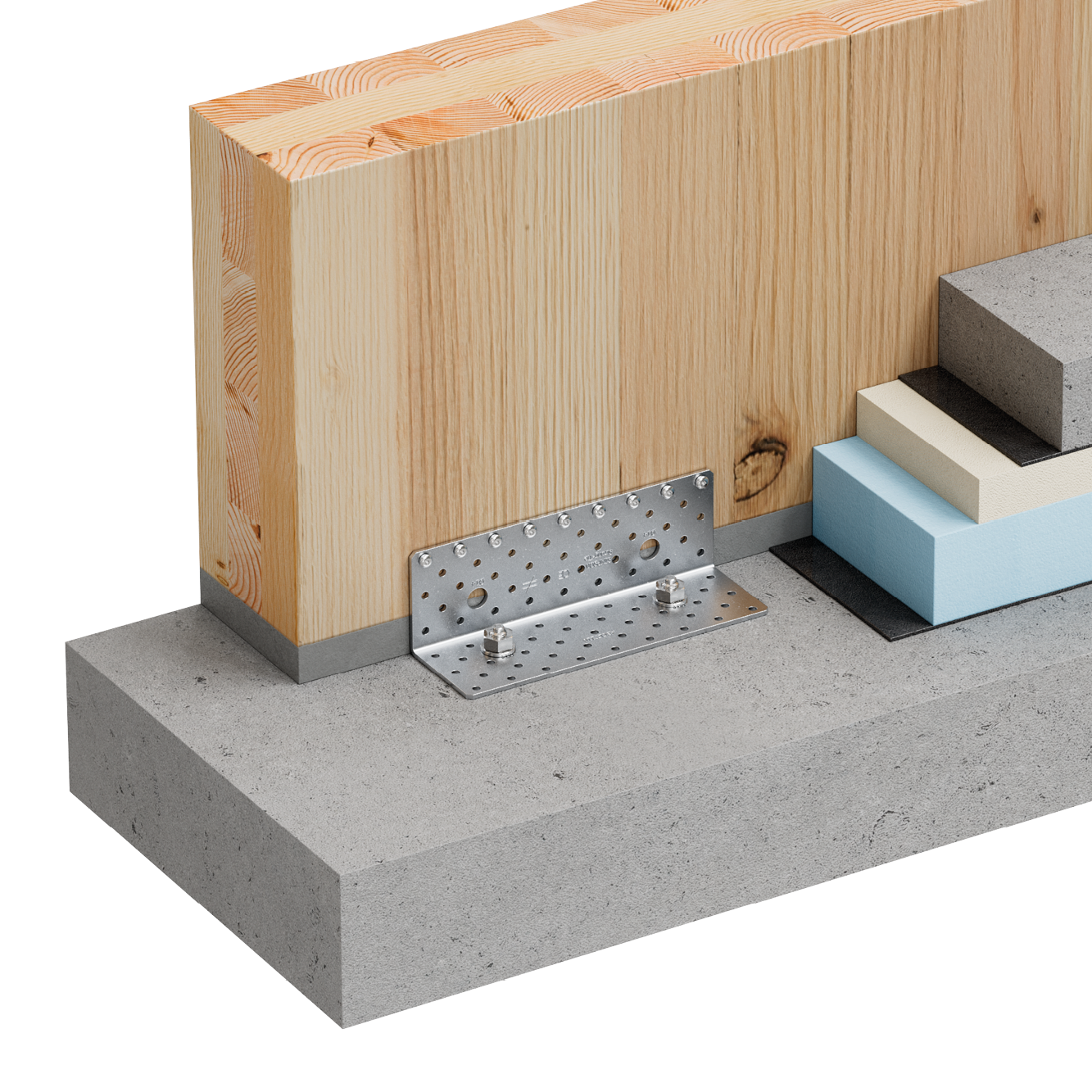

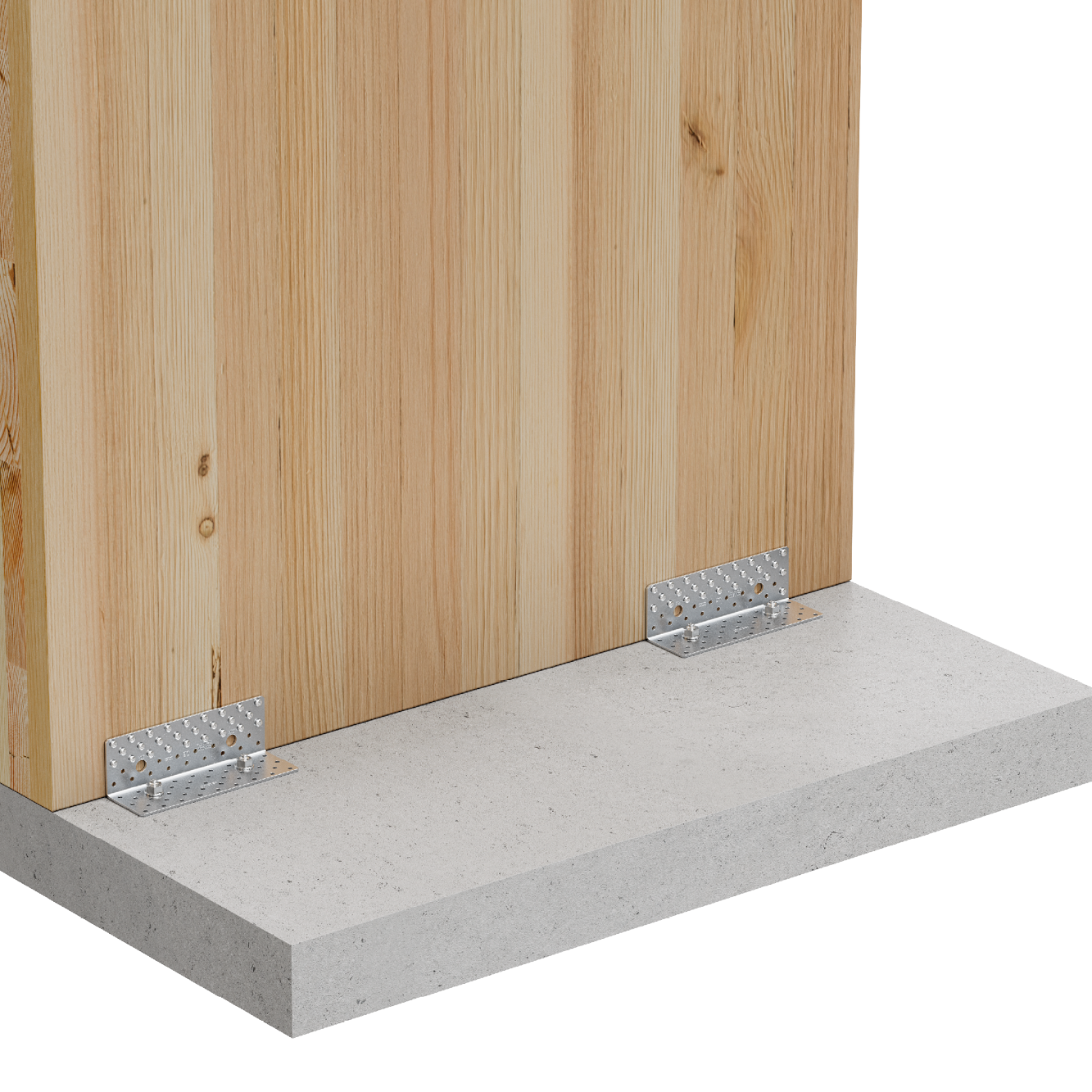

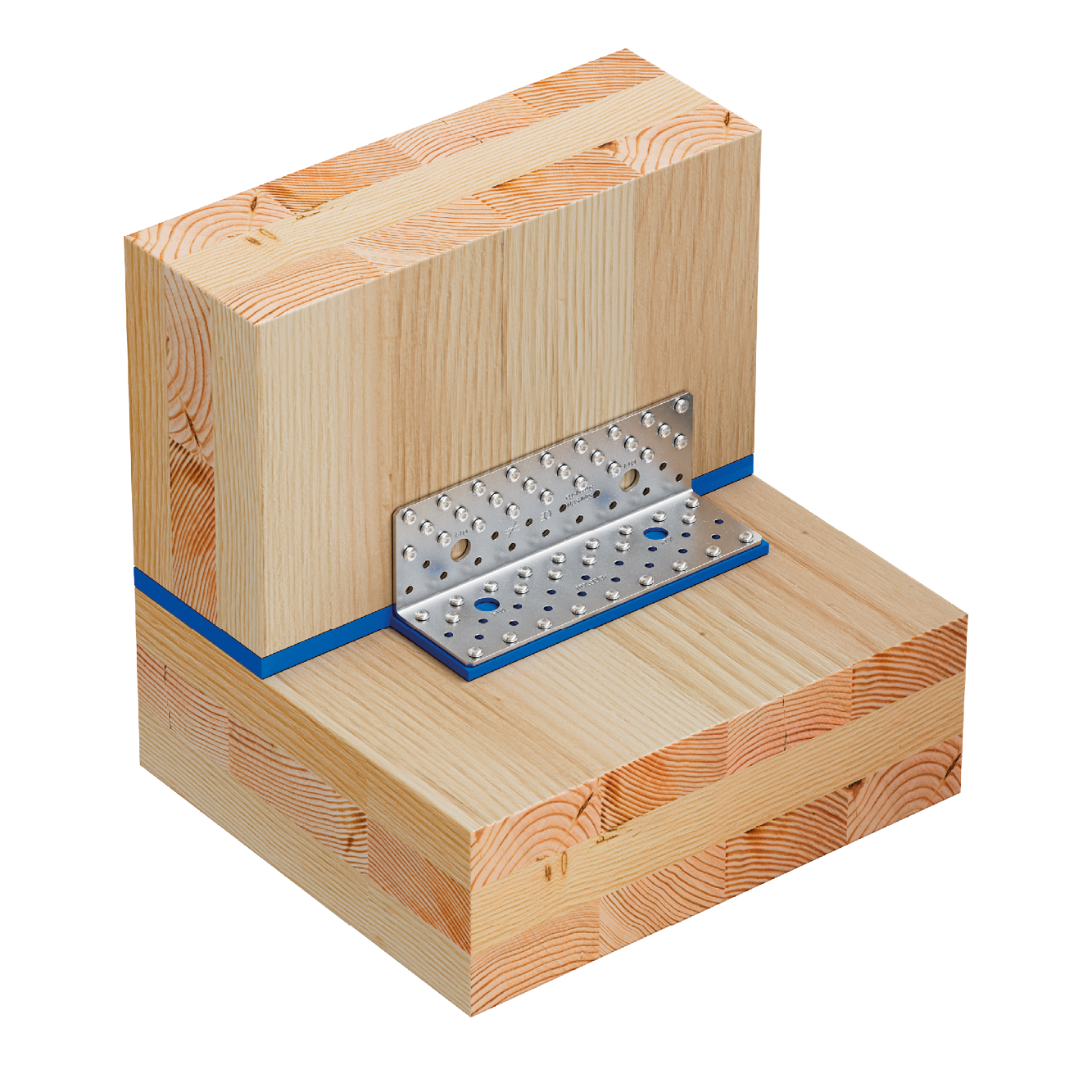

It takes high shear loads in a small height allowing it to be hidden in the flooring layers. It can be used for CLT to CLT connection but also CLT to Concrete Application.

CE Marking

ETA

New

Service class 2

Electrogalvanized steel Z275
EPD
Product Details
Features
Material
- Pre-galvanised mild steel.
- S250GD + Z275 according to EN 10346
Benefits
- Perfect for CLT building
- Versatile: can be used on timber and concrete support

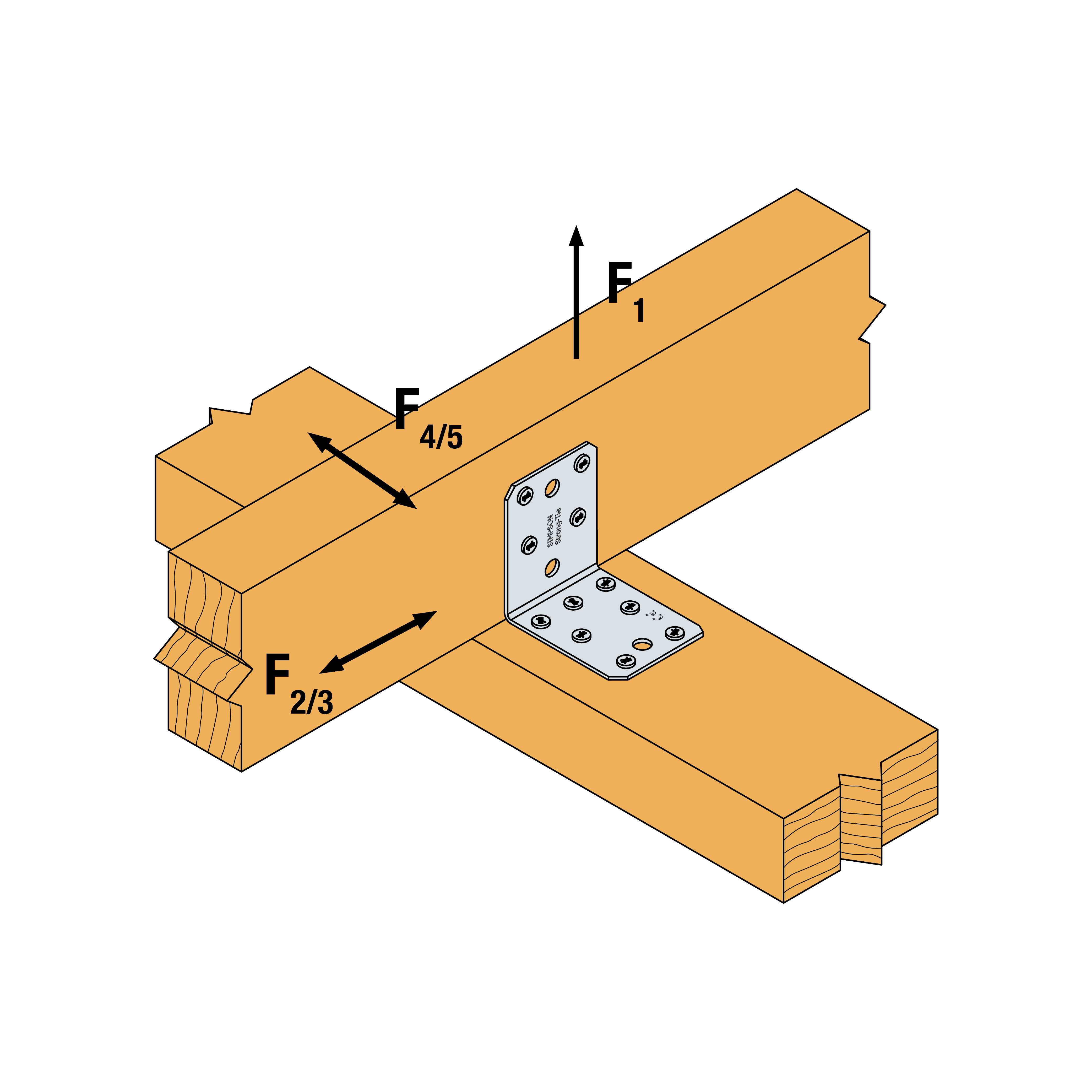

- Superior performance for forces in horizontal (F2/F3)
and vertical directions (F1) - Low Profile
Application
Suitable On
- Supporting member: CLT, concrete, steel, etc.
- Supported member: CLT.
Where to Use
- CLT panels.
Technical Data

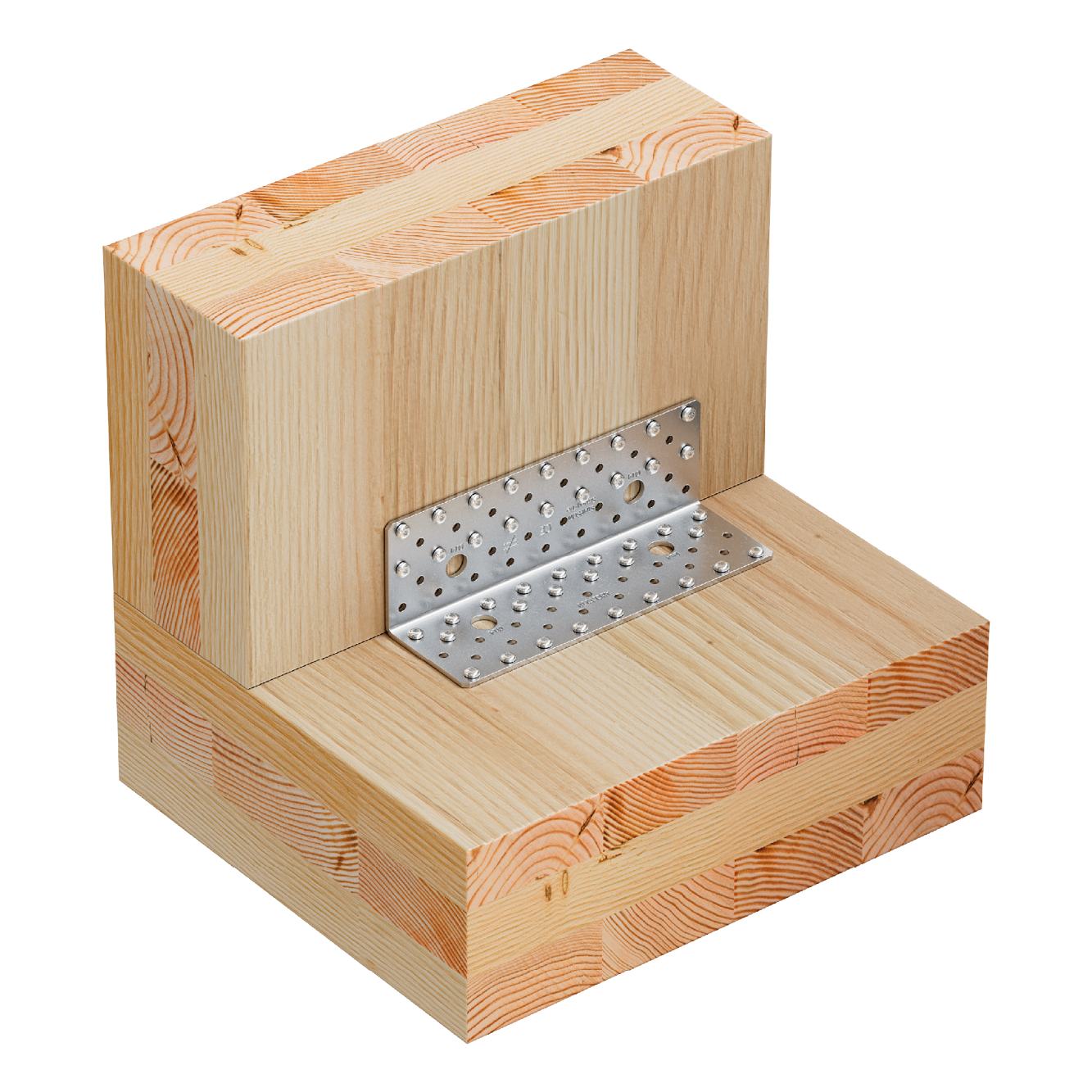

Product characteristic capacities - CLT to CLT - 1 angle bracket - Nailing pattern 1
| Reference | Angle bracket capacity | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product capacities - CLT to CLT - Fastening Pattern 1 | ||||||||||||||||||||||
| Characteristic capacities - Timber CLT - 1 angle brackets per connection[kN] | Number of Fasteners | |||||||||||||||||||||
| R₁,ₖ | R₂,ₖ=R₃,ₖ | R4,k | R5,k | Flange B | Joist | |||||||||||||||||
| CNA4.0x35 | CNA4.0x40 | CNA4.0x50 | CNA4.0x60 | CSA5.0x35 | CSA5.0x40 | CSA5.0x50 | CNA4.0x35 | CNA4.0x40 | CNA4.0x50 | CNA4.0x60 | CSA5.0x35 | CSA5.0x40 | CSA5.0x50 | CNA4.0x50 | CNA4.0x60 | CSA5.0x50 | CNA4.0x50 | CNA4.0x60 | CSA5.0x50 | Qty | Qty | |
| ABCLT210 | - | - | - | - | 17.7 | 20.7 | 26.9 | 30.4 | 33.9 | 40.6 | 43.2 | 36.4 | 41.2 | 48.2 | 31.5 | 31.5 | 31.5 | 8.3 | 10.5 | 15,7/kmod | 24.0 | 26.0 |

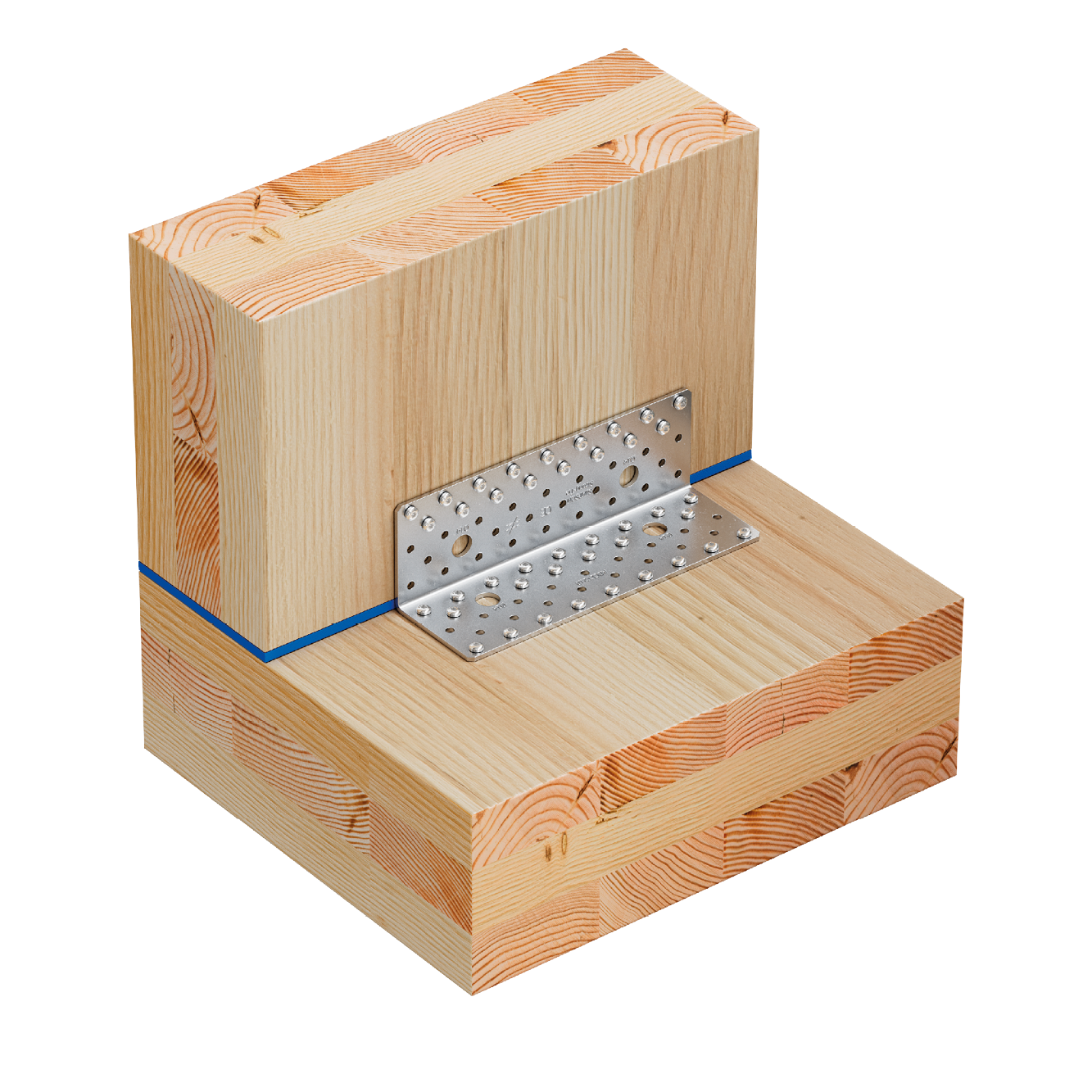

Product characteristic capacities - CLT to CLT - 1 angle bracket - Nailing pattern 1 with SIT
| Reference | Angle bracket capacity | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product capacities - CLT to CLT - Fastening Pattern 1 with SIT | ||||||||||||||||
| Characteristic capacities - Timber CLT - 1 angle brackets per connection[kN] | Number of Fasteners | |||||||||||||||
| R₂,ₖ=R₃,ₖ | R₁,ₖ | Joist | Flange B | |||||||||||||
| CNA4.0x35 | CNA4.0x40 | CNA4.0x50 | CNA4.0x60 | CSA5.0x35 | CSA5.0x40 | CSA5.0x50 | CNA4.0x35 | CNA4.0x40 | CNA4.0x50 | CNA4.0x60 | CSA5.0x35 | CSA5.0x40 | CSA5.0x50 | Qty | Qty | |
| ABCLT210 | 23.5 | 26.2 | 31.4 | 33.4 | 28.2 | 31.8 | 37.2 | - | - | - | - | 15 | 17.6 | 22.7 | 26.0 | 24.0 |
Product characteristic capacities - CLT to CLT- 1 angle bracket - Nailing pattern 2
| Reference | Angle bracket capacity | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product capacities - CLT to CLT - Fastening Pattern 2 | ||||||||||||||||
| Number of Fasteners | Characteristic capacities - Timber CLT - 1 angle brackets per connection[kN] | |||||||||||||||
| Joist | Flange B | R₂,ₖ=R₃,ₖ | R₁,ₖ | |||||||||||||
| Qty | Qty | CNA4.0x35[kN] | CNA4.0x40[kN] | CNA4.0x50[kN] | CNA4.0x60[kN] | CSA5.0x35[kN] | CSA5.0x40[kN] | CSA5.0x50[kN] | CNA4.0x35[kN] | CNA4.0x40[kN] | CNA4.0x50[kN] | CNA4.0x60[kN] | CSA5.0x35[kN] | CSA5.0x40[kN] | CSA5.0x50[kN] | |
| ABCLT210 | 18 (9) | 18.0 | 21.8 | 24.2 | 29.1 | 30.9 | 26.1 | 29.5 | 34.5 | 4.4 | 5.3 | 7.1 | 8.9 | 15.2 | 17.8 | 23 |
Product characteristic capacities - CLT to CLT - 1 angle bracket - Nailing pattern 3 with SIT
| Reference | Angle bracket capacity | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product capacities - CLT to CLT - Fastening Pattern 3 with SIT | ||||||||||||||||
| Characteristic capacities - Timber CLT - 1 angle brackets per connection[kN] | Number of Fasteners | |||||||||||||||
| R₁,ₖ | R₂,ₖ=R₃,ₖ | Joist | Flange B | |||||||||||||
| CNA4.0x35[kN] | CNA4.0x40[kN] | CNA4.0x50[kN] | CNA4.0x60[kN] | CSA5.0x35[kN] | CSA5.0x40[kN] | CSA5.0x50[kN] | CNA4.0x35[kN] | CNA4.0x40[kN] | CNA4.0x50[kN] | CNA4.0x60[kN] | CSA5.0x35[kN] | CSA5.0x40[kN] | CSA5.0x50[kN] | Qty | Qty | |
| ABCLT210 | 4.3 | 5.3 | 7 | 8.7 | 15 | 17.6 | 22.7 | 19.5 | 21.7 | 26 | 27.7 | 23.3 | 26.4 | 30.8 | 17.0 | 24.0 |

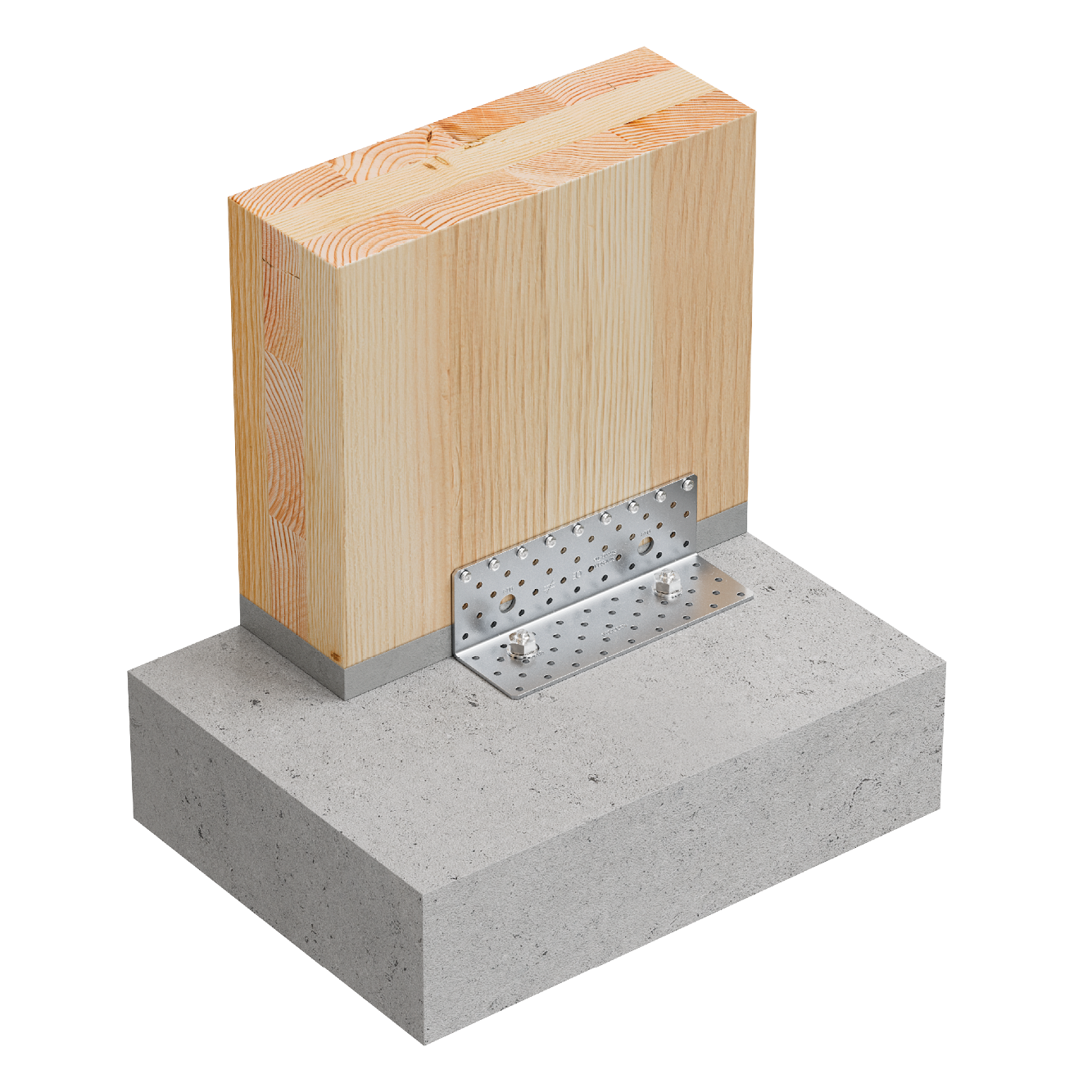

Simplified characteristic capacities - CLT to rigid support - 1 angle bracket - Nailing pattern 4
| Reference | Angle bracket capacity | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product capacities - CLT to Concrete - Fastening Pattern 4 | ||||||||||||||||||
| Number of Fasteners | Characteristic capacities - Timber CLT - 1 angle brackets per connection[kN] | |||||||||||||||||
| Flange B | Joist | R₁,ₖ | R₂,ₖ=R₃,ₖ | |||||||||||||||
| Qty | Type | Qty | Type | CNA4.0x35[kN] | CNA4.0x40[kN] | CNA4.0x50[kN] | CNA4.0x60[kN] | CSA5.0x35[kN] | CSA5.0x40[kN] | CSA5.0x50[kN] | CNA4.0x35[kN] | CNA4.0x40[kN] | CNA4.0x50[kN] | CNA4.0x60[kN] | CSA5.0x35[kN] | CSA5.0x40[kN] | CSA5.0x50[kN] | |
| ABCLT210 | 2.0 | M12 | 9.0 | CNA/CSA | - | - | - | - | 16.3 | 18.5 | 22 | 9.8 | 10.9 | 13.1 | 13.9 | 11.8 | 13.3 | 15.5 |

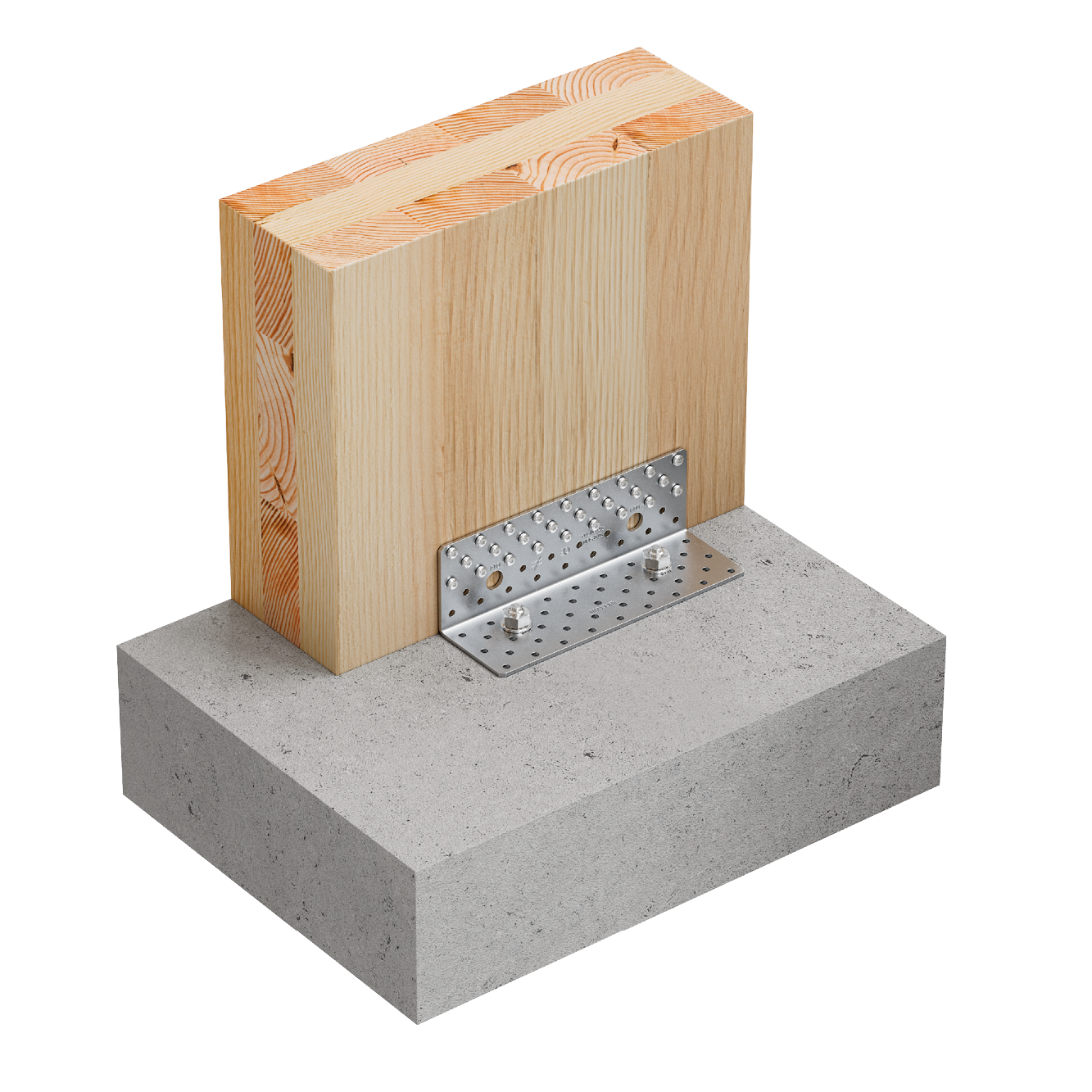

Simplified characteristic capacities - CLT to rigid support - 1 angle bracket - Nailing pattern 5
| Reference | Angle bracket capacity | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product capacities - CLT to Concrete - Fastening Pattern 5 | ||||||||||||||||||
| Number of Fasteners | Characteristic capacities - CLT to concrete - 1 angle bracket per connection[kN] | |||||||||||||||||
| Joist | Flange B | R₁,ₖ | R₂,ₖ=R₃,ₖ | |||||||||||||||
| Qty | Type | Qty | Type | CNA4.0x35[kN] | CNA4.0x40[kN] | CNA4.0x50[kN] | CNA4.0x60[kN] | CSA5.0x35[kN] | CSA5.0x40[kN] | CSA5.0x50[kN] | CNA4.0x35[kN] | CNA4.0x40[kN] | CNA4.0x50[kN] | CNA4.0x60[kN] | CSA5.0x35[kN] | CSA5.0x40[kN] | CSA5.0x50[kN] | |
| ABCLT210 | 26 (17) | CNA/CSA | 2.0 | M12 | 20.6 | 23.8 | 29.8 | 33.5 | min(47.9;32.0/kmod) | 32.0/kmod | 32.0/kmod | 30.4 | 33.9 | 40.6 | 43.2 | 36.4 | 41.2 | 48.2 |

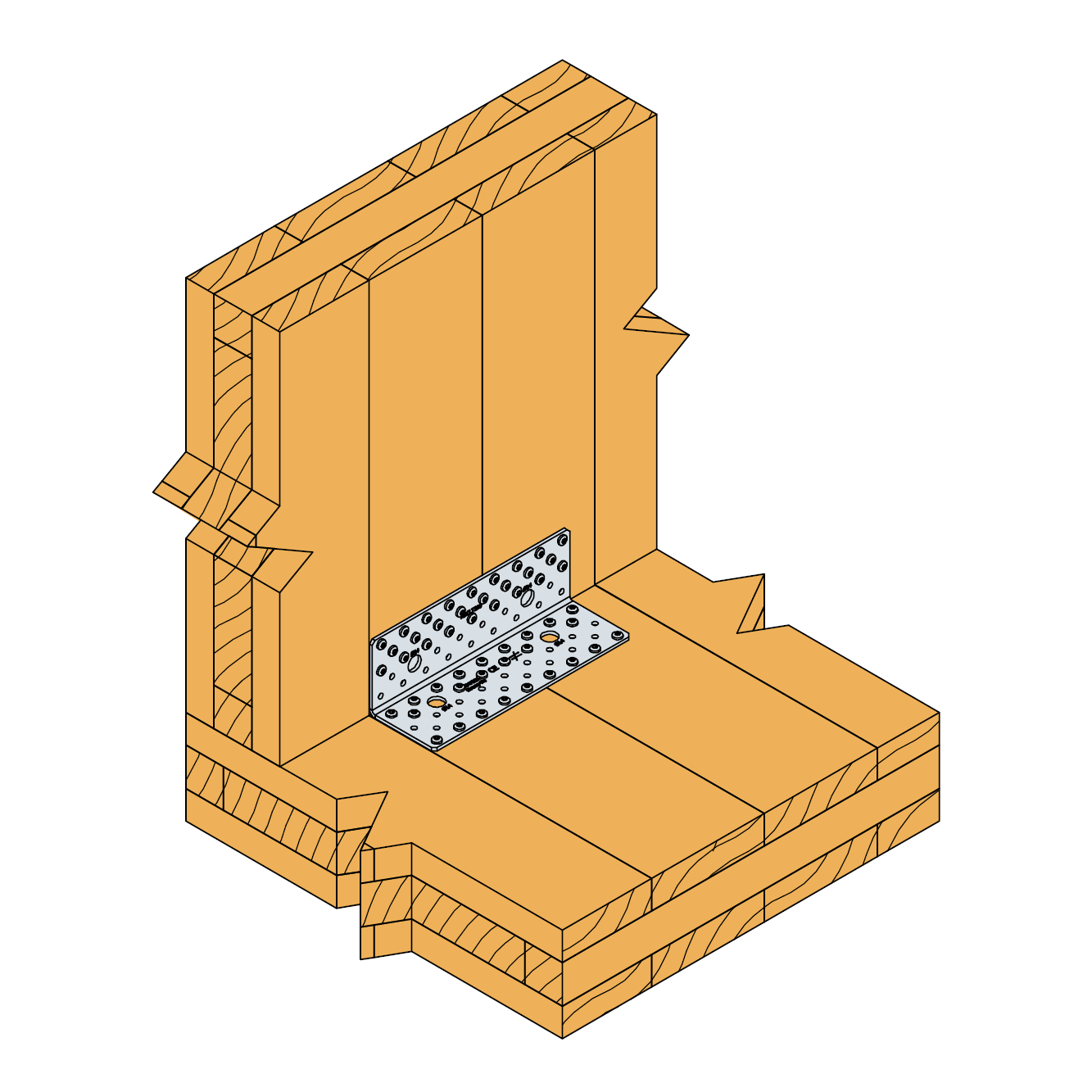

Installation
Installation
Fasteners
On CLT:
- CNA nails and CSA screws
On concrete:
- Mechanical anchor: FM 753 evo M12
- Chemical anchor: AT-HP resin + LMAS M12-150/35 threaded rod
Certification
European Technical Assessment (ETA)
Show history
Environmental Product Declarations (EPD)
CAD and BIM Library
2D
3D
3D Simplified
Nailing Pattern
ABCLT210
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
