Column Shoes type PB

These column bases are suitable for installation of supports / posts that are only subjected to pressure.

Technical Data Sheet

CE Marking

ETA

Service class 3

EPD

Hot-dip galvanised steel

Outdoor

PPB_SSTBP_homepage_NO_no

Product Details

Images

Features

Material

Steel quality:

S 235 JR according to DIN EN 10025

Corrosion protection:

completely galvanized after processing; Zinc coating thickness about 55 microns in accordance with DIN EN 1461

Benefits

• The PPB support feet are height-adjustable and can be loaded vertically.
• You will be connected with anchor bolts on a concrete foundation.

Application

Applicatons

In Stock:
• Concrete

Component:
• Wood, wood products

Scope

• The column bases PPB / PPS suitable for installation of supports / posts that are only subjected to pressure.

Technical Data

Product Dimensions

Dimensions

Reference	Connector Dimensions
	Other					Product Dimensions[mm]									Top plate holes		Bottom plate holes
	Tun / DB nr.	NOB nr.	No. of hexagon nuts	Qty per box	Weight[kg]	A[mm]	B[mm]	C[mm]	D[mm]	E[mm]	F[mm]	G[mm]	t₁[mm]	t₂[mm]	Round		Round
	Tun / DB nr.	NOB nr.	No. of hexagon nuts	Qty per box	Weight[kg]	A[mm]	B[mm]	C[mm]	D[mm]	E[mm]	F[mm]	G[mm]	t₁[mm]	t₂[mm]	Ø5.5	Bolts[mm]	Ø12[mm]
PPB70G-R	1389621	21594122	1	10	0.65	70	70	30-75	90	90	30-100	16	6	5	2	-	4
PPB75G	5104688	22062798	1	20	0.91	80	80	22-67	90	90	30-90	20	8	5	-	4	4
PPB80G	7742448	22062814	2	10	1.9	80	80	58-158	140	100	50-192	20	8	8	-	4	4

Capacities

Dimensions

Reference	Post base capacity
	Product capacities - Timber to Concrete
	Number of Fasteners				Characteristic capacities - Timber C24[kN]
	On post		On concrete		R1,k (2)[kN]
	Qty	Type	Qty	Type	0 < F ≤ 100	100 < F ≤ 190
PPB70G-R	4	Ø8	4.0	Ø10	min (88.3 ; 63.9/kmod)	-
PPB75G	4	Ø8	4.0	Ø10	min (88.3 ; 63.9/kmod)	-
PPB80G	4	Ø8	4.0	Ø10	min (88.3 ; 63.9/kmod)	min (88.3 ; 57.9/kmod)

The following applies:

$\frac{F_{i,d}} {R_{i,d}}\le1$

Installation

Fasteners

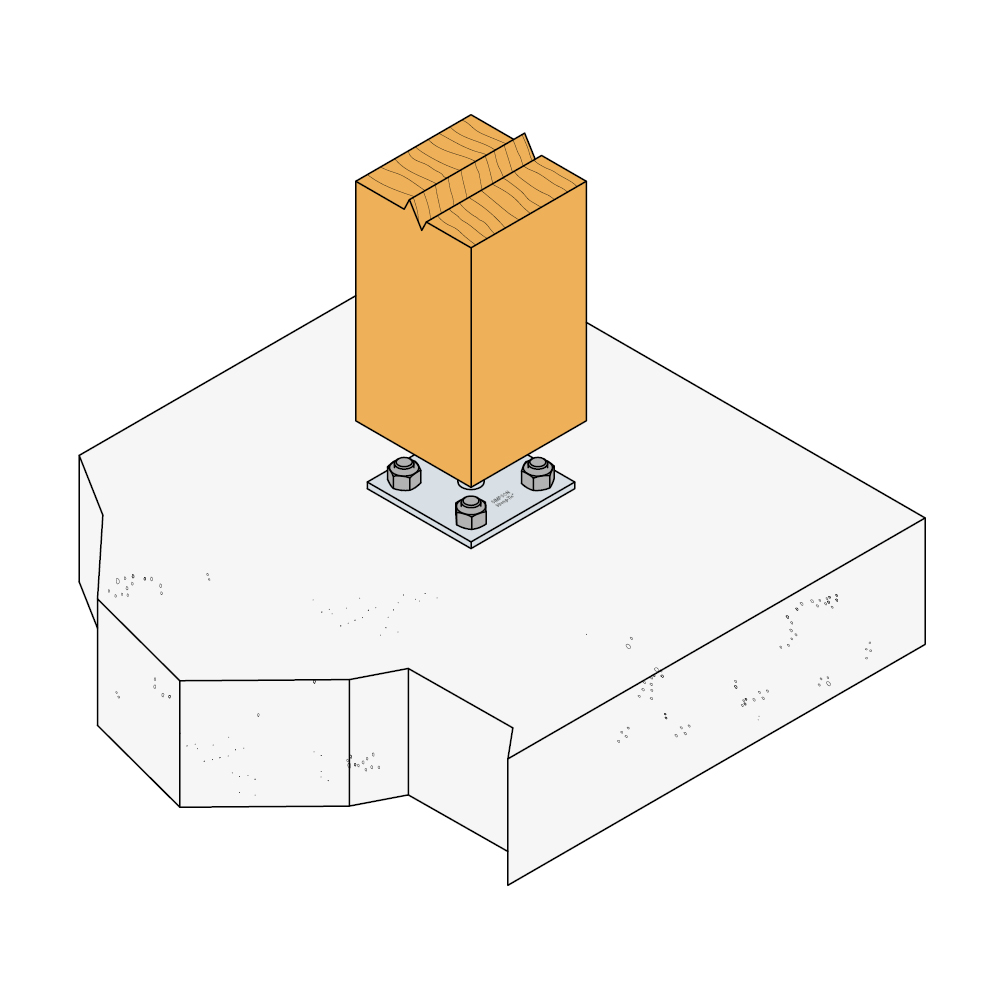

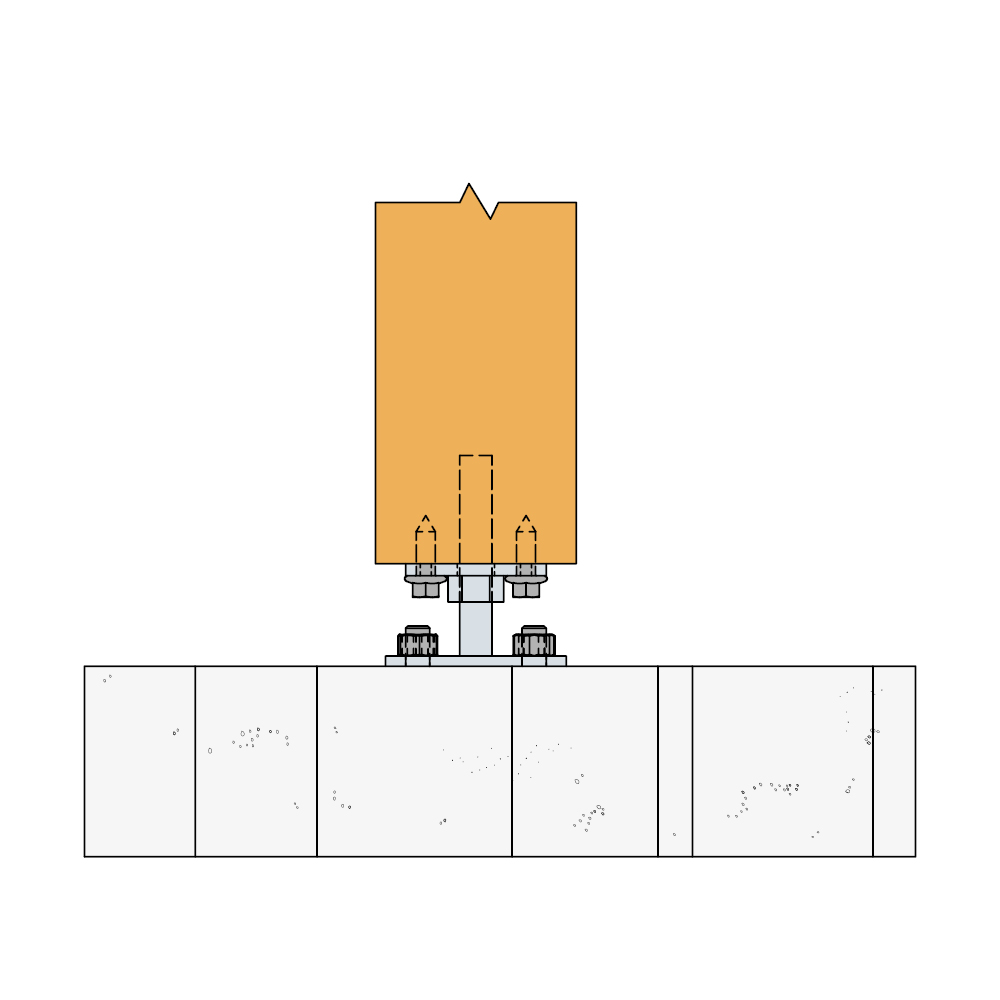

• The PPB column base is similar to the concrete using anchors fixed, the PPS column base is concreted directly.
• The max. Distance from the molded base plate is 100mm, also applies to the PPS base support a in concrete of 200mm.
• The threaded rod is inserted through a hole (AE18 / Æ22mm) in the support.
• A constructive position securing is done by means of screws or nails.
