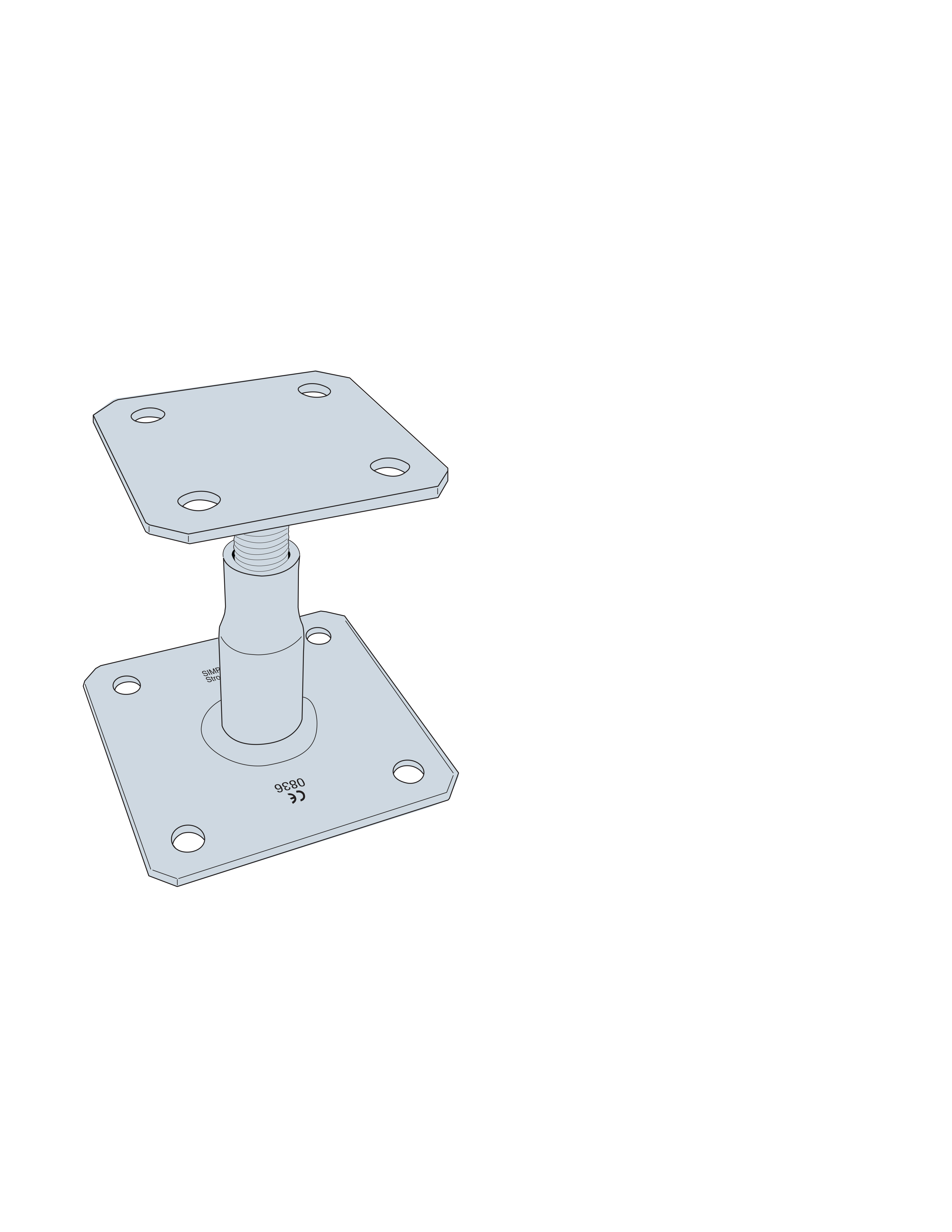

APB100/150
Adjustable Elevated Post Base
The APB features a post mounting plate on a screw allowing it to be adjusted to
a specific standoff height ranging from 100-150mm.
Suitable for post sizes 100 x 100mm to 200 x 200mm.
CE Marking
ETA
EPD
Electro-galvanized steel
Service class 2
Product Details
Images
APB100/150
Features
Application
Technical Data
Product Dimensions
Dimensions
| Reference | Connector Dimensions | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Product Dimensions[mm] | Top plate holes | Bottom plate holes | Other | |||||||
| A[mm] | B[mm] | D[mm] | E[mm] | F[mm] | G[mm] | t[mm] | Round | Round | Weight[kg] | |
| Ø12[mm] | Porteur[mm] | |||||||||
| APB100/150 | 100 | 100 | 130 | 130 | 100-150 | 20 | 4 | 4 | 4 | 1.2 |
Product capacities - Timber to concrete
Dimensions
| Reference | Post base capacity | |||||
|---|---|---|---|---|---|---|
| Number of Fasteners | Characteristic capacities - Timber C24[kN] | |||||
| On post | On concrete | R₁,ₖ | R₁,ₖ* | |||
| Qty | Type | Qty | Type | |||
| APB100/150 | 4.0 | Ø10 | 4.0 | Ø10 ** | 58/kmod^0,5 | 64.8 |
*The published characteristic capacity is based on medium term load duration and service class 2 according to EC5 (EN 1995). For other load duration and service class, please refer to the ETA to get more accurate capacities
** Refer to the Simpson Strong-Tie anchor product range for suitable anchors. Typical anchor solutions are SET-XP and AT-HP, depending on the concrete type, spacing and edge distances.
Installation
Installation

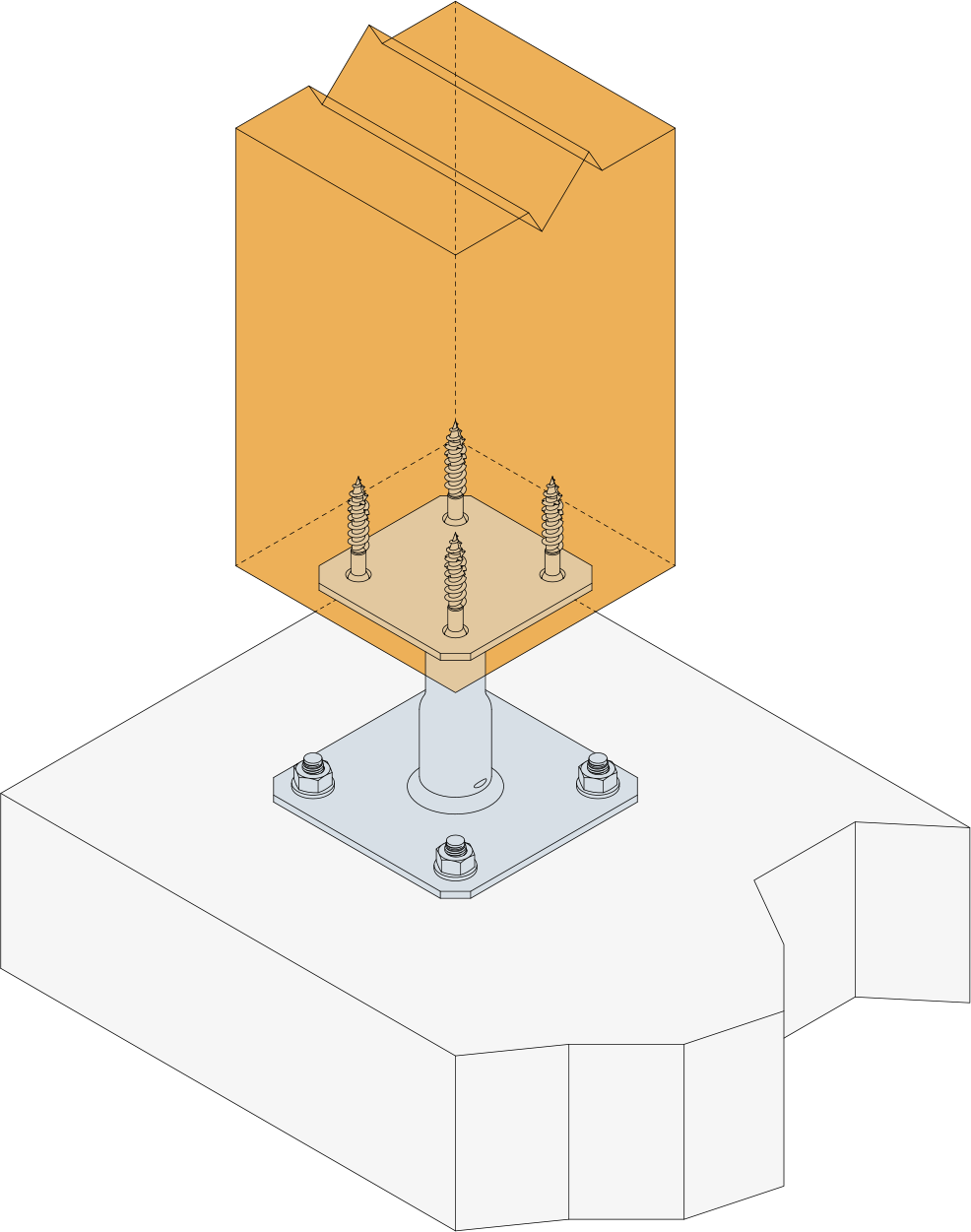

Fixation pied poteau APB100/150 sur support rigide
CAD and BIM Library
2D
3D
APB100/150
-
-
-
-
-
-
3D Simplified
Nailing Pattern
APB100/150
-
-
