BAN09

Windbracing Strap

BAN09 windbracing straps can be used for anchoring and bracing of roof constructions. The engineered "strong-holes" ensures a very light 0.9 mm strap with the same capacities as a 2mm strap. The thin material makes the strap easy to lift and handle on the job site. And it is easy to cut with metal shears.

CE Marking
Service class 2
Electrogalvanized steel 20 µm

Product Details

Images

Features

Material

Steel:
S550GD + Z275 according to EN10346

Corosion protection:
275 g/m2 on both sides - correspond to a zinc layer of approx. 20 μm

Advantages

  • Reinforced holes offer enhanced strap tensile capacity
  • Very light weight but strong
  • Easy to cut with metal shears

Technical Data

Dimensions

Product Dimensions

References Tun / DB nr. NOB nr. Product Dimensions Holes
A [mm] B [m] t [mm] Ø
BAN09401216527934716005240120.95
BAN09402517264284865659540250.95

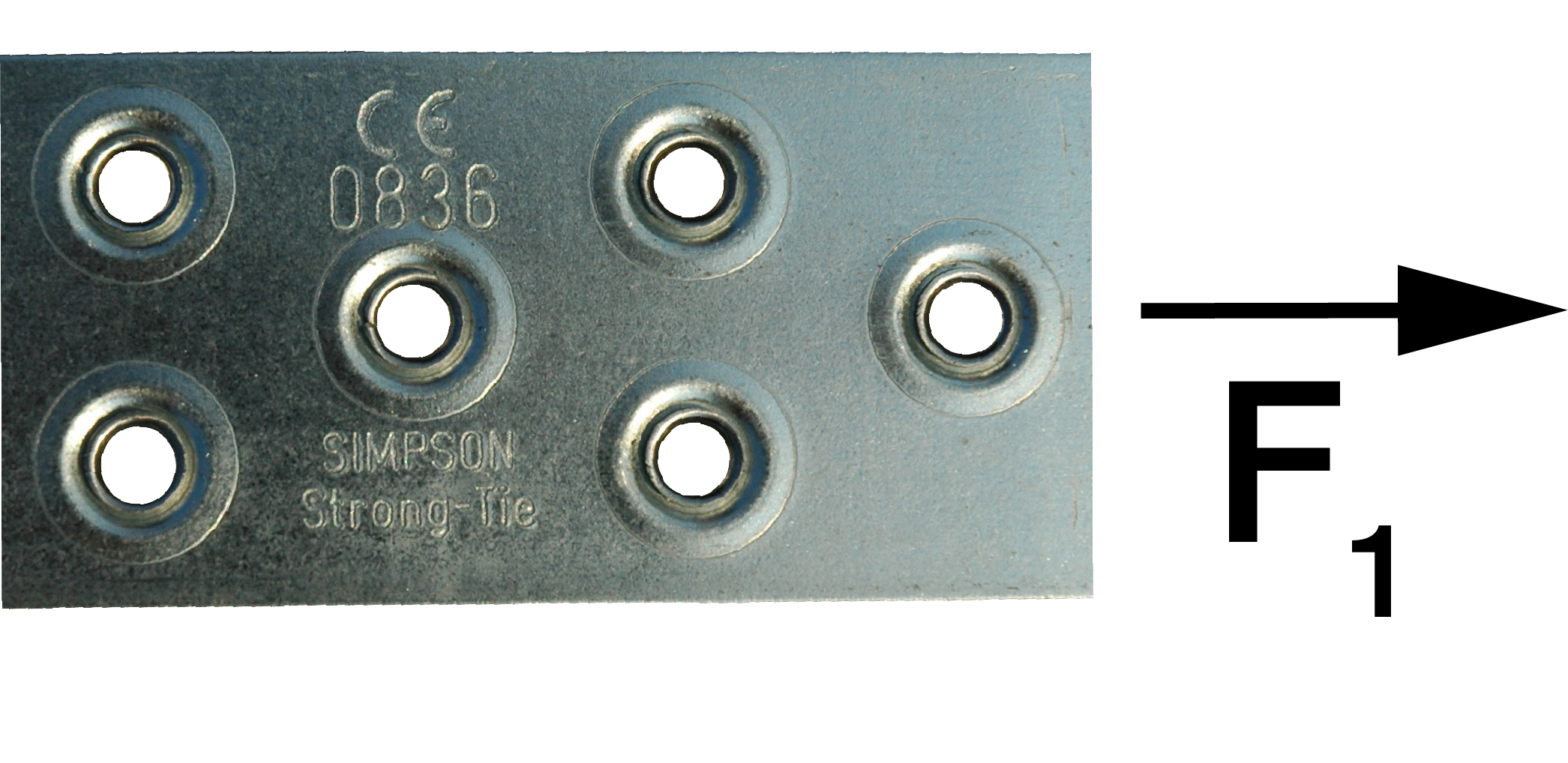

Product capacities

References Characteristic capacities R1.k Timber C24 [kN]
Maximum value CNA4.0x35 CNA4.0x40 CNA4.0x50 CNA4.0x60
BAN09401217.81.68 x n1.83 x n2.22 x n2.36 x n
BAN09402517.81.68 x n1.83 x n2.22 x n2.36 x n

n = effective number of nails in the row according to Eurocode 5 – 8.3.1.1 (8)

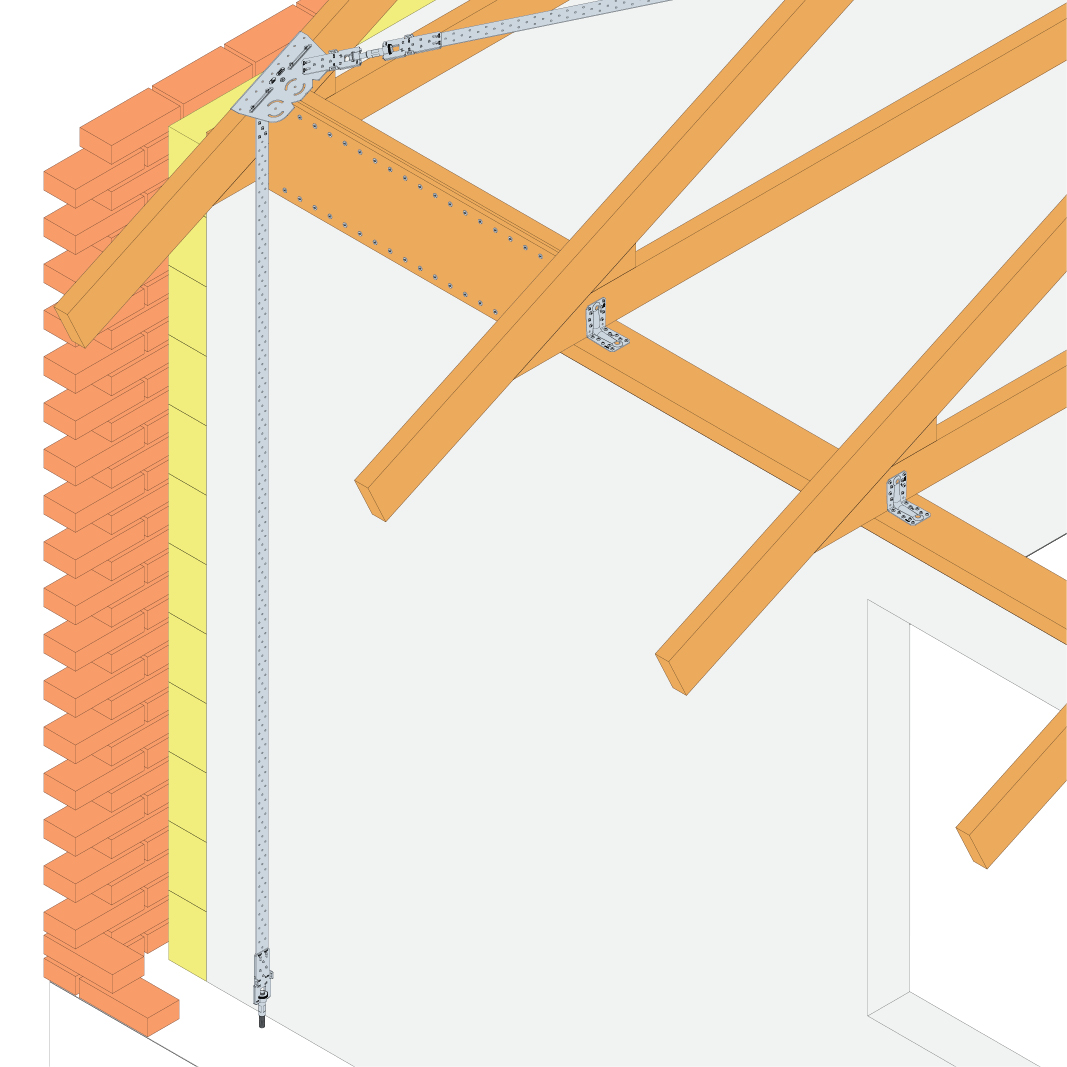

Installation

Installation

Fixation

CNA4.0xl

CSA5.0xl

For high loads installation with windbracing connectors is recommended

Certification

Declaration of Performance (DoP)
