BAN

Wind bracing strap

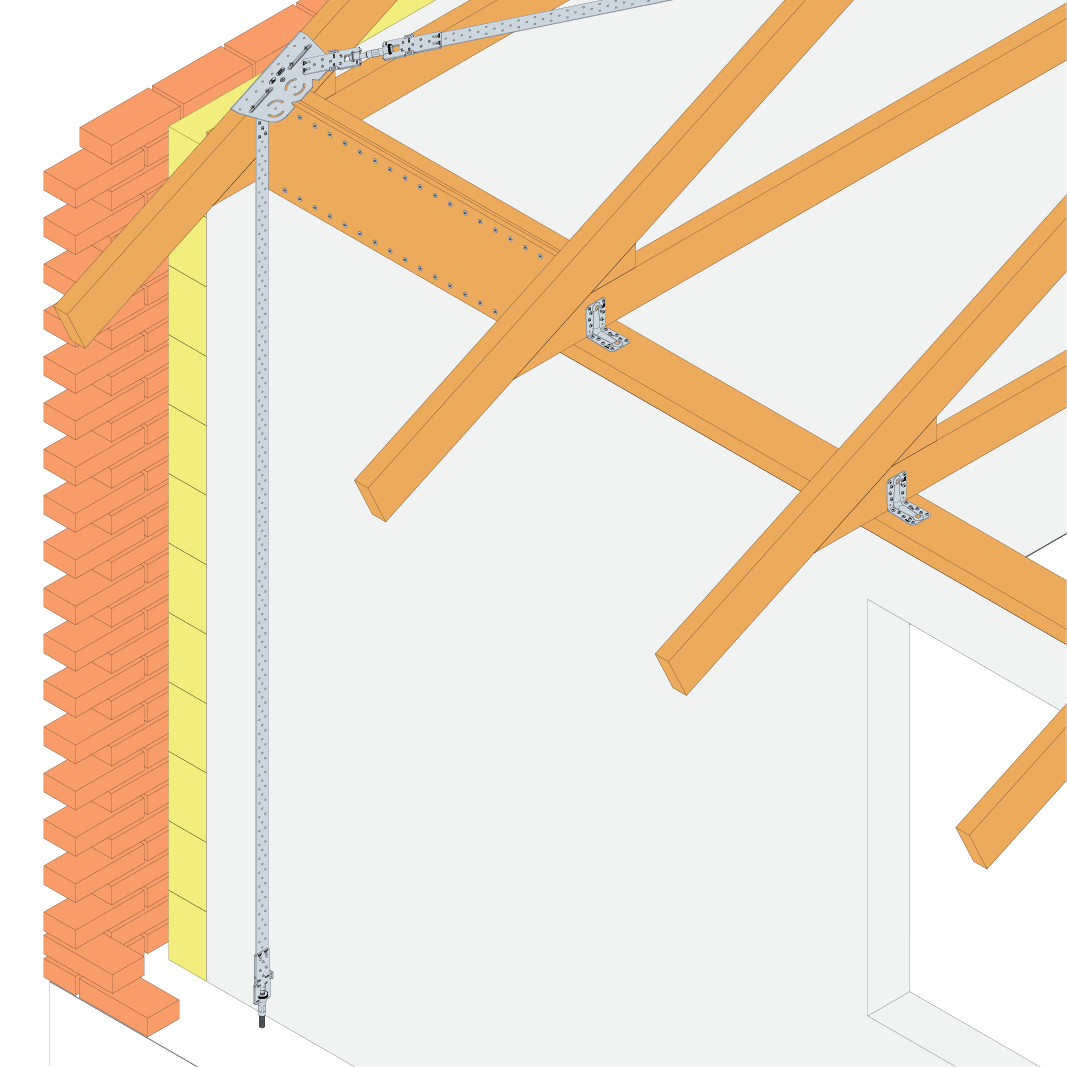

BAN windbracing straps can be used for anchoring and stiffening of roof constructions as described in our windbracing catalogue (www.strongtie.dk) or TRÆ58. Windbracing straps with widths 25, 40 and 60 mm are included as pulling strap in the wind restraint systems. Windbracing straps 80x2,0 can be used where more tensile strength is required in the strap. In order for the straps to work, they must be tight in the finished construction.

CE Marking
Service class 2
Electrogalvanized steel 20 µm
Indoor

Product Details

Images

Features

Material

Steel quality:

S250GD + Z275 according to DIN EN10346

Corrosion protection:

275 g / m galvanized on both sides 20mm

In the stainless steel version (1.4401) which is available as standard Windrispenband BAN204025S product, other sizes on request.



Benefits

• At higher loads can be mounted next to each other more tapes
• In these cases, it is recommended BNSP clamping device to allow a uniform tension belts



Application

Suitable On

Wood, wood materials



When to Use

• Widely used in building construction, but serve mainly to reinforce the roof structure.

Technical Data

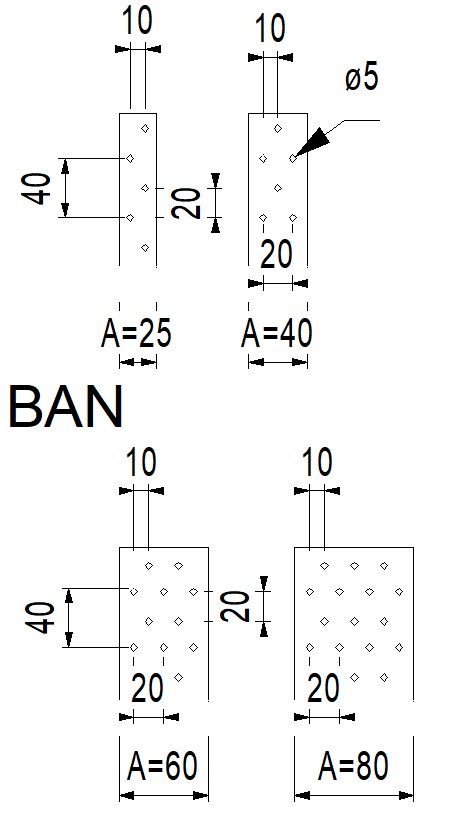

Dimensions

Dimensions

References DB nr. NOBB nr. Dimension Holes
A [mm] B [m] t [mm] Ø [mm]
BAN202510285699521217500251025
BAN202525158838321217534252525
BAN154025 * **50476972494293040251.55
BAN204025 *263411121220405402525
BAN154050 * **50476982494294840501.55
BAN204050 *225507321220413405025
BAN304050--405035
BAN156050 **--60501.55
BAN206050159723621220439605025
BAN158025 **--80251.55
BAN208025374183221220447802525

* Is available with meter indication per ½ m
** High strength steel S350GD
*** High strength steel S550GD

Characteristic loadbearing table

References Characteristic capacity R1,k (kN) min. of:
Steel Wood - using CNA4,0x
35 40 50 60
BAN20251011.91,66 x n1,85 x n2,22 x n2,36 x n
BAN20252511.91,66 x n1,85 x n2,22 x n2,36 x n
BAN154025 * **171,66 x n1,85 x n2,22 x n2,36 x n
BAN204025 *17.81,66 x n1,85 x n2,22 x n2,36 x n
BAN154050 * **171,66 x n1,85 x n2,22 x n2,36 x n
BAN204050 *17.81,66 x n1,85 x n2,22 x n2,36 x n
BAN30405026.71,66 x n1,85 x n2,22 x n2,36 x n
BAN156050 **25.51,66 x n1,85 x n2,22 x n2,36 x n
BAN20605026.71,66 x n1,85 x n2,22 x n2,36 x n
BAN158025 **341,66 x n1,85 x n2,22 x n2,36 x n
BAN20802535.61,66 x n1,85 x n2,22 x n2,36 x n

n = Qty nails

Characteric capacities

References R1,k [kN]
CNA4,0x35 CNA4,0x40 CNA4,0x50 CNA4,0x60
BAN154025 * **min (17/kmod ; 1,66 x n)min (17/kmod ; 1,85 x n)min (17/kmod ; 2,22 x n)min (17/kmod ; 2,36 x n)
BAN204025 *min (17.8/kmod ; 1,66 x n)min (17.8/kmod ; 1,85 x n)min (17.8/kmod ; 2,22 x n)min (17.8/kmod ; 2,36 x n)
BAN154050 * **min (17/kmod ; 1,66 x n)min (17/kmod ; 1,85 x n)min (17/kmod ; 2,22 x n)min (17/kmod ; 2,36 x n)
BAN204050 *min (17.8/kmod ; 1,66 x n)min (17.8/kmod ; 1,85 x n)min (17.8/kmod ; 2,22 x n)min (17.8/kmod ; 2,36 x n)
BAN304050min (26.7/kmod ; 1,66 x n )min (26.7/kmod ; 1,85 x n)min (26.7/kmod ; 2,22 x n)min (26.7/kmod ; 2,36 x n)
BAN156050 **min (25.5/kmod ; 1,66 x n )min (25.5/kmod ; 1,85 x n)min (25.5/kmod ; 2,22 x n)min (25.5/kmod ; 2,36 x n)
BAN206050min (26.7/kmod ; 1,66 x n )min (26.7/kmod ; 1,85 x n)min (26.7/kmod ; 2,22 x n)min (26.7/kmod ; 2,36 x n)
BAN158025 **min (34/kmod ; 1,66 x n )min (34/kmod ; 1,85 x n)min (34/kmod ; 2,22 x n)min (34/kmod ; 2,36 x n)
BAN208025min (35.6/kmod ; 1,66 x n )min (35.6/kmod ; 1,85 x n)min (35.6/kmod ; 2,22 x n)min (35.6/kmod ; 2,36 x n)

Installation

Installation

Fixing

Fixing in wood construction:

CNA4,0xℓ ring shank nails or CSA5,0xℓ connector screws

It is recommended to always use connection connectors to obtain maximum connection strength to the rafter construction

Using molding, the necessary molding length is determined by the concrete quality and the forces size

See windbracing catalogue www.strongtie.dk for further information and guidance.
