SDE
Width Adjustable Face Fix Joist Hanger

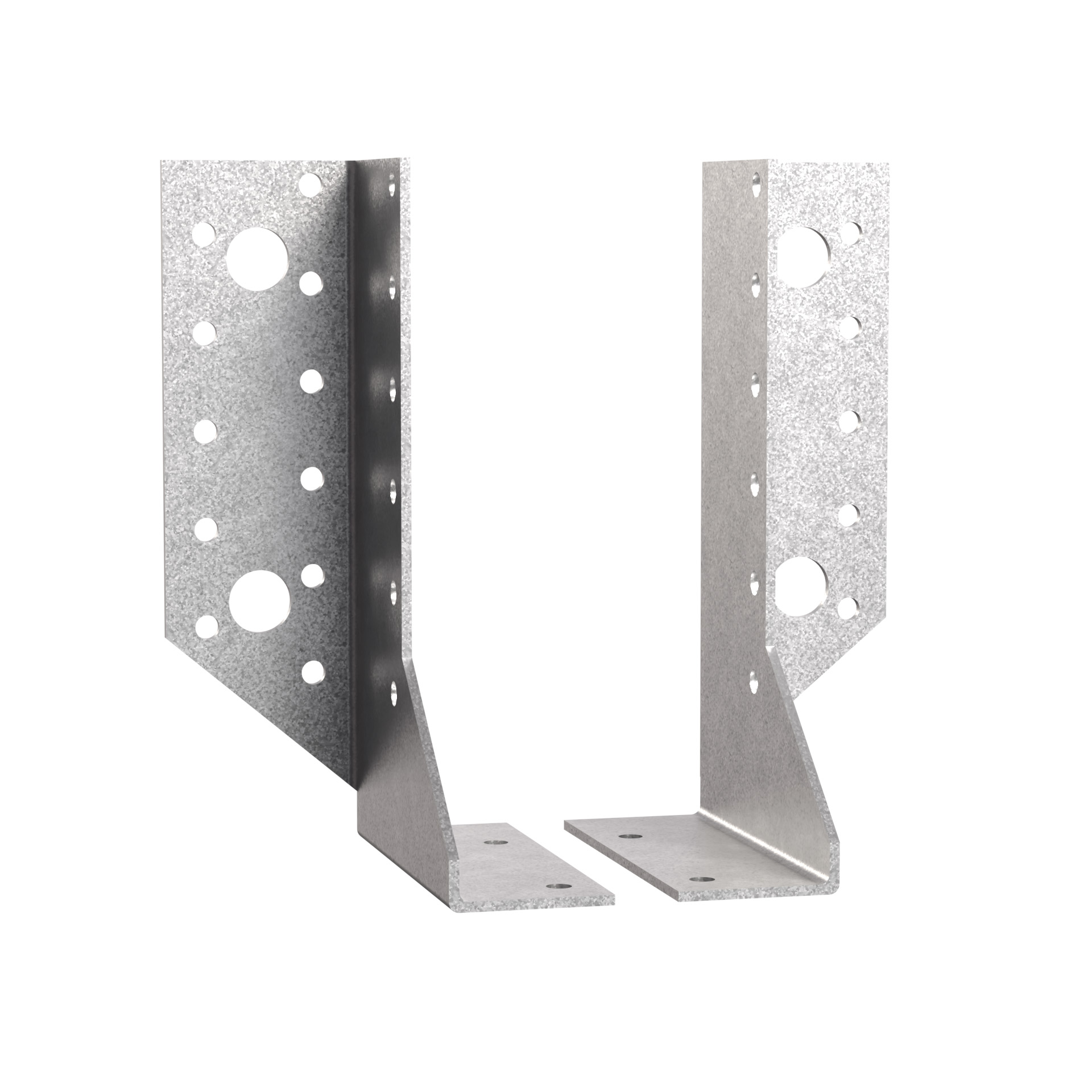

The SDE is a two piece, width adjustable face fix hanger. The two separate components that make up the SDE system can be adjusted to suit a range of joist widths between 60mm to 250mm.
Each SDE is supplied as a pair. Optional bolt holes (13mm diameter).
CE Marking
ETA
EPD
Service class 2
Electrogalvanized steel Z275
Product Details
Images
Installation Timber to timber
Features
Application
Technical Data
Product Dimensions
Dimensions
| Reference | Connector Dimensions | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Timber size[mm] | Product Dimensions[mm] | Header holes | Joist holes | Other | ||||||||||
| Height | Width | A[mm] | B[mm] | C[mm] | D[mm] | F[mm] | t[mm] | Round | Round | Weight[kg] | ||||
| Min[mm] | Max.[mm] | Min[mm] | Max.[mm] | Ø5[mm] | Ø13[mm] | Ø5[mm] | ||||||||
| SDEG300/30 | 120 | 177 | 60 | 250 | 60 | 118 | 84 | 41.5 | 86 | 2 | 9 | 2 | 5 | 0.18 |
| SDED300/30 | 120 | 177 | 60 | 250 | 60 | 118 | 84 | 41.5 | 86 | 2 | 9 | 2 | 5 | 0.18 |
| SDEG340/30 | 140 | 207 | 60 | 250 | 60 | 138 | 84 | 41.5 | 86 | 2 | 11 | 2 | 6 | 0.22 |
| SDED340/30 | 140 | 207 | 60 | 250 | 60 | 138 | 84 | 41.5 | 86 | 2 | 11 | 2 | 6 | 0.2 |
| SDEG380/30 | 160 | 237 | 60 | 250 | 60 | 158 | 84 | 41.5 | 86 | 2 | 11 | 2 | 6 | 0.26 |
| SDED380/30 | 160 | 237 | 60 | 250 | 60 | 158 | 84 | 41.5 | 86 | 2 | 11 | 2 | 6 | 0.26 |
| SDEG440/30 | 190 | 282 | 60 | 250 | 60 | 188 | 84 | 41.5 | 86 | 2 | 14 | 2 | 8 | 0.29 |
| SDED440/30 | 190 | 282 | 60 | 250 | 60 | 188 | 84 | 41.5 | 86 | 2 | 14 | 2 | 7 | 0.29 |
Product Capacities
| Reference | Hanger capacity | ||||
|---|---|---|---|---|---|
| Characteristic capacities - Timber to timber - Full nailing | |||||
| Number of Fasteners | Product characteristic capacities - Timber C24[kN] | ||||
| Header | Joist | R₁,ₖ | R₂,ₖ | R₃,ₖ | |
| Qty | Qty | CNA4,0x50 | CNA4,0x50 | CNA4,0x50 | |
| SDEG300/30 | 9.0 | 5 | 20.3 | 17.6 | 14.6 |
| SDED300/30 | 9.0 | 5 | 20.3 | 17.6 | 14.6 |
| SDEG340/30 | 11.0 | 6 | 26.6 | 24 | 15.8 |
| SDED340/30 | 11.0 | 6 | 26.6 | 24 | 15.8 |
| SDEG380/30 | 11.0 | 6 | 26.6 | 24 | 13.9 |
| SDED380/30 | 11.0 | 6 | 26.6 | 24 | 13.9 |
| SDEG440/30 | 14.0 | 7 | 33.2 | 33.2 | 14 |
| SDED440/30 | 14.0 | 7 | 33.2 | 33.2 | 14 |
Capacities are given for a pair of SDE (SDEG + SDED)
Combined Load:
Product Capacities - Timber to Timber - Full nailing Br36
Table "Product Capacities - Timber to Timber - Full nailing Br36" cannot be displayed : no references available.
Installation
Installation
Installation Timber to timber
ZIP Packages
-
2D
2D DWG ZIP3D/3D Simplified
SAT ZIP
