They are ideal for those connections that need to transfer large forces, such as rafters, purlins, wood beams
40412 bracket are 4 mm thick, saving angle is AG40312 only 3 mm thick

Technical Data Sheet

CE Marking

ETA

Electrogalvanized steel Z275

Service class 2

EPD

Indoor

Available in Connector Selector

Product Details

Images

Features

Material

Steel quality:

• S250GD + Z275 according to DIN EN10346

Corrosion protection:

• 275 g / m galvanized on both sides 20mm

Benefits

• Universal bracket for supporting a structural purposes

Application

Applicable materials

• Wood and wood products

Application area

• Wood and wood products

Values for joint wood and wood, two connections
Values for wood and concrete joint, two connecting

Technical Data

Product Dimensions

Dimensions

Reference	Connector Dimensions
	Other				Product Dimensions[mm]				Joist[mm]			Flange B[mm]
	Tun / DB nr.	NOB nr.	Qty per Box	Weight[kg]	A[mm]	B[mm]	C[mm]	Thickness[mm]	Round			Round
	Tun / DB nr.	NOB nr.	Qty per Box	Weight[kg]	A[mm]	B[mm]	C[mm]	Thickness[mm]	Ø5[mm]	Ø8.5[mm]	Ø11[mm]	Ø5[mm]	Ø8.5[mm]	Ø11[mm]
AG40312	1680602	21220819	100.0	0.18	119	91	40	3	10	1	2	6	1	1
AG40412	8977720	21594494	50.0	0.24	120	92	40	4	10	1	2	6	1	1
AG40314	5653563	21794086	50.0	0.21	141	91	40	3	12	1	2	6	1	1
AG40414	5653589	21794102	50.0	0.28	142	92	40	4	12	1	2	6	1	1

Product Capacities - Beam to Beam and Beam to Column

Dimensions

Reference	Angle bracket capacity
	Product capacities - Timber to timber - Beam to beam - Full nailing
	Number of Fasteners		Characteristic capacity - 2 angle brackets per connection - full nailing[kN]
	Joist	Flange B	R₁,ₖ		R₂,ₖ=R₃,ₖ[kN]		R4/5,k
	Qty	Qty	CNA4.0x40	CNA4.0x60	CNA4.0x40	CNA4.0x60	CNA4.0x40	CNA4.0x60
AG40312	4	4	3	4,2/kmod^0,3	3.3	5	1,3/kmod^0,25	1,8/kmod^0,25
AG40412	4	4	3	4.9	3.2	4.4	1,4/kmod^0,25	2,2/kmod^0,25
AG40314	4	4	3	4,2/kmod^0,3	3.3	5	1,3/kmod^0,25	1,8/kmod^0,25
AG40414	4	4	3	4.9	3.2	4.4	1,4/kmod^0,25	2,2/kmod^0,25

To obtain the resistance values for a single bracket, the values in the above table should be divided by two, provided that the supported beam is locked in rotation. Please consult our ETA-06/0106 if the beam is free to rotate.

Product Capacities - Beam or Column to concrete

Dimensions

Reference	Angle bracket capacity
	Product capacities - Timber to Concrete
	Number of Fasteners				Characteristic capacity - 2 angle brackets per connection - full nailing[kN]
	Joist		Flange B		R₁,ₖ		R₂,ₖ=R₃,ₖ		R4/5,k
	Qty	Type	Qty	Type	CNA4.0x40	CNA4.0x60	CNA4.0x40	CNA4.0x60	CNA4.0x40	CNA4.0x60

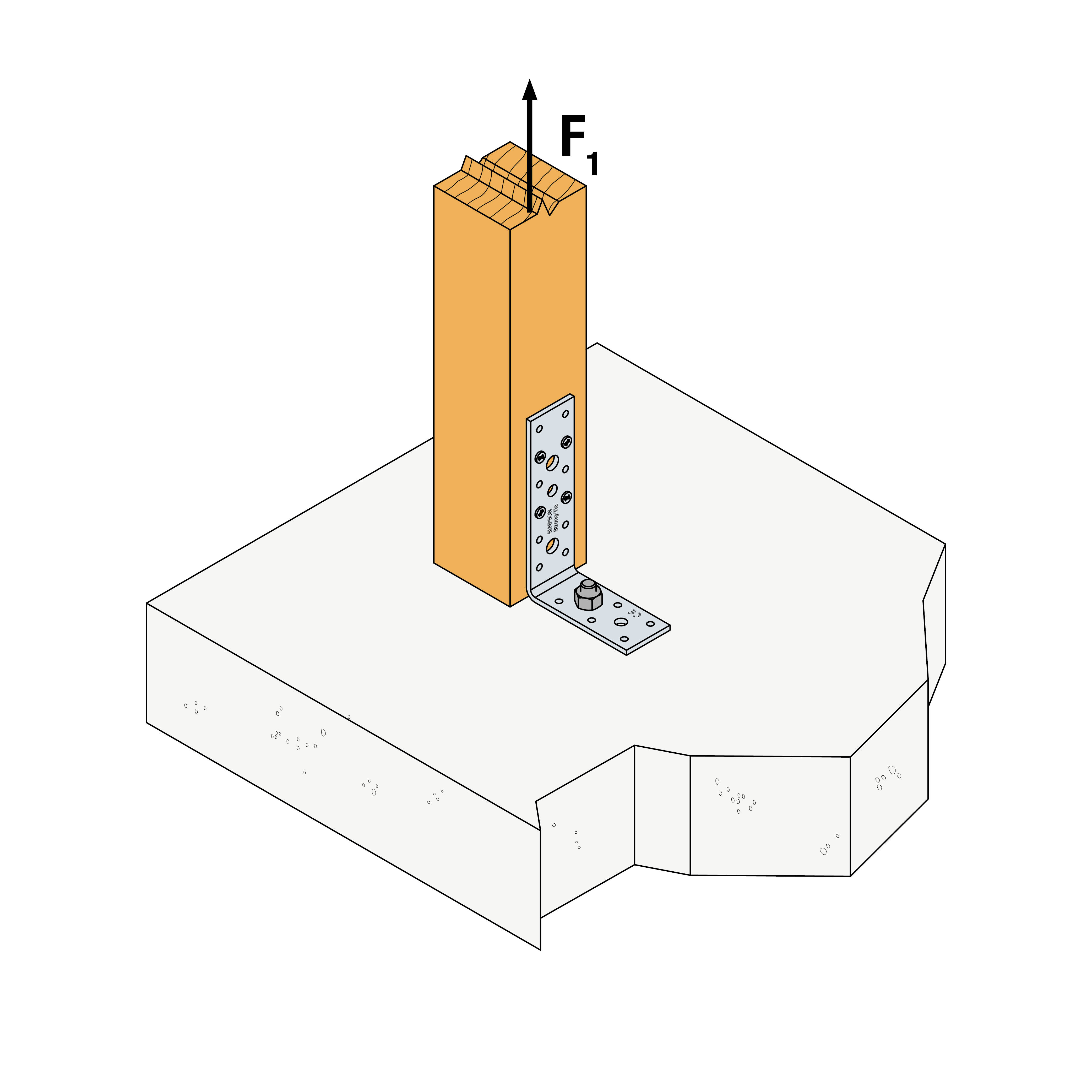

AG40412	4	CNA	1	M10 Bolt	min (10,5 ; 8,1/kmod)	8,1/kmod	min (1,0 ; 1,0/kmod)	1,0/kmod	min (4,3 x kmod^0,5 ; 2,9/kmod)	min (4,3 ; 2,9/kmod)
AG40414	4	CNA	1	M10 Bolt	min (10,5 ; 8,1/kmod)	8,1/kmod	min (1,0 ; 1,0/kmod)	1,0/kmod	min (4,3 x kmod^0,5 ; 2,9/kmod)	min (4,3 ; 2,9/kmod)

The load capacity belongs to a load group with the modification factor k_mod.

1) R_4/5,k is determined for beam width b = 75 mm and essentricity e = 130 mm. See ETA for other values of b and e.

If the overall structure prevents the rotation of the purlin, the load values R_1,k and R_2/3,k in an assembly with only one bracket equal to half of the given value in table 2. See ETA if the purlin is able to rotate.

The Bolt must have a characteristic withdrawal strength of min. 10 kN and used with a washer US60/60/6. In case of lower Bolt strengtf, the capacity must be reduced accordingly.

Installation

Fixing

The fixing needs to be done with CNA4,0xℓ threaded nails or CSA5,0xℓ screws.
The fixing needs to be done with a M10 bolt and US60x60x6 washer for fixing on concrete.
