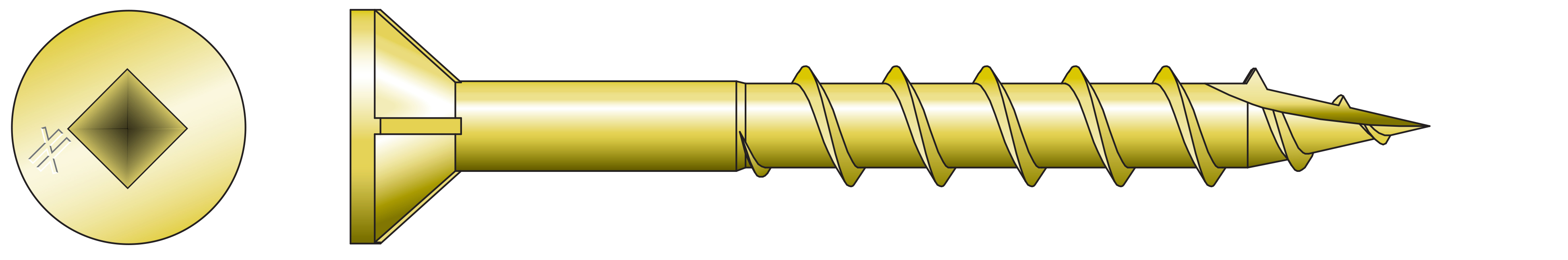

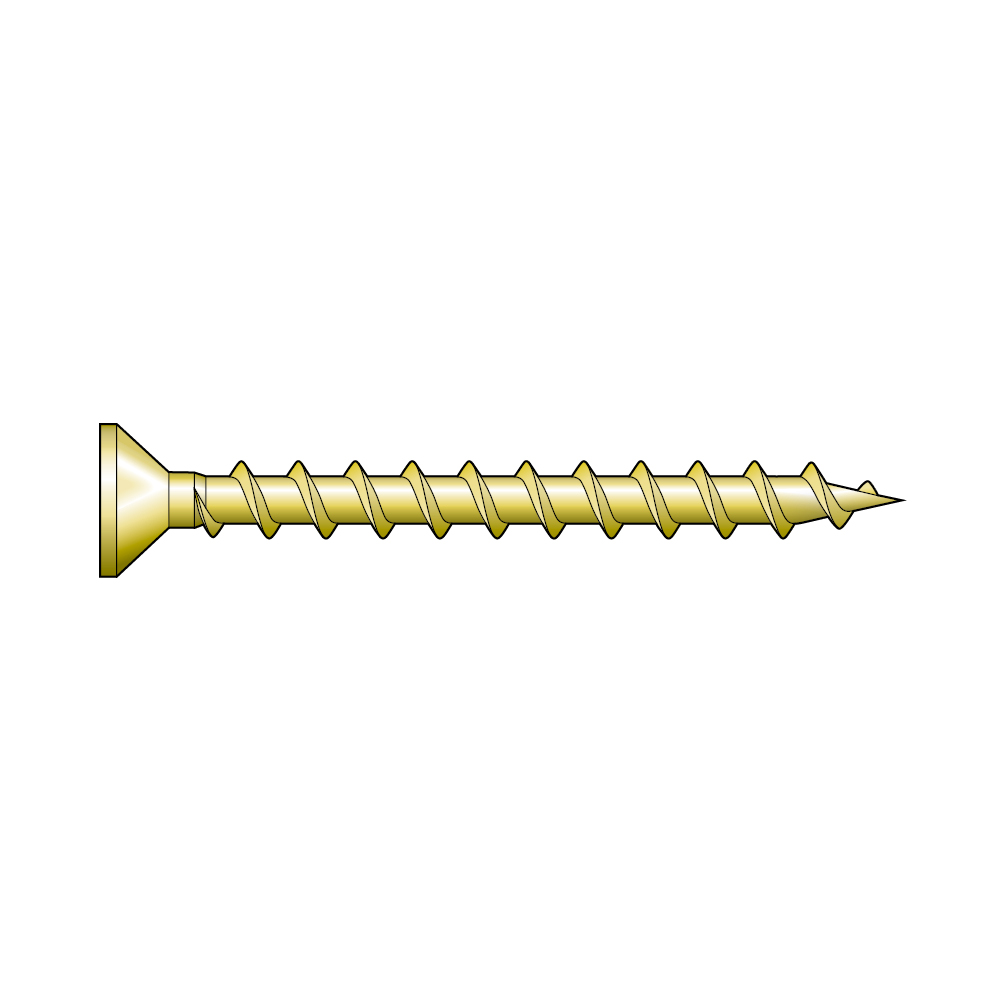

WSC WOOD FLOORING Screw, Coarse Thread

WSC is a screw with a sharp point and coarse thread, suitable for wood to wood applications such as flooring.

CE Marking
CE Marking
Service class 1
Service class 1
EPD
EPD
Yellow electro-galvanised steel
Yellow electro-galvanised steel
Indoor
Indoor

Product Details

Images

Features

Material

  • Yellow zinc dichromate

Benefits

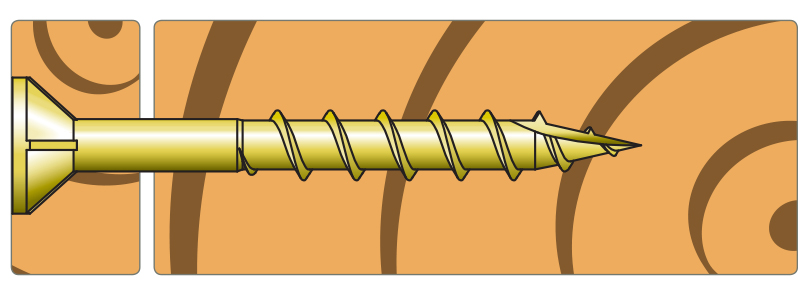

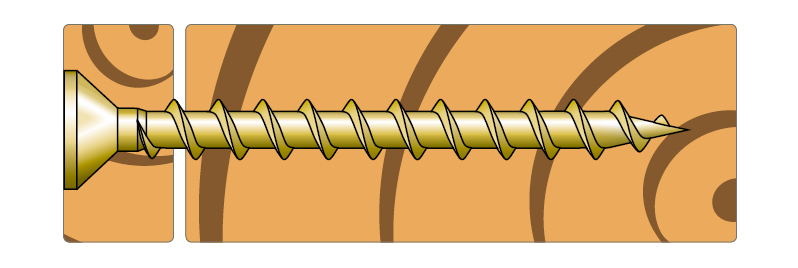

  • Wood to wood applications
  • Coarse thread
  • WSC32E has Type 17 point and nibs under the head
  • WSC38E has a sharp point without nibs under the head
  • Bit (BIT2SE) included

Application

Header member

  • Solid wood, composite wood, glued laminated timber,
  • Wood frame.

Applications

  • Subfloor installation

Technical Data

Dimensions and caracteristics values

Dimensions

ReferenceFasteners Dimensions
Other
Weight[kg]
WSC32E0.003
WSC38E0.003

WSC38E: ohne Unterkopfrippen und Schneidspitze!

Mechanical properties (EN14592)

ReferenceScrew Parameters
Characteristic parameters
Characteristic moment of elasticity - My,ₖ[Nm]Characteristic pullout parameter[N/mm²]Characteristic head traversal parameter[N/mm²]Characteristic pulling capacity[kN]Characteristic resistance to torsion - Rₜₒᵣ,ₖ[Nm]
WSC32E3.611.58.175.1
WSC38E3.611.58.175.1

Certification

Declaration of Performance (DoP)

Show history

Environmental Product Declarations (EPD)
