FSB Protec

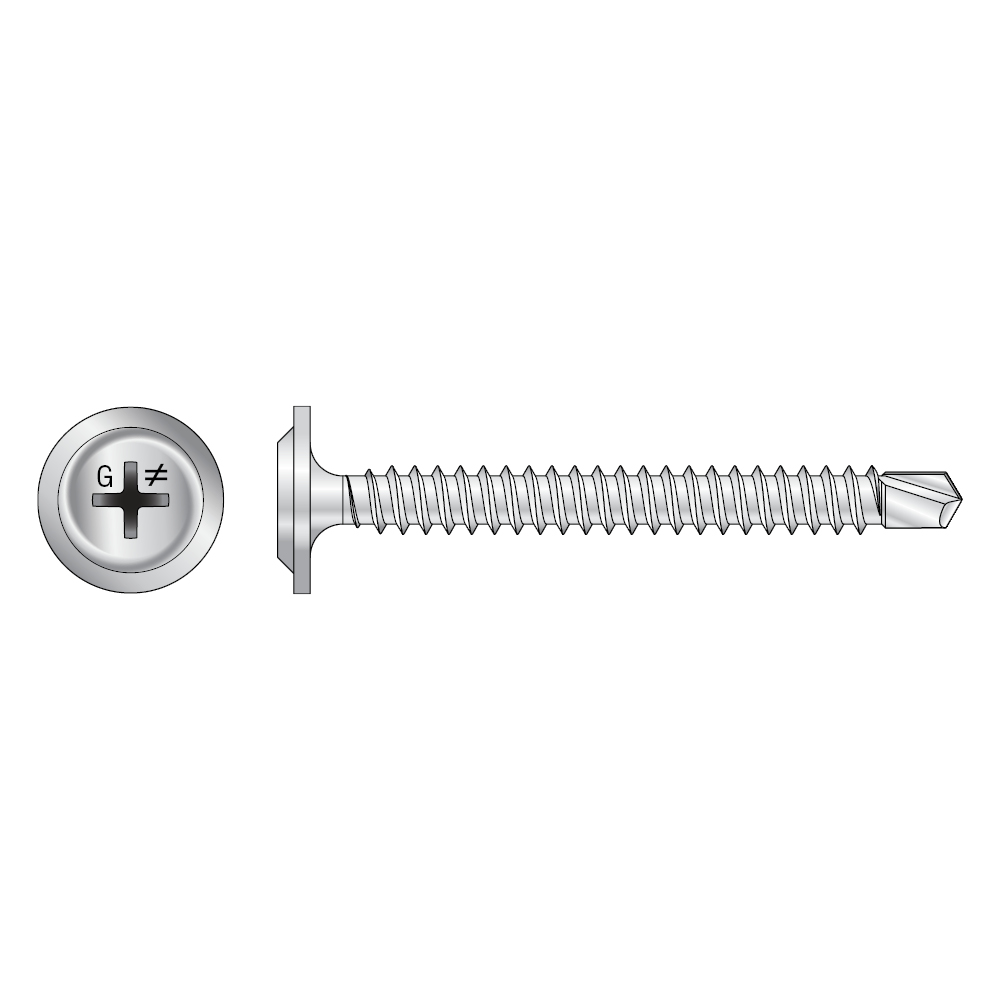

Wafer Head Steel Screw - Drill Point
Used to fix external board materials such as plasterboard and fibrecement board to steel joists up to 2.0mm in thickness.
CE Marking
Protec® +
Outdoor
Service class 2
Product Details
Images
Features
Application
Technical Data
Product dimensions
Dimensions
| Reference | Fasteners Dimensions | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Item Code | Other | Dimensions and drill holes[mm] | ||||||||
| Tun / DB nr. | NOB nr. | Box Quantity | Weight[kg] | d[mm] | l[mm] | dₕ[mm] | d1[mm] | bit[mm] | ||
| FSB4.2X13 PROTEC | 74412 | 1949907 | 53293145 | 250 | 0.002 | 4.2 | 13 | 11.5 | 2.7 | PH2 |
| FSB4.2X25 PROTEC | 74409 | 1949904 | 53293153 | 250 | 0.002 | 4.2 | 25 | 11.5 | 2.7 | PH2 |
| FSB4.2X32 PROTEC | 74408 | 1949903 | 53293164 | 250 | 0.003 | 4.2 | 32 | 11.5 | 2.7 | PH2 |
