FS Protec +

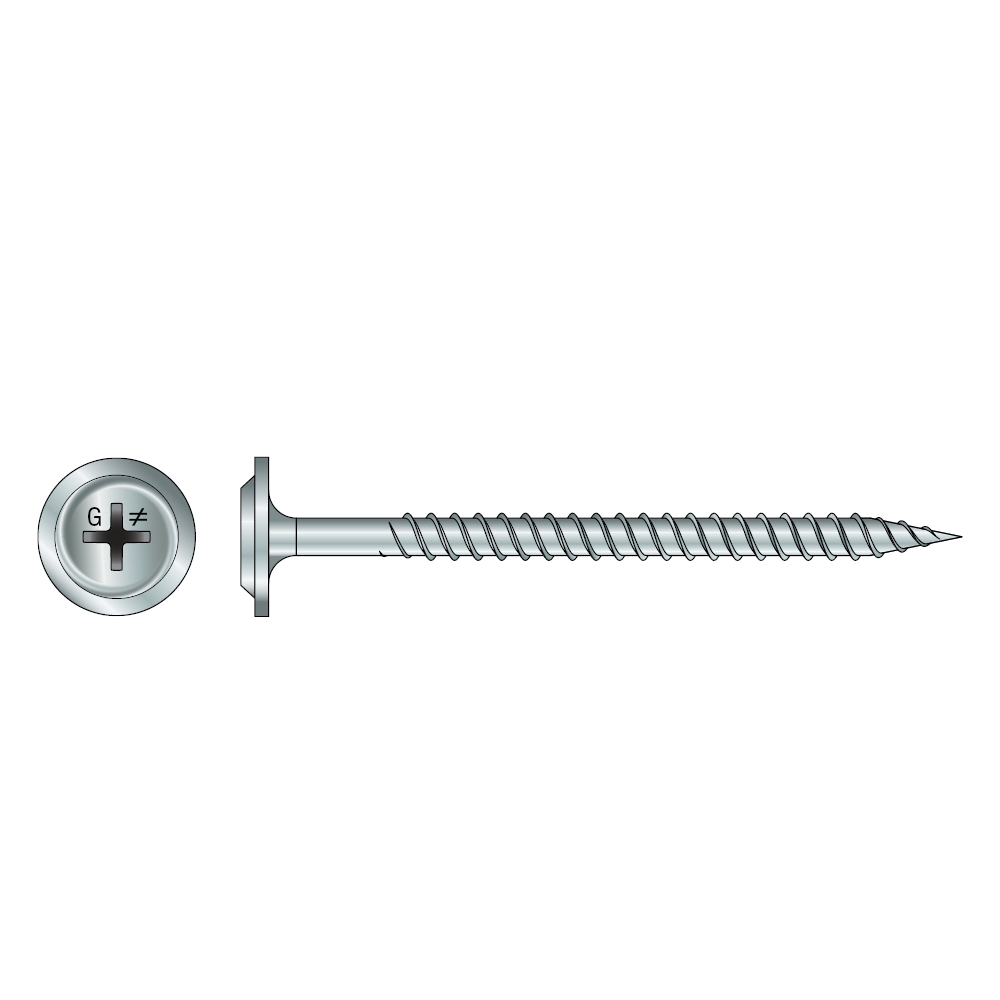

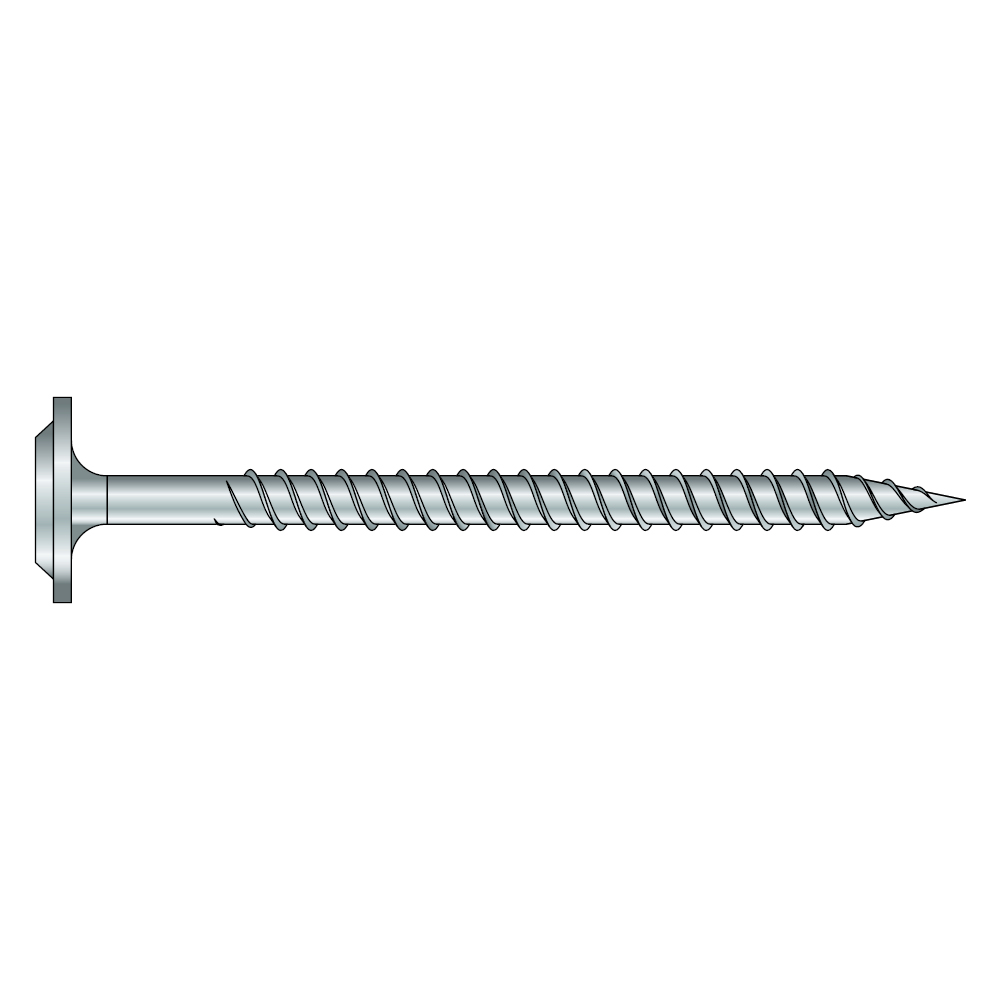

Wafer Head Steel or Wood Screw

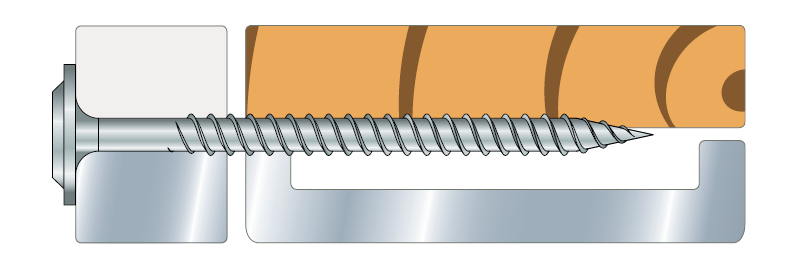

Used to fix external board materials such as plasterboard and fibrecement board to wooden battens or steel joists up to 1.0mm in thickness.
CE Marking
Service class 2
Outdoor
EPD
Protec® +
Product Details
Images
Features
Application
Technical Data
Product Dimensions
Dimensions
| Reference | Fasteners Dimensions | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Item Code | Other | Dimensions and drill holes[mm] | |||||||
| Tun / DB nr. | NOB nr. | Weight[kg] | d[mm] | l[mm] | dₕ[mm] | lg[mm] | bit[mm] | ||
| FS4.2X13 Protec+ | 74405 | 1949900 | 53293198 | 0.002 | 4.2 | 13 | 11.5 | 13 | PH2 |
| FS4.2X25 Protec+ | 74402 | 1949897 | 53293202 | 0.003 | 4.2 | 25 | 12 | - | PH2 |
| FS4.2X32 Protec+ | 74404 | 1949899 | 53293217 | 0.003 | 4.2 | 32 | 12 | - | PH2 |
| FS4.2X65 Protec+ | 74413 | 1949908 | 53293221 | 0.006 | 4.2 | 65 | 12 | 39 | PH2 |
