VPA
Variable Pitch Connector

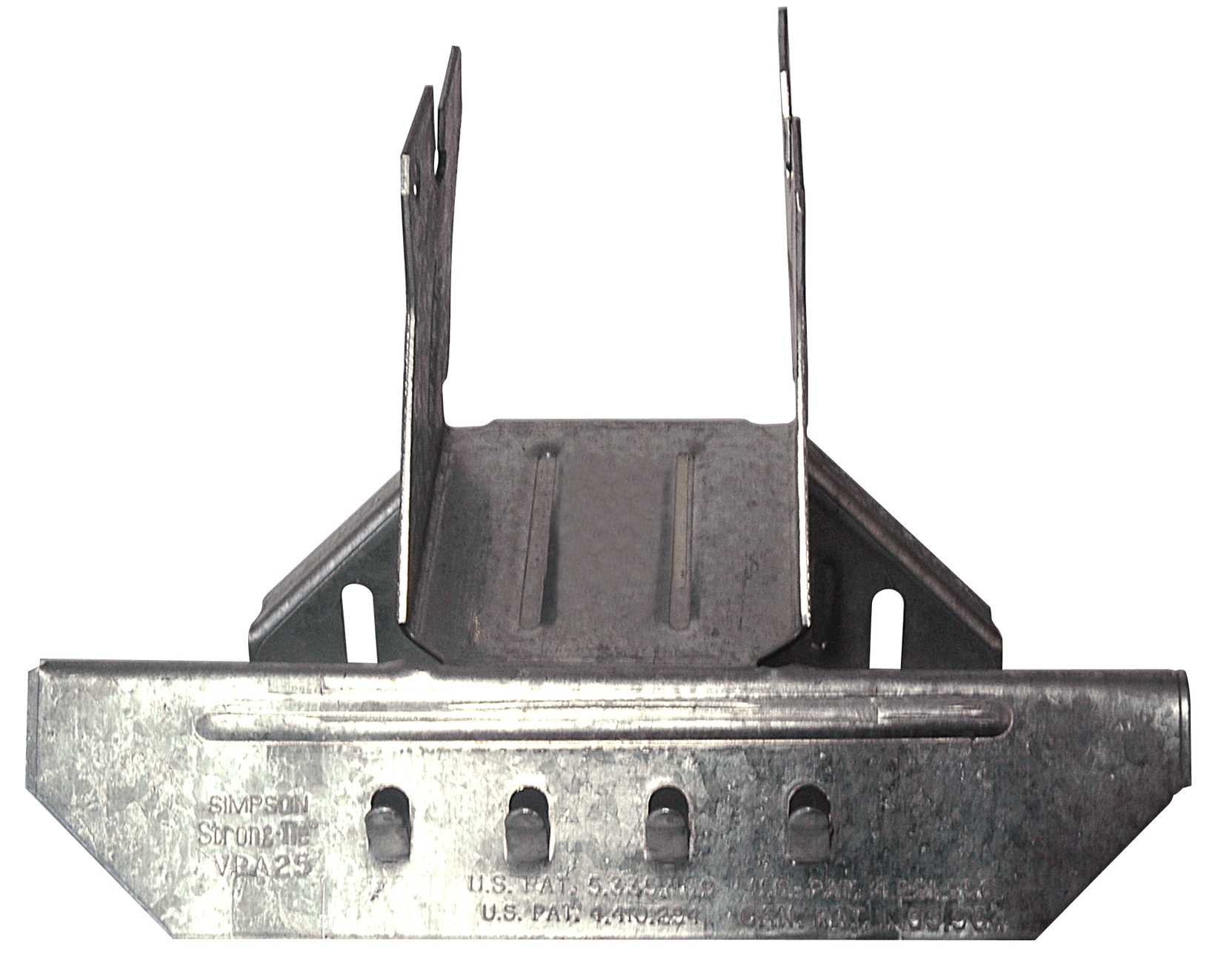

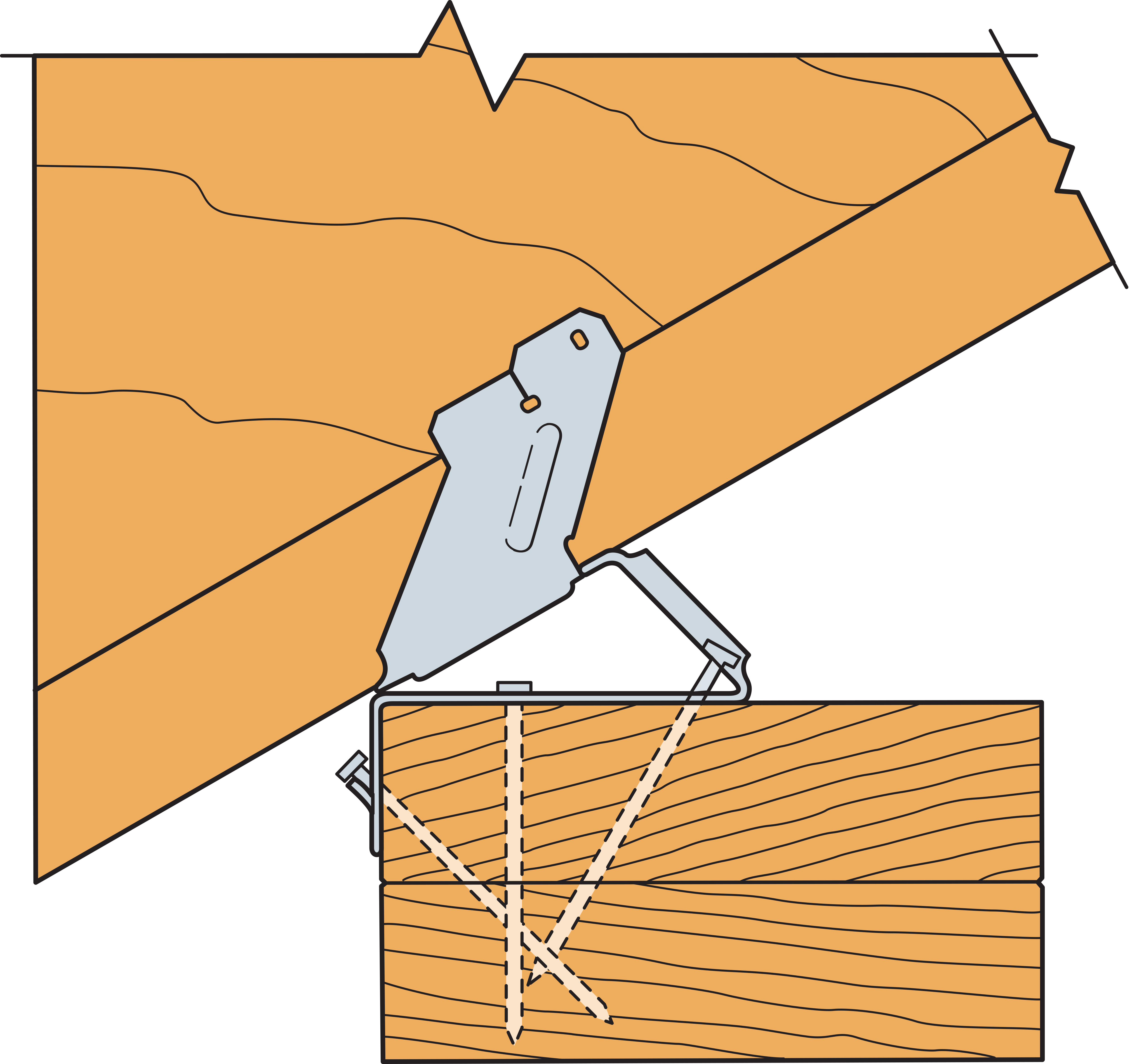

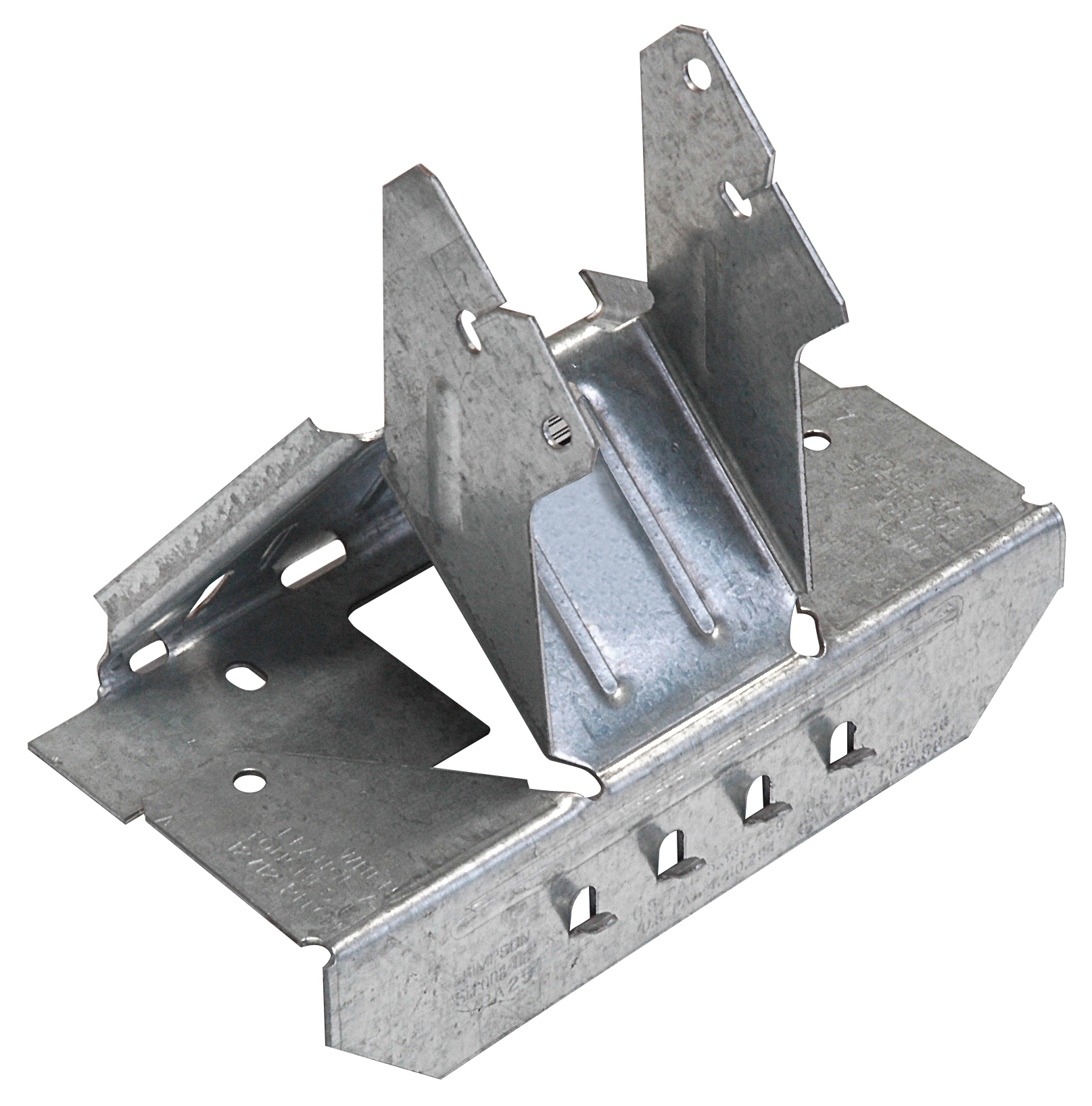

The VPA is an engineered one-piece connector for attaching I-joist rafters to wall plates.
- The VPA is adjustable to slopes between 15° and 45° with a special interlock design indicating when the maximum pitch is reached. This product complements the versatile LSSU.

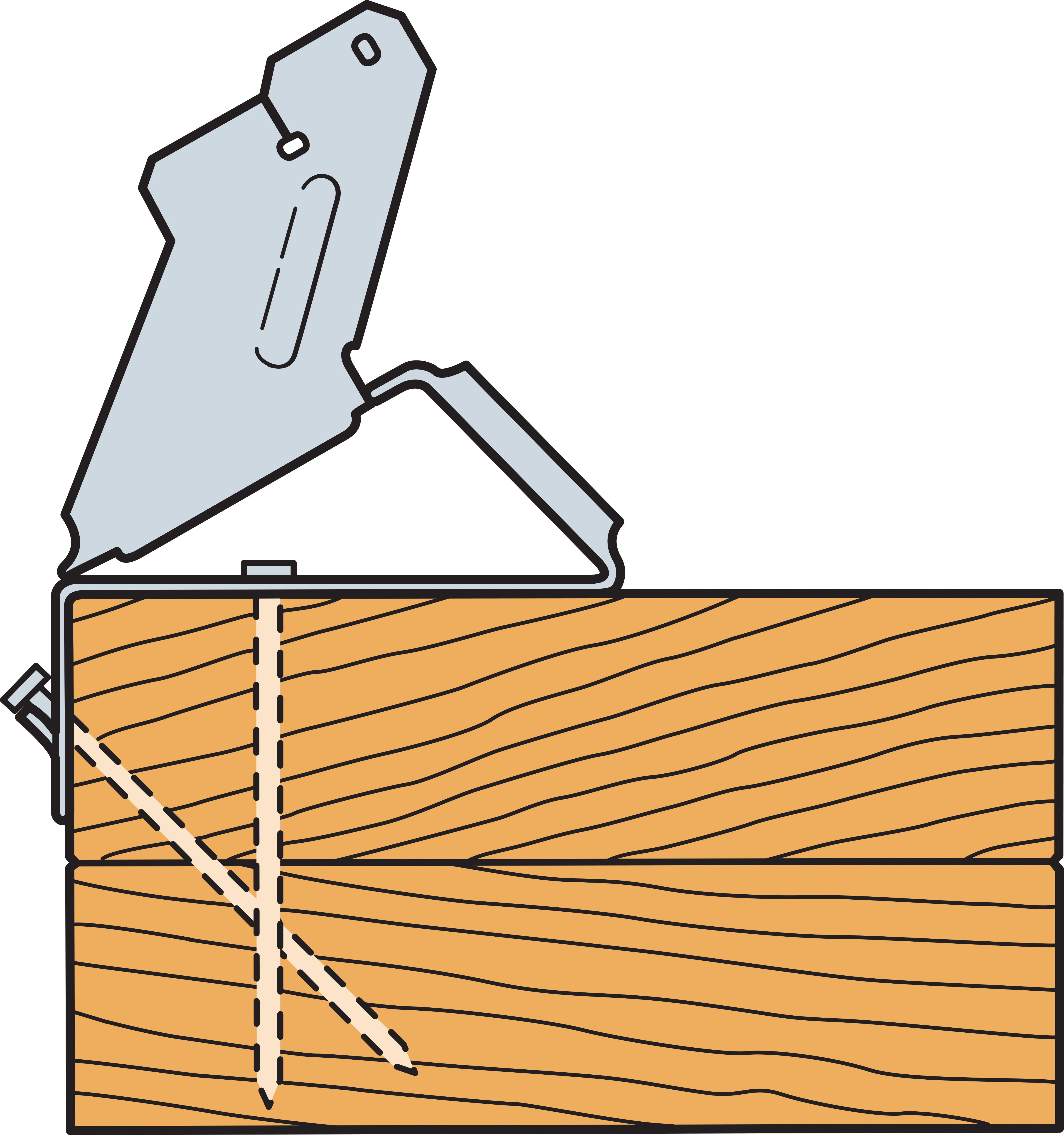

- Designed for use with double 38mm top plates with a 50mm seat, which allows sufficient bearing area for most rafters.
- No notching of the I-joist is required when using the VPA. This connector reduces the need for bevelled plates and toenailing. It has positive angle nailing to speed installation and to minimise wood splitting.
CE Marking
ETA
Service class 2
Electrogalvanized steel 20 µm
Product Details
Images
Features
Application
Technical Data
Dimensions
Dimensions et valeurs caractéristiques
| References | Dimensions [mm] | Fixing | ||
|---|---|---|---|---|
| A | t | Header | Joist | |
| VPA25 | 46 | 1.2 | 8 Ø4,0x60 | 2 ø3,75x30 |
| VPA50 | 50 | 1.2 | - | - |
| VPA4 | 90 | 1.2 | 11 Ø4,0x60 | 2 ø3,75x30 |
| VPA100 | 100 | 1.2 | - | - |
| VPA2 | 38 | 1.2 | 8 ø4,0x60 | 2 ø3,75x30 |
| VPA35 | 60 | 1.2 | 9 Ø4,0x60 | 2 ø3,75x30 |
