Connectors

Nailplates and Shear Connectors

C11

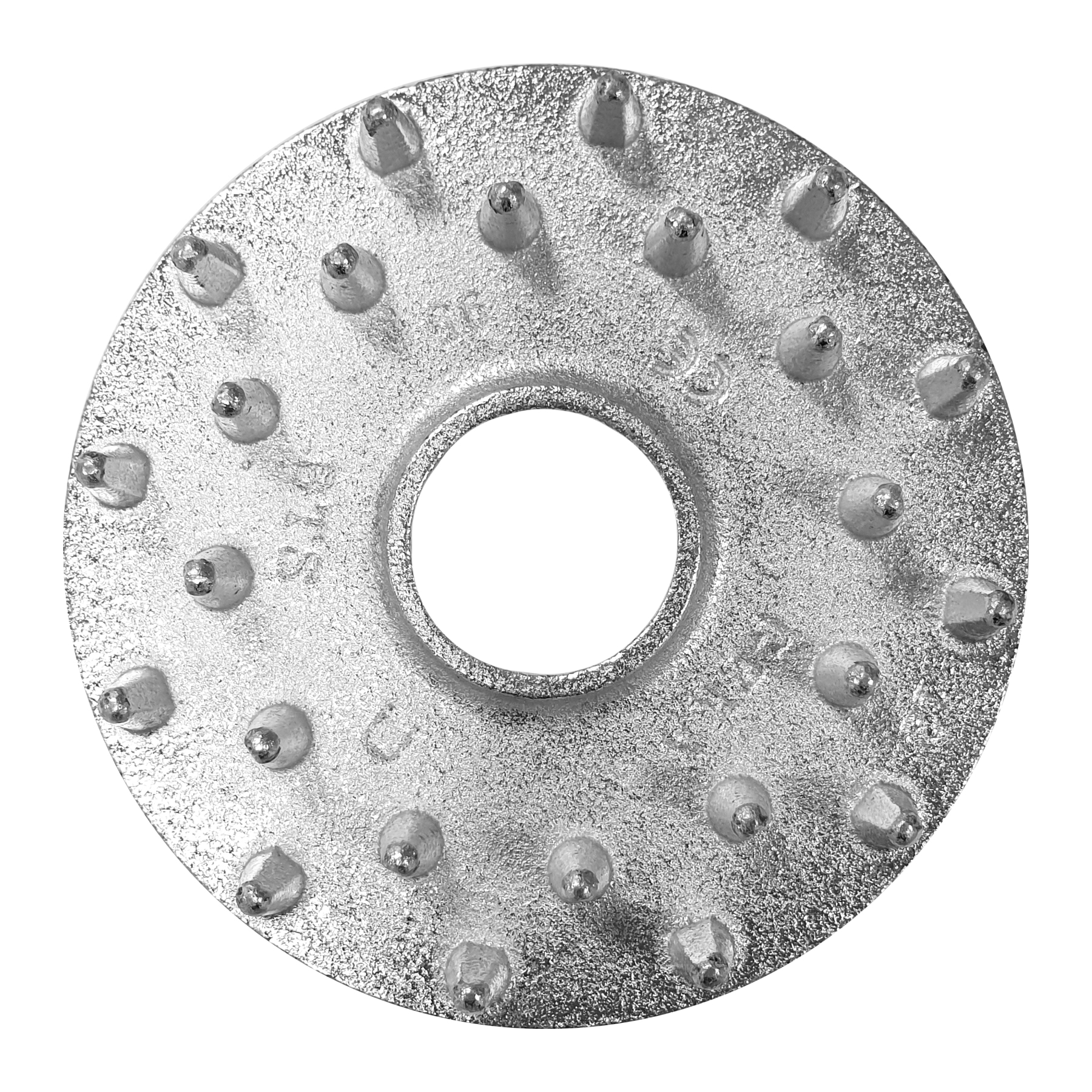

Unilateral gear GEKA C11

Along with the dowel serves to link two timber elements.

Technical Data Sheet

CE Marking

Indoor

Electro-galvanized steel

EPD

Service class 2

Product Details

Images

Features

Material

• Galvanized

Benefits

• When connected using pins and dowels do not come into contact two bonded materials.

Application

Applicatons

wood

Scope

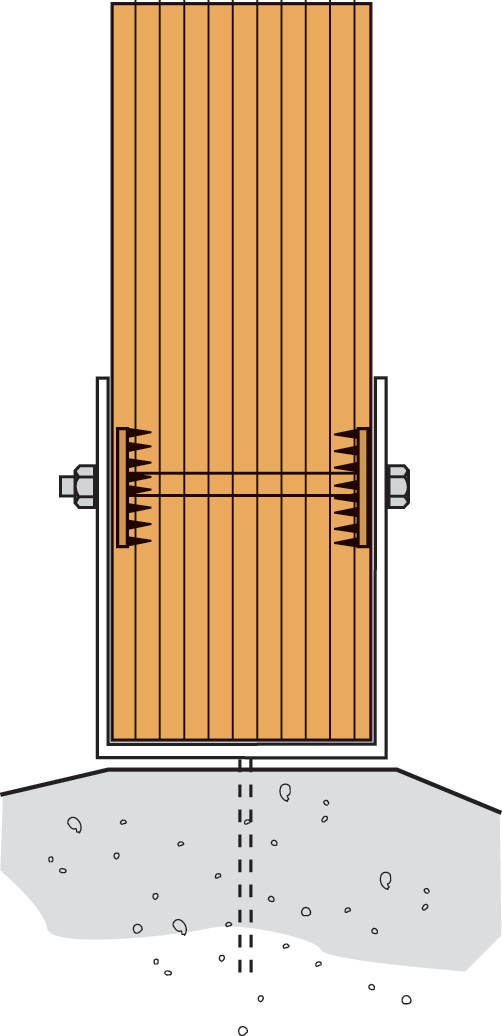

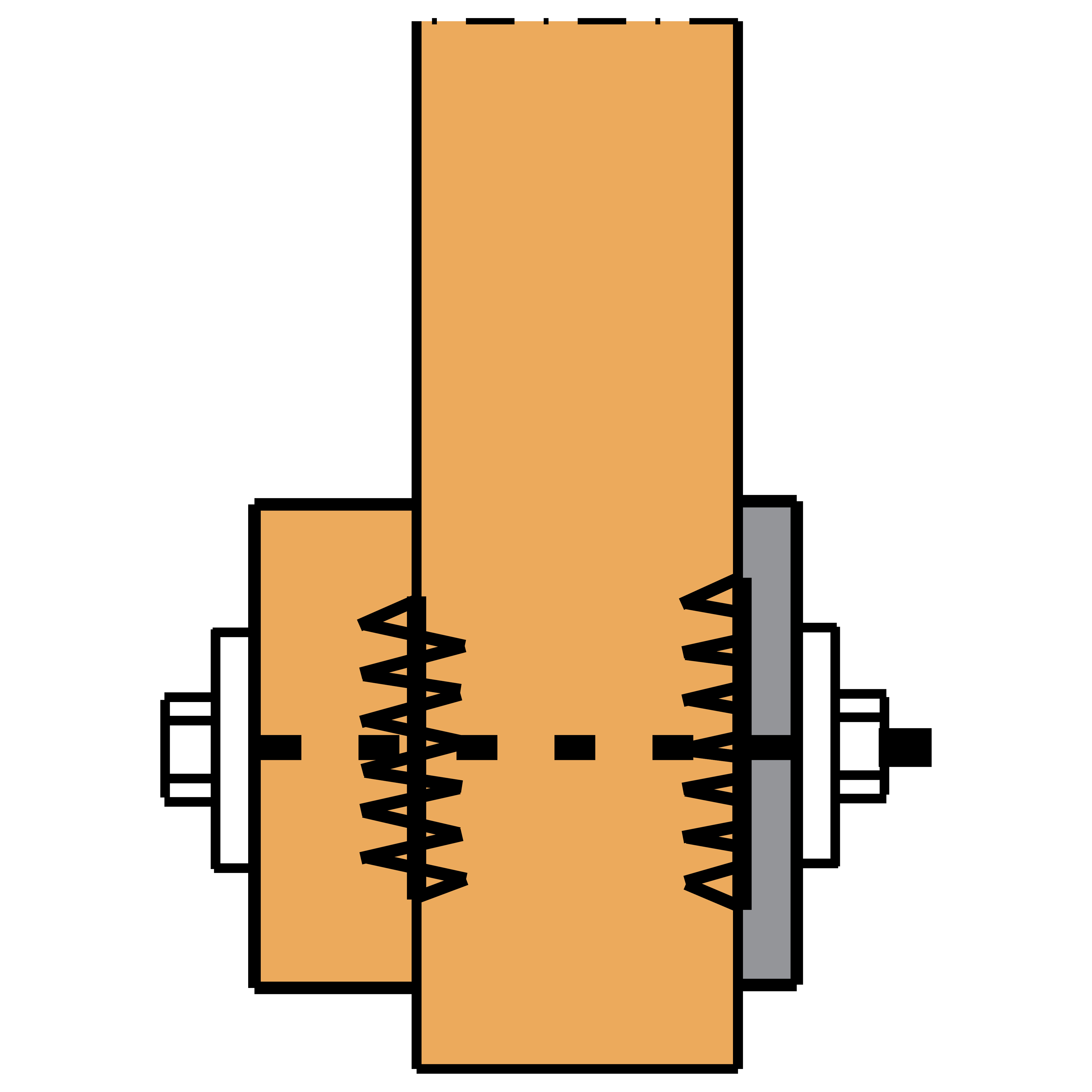

• With the dowel serves to link two timber elements.

Technical Data

Product Dimensions

Dimensions

Reference	Connector dimensions[mm]
	Product Dimensions[mm]								Other
	t[mm]	a1[mm]	a2[mm]	Diameter			Height		Weight[kg]
				External	Center hole	Side holes	Teeth	Total
				dc[mm]	d₁[mm]	d2[mm]	h₁[mm]	hc[mm]
C11-65M16-B	3	-	-	65	16.5	-	12	15	0.09
C11-80M20-B	3	-	-	80	20.5	-	12	15	0.13
C11-95M24-B	3	-	-	95	24.5	-	12	15	0.17
C11-115M24-B	3	-	-	115	24.5	-	12	15	0.25

Capacities

Reference	Shear connectors capacity
	Characteristic Capacities[kN]
	Characteristic value of the load-bearing capacity parallel to the fiber (α=0)
C11-65M16-B	13.1
C11-80M20-B	17.9
C11-95M24-B	23.1
C11-115M24-B	30.8

For the load capacity of the anchor plate, the values summed.

Must be a minimum distance drive dowels see EN1995-1-1

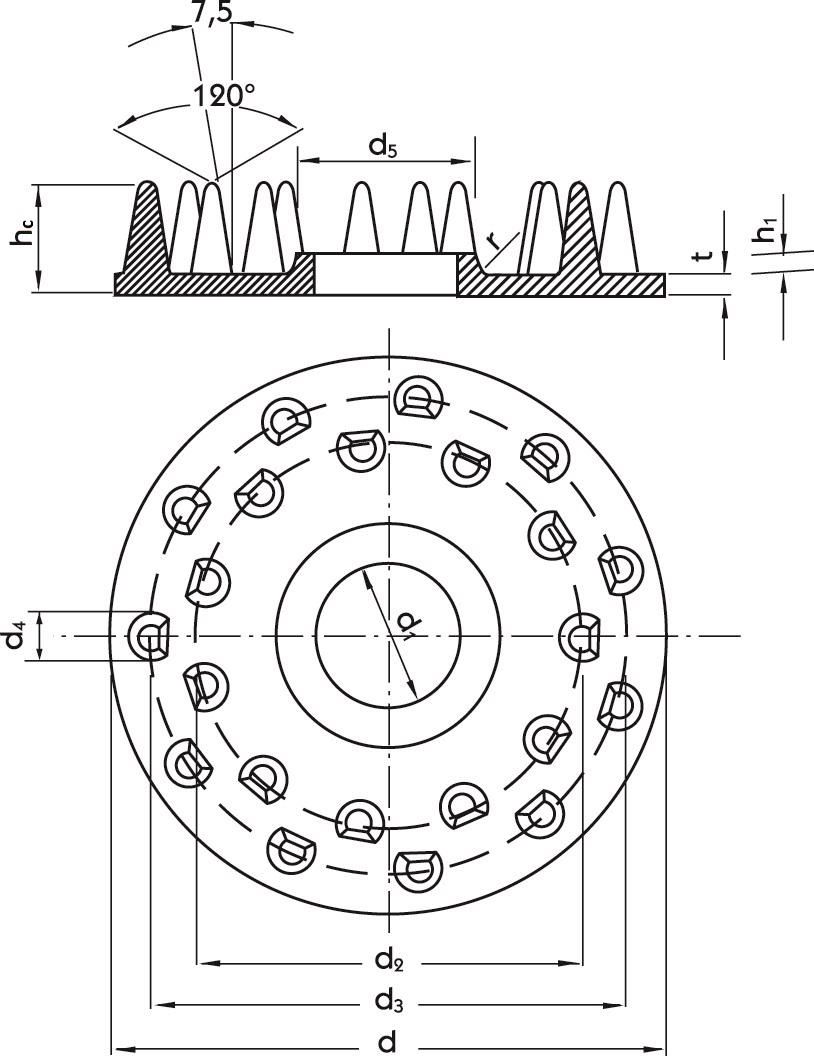

Dimensions - Round single sided C11

Dimensions

Reference	Connector dimensions[mm]
	Other	Product Dimensions[mm]
	Type	t[mm]	Diameter		Height
			External	Center hole	Teeth	Total
			dc[mm]	d₁[mm]	h₁[mm]	hc[mm]
C11-65M16-B	C11	3	65	16.5	12	15
C11-80M20-B	C11	3	80	20.5	12	15
C11-95M24-B	C11	3	95	24.5	12	15
C11-115M24-B	C11	3	115	24.5	12	15

Minimum distances and characteristic values

Reference	Connector dimensions[mm]		Shear connectors capacity
	Other	Product Dimensions[mm]	Chosen timber thickness[mm]		Minimum distances[mm]						Characteristic shear resistance (bolt resistance not included)[kN]
	Type	db[mm]	t₁[mm]	t₂[mm]	Spacing perpendicular to grain	from loaded end	from unloaded end	from loaded edge	from unloaded edge	Spacing parallel to grain	Rv.ₖ[kN]
	Type	db[mm]	t₁[mm]	t₂[mm]	a₂[mm]	a₃.ₜ[mm]	a₃.c α=₉₀°[mm]	a₄.ₜ α=₉₀°[mm]	a₄.c[mm]	a₁ α=₀°[mm]	Rv.ₖ[kN]
C11-65M16-B	C11	16	36	60	78	130	98	52	52	130	13.1
C11-80M20-B	C11	20	36	60	96	160	120	64	64	160	17.8
C11-95M24-B	C11	24	36	60	114	190	143	76	76	190	23.1
C11-115M24-B	C11	24	36	60	138	230	173	92	92	230	30.8

The given characteristic shear resistance per connector R_v.k is calculated according to the minimum distances given in this table and for wood grade C24. This capacity can be increased with a higher a_3.t or a higher wood grade (see k₂ and k₃ factor according to EN1995). For lower t₁ or t₂, please refer to EN1995. The characteristic bolt shear resistance is not included and should be added.
