UNI
Universal bracket




Product Details
Features
Material
Steel quality:
S250GD + Z275 according to DIN EN10346
Corrosion protection:
275 g / m galvanized on both sides 20mm
Benefits
• Easy connection of intersecting wooden parts
Application
Applicable materials
Wood / wood joints, particularly in intersecting roof structures.

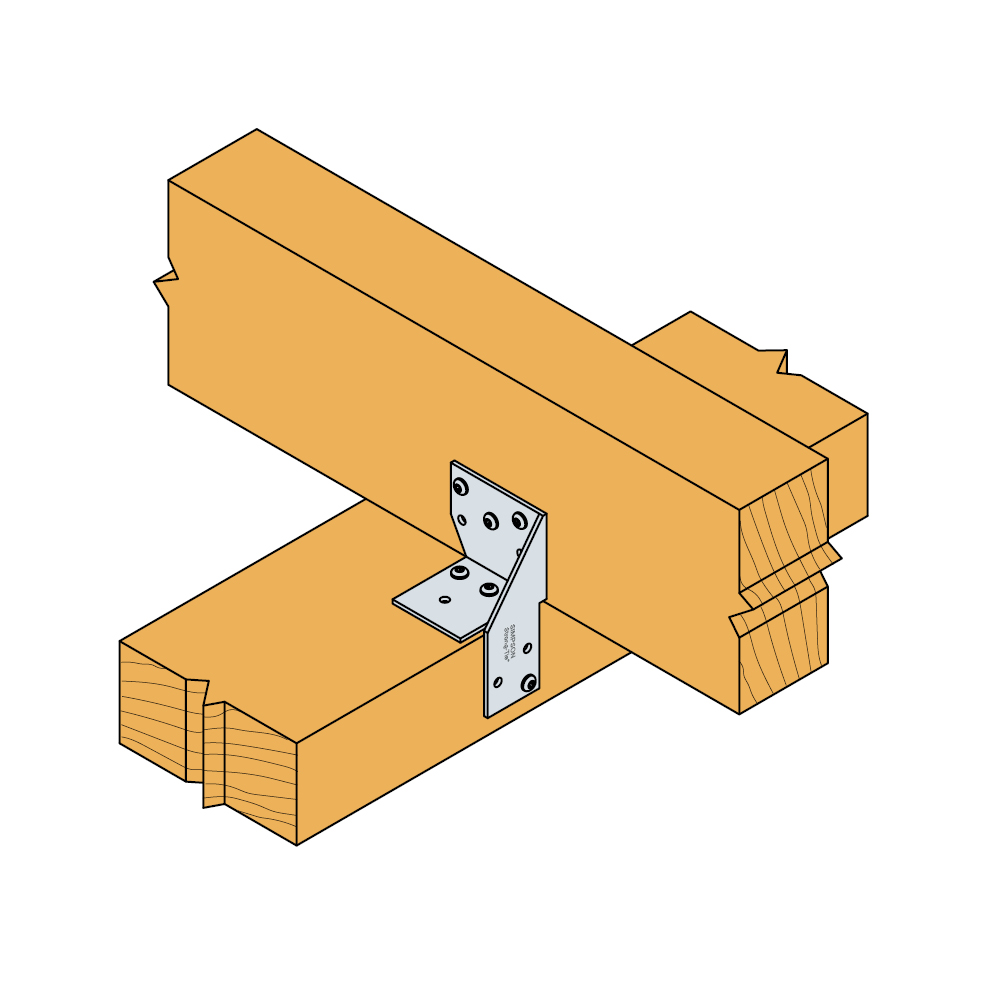

Application area
• UNI96 connector for attaching transitions wood for smaller buildings, for example. Carports, pergolas

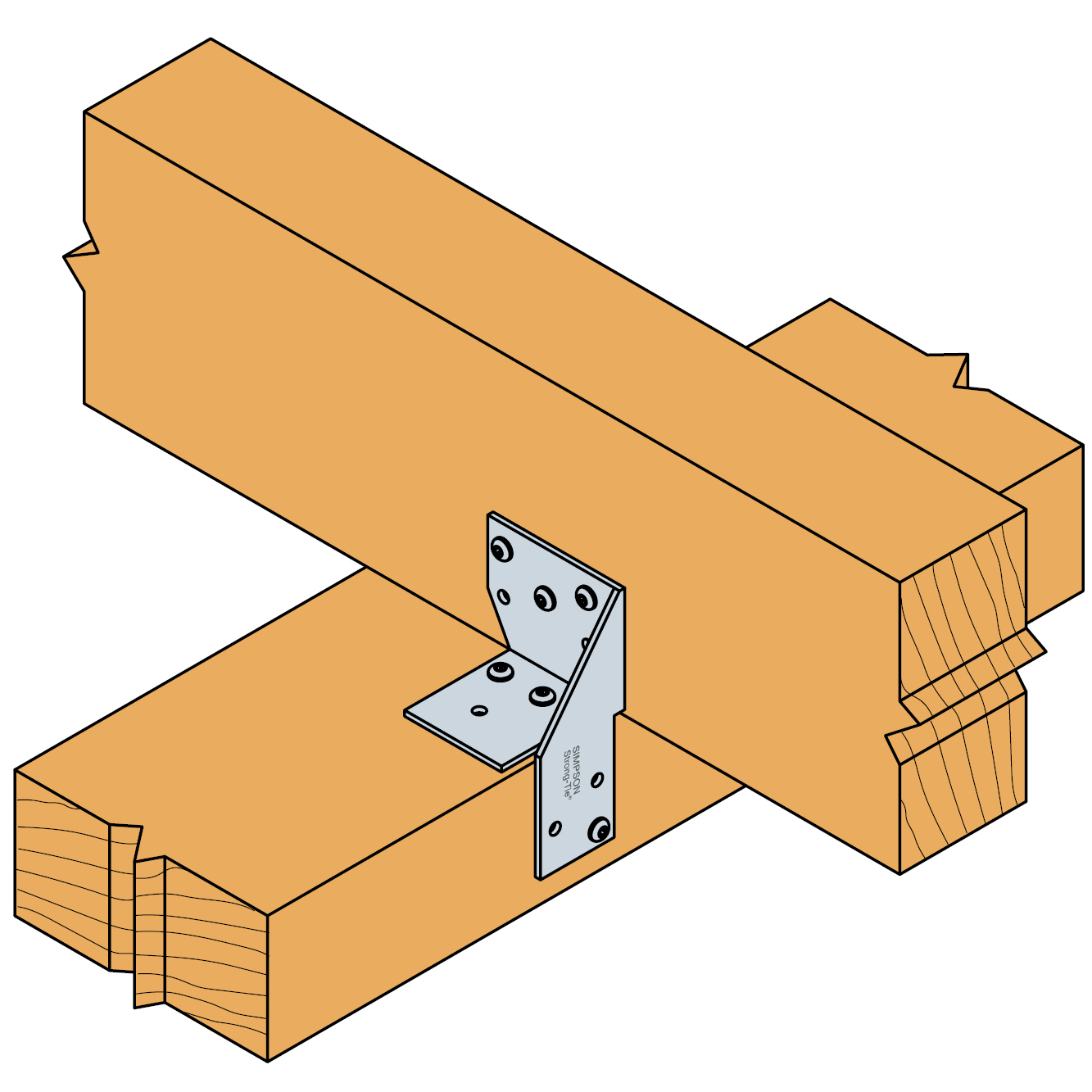

• UNI100 and UNI130 be used for attaching beams transitions to smaller wooden houses

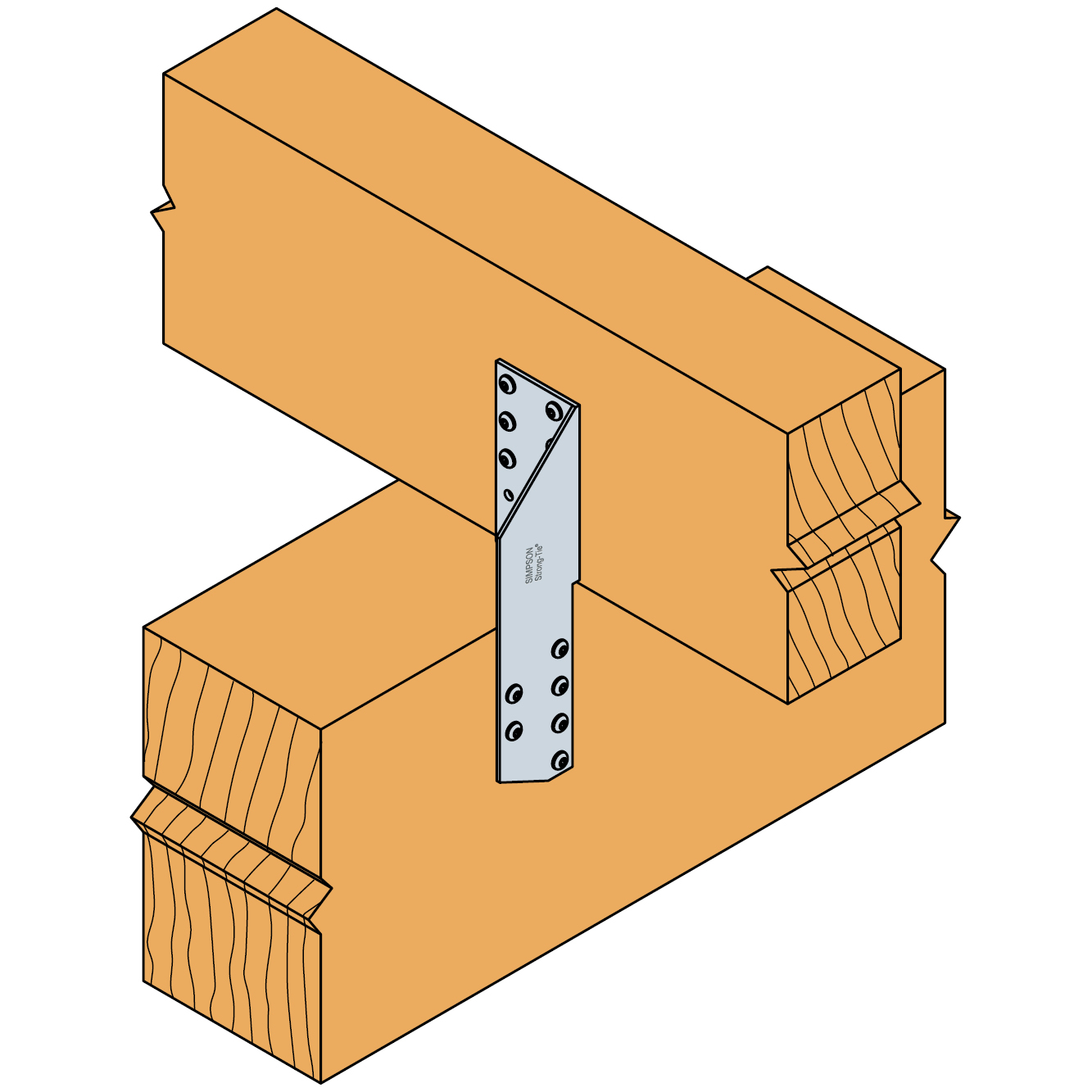

• UNI190 are for connecting eg. Purlins are used to support the rafters to Purlin
Values partial nailing
Technical Data
Dimension
| Reference | Connector Dimensions | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Other | Product Dimensions[mm] | Holes[mm] | Timber size | |||||||||
| DB. nr. | NOB nr. | Qty per Box | Weight[kg] | A[mm] | B[mm] | C[mm] | D[mm] | t[mm] | Diameter[mm] | Qty | Height | |
| Minimum joist height[mm] | ||||||||||||
| UNI100L | 1644079 | 21220223 | 50 | 0.15 | 100 | 52.5 | 62.5 | 47.5 | 2.5 | 5 | 5 + 3 + 3 | 63 |
| UNI130L | 3779162 | 21220280 | 25 | 0.24 | 130 | 61.5 | 62.5 | 58 | 2.5 | 5 | 8 + 5 + 5 | 82 |
| UNI190L | 1680610 | 21220264 | 50 | 0.2 | 192 | 49.5 | 49.5 | 96 | 2 | 5 | 7 + 6 + 1 | 108 |
| UNI100R | 1644087 | 21220330 | 50 | 0.15 | 100 | 52.5 | 62.5 | 47.5 | 2.5 | 5 | 5 + 3 + 3 | 63 |
| UNI130R | 3779170 | 21220298 | 25 | 0.24 | 130 | 61.5 | 62.5 | 58 | 2.5 | 5 | 8 + 5 + 5 | 82 |
| UNI190R | 1680628 | 21220272 | 50 | 0.2 | 192 | 49.5 | 49.5 | 96 | 2 | 5 | 7 + 6 + 1 | 108 |

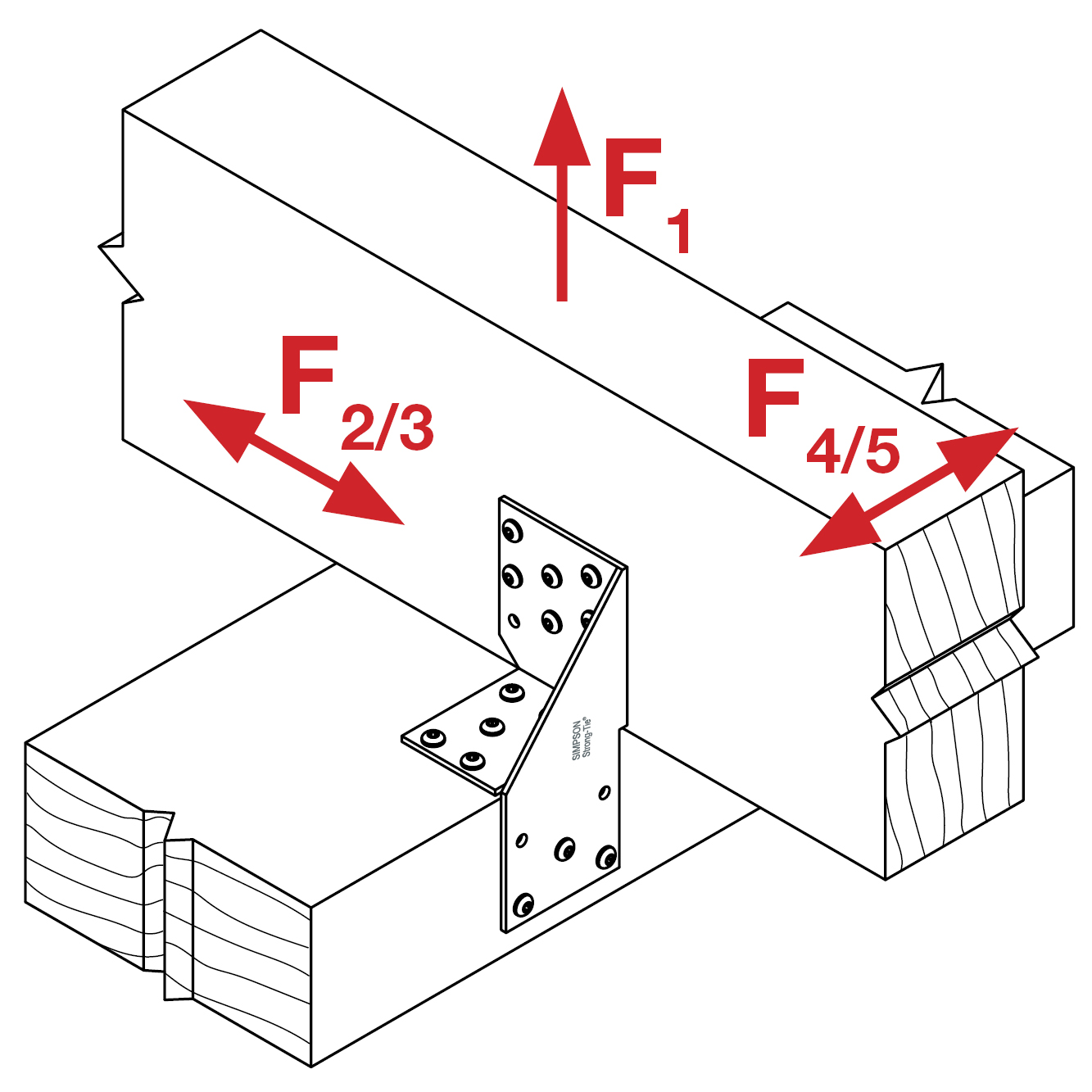

Load carrying capacity table (characteristic values) - minimum nailing
| Reference | Ties capacity | |||
|---|---|---|---|---|

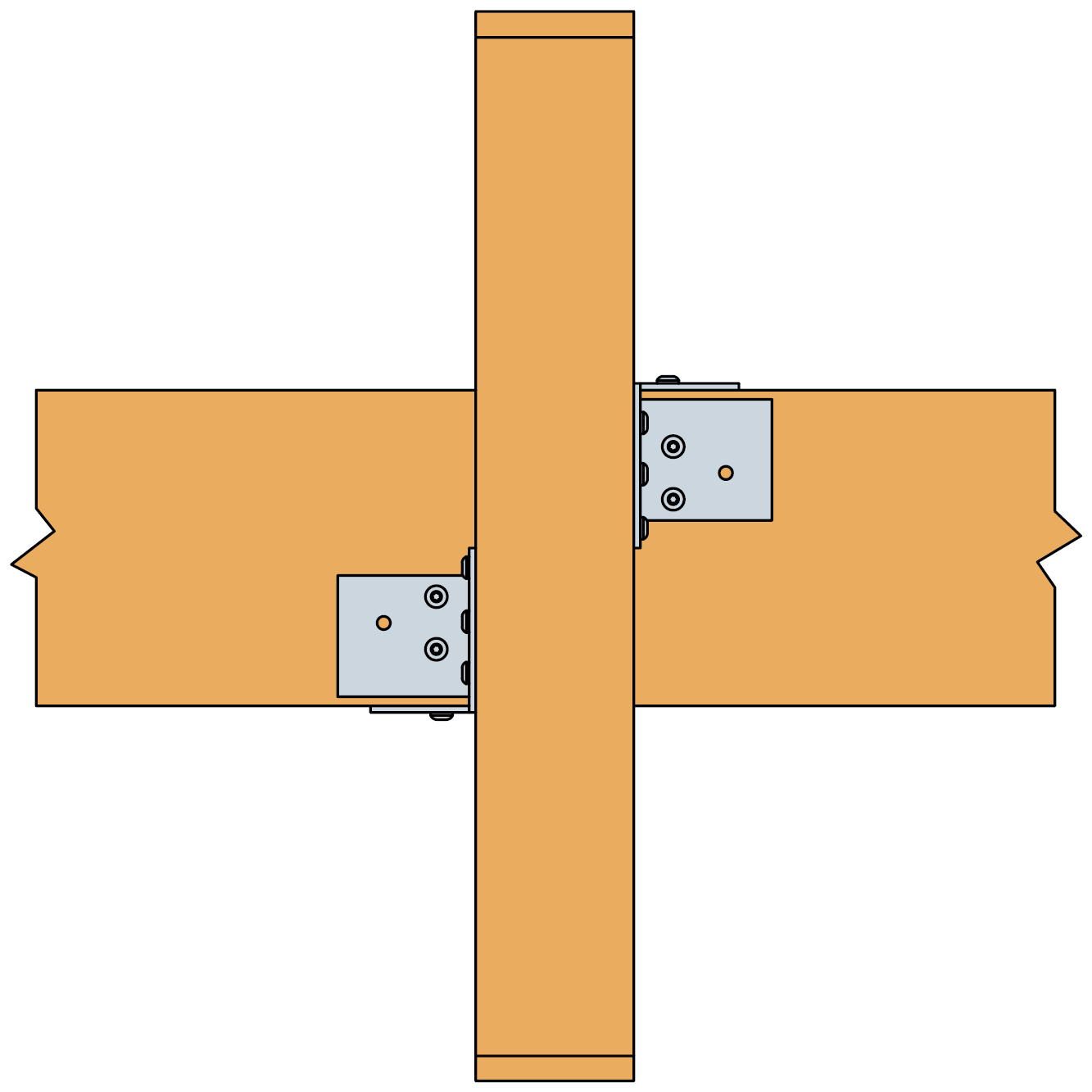

| Product characteristic capacities - Timber C24[kN] | Characteristic load capacity (kN) for 2 brackets per joint, placed diagonally (Min) | |||
| Number of Fasteners | R₁,ₖ | R₂,ₖ=R₃,ₖ | R4,k=R5,k | |
| Specification | ||||
| UNI190R | CNA4,0x40 | 7.9 | 4.5 | Min. 4.3; 3.9(b+7)/e |
Load carrying capacity table (characteristic values) - maximum nailing
| Reference | Ties capacity | |||
|---|---|---|---|---|
| Product characteristic capacities - Timber C24[kN] | Characteristic load capacity (kN) for 2 brackets per joint, placed diagonally (Max) | |||
| Number of Fasteners | R₁,ₖ | R₂,ₖ=R₃,ₖ | R4,k=R5,k | |
| Specification | ||||
| UNI100L | CNA4,0X40 | 5.8 | 4.7 | Min. 7.3; 2.9(b+16)/e |
| UNI130L | CNA4,0X40 | 10.8 | 7.9 | Min. 7.9; 5.4(b+21)/e |
| UNI190L | CNA4,0x40 | 16 | 5.4 | Min. 5.8; 7.4(b+7)/e |
| UNI100R | CNA4,0X40 | 5.8 | 4.7 | Min. 7.3; 2.9(b+16)/e |
| UNI130R | CNA4,0X40 | 10.8 | 7.9 | Min. 7.9; 5.4(b+21)/e |
| UNI190R | CNA4,0x40 | 16 | 5.4 | Min. 5.8; 7.4(b+7)/e |
e and b are inserted in mm.
If the ridge is prevented from rotating, the load-bearing capacity R1,k in a single bracket assembly will be half of the load-bearing capacity in a two bracket assembly. If the ridge can rotate, the load-bearing capacity of UNI190 can be calculated, see ETA on our website www.strongtie.dk
When placing two UNI190 brackets opposite each other on opposite sides of a ridge (i.e. not diagonally), all load capacities per bracket at this joint can be found in the ETA for 1 bracket per joint. The load capacity for F1 is obtained by setting f equal to zero. The load capacities for F2 and F3 are unchanged. For F4 and F5, the smaller value of F4 and F5 is used.
