Two part shear connector
Making a statically relevant connection on the narrow side of a square timber is not easy in terms of the edge distances to be complied with. In the case of a threshold connection, the height compensation layer as well as a planking in front of it make it more difficult. In keeping with the two-part tie rods, this problem is certainly solved with the new two-piece shear angle SC2P. The SC2P consists of two different angle connectors, one angle of which is pre-assembled at the factory and the second angle is connected to the first on the construction site.





Product Details
Features
Material
Steel quality:
S 250 GD + Z 275 according to DIN EN
Corrosion protection:
275 g/m2 galvanized on both sides 20mm
Benefits
- Setting up the base on site
- It´s given the option for a height compensation up to 40mm
- fixing through a layer up to 30mm
Application
Applications
Supporting member:
- Concrete, steel
Supported member:
- Solid wood, engineered wood
When to use

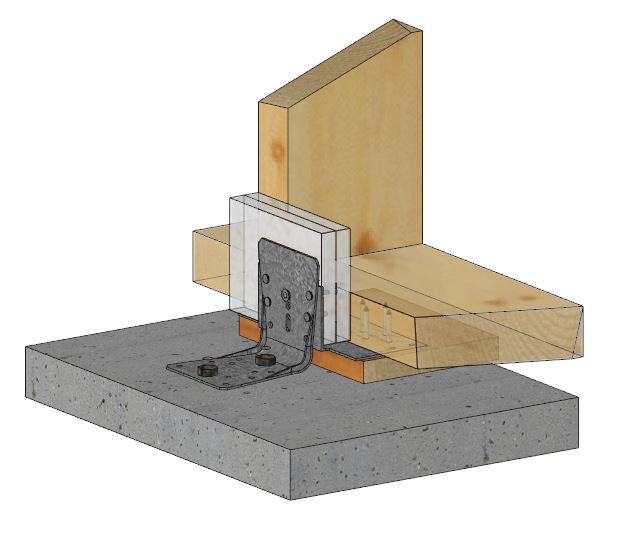

With this shear connector, timber constructions can be optimally connected to concrete substructures, as described, e.g. reinforced in wood frame construction.
Technical Data
Product Dimensions
| Reference | Connector Dimensions | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Product Dimensions[mm] | Joist | Flange B | Other | |||||||
| A[mm] | B[mm] | C[mm] | d[mm] | t[mm] | Round | Obround | Round | Weight[kg] | ||
| Ø6 | Ø6x16 | Ø5 | Ø12 | |||||||
| SC2P-V100 | 103 | 103 | 90 | - | 2 | 6 | 2 | 10 | 2 | 0.2 |
| SC2P-H180 | 57 | 82 | 180 | 95 | 2 | - | 1 | 12 | - | 0.32 |
| SC2P-1 | - | - | - | - | - | - | - | - | - | 0.7 |
The both parts, SC2P-V100 and SC2P-H180, are offered together with the appropriate EJOT screws only as set.

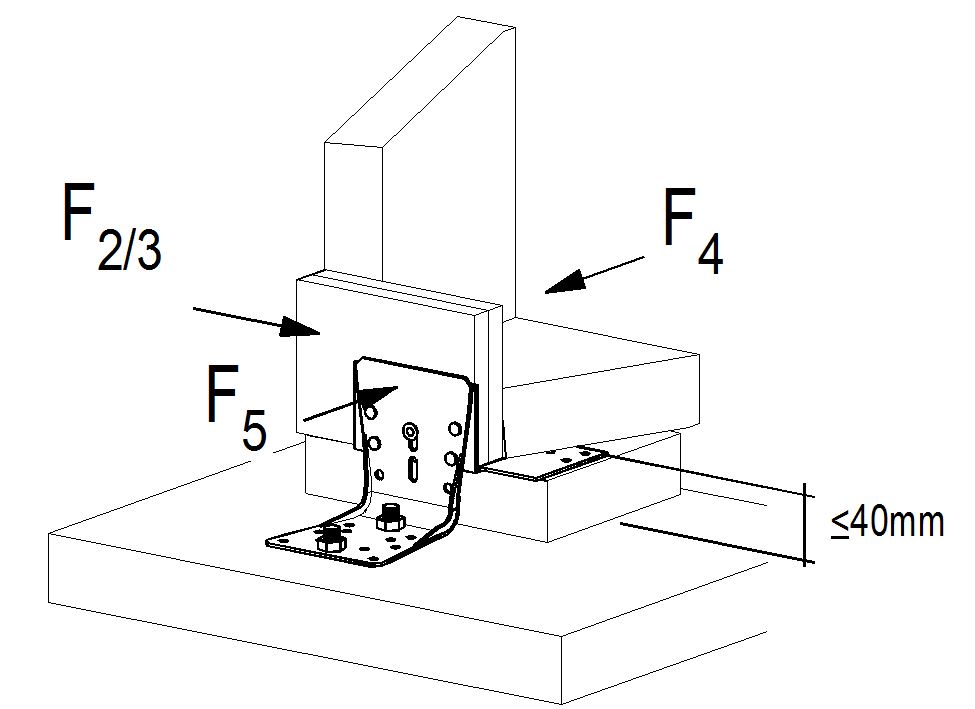

Product capacities - concrete
| Reference | Holdowns capacity | ||||||
|---|---|---|---|---|---|---|---|
| Product capacity - On Concrete | |||||||
| Characteristic Capacities[kN] | Number of Fasteners | ||||||
| R₂/₃,ₖ | R₄.ₖ | R₅.ₖ | Joist | Flange B | |||
| Qty | Type | Qty | Type | ||||
| SC2P-1 | 6.8/kmod | 6.4/kmod | 5.4/kmod | 4 + 1 | EJOT JT2-3-5.5x25 + Screw Ø6x100 | 1 + 12 | Bolt M10 + CNA4.0x40 |
The capacities are vailid for the combination of both items
For connection with 2 bolts, the capacity for R2/3.k is 10.4/kmod
Product capacities - timber
| Reference | Holdowns capacity | ||||||
|---|---|---|---|---|---|---|---|
| Product capacity - On Timber | |||||||
| Characteristic capacities on Timber[kN] | Number of Fasteners | ||||||
| R₂/₃,ₖ | R₄.ₖ | R₅.ₖ | Joist | Flange B | |||
| Qty | Type | Qty | Type | ||||
| SC2P-1 | 6.8/kmod | 6.4/kmod | min (5.6 ; 5.4/kmod) | 4 + 1 | EJOT JT2-3-5.5x25 + Screw Ø6x100 | 10 + 12 | CNA4.0x50 + CNA4,0x40 |
Installation
Installation

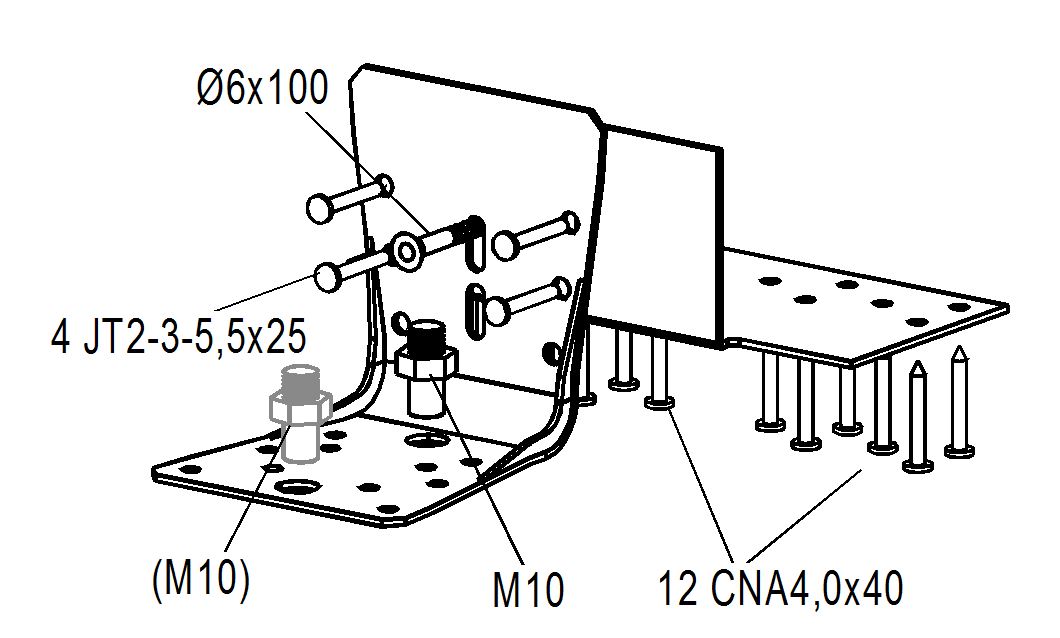

Fasteners
The fastening is made on the wall element with CNA4.0x40
The fising on the floor is made with anchor Ø10mm, the options are given for using 1 or 2 anchors.
The connection betwenn both SC2P elements is made with a Ø6mm screw and 4 self drilling screws JT-2-3-5,5x25 .
Certification
European Technical Assessment (ETA)
Environmental Product Declarations (EPD)
