SHH

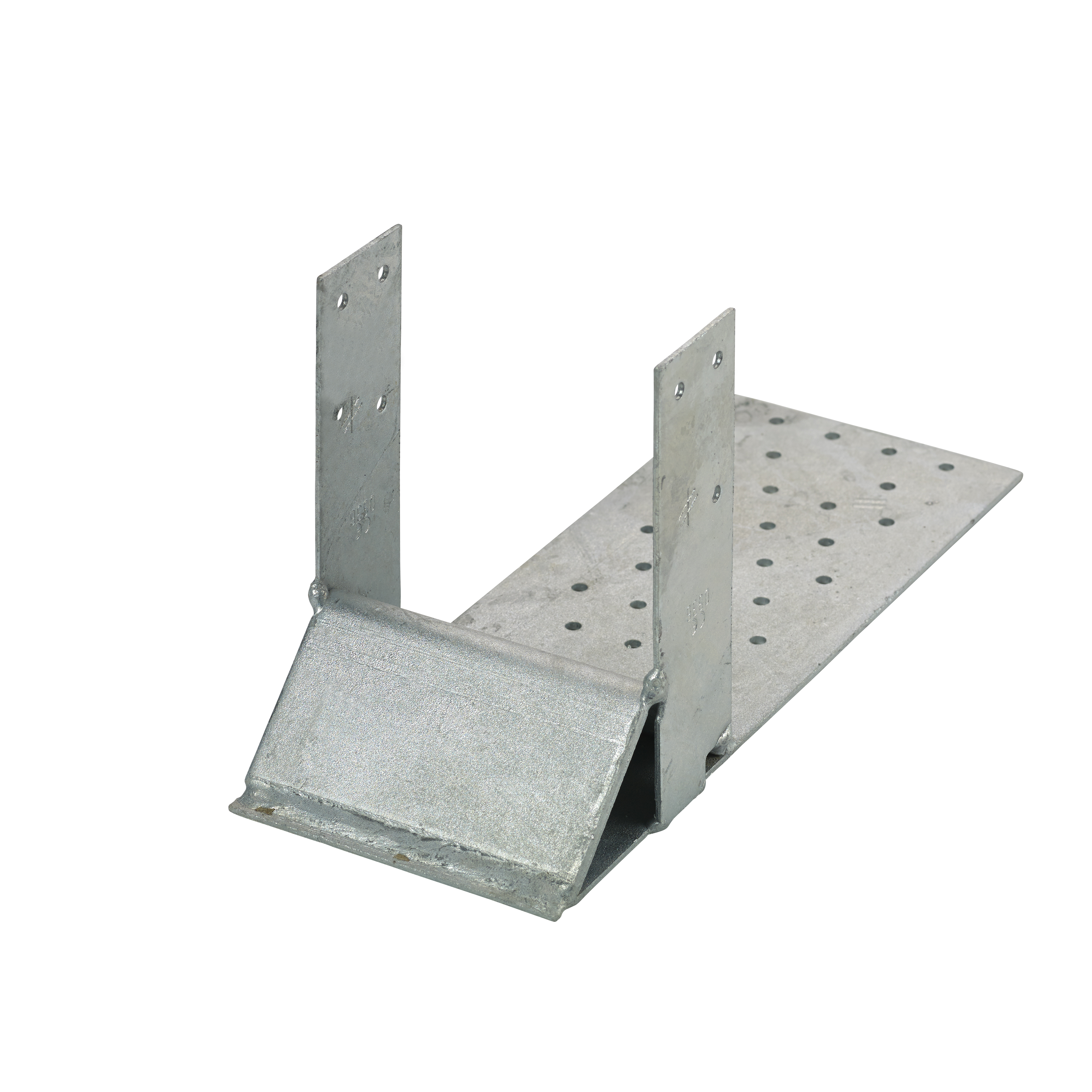

Truss shoe SHH

Easy to install, provide safe and dimensionally stable connection between the roof and substructure

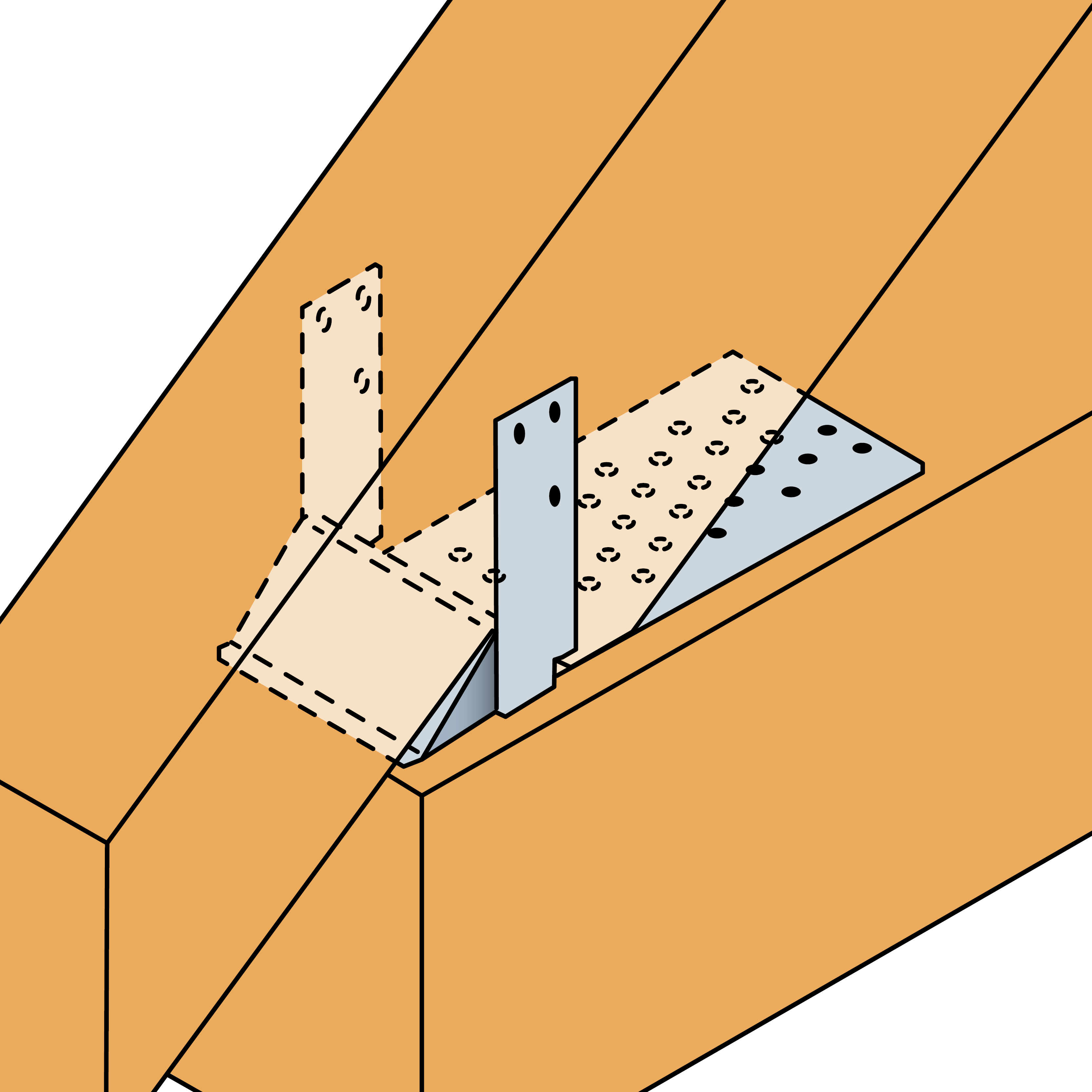

SHH truss shoe is used for connection to the concrete and are used to attach rafters with an inclination from 30 ° to 60 ° to the base plate

 truss shoe SHB is available in three standard sizes:
   SHH 80 for rafter width 80 mm;
   SHH 100 for rafter width 100 mm, and
   SHH 120 for rafter width 120 mm
   Other widths may be custom made

Truss shoe B are used to secure collar beam and the rafters in the bottom construction.



CE Marking
ETA
Service class 2
Hot-dip galvanised steel

Product Details

Images

Features

Material

Steel quality:

Angle: S 355 MC according to DIN EN 10149-2 else: S 235 JR according to EN 10025 DIN

Corrosion protection:

Galvanizing layer thickness of about 55 microns in accordance with DIN EN 1461



Benefits

• Suitable for connection of rafters, easy installation

Application

Applicatons

Wood, wood products, concrete

Scope

• SHH Truss shoe can be used to attach rafters with an inclination of 30 ° to 60 ° to the base

Technical Data

Dimensions

Abmessungen

References Abmessungen [mm] Anzahl Löcher
A B C t1 t2 Balken Sparren
SHH808430014022.55256
SHH10010428014022.55316
SHH12012426014022.55446

Tragfähigkeiten

References Anzahl Nägel im Charakteristische Werte der Tragfähigkeit mit CNA4,0x50 [kN]
Balken Sparren R1,k R2,k
SHH8019632.24.9
SHH10026640.36.9
SHH12031648.38.8

Die Werte der Tragfähigkeiten gelten für Sparren mit einer Neigung zwischen 30° und 60°.

Es gilt:





Installation

Installation

Fasteners

• Fixing the concrete is carried out using anchor bolts

Certification

Declaration of Performance (DoP)

European Technical Assessment (ETA)
