Truss hangers

These hangers are used in small trusses with Fasteners a cross-section of 38 mm. They enable to make a hip by assembling hip and jack half trusses. The models differ depending on the
installation type.

Technical Data Sheet

CE Marking

ETA

Service class 2

Electrogalvanized steel 20 µm

Product Details

Images

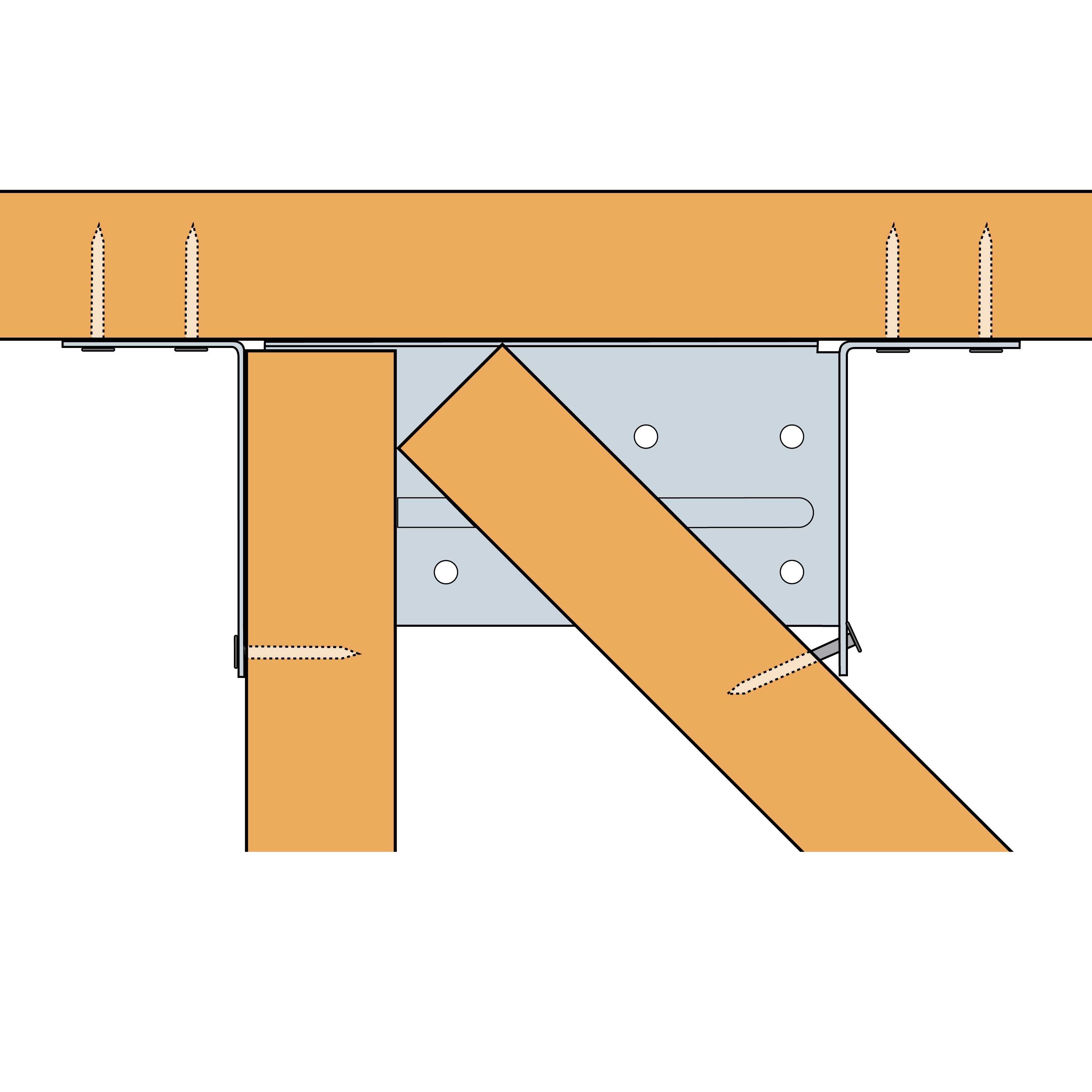

ETC434 Assemblages 2 éléments 1 arêtier simple - 1 empannon

Features

Material

Galvanized steel S250GD + Z275 according to NF EN 10346.

Benefits

Utilisable dans de multiples configurations,
Fixation sur bois ou sur béton...

Application

Header member

Supporting member: solid wood, composite lumber, glued-laminated wood, concrete, steel.
Supported member: solid wood.

When to Use

Truss end hip hanger

Technical Data

Dimensions

Product Dimensions

References	Product Dimensions [mm]						Holes
	A	B	C	D	F	t	Header		Joist
							Ø5	Ø13	Side Flanges		Base
							Ø5	Ø13	Ø5	Ø5x7.5	Ø5
ETC434	140	145	80	225	100	1.5	24	4	6	8	10
ETC434D	140	145	80	185	100	1.5	20	4	6	8	10
ETC434G	140	145	80	185	100	1.5	20	4	6	8	10
ETC485R	195	145	110	279	90	2	24	4	12	-	31
ETC485RG	195	145	110	239	90	2	21	4	12	-	31
ETC485RD	195	145	110	239	90	2	21	4	12	-	31
ETC502	206	145	98	290	89	2	24	4	6	-	12
ETC835	355	240	110	481	143	3	40	4	14	-	33

* Currently not CE marked.
ETC392 application requires vertical member (king post), min. width 97 mm.

Product capacities - Timber to timber - Header ≥ 200mm

References	Timber sections and fasteners							Characteristic capacity - Header ≥197mm - Timber C24 [kN]
	Header	Jack			Hip			R_1.k			R_2.k
	CNA4,0x35	No. of plies	Min. height	CNA4,0x35	No. of plies	Min. height	CNA4,0x35	Jack	Hip	Total	Jack	Hip	Max.
ETC434	27 (27)	1	147	6	1 (2)	147	6 (7)	3 (4.2)	9 (12.6)	12 (16.8)	5.3 (5.3)	4.7 (5.7)	3.3 (3.3)
ETC485R	24	1	97	11	2	97	10	5.6	16.8	22.4	5.9	5.7	3.8
ETC502	27	1	97	4	1	97	6	4.6	9.3	23.2	1.2	5.6	4.4
ETC835	44	1	147	5	2	147	28	5.8	11.7	29.2	1.8	5.8	7.7

Uplift capacities are calculated as : R_2.k=min(Jack + No. of Hip*Hip; Max)

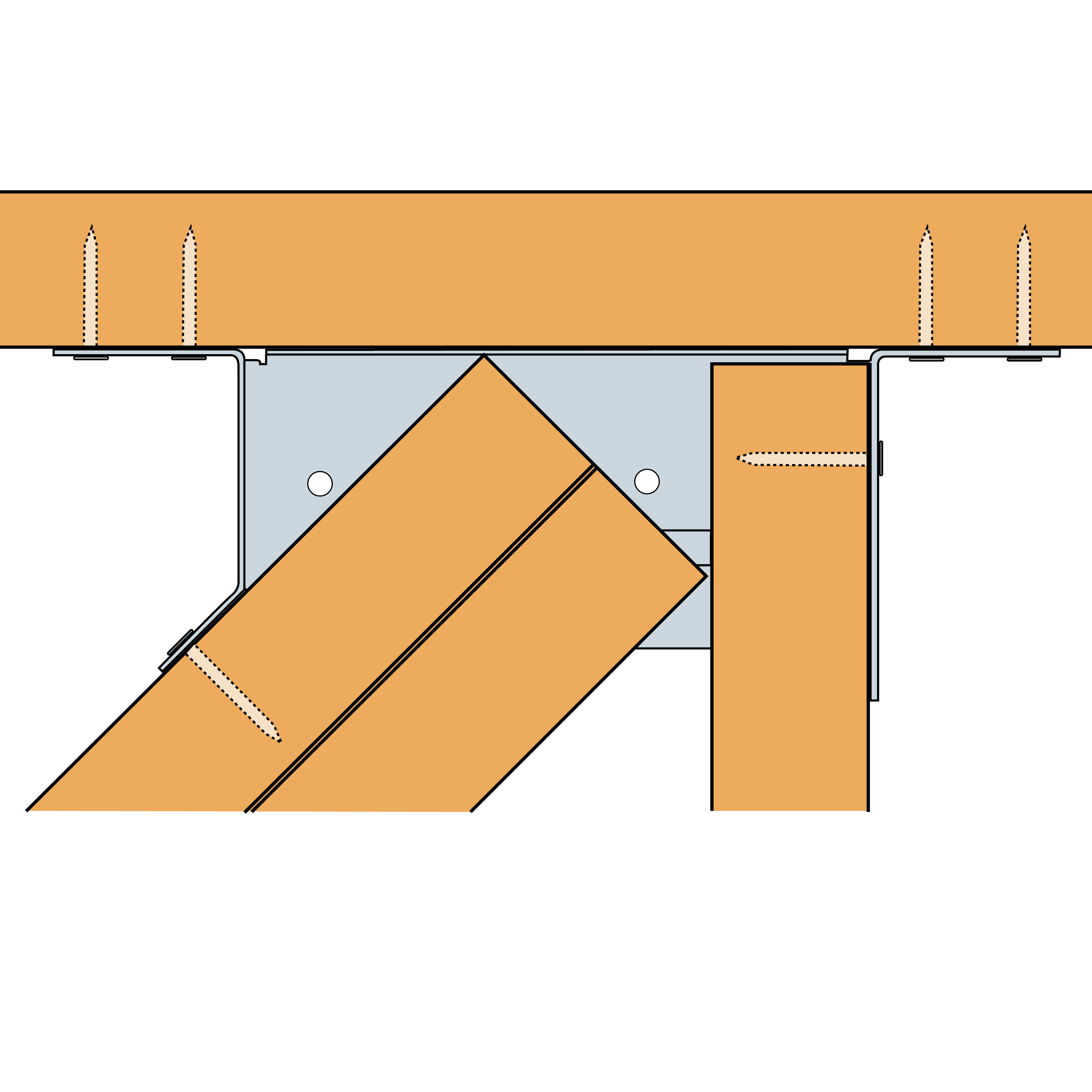

Values between () are in case of a double hip.

Load path is :

25 % on jack, 75 % on hip for ETC434 and ETC485R

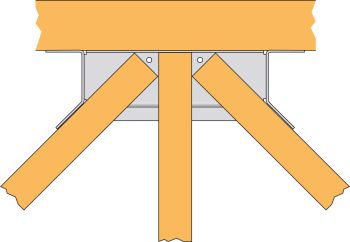

20 % on jack, 40% on each hip for ETC502 and ETC835

Please refer to the installation section to see images of the different possible installations.

Product capacities - Timber to timber - Header ≥ 195mm

References	Timber sections and fasteners							Characteristic capacity - Header ≥197mm - Timber C24 [kN]
	Header	Jack			Hip			R_1,k			R_2.k
	CNA4,0x35	No. of plies	Min. height	CNA4,0x35	No. of plies	Min. height	CNA4,0x35	Jack	Hip	Total	Jack	Hip	Max.
ETC502	25	1	97	4	1	97	6	6.6	4.9	16.4	1.2	5.6	4.4

Uplift capacities are calculated as : R_2.k=min(Jack + 2*Hip; Max)

Load path is :

40 % on jack, 30% on each hip for ETC502.

Product capacities - Timber to timber - Header ≥ 145mm

References	Timber sections and fasteners							Characteristic capacity - Header ≥147mm - Timber C24 [kN]
	Header	Jack			Hip			R_1,k			R_2.k
	CNA4,0x35	No. of plies	Min. height	CNA4,0x35	No. of plies	Min. height	CNA4,0x35	Jack	Hip	Total	Jack	Hip	Max.
ETC502	23	1	97	4	1	97	6	5.8	4.3	14.4	1.2	5.6	3.3

Uplift capacities are calculated as : R2.k=min(Jack + 2*Hip; Max)

Load path is :

40 % on jack, 30% on each hip for ETC502

Product capacities - Timber to timber - Header ≥ 97mm

References	Timber sections and fasteners								Characteristic Capacities - Header ≥97mm - Timber C24 [kN]
	Header		Jack			Hip			R_1,k			R_2.k
	No. of plies	CNA4,0x35	No. of plies	Min. height	CNA4,0x35	No. of plies	Min. height	CNA4,0x35	Jack	Hip	Total	Jack	Hip	Max.
ETC434	-	19	1	147	6	1 (2)	147	6 (7)	5.3	4,7 (5,7)	5.5	5.3	4,7 (5,7)	3.3
ETC485R	-	20	1	97	11	2	97	10	-	-	-	5.9	5.7	3.8
ETC502	-	15	1	97	4	1	97	6	4.5	3.4	11.4	1.2	5.6	3.3
ETC835	-	26	1	147	5	2	147	28	-	-	-	1.8	5.8	7.7

Donwload capacities are calculated as: R1,k=min(Jack + 2*Hip; Total)
Uplift capacities are calculated as: R2.k=min(Jack + 2*Hip; Max)

Capacities between () are the ones to be used if hip is double.

Load path for download is :

ETC434 : 25% on jack, 75% on hip

ETC502 : 40 % on jack, 30% on each hip

Product capacities - Timber to timber - 1 Left model + 1 Right model

References	Timber sections and fasteners							Characteristic capacity - Header ≥197mm - Timber C24 [kN]
	Header	Jack			Hip			R_1.k
	CNA4,0x35	No. of plies	Min. height	CNA4,0x35	No. of plies	Min. height	CNA4,0x35	Jack	Hip	Total
ETC434D	40	1	147	4	1	147	16	3.3	6.6	16.5
ETC434G	40	1	147	4	1	147	16	3.3	6.6	16.5
ETC485RG	42	1	97	6	1	147	14	3.5	7	17.5
ETC485RD	42	1	97	6	1	147	14	3.5	7	17.5

In this case, the installation is made with one ETC434G on the left of the central rafter (hip) and one ETC434D on the right of the central rafter.

Installation

Fasteners on supported member

CNA annular ring-shank nails dia. 4.0 x 35 mm.

Fasteners on supporting member

Wood element: CNA annular ring-shank nails dia. 4.0 x 35 mm.
Steel element: bolts dia. 12 mm (bolt diameter cannot be more than 2 mm smaller than the drill hole diameter).
Concrete element: WA M12-104/5 mechanical anchor or chemical anchor (AT-HP resin + LMAS M12 x 150 threaded rod).

Installation

Use all the specified fasteners for a given installation. Elements made with 2 plies must be assembled with each other so that they act as a single element (see Eurocode 5).
