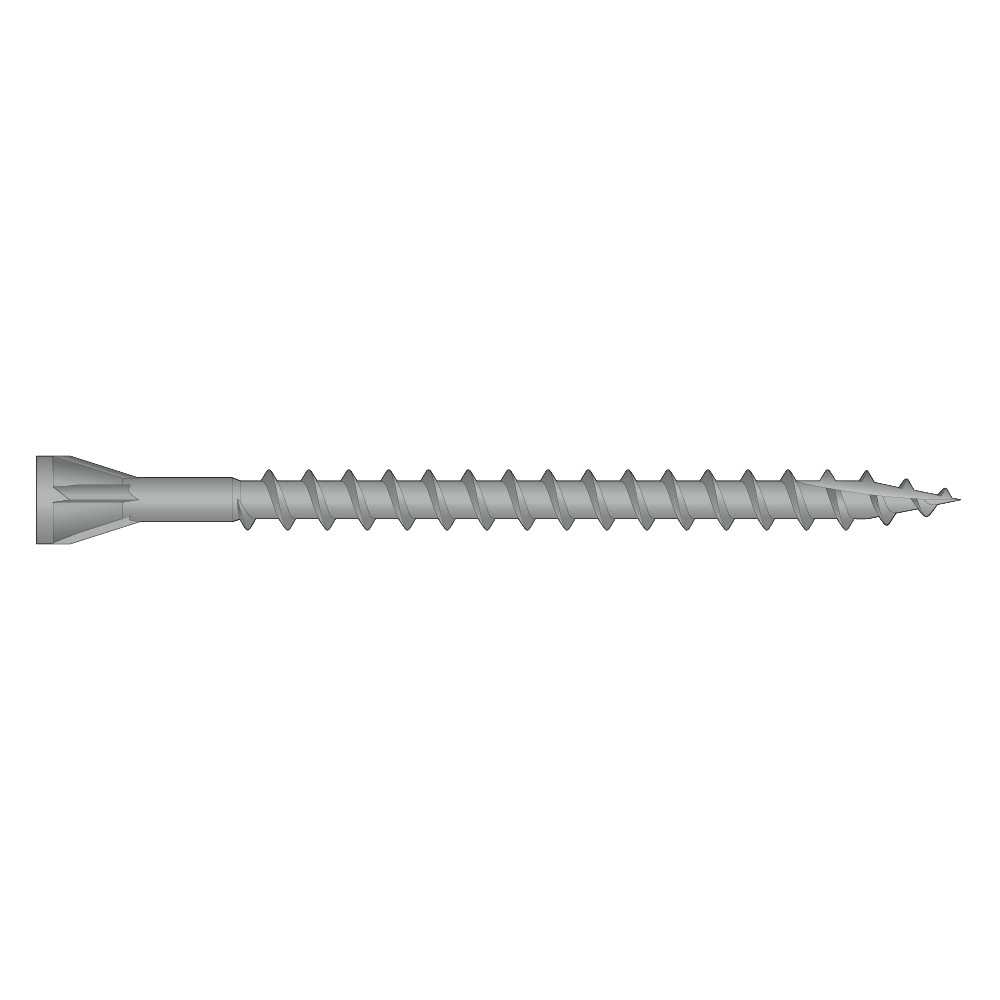

DTHQ

Trim Head Decking Screw

The DTHQ is a trim head screw with coarse thread suitable for timber to timber applications such as decking. It has a Type 17 point which eliminates the need for pre-drilling and reduces the installation torque. The trim head provides a neat finish when countersunk into the timber and the Quik Guard® coating allows the screw to be used in external environments.

Service class 2
Service class 2
Outdoor
Outdoor
EPD
EPD

Product Details

Images

BIT2SUE

Features

Material

Steel - Quik Guard® coating

Benefits

  • Type 17 point for faster, straighter drilling and reduced insertion torque
  • Counter sunk trim head for a neater finish
  • Coarse thread
  • Quik Guard coating prevents rust staining and prolonges life, even outdoors

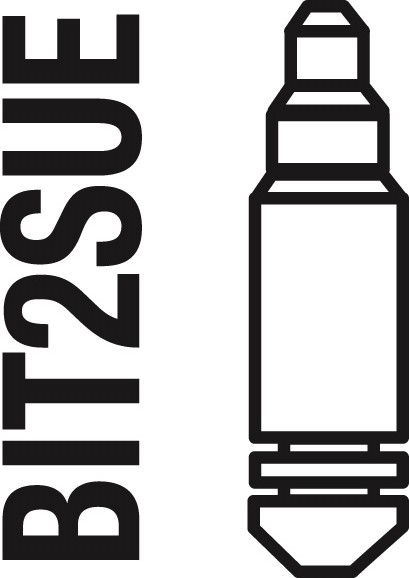

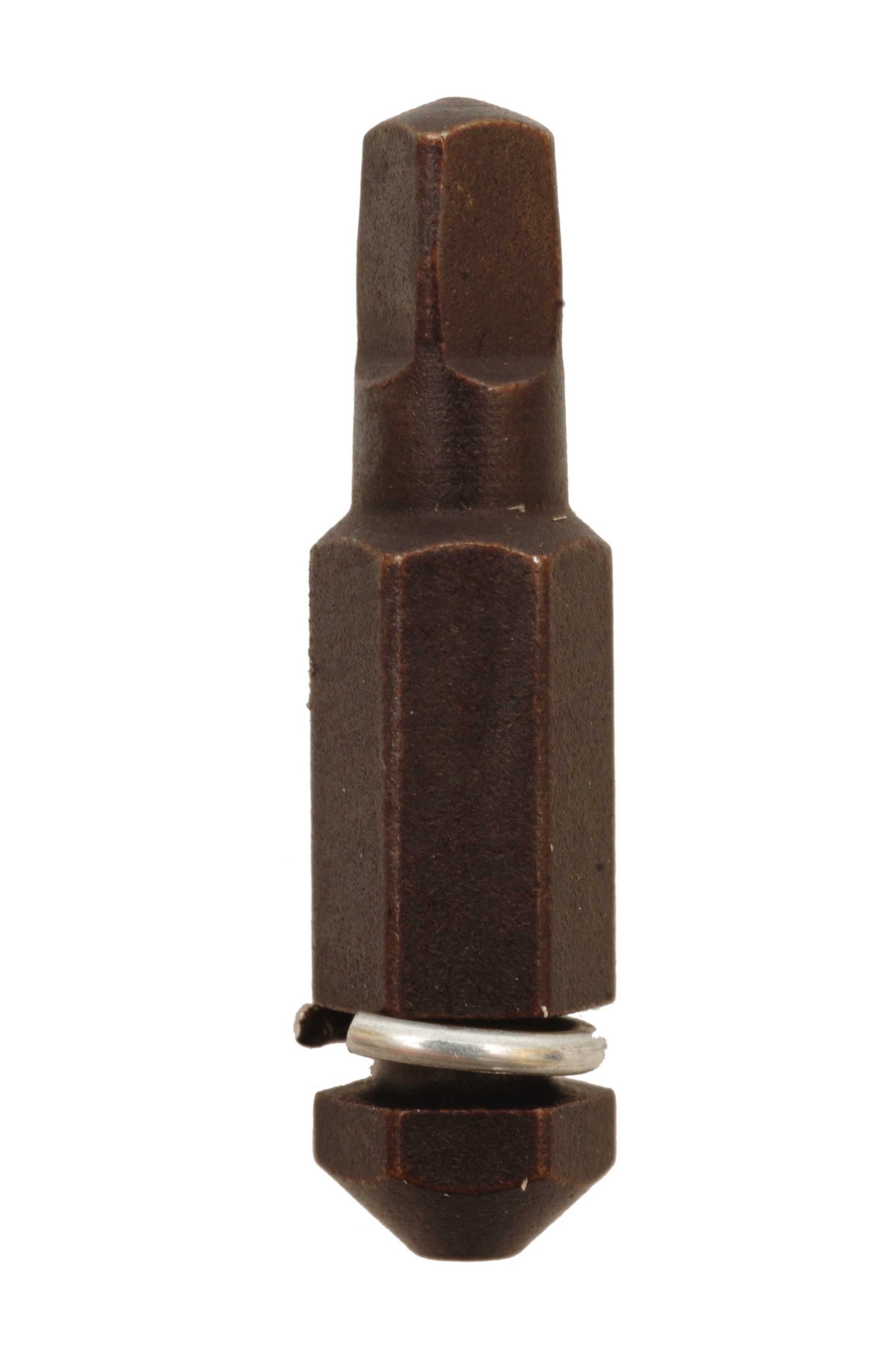

  • Driver bits included (BIT2SUE)

Application

Common Applications

  • Decking

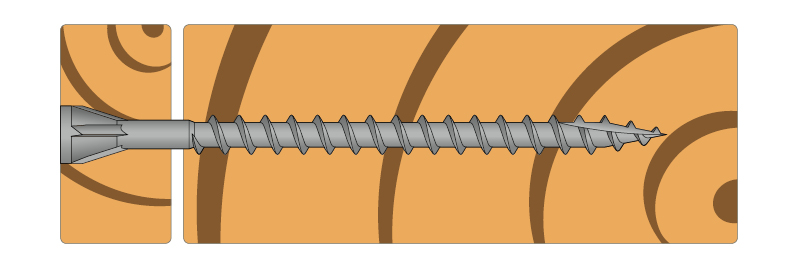

  • Timber to timber

Technical Data

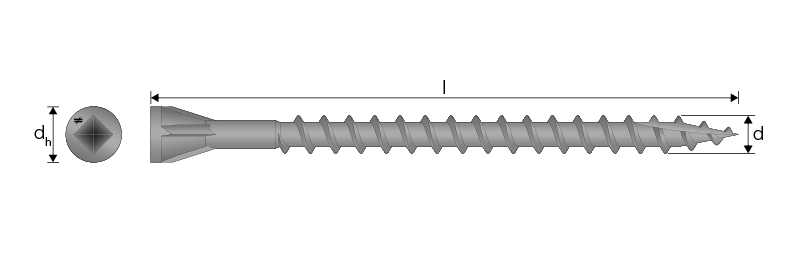

Dimensions

Dimensions

ReferenceFasteners Dimensions
Other
DB No.NOBB No.Screws qty per boxWeight[kg]
DTHQ51E5384679252548632000.06.6
DTHQ64E5385128252548711500.06.2
DTHQ76E5384689291940241000.06.2

Certification

Environmental Product Declarations (EPD)
