SPR

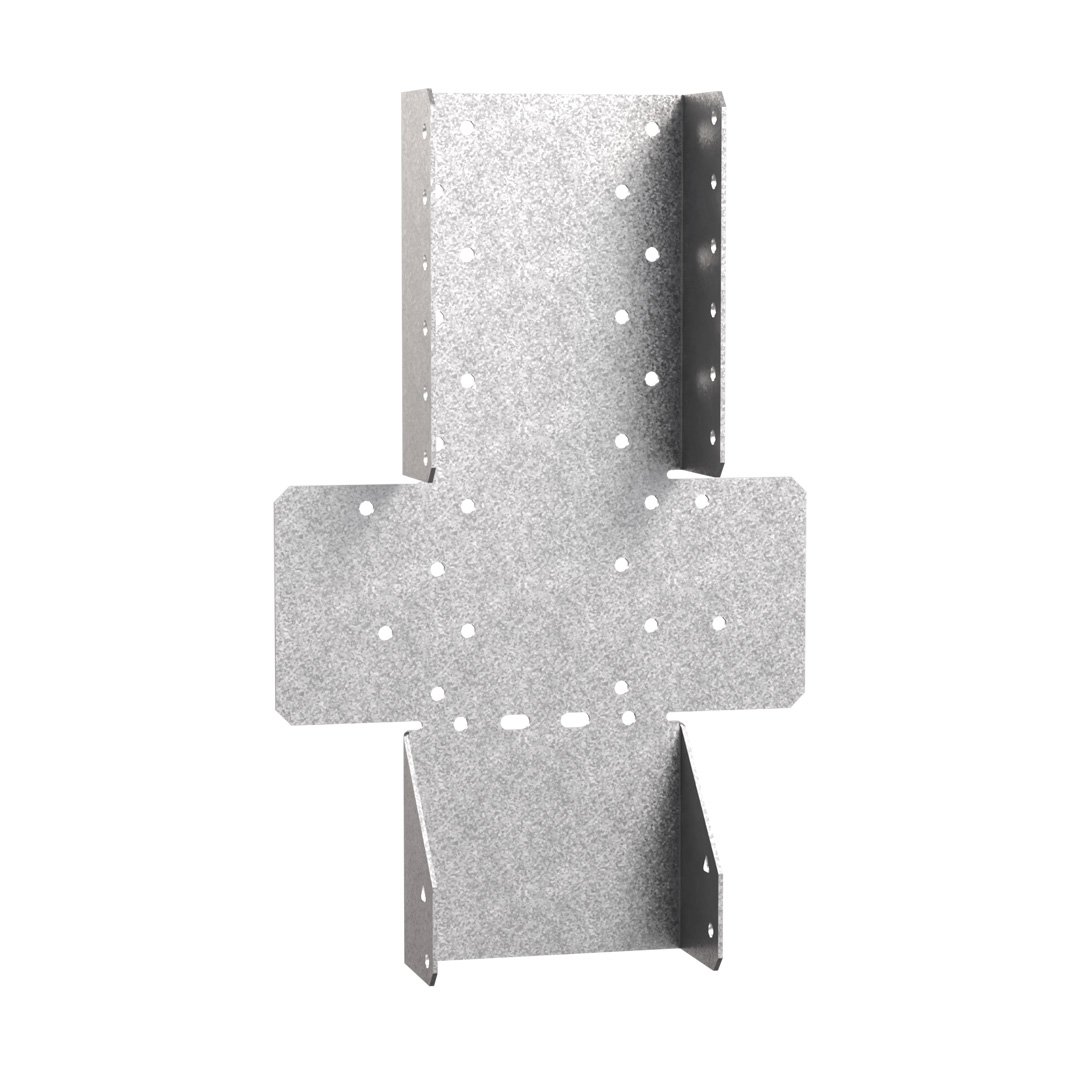

Timber Joist Hanger Slope Adjustable

The SPR connector supports rafters from other timber members and can be sloped up or down by up to 45 degress.

Slope angle can be adjusted on-site.
Adjustable between 0 and 45 degree, up and down.
supports a range of timber heights from 145mm to 250mm.

Technical Data Sheet

CE Marking

ETA

Service class 2

Electrogalvanized steel 20 µm

Product Details

Images

Features

Material

Galvanized steel S250GD + Z275 according to NF EN 10346.

Benefits

- SPR with width from 38 to 140 mm and height from 100 to 400 mm can be made on special order and are covered by the CE MARKING.

Application

For Connecting

Supporting member: solid wood, composite lumber, glued-laminated wood, concrete, steel.
Supported member: solid wood, composite lumber, glued-laminated wood.

Applications

Joists,
Purlins,
Smooth beams...

Technical Data

Dimensions

Product dimensions

References	NOBB nr.	DB nr.	Joist dimensions [mm]				Product dimensions [mm]						Header holes	Joist holes
			Width		Height		A	B	C	D	F	t	Ø5	Ø5
			Min.	Max.	Min.	Max.	A	B	C	D	F	t	Ø5	Ø5
SPR38	-	-	36	38	-	-	38	110	59	-	62	1.5	-	-
SPR50	-	-	48	50	-	-	50	132	75	-	77	1.5	14	10
SPR64	-	-	62	64	-	-	64	152	75	-	77	1.5	-	-
SPR76	-	-	74	76	-	-	76	174	75	-	77	1.5	-	-
SPR38/120	-	-	36	38	-	-	38	120	75	43	78	1.5	9	6
SPR45/120	51165966	1863941	43	45	-	-	45	120	75	43	78	1.5	9	6
SPR50/140	-	-	48	50	-	-	50	140	75	43	78	1.5	18	8
SPR64/160	-	-	62	64	-	-	64	160	75	43	78	1.5	20	10
SPR76/180	-	-	74	76	-	-	76	180	75	43	78	1.5	22	12
SPRxx	-	-	-	-	-	-	-	-	-	-	-	-	-	-
SPR60/100	-	-	58	60	-	-	60	100	75	43	78	1.5	12	6
SPR60/120	-	-	58	60	-	-	60	120	75	43	78	1.5	14	6
SPR60/140	-	-	58	60	-	-	60	140	75	43	78	1.5	18	8
SPR60/160	-	-	58	60	-	-	60	160	75	43	78	1.5	20	10
SPR60/180	-	-	58	60	-	-	60	180	75	43	78	1.5	22	12
SPR60/200	-	-	58	60	-	-	60	200	75	43	78	1.5	24	14
SPR60/220	-	-	58	60	-	-	60	220	75	43	78	1.5	26	16
SPR60/240	-	-	58	60	-	-	60	240	75	43	78	1.5	28	18
SPR60/260	-	-	58	60	-	-	60	260	75	43	78	1.5	30	20
SPR60/280	-	-	58	60	-	-	60	280	75	43	78	1.5	32	22
SPR60/300	-	-	58	60	-	-	60	300	75	43	78	1.5	34	24
SPR60/320	-	-	58	60	-	-	60	320	75	43	78	1.5	36	26
SPR60/340	-	-	58	60	-	-	60	340	75	43	78	1.5	38	28
SPR60/360	-	-	58	60	-	-	60	360	75	43	78	1.5	40	30
SPR60/380	-	-	58	60	-	-	60	380	75	43	78	1.5	42	32
SPR60/400	-	-	58	60	-	-	60	400	75	43	78	1.5	44	34
SPR80/100	-	-	78	80	-	-	80	100	75	43	78	1.5	12	6
SPR80/120	-	-	78	80	-	-	80	120	75	43	78	1.5	14	6
SPR80/140	-	-	78	80	-	-	80	140	75	43	78	1.5	18	8
SPR80/160	-	-	78	80	-	-	80	160	75	43	78	1.5	20	10
SPR80/180	-	-	78	80	-	-	80	180	75	43	78	1.5	22	12
SPR80/200	-	-	78	80	-	-	80	200	75	43	78	1.5	24	14
SPR80/220	-	-	78	80	-	-	80	220	75	43	78	1.5	26	16
SPR80/240	-	-	78	80	-	-	80	240	75	43	78	1.5	28	18
SPR80/260	-	-	78	80	-	-	80	260	75	43	78	1.5	30	20
SPR80/280	-	-	78	80	-	-	80	280	75	43	78	1.5	32	22
SPR80/300	-	-	78	80	-	-	80	300	75	43	78	1.5	34	24
SPR80/320	-	-	78	80	-	-	80	320	75	43	78	1.5	36	26
SPR80/340	-	-	78	80	-	-	80	340	75	43	78	1.5	38	28
SPR80/360	-	-	78	80	-	-	80	360	75	43	78	1.5	40	30
SPR80/380	-	-	78	80	-	-	80	380	75	43	78	1.5	42	32
SPR80/400	-	-	78	80	-	-	80	400	75	43	78	1.5	44	34
SPR100/120	-	-	98	100	-	-	100	120	75	43	78	1.5	14	6
SPR100/140	-	-	98	100	-	-	100	140	75	43	78	1.5	18	8
SPR100/160	-	-	98	100	-	-	100	160	75	43	78	1.5	20	10
SPR100/180	-	-	98	100	-	-	100	180	75	43	78	1.5	22	12
SPR100/200	-	-	98	100	-	-	100	200	75	43	78	1.5	24	14
SPR100/220	-	-	98	100	-	-	100	220	75	43	78	1.5	26	16
SPR100/240	-	-	98	100	-	-	100	240	75	43	78	1.5	28	18
SPR100/260	-	-	98	100	-	-	100	260	75	43	78	1.5	30	20
SPR100/280	-	-	98	100	-	-	100	280	75	43	78	1.5	32	22
SPR100/300	-	-	98	100	-	-	100	300	75	43	78	1.5	34	24
SPR100/320	-	-	98	100	-	-	100	320	75	43	78	1.5	36	26
SPR100/340	-	-	98	100	-	-	100	340	75	43	78	1.5	38	28
SPR100/360	-	-	98	100	-	-	100	360	75	43	78	1.5	40	30
SPR100/380	-	-	98	100	-	-	100	380	75	43	78	1.5	42	32
SPR100/400	-	-	98	100	-	-	100	400	75	43	78	1.5	44	34
SPR120/140	-	-	118	120	-	-	120	140	75	43	78	1.5	18	8
SPR120/160	-	-	118	120	-	-	120	160	75	43	78	1.5	20	10
SPR120/180	-	-	118	120	-	-	120	180	75	43	78	1.5	22	12
SPR120/200	-	-	118	120	-	-	120	200	75	43	78	1.5	24	14
SPR120/220	-	-	118	120	-	-	120	220	75	43	78	1.5	26	16
SPR120/240	-	-	118	120	-	-	120	240	75	43	78	1.5	28	18
SPR120/260	-	-	118	120	-	-	120	260	75	43	78	1.5	30	20
SPR120/280	-	-	118	120	-	-	120	280	75	43	78	1.5	32	22
SPR120/300	-	-	118	120	-	-	120	300	75	43	78	1.5	34	24
SPR120/320	-	-	118	120	-	-	120	320	75	43	78	1.5	36	26
SPR120/340	-	-	118	120	-	-	120	340	75	43	78	1.5	38	28
SPR120/360	-	-	118	120	-	-	120	360	75	43	78	1.5	40	30
SPR120/380	-	-	118	120	-	-	120	380	75	43	78	1.5	42	32
SPR120/400	-	-	118	120	-	-	120	400	75	43	78	1.5	44	34
SPR140/160	-	-	138	140	-	-	140	160	75	43	78	1.5	20	10
SPR140/180	-	-	138	140	-	-	140	180	75	43	78	1.5	22	12
SPR140/200	-	-	138	140	-	-	140	200	75	43	78	1.5	24	14
SPR140/220	-	-	138	140	-	-	140	220	75	43	78	1.5	26	16
SPR140/240	-	-	138	140	-	-	140	240	75	43	78	1.5	28	18
SPR140/260	-	-	138	140	-	-	140	260	75	43	78	1.5	30	20
SPR140/280	-	-	138	140	-	-	140	280	75	43	78	1.5	32	22
SPR140/300	-	-	138	140	-	-	140	300	75	43	78	1.5	34	24
SPR140/320	-	-	138	140	-	-	140	320	75	43	78	1.5	36	26
SPR140/340	-	-	138	140	-	-	140	340	75	43	78	1.5	38	28
SPR140/360	-	-	138	140	-	-	140	360	75	43	78	1.5	40	30
SPR140/380	-	-	138	140	-	-	140	380	75	43	78	1.5	42	32
SPR140/400	-	-	138	140	-	-	140	400	75	43	78	1.5	44	34
SPR47/140	-	-	45	47	145	200	47	140	74	43	78	1.5	13	8
SPR47/160	-	-	45	47	-	-	47	160	75	43	78	1.5	14	12
SPR47/180	-	-	45	47	-	-	47	180	75	43	78	1.5	16	14
SPR47/200	-	-	45	47	200	250	47	200	74	43	78	1.5	17	14
SPR91/140	-	-	89	91	145	200	91	140	74	43	78	1.5	18	8
SPR91/160	-	-	89	91	-	-	91	160	75	43	78	1.5	20	12
SPR91/180	-	-	89	91	-	-	91	180	75	43	78	1.5	22	14
SPR91/200	-	-	89	91	200	250	91	200	74	43	78	1.5	24	14

The lower heel of the joist hanger must be bent only once along the desired angle α.

The height of joist is dependet on the slope.

Product characteristic capacities - Timber beam to timber beam

References	Fasteners		Product characteristic capacities - Timber C24 [kN]										Safe working loads - timber C24 [kN]
	Header	Joist	R_1.k					R_2.k					R_{1,SWL,Long term}	R_{1,SWL,Medium Term}	R_{2,SWL,Short term}

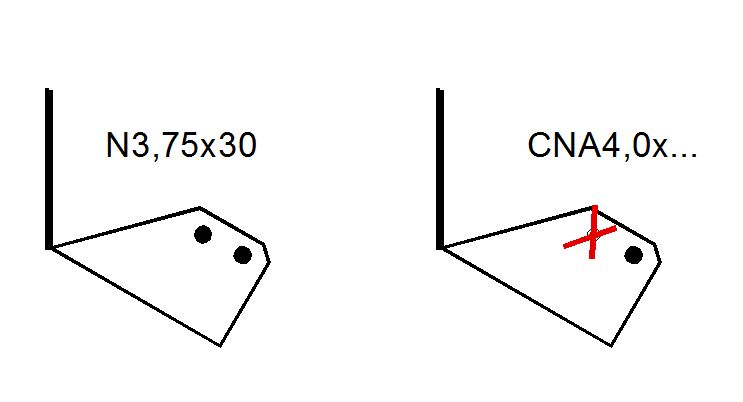

	Qty	Qty	N3.75x30	CNA4,0x35	CNA4,0x40	CNA4,0x50	CNA4,0x60	N3.75x30	CNA4,0x35	CNA4,0x40	CNA4,0x50	CNA4,0x60	N3.75x30	N3.75x30	N3.75x30
SPR38	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
SPR50	14	10	6.75	-	-	-	-	3.81	-	-	-	-	2.8	3.2	1.9
SPR64	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
SPR76	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
SPR38/120	9	6	-	5	5.4	6.3	7	-	2.9	3.3	4.2	4.9	-	-	-
SPR45/120	9	6	-	5	5.4	6.3	7	-	2.9	3.3	4.2	4.9	-	-	-
SPR50/140	18	8	-	6.6	7.1	8.4	9.2	-	4	4.5	5.8	6.6	-	-	-
SPR64/160	20	10	-	9.4	10.3	12.2	13.6	-	6.3	7.2	9.1	10.5	-	-	-
SPR76/180	22	12	-	12.6	13.8	16.4	18.2	-	9	10.2	12.8	14.6	-	-	-
SPRxx	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
SPR60/100	12	6	-	4.8	5.3	5.9	6.3	-	1.7	2.2	2.8	3.2	-	-	-
SPR60/120	14	6	-	6	6.4	7.3	8	-	2.9	3.3	4.2	4.9	-	-	-
SPR60/140	18	8	-	7.1	7.6	8.9	9.7	-	4	4.5	5.8	6.6	-	-	-
SPR60/160	20	10	-	9.4	10.3	12.2	13.6	-	6.3	7.2	9.1	10.5	-	-	-
SPR60/180	22	12	-	12.1	13.3	15.9	17.7	-	9	10.2	12.8	14.6	-	-	-
SPR60/200	24	14	-	14.9	16.4	19.8	22.1	-	11.8	13.3	16.7	19	-	-	-
SPR60/220	26	16	-	17.8	19.6	24	26.5	-	14.7	16.5	20.9	23.4	-	-	-
SPR60/240	28	18	-	20.8	23.1	28	31.1	-	17.7	20	24.9	28	-	-	-
SPR60/260	30	20	-	23.8	26.6	32	35.6	-	20.7	23.5	28.9	32.5	-	-	-
SPR60/280	32	22	-	26.9	29.9	36.5	40.2	-	23.8	26.8	33.4	37.1	-	-	-
SPR60/300	34	24	-	30.1	33.2	40.3	45.7	-	27	30.1	37.2	42.6	-	-	-
SPR60/320	36	26	-	33.3	36.5	44.7	51.2	-	30.2	33.4	41.6	48.1	-	-	-
SPR60/340	38	28	-	36.3	40.3	49.8	56.7	-	33.2	37.2	46.7	53.6	-	-	-
SPR60/360	40	30	-	39.3	43.9	54.9	62.2	-	36.2	40.8	51.8	59.1	-	-	-
SPR60/380	42	32	-	42.3	48.1	60	67.7	-	39.2	45	56.9	64.6	-	-	-
SPR60/400	44	34	-	46.2	52.4	65.1	73.1	-	43.1	49.3	62	70	-	-	-
SPR80/100	12	6	-	5.8	6.3	6.9	7.3	-	1.7	2.2	2.8	3.2	-	-	-
SPR80/120	14	6	-	7	7.4	8.3	9	-	2.9	3.3	4.2	4.9	-	-	-
SPR80/140	18	8	-	8.1	8.6	9.9	10.7	-	4	4.5	5.8	6.6	-	-	-
SPR80/160	20	10	-	10.4	11.3	13.2	14.6	-	6.3	7.2	9.1	10.5	-	-	-
SPR80/180	22	12	-	13.1	14.3	16.9	18.7	-	9	10.2	12.8	14.6	-	-	-
SPR80/200	24	14	-	15.9	17.4	20.8	23.1	-	11.8	13.3	16.7	19	-	-	-
SPR80/220	26	16	-	18.8	20.6	25	27.5	-	14.7	16.5	20.9	23.4	-	-	-
SPR80/240	28	18	-	21.8	24.1	29	32.1	-	17.7	20	24.9	28	-	-	-
SPR80/260	30	20	-	24.8	27.6	33	36.6	-	20.7	23.5	28.9	32.5	-	-	-
SPR80/280	32	22	-	27.9	30.9	37.5	41.2	-	23.8	26.8	33.4	37.1	-	-	-
SPR80/300	34	24	-	31.1	34.2	41.3	46.7	-	27	30.1	37.2	42.6	-	-	-
SPR80/320	36	26	-	34.3	37.5	45.7	52.2	-	30.2	33.4	41.6	48.1	-	-	-
SPR80/340	38	28	-	37.3	41.3	50.8	57.7	-	33.2	37.2	46.7	53.6	-	-	-
SPR80/360	40	30	-	40.3	44.9	55.9	63.2	-	36.2	40.8	51.8	59.1	-	-	-
SPR80/380	42	32	-	43.3	49.1	61	68.7	-	39.2	45	56.9	64.6	-	-	-
SPR80/400	44	34	-	47.2	53.4	66.1	74.1	-	43.1	49.3	62	70	-	-	-
SPR100/120	14	6	-	8.1	8.5	9.4	10.1	-	2.9	3.3	4.2	4.9	-	-	-
SPR100/140	18	8	-	9.2	9.7	11	11.8	-	4	4.5	5.8	6.6	-	-	-
SPR100/160	20	10	-	11.5	12.4	14.3	15.7	-	6.3	7.2	9.1	10.5	-	-	-
SPR100/180	22	12	-	14.2	15.4	18	19.8	-	9	10.2	12.8	14.6	-	-	-
SPR100/200	24	14	-	17	18.5	21.9	24.2	-	11.8	13.3	16.7	19	-	-	-
SPR100/220	26	16	-	19.9	21.7	26.1	28.6	-	14.7	16.5	20.9	23.4	-	-	-
SPR100/240	28	18	-	22.9	25.2	30.1	33.2	-	17.7	20	24.9	28	-	-	-
SPR100/260	30	20	-	25.9	28.7	34.1	37.7	-	20.7	23.5	28.9	32.5	-	-	-
SPR100/280	32	22	-	29	32	38.6	42.3	-	23.8	26.8	33.4	37.1	-	-	-
SPR100/300	34	24	-	32.2	35.3	42.4	47.8	-	27	30.1	37.2	42.6	-	-	-
SPR100/320	36	26	-	35.4	38.6	46.8	53.3	-	30.2	33.4	41.6	48.1	-	-	-
SPR100/340	38	28	-	38.4	42.4	51.9	58.8	-	33.2	37.2	46.7	53.6	-	-	-
SPR100/360	40	30	-	41.4	46	57	64.3	-	36.2	40.8	51.8	59.1	-	-	-
SPR100/380	42	32	-	44.4	50.2	62.1	69.8	-	39.2	45	56.9	64.6	-	-	-
SPR100/400	44	34	-	48.3	54.5	67.2	75.2	-	43.1	49.3	62	70	-	-	-
SPR120/140	18	8	-	9.2	9.7	11	11.8	-	4	4.5	5.8	6.6	-	-	-
SPR120/160	20	10	-	11.5	12.4	14.3	15.7	-	6.3	7.2	9.1	10.5	-	-	-
SPR120/180	22	12	-	14.2	15.4	18	19.8	-	9	10.2	12.8	14.6	-	-	-
SPR120/200	24	14	-	17	18.5	21.9	24.2	-	11.8	13.3	16.7	19	-	-	-
SPR120/220	26	16	-	19.9	21.7	26.1	28.6	-	14.7	16.5	20.9	23.4	-	-	-
SPR120/240	28	18	-	22.9	25.2	30.1	33.2	-	17.7	20	24.9	28	-	-	-
SPR120/260	30	20	-	25.9	28.7	34.1	37.7	-	20.7	23.5	28.9	32.5	-	-	-
SPR120/280	32	22	-	29	32	38.6	42.3	-	23.8	26.8	33.4	37.1	-	-	-
SPR120/300	34	24	-	32.2	35.3	42.4	47.8	-	27	30.1	37.2	42.6	-	-	-
SPR120/320	36	26	-	35.4	38.6	46.8	53.3	-	30.2	33.4	41.6	48.1	-	-	-
SPR120/340	38	28	-	38.4	42.4	51.9	58.8	-	33.2	37.2	46.7	53.6	-	-	-
SPR120/360	40	30	-	41.4	46	57	64.3	-	36.2	40.8	51.8	59.1	-	-	-
SPR120/380	42	32	-	44.4	50.2	62.1	69.8	-	39.2	45	56.9	64.6	-	-	-
SPR120/400	44	34	-	48.3	54.5	67.2	75.2	-	43.1	49.3	62	70	-	-	-
SPR140/160	20	10	-	13.5	14.4	16.3	17.7	-	6.3	7.2	9.1	10.5	-	-	-
SPR140/180	22	12	-	16.2	17.4	20	21.8	-	9	10.2	12.8	14.6	-	-	-
SPR140/200	24	14	-	19	20.5	23.9	26.2	-	11.8	13.3	16.7	19	-	-	-
SPR140/220	26	16	-	21.9	23.7	28.1	30.6	-	14.7	16.5	20.9	23.4	-	-	-
SPR140/240	28	18	-	24.9	27.2	32.1	35.2	-	17.7	20	24.9	28	-	-	-
SPR140/260	30	20	-	27.9	30.7	36.1	39.7	-	20.7	23.5	28.9	32.5	-	-	-
SPR140/280	32	22	-	31	34	40.6	44.3	-	23.8	26.8	33.4	37.1	-	-	-
SPR140/300	34	24	-	34.2	37.3	44.4	49.8	-	27	30.1	37.2	42.6	-	-	-
SPR140/320	36	26	-	37.4	40.6	48.8	55.3	-	30.2	33.4	41.6	48.1	-	-	-
SPR140/340	38	28	-	40.4	44.4	53.9	60.8	-	33.2	37.2	46.7	53.6	-	-	-
SPR140/360	40	30	-	43.4	48	59	66.3	-	36.2	40.8	51.8	59.1	-	-	-
SPR140/380	42	32	-	46.4	52.2	64.1	71.8	-	39.2	45	56.9	64.6	-	-	-
SPR140/400	44	34	-	50.3	56.5	69.2	77.2	-	43.1	49.3	62	70	-	-	-
SPR47/140	13	10	6	6.4	6.9	-	-	6	4	4.5	-	-	2.5	2.9	3
SPR47/160	14	10(12)	8.1	8.7	9.6	-	-	8.1	6.3	7.2	-	-	3.4	3.9	4
SPR47/180	16	12(14)	10.1	11.4	12.6	-	-	10.1	9	10.2	-	-	4.2	4.8	5
SPR47/200	17	16	12.2	14.2	15.7	-	-	12.2	11.8	13.3	-	-	5.1	5.8	6.1
SPR91/140	18	10	8.3	8.7	9.2	10.5	11.3	8.3	4	4.5	5.8	6.6	3.5	4	4.2
SPR91/160	20	10(12)	10.4	11	11.9	13.8	15.2	10.4	6.3	7.2	9.1	10.5	4.3	5	5.2
SPR91/180	22	12(14)	12.4	13.7	14.9	17.5	19.3	12.4	9	10.2	12.8	14.6	5.2	5.9	6.2
SPR91/200	24	16	14.5	16.5	18	21.4	23.7	14.5	11.8	13.3	16.7	19	6	6.9	7.2

number in ( ) are the number of square twist nails N3,75x30

Installation

Fasteners

On supported member:

CNA annular ring-shank nails dia. 4.0 x 35 mm or CNA dia. 4.0 x 50 mm.
Square twist nails N3,75x30

On supporting member:
Wood substrate:

CNA annular ring-shank nails dia. 4.0 x 35 or CNA dia. 4.0 x 50 mm.
Lag screws and bolts dia. 10 mm.
Square twist nails N3,75x30

Concrete substrate:

Mechanical anchor: WA M10-78/5 .
Chemical anchor threaded rod dia. 10 mm: LMAS M10-130 with AT-HP resin.

Metal substrate:

Bolts dia. 10 mm.

Installation

Use all specified fasteners.
Bend only once.
To ensure proper seat installation, install the bottom nails prior to the side nails.
Attach the sloped joist at both ends so that the horizontal force developed by the slope is fully supported by the carried members.
