Tension tie BETA
Beta connecting rods are used as coupling elements in wood concrete. Connection to the rest is done CNA nails or screws CSA. Connecting rods must be deeply embedded in the concrete and fully anchored at least 100 mm is performed using reinforcing steel.
It is available in five different sizes produced: 200, 300, 400, 500 and 600 mm long. The width is always 40 mm.





Product Details
Features
Material
Steel quality:
S 250 GD + Z 275 according to DIN EN
Corrosion protection:
275 g / m galvanized on both sides 20mm
Benefits
• For periods of detention in concrete> 100 mm full load
• Continuous openings allow access in other areas
Application
Applicable materials
concrete
Application area
• Towing anchors are suitable for incorporation into concrete and are used, for example, attaching the lower purlin and columns.
Technical Data
Product Dimensions
| Reference | Connector Dimensions | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Other | Product Dimensions[mm] | Joist | Flange B | ||||||||
| Tun / DB nr. | NOB nr. | Qty per Box | Weight[kg] | A[mm] | B[mm] | C[mm] | D[mm] | t[mm] | Round | Round | |
| Ø5 | Ø5[mm] | ||||||||||
| BETA2/200 | 1419041 | 22998629 | 150.0 | 0.12 | 180 | 20 | 40 | 35 | 2 | 15 | 1 |
| BETA2/300 | 1419042 | 22998611 | 100.0 | 0.18 | 280 | 20 | 40 | 35 | 2 | 22 | 1 |
| BETA2/400 | 3779113 | 21215710 | 80.0 | 0.23 | 380 | 20 | 40 | 35 | 2 | 30 | 1 |
| BETA2/600 | 1868124 | 21215694 | 50.0 | 0.35 | 580 | 20 | 40 | 35 | 2 | 45 | 1 |
| BETA4/200 | - | - | 75.0 | 0.25 | 180 | 20 | 40 | 35 | 4 | 15 | 1 |
| BETA4/300 | - | - | 50.0 | 0.38 | 280 | 20 | 40 | 35 | 4 | 22 | 1 |
| BETA4/400 | - | - | 40.0 | 0.5 | 380 | 20 | 40 | 35 | 4 | 30 | 1 |

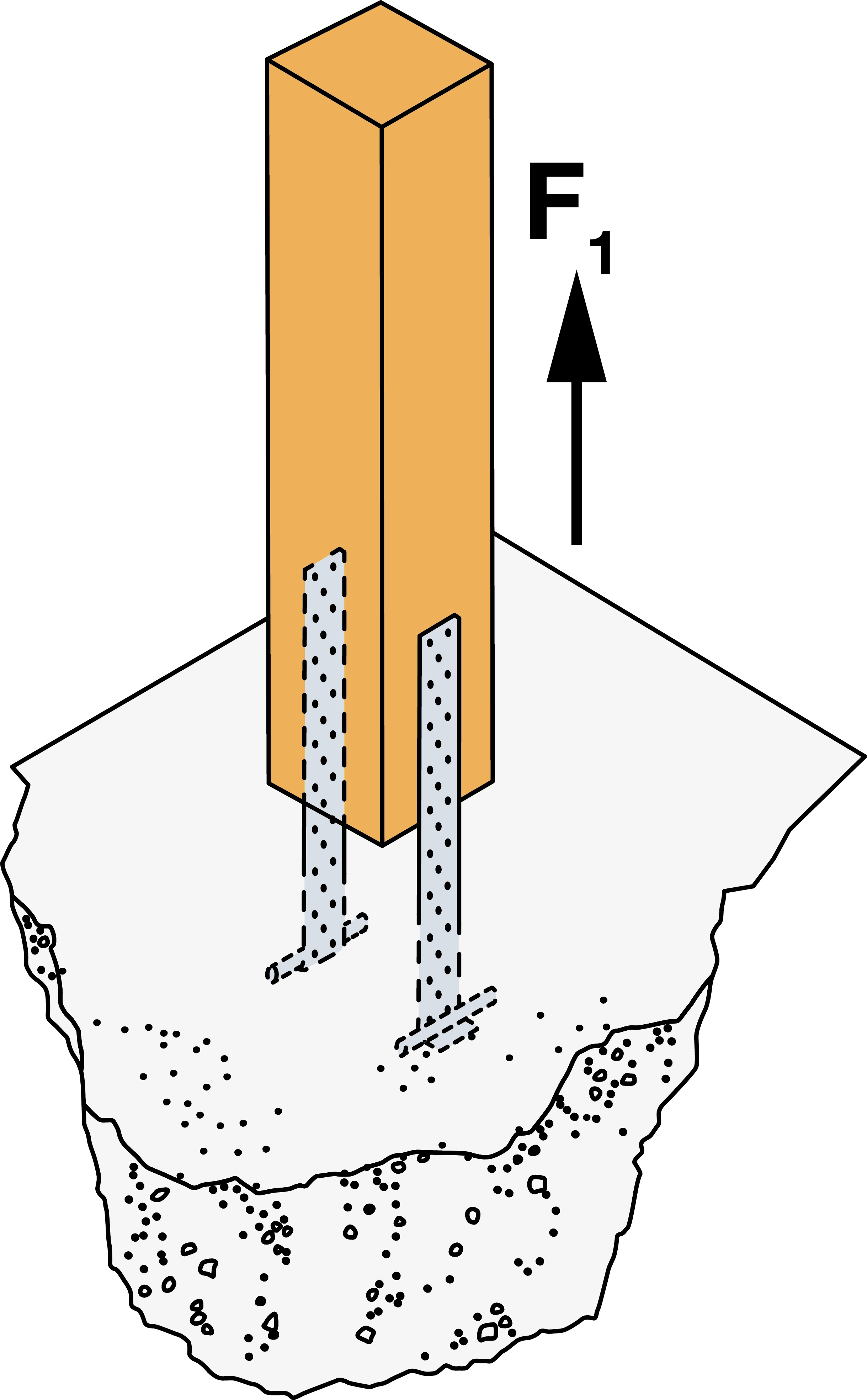

Product capacities - 1 hold down
| Reference | Holdowns capacity | ||
|---|---|---|---|
| Product characteristic capacities - Column nailing - 2 brackets per connection | |||
| Number of Fasteners | Characteristic Capacities[kN] | ||
| Joist | R₁,ₖ[kN] | ||
| Qty | Type | ||
| BETA2/200 | <15 | CNA4.0xl / CSA5.0xl | min. (nxRlat,k ; 16.7/kmod) |
| BETA2/300 | <22 | CNA4.0xl / CSA5.0xl | min. (nxRlat,k ; 16.7/kmod) |
| BETA2/400 | <30 | CNA4.0xl / CSA5.0xl | min. (nxRlat,k ; 16.7/kmod) |
| BETA2/600 | <45 | CNA4.0xl / CSA5.0xl | min. (nxRlat,k ; 16.7/kmod) |
| BETA4/200 | <15 | CNA4.0xl / CSA5.0xl | min. (nxRlat,k ; 33.4/kmod) |
| BETA4/300 | <22 | CNA4.0xl / CSA5.0xl | min. (nxRlat,k ; 33.4/kmod) |
| BETA4/400 | <30 | CNA4.0xl / CSA5.0xl | min. (nxRlat,k ; 33.4/kmod) |
Rlat,k = Characteristic capacity of the fastener (CNA or CSA)
n = neff according to Eurocode (8.3.1.1) for the number of fastener
Installation
Installation
Installation
• They are attached CNA4,0xℓ nails or screws CSA5,0xℓ
