BPST

Strap tension tightener Bandlock® Pro

Bandlock® Pro BPST strap tightener is used to tighten 2 straps together. This is mostly used to stabilize timber constructions. The innovative click system makes installation easy and a builder can save a considareble amount of installation time per connector compared to traditionel strap tension tighteners.

BPST fits straps with the width 25, 40 and 60  mm.

Technical Data Sheet
CE Marking
CE Marking
ETA
ETA
New
New
EPD
EPD
Indoor
Indoor
Electrogalvanized steel Z275
Electrogalvanized steel Z275
Service class 2
Service class 2
BPST_SSTBP_homepage_PL_pl
BPST_SSTBP_homepage_SE_sv
BPST_SSTBP_homepage_DK_da
BPST Main.jpg

Product Details

Images

BPST Gallery 1.jpg
BPST Installation 3.jpg

Features

Material

Steel:

S250GD + Z275 according to DIN EN 10346

Corrosion protection:

275 g/m2 on both sides - correspond to a zinc layer of approx. 20 μm

Benefits

  • Easy installation
  • No bolts and nuts
  • Timesaving compared to other tension tighteners on the market
  • Can be used with 25, 40 and 60 mm straps
  • Can be used directly on windbracing connectors WSD and WSB
  • Easy to understand

Application

Applications

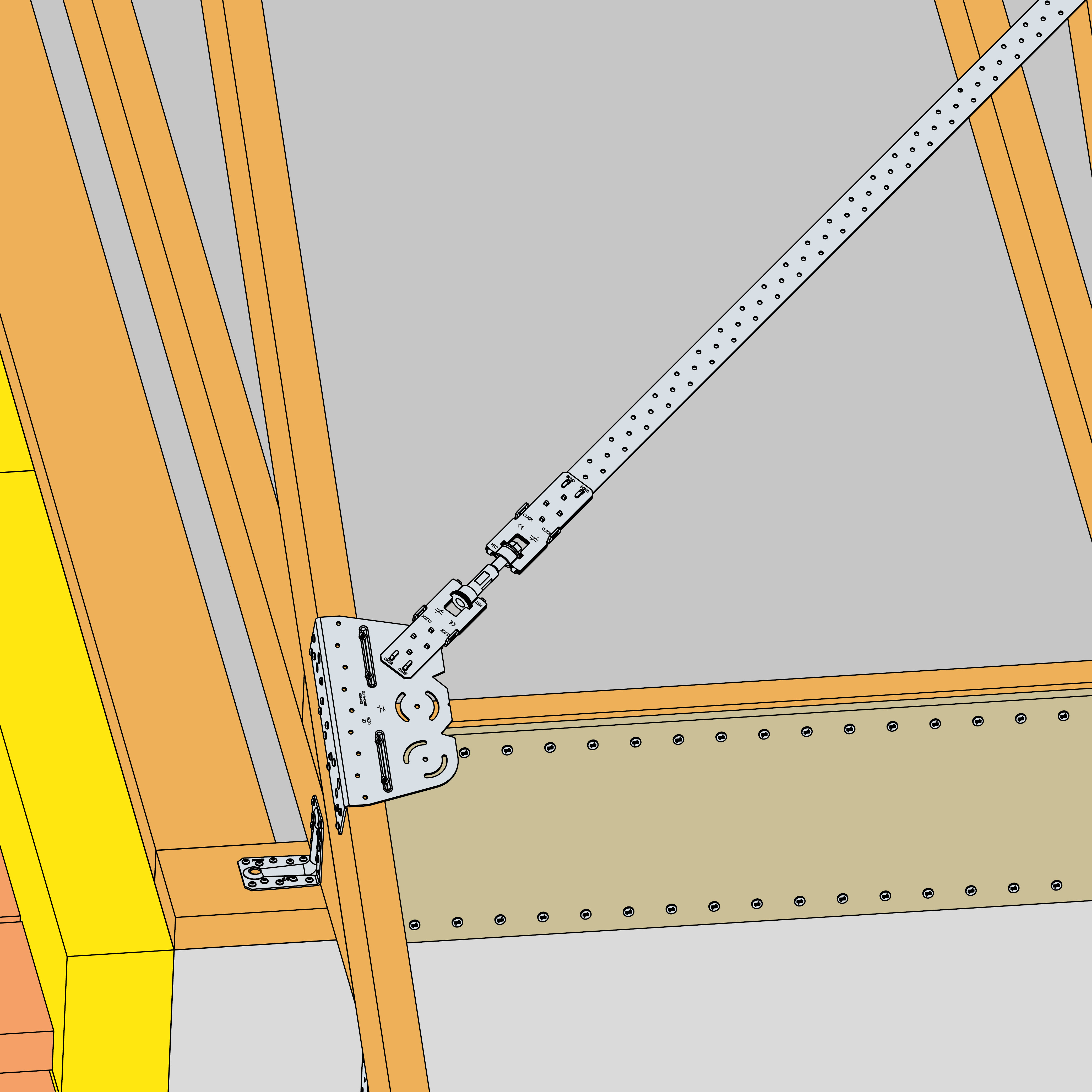

  • Stabilization of timber constructions

Technical Data

Product dimensions

Dimensions

Product dimensions
Product dimensions
ReferenceConnector Dimensions
OtherProduct Dimensions[mm]
Tun / DB nr.Qty per BoxWeight[kg]A[mm]B[mm]t[mm]Adjustement[mm]
BPST2142326100.6451325-365250

Product capacities

ReferenceBracing capacity
Characteristic Capacities[kN]
R₁,ₖ[kN]
BPST27.5

The values are whith all 6 pins in use and 2 bended

The Rd is calculate with kmod = 1

Installation

Installation

Installation

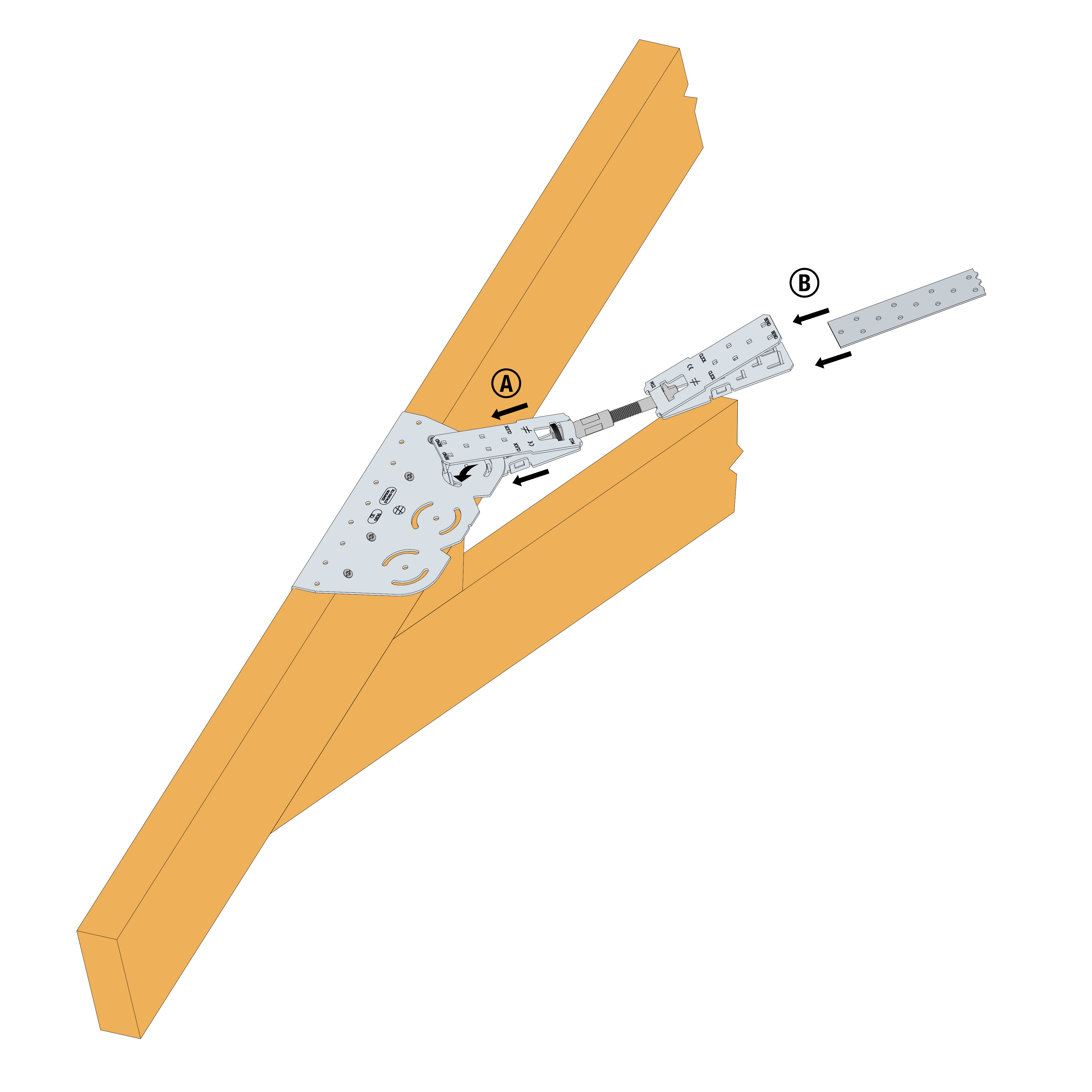

  • Connect the 2 BPST parts together and insert at least 10 mm on to the thread

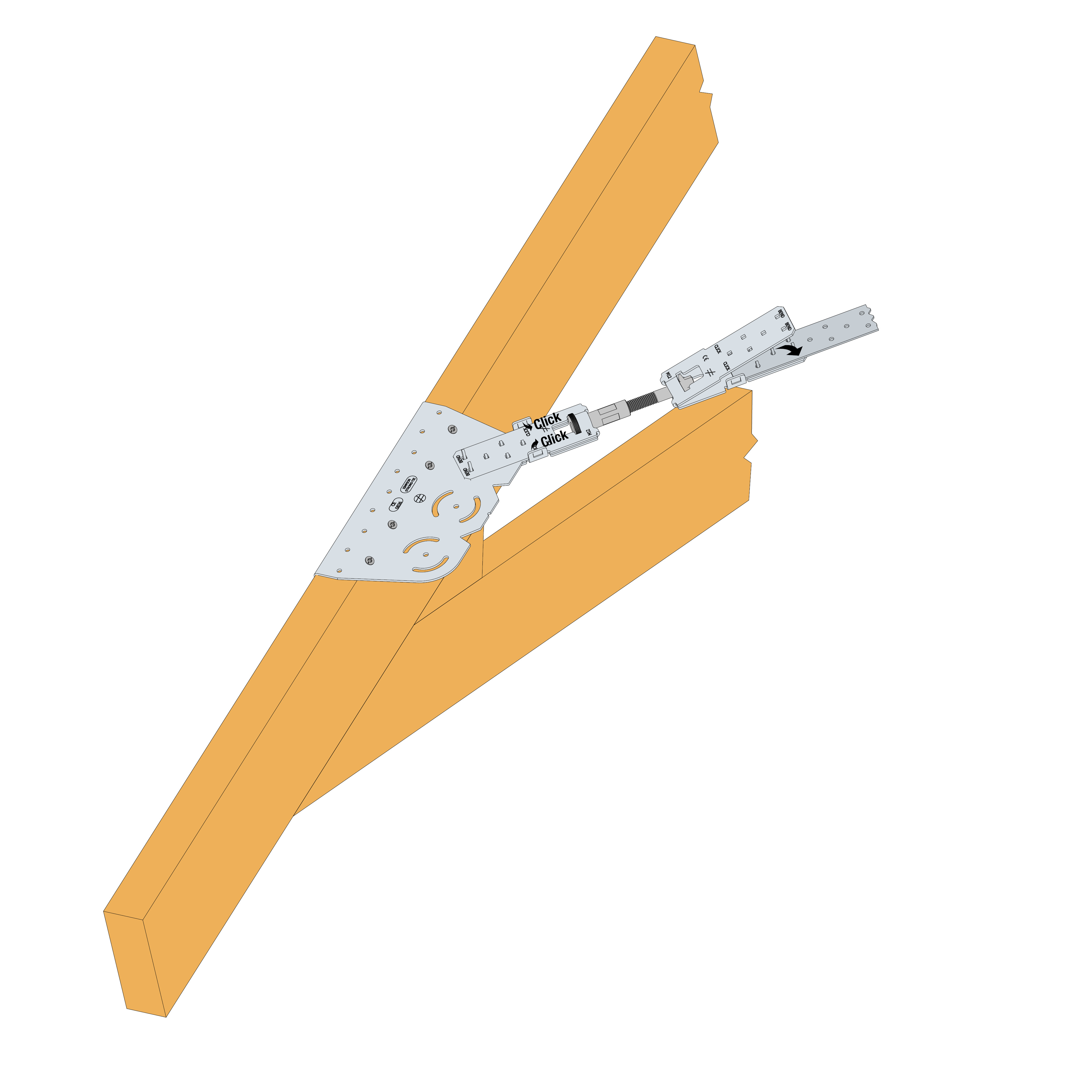

  • Connect the windbracing straps to the BPST and click the connector shut
  • Bend the 2 longest pins on each part

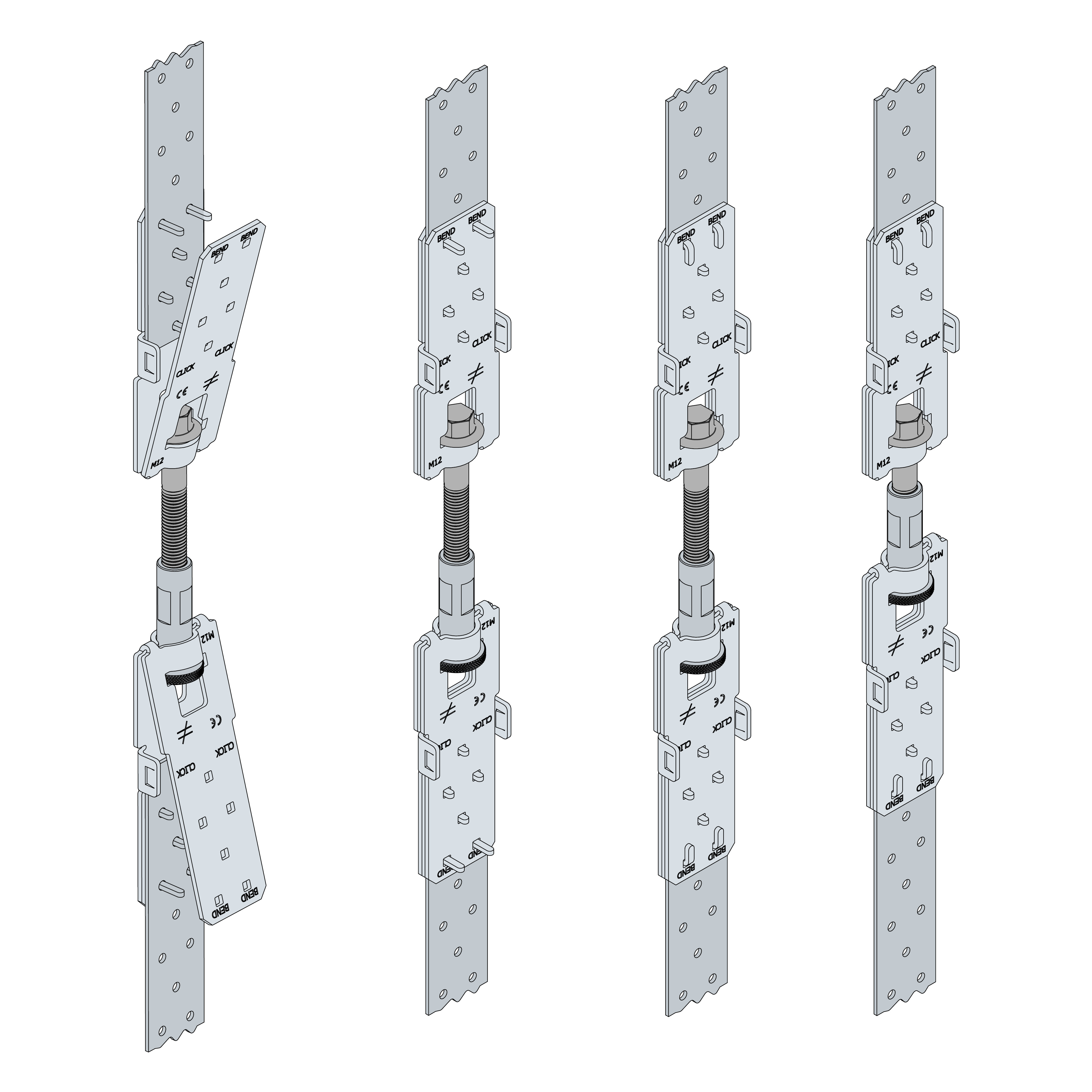

  • Screw the BPST further together on the threaded rod to tighten the windbracing strap

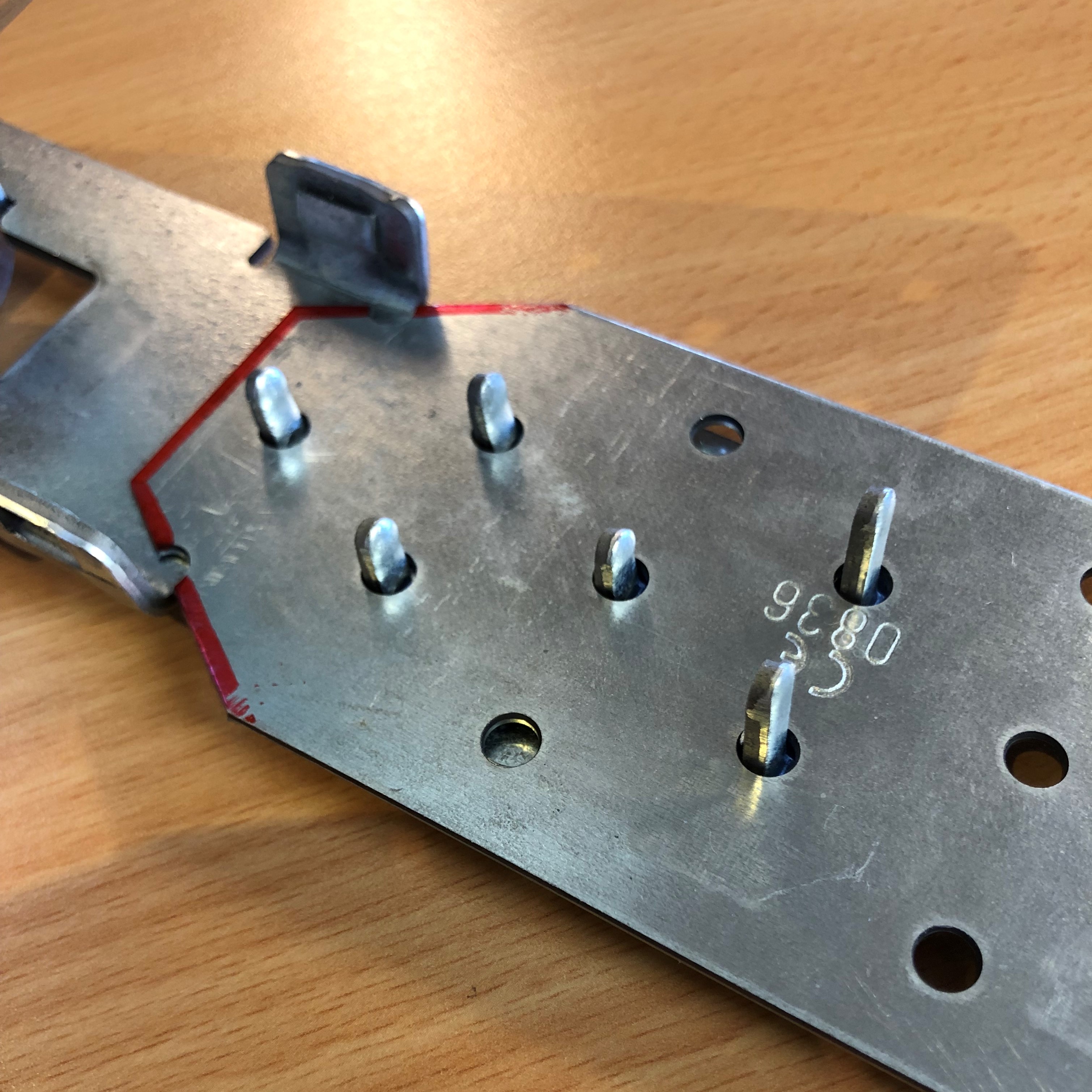

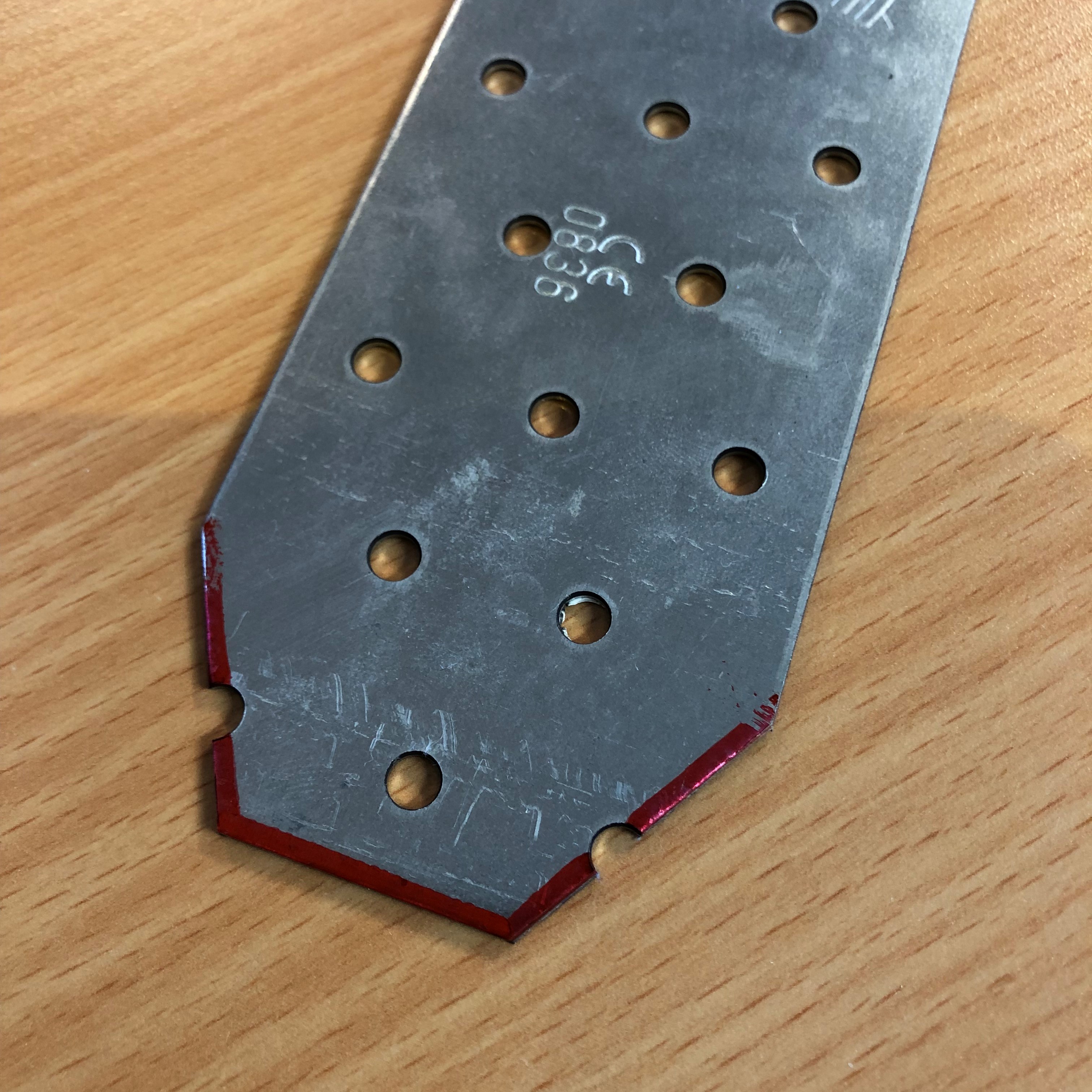

  • IMPORTANT - by installation of 60 mm straps, the corners of the strap has to be trimmed so that all 6 pins in the tightener can be used, see installation pics below.
BPST Installation 1.jpg
BPST Installation 2.jpg
BPST Installation 3.jpg
BPST Strap to Strap.jpg
BPST installation Zoom.jpg
