FSM
Steel to Steel Screw

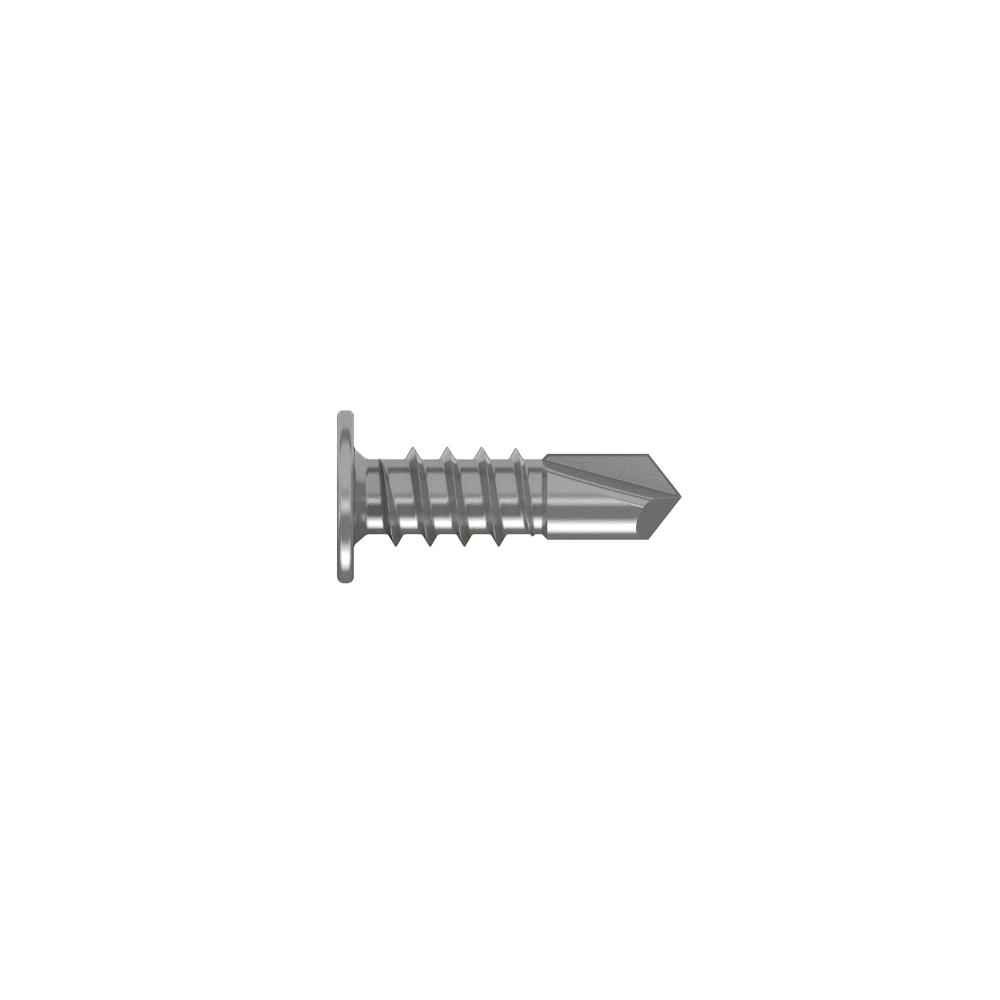

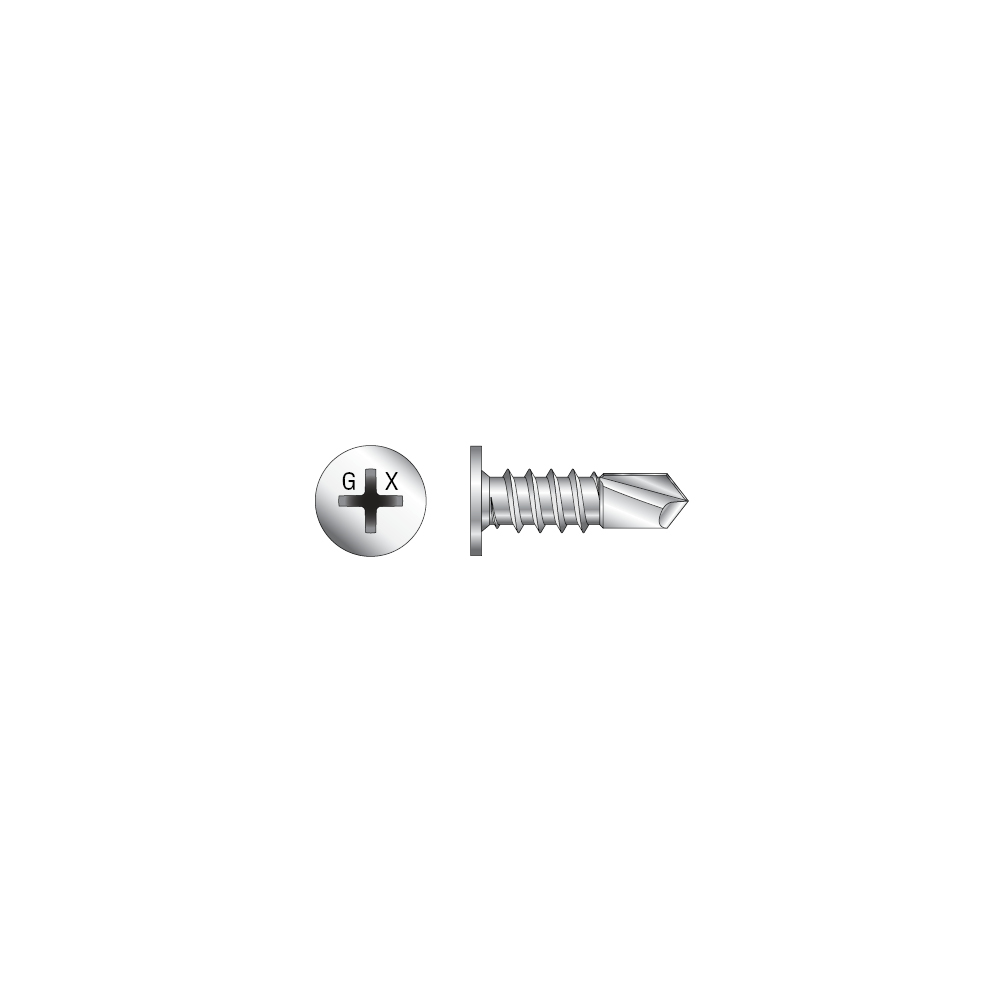

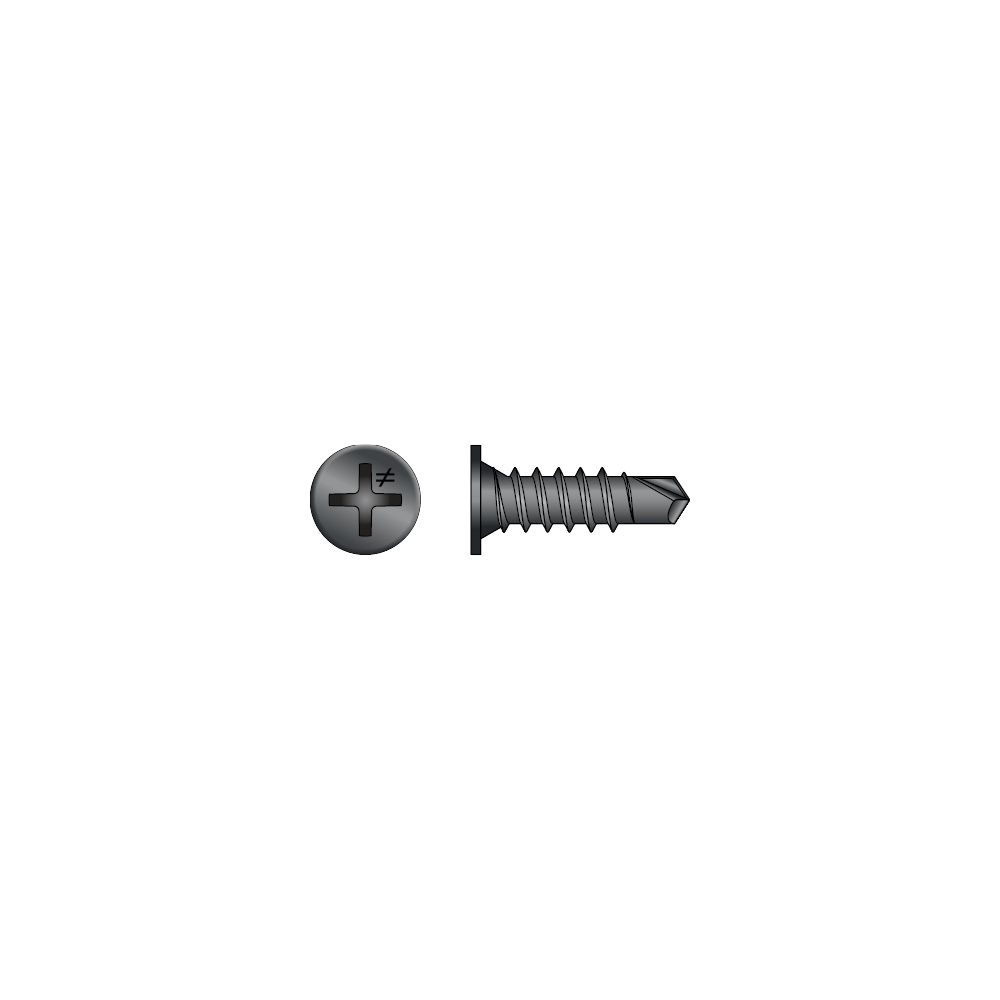

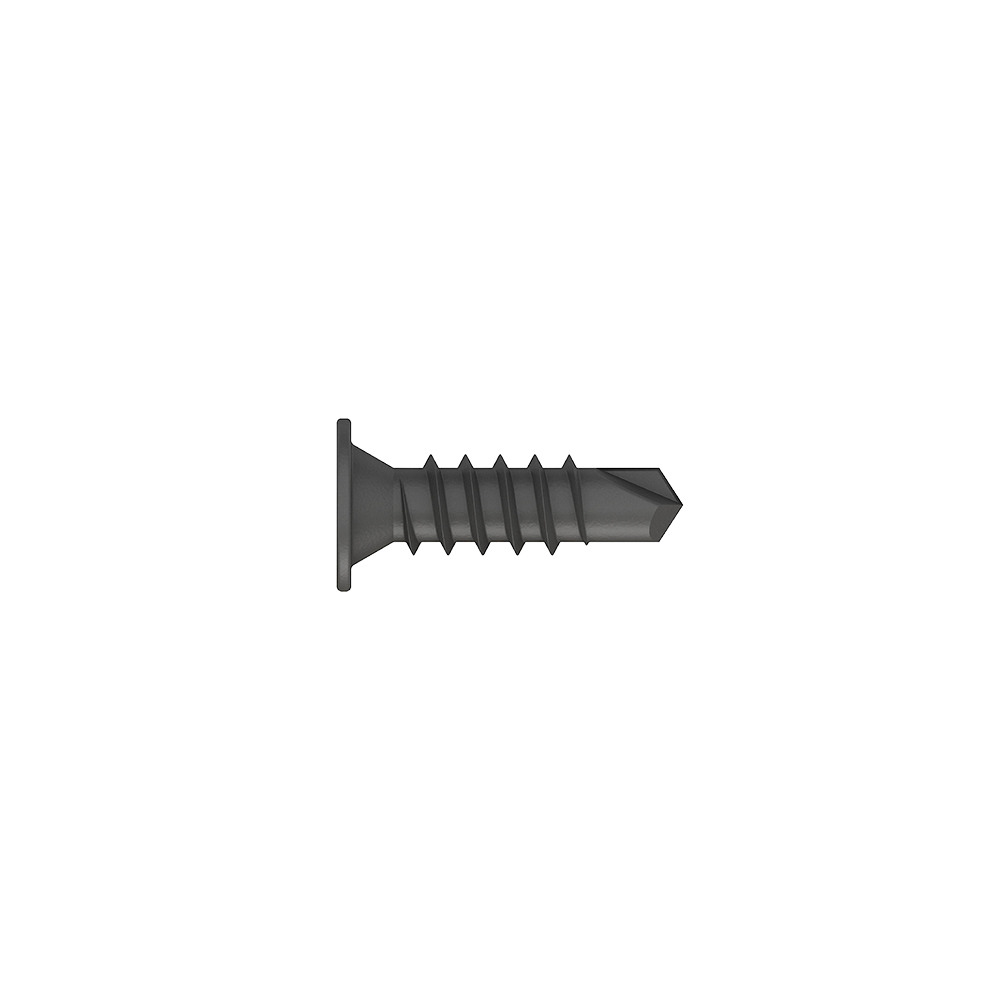

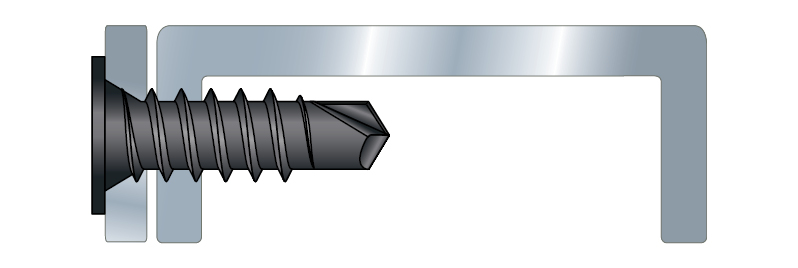

Steel profile screws which is designed for joining reinforcement beams. The phosphated FSM is suited for fixing material up to 2x1.0 mm. The electrogalvanised FSM screw is suited for fixing material up to 2x2.0 mm.
CE Marking
Service class 1
Indoor
EPD
Phosphated
Product Details
Images
Features
Application
Technical Data
Product Dimensions
Dimensions
| Reference | Fasteners Dimensions | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Item Code | Other | Dimensions and drill holes[mm] | |||||||
| Tun / DB nr. | NOB nr. | Weight[kg] | d[mm] | l[mm] | dₕ[mm] | d1[mm] | bit[mm] | ||
| FSM4.2X14 | 74398 | 1949893 | 53293452 | 0.001 | 4.2 | 14 | 7 | 2.9 | PH2 |
| FSM4.8X16 | 74397 | 1949892 | 53293433 | 0.002 | 4.8 | 16 | 8 | 4 | PH2 |
