HSB

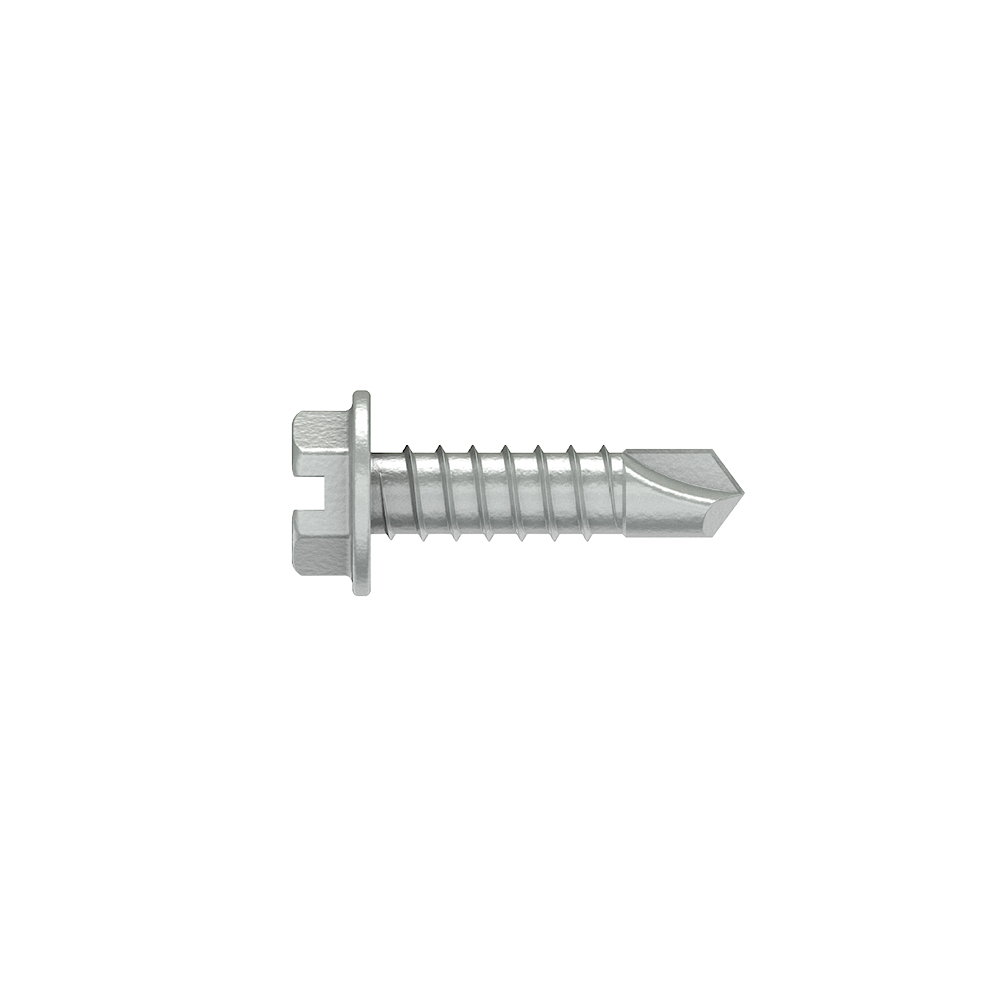

Steel to Steel Screw - Drill Point

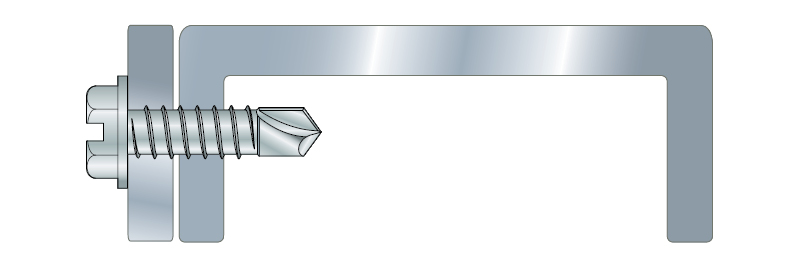

Self-drilling screw used to fix sheet metal to sheet metal, for example when joining ventilation to ductwork. Suitable for material up to 2x2.0 mm.
Service class 1
Electro-galvanized steel
EPD
Indoor
Product Details
Images
Features
Application
Technical Data
Product Dimensions
Dimensions
| Reference | Fasteners Dimensions | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Item Code | Other | Dimensions and drill holes[mm] | |||||||
| Tun / DB nr. | NOB nr. | Weight[kg] | d[mm] | l[mm] | dₕ[mm] | d1[mm] | bit[mm] | ||
| HSB4.2X13 | 74392 | 1949887 | 53293312 | 0.001 | 4.2 | 13 | 8.5 | 3.6 | 1/4" + PH2 |
| HSB4.2X19 | 74393 | 1949888 | 53293323 | 0.002 | 4.2 | 19 | 8.5 | 3.6 | 1/4" + PH2 |
| HSB4.2X25 | 74394 | 1949889 | 53293338 | 0.003 | 4.2 | 25 | 8.5 | 3.6 | 1/4" + PH2 |
