GKS

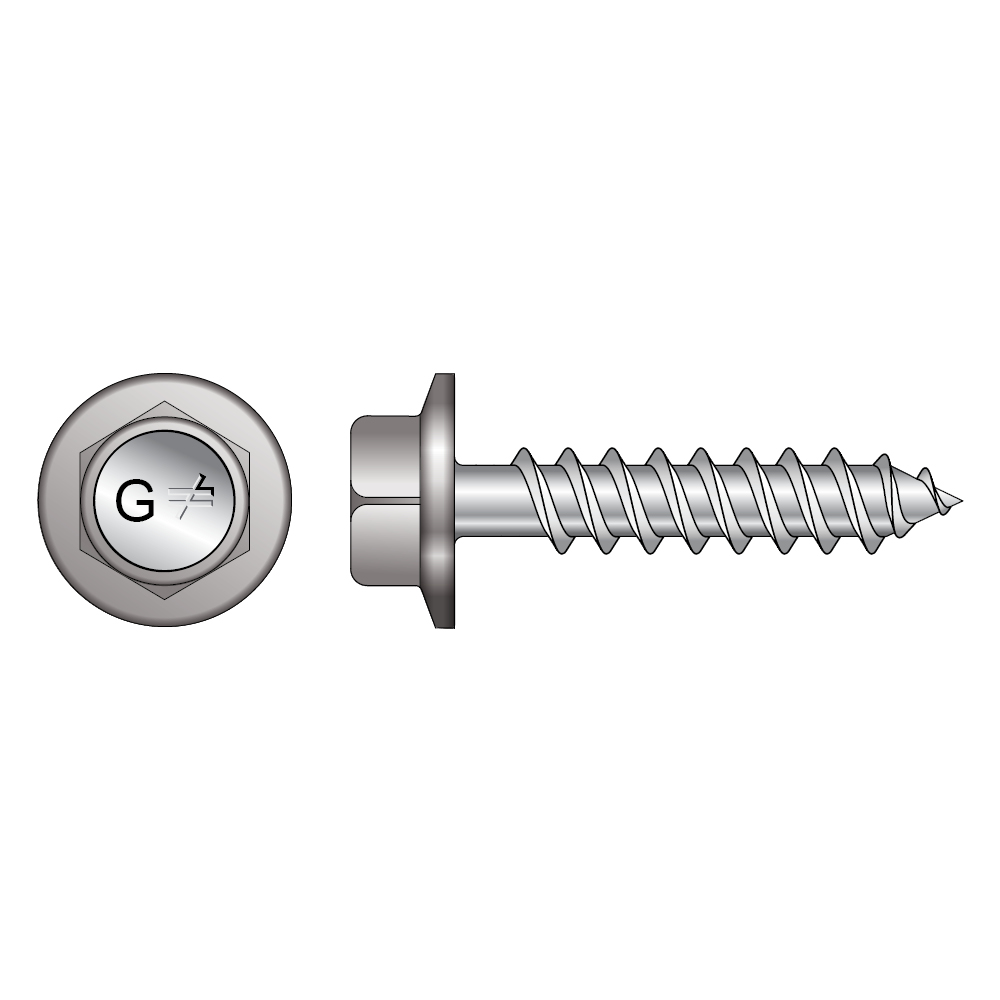

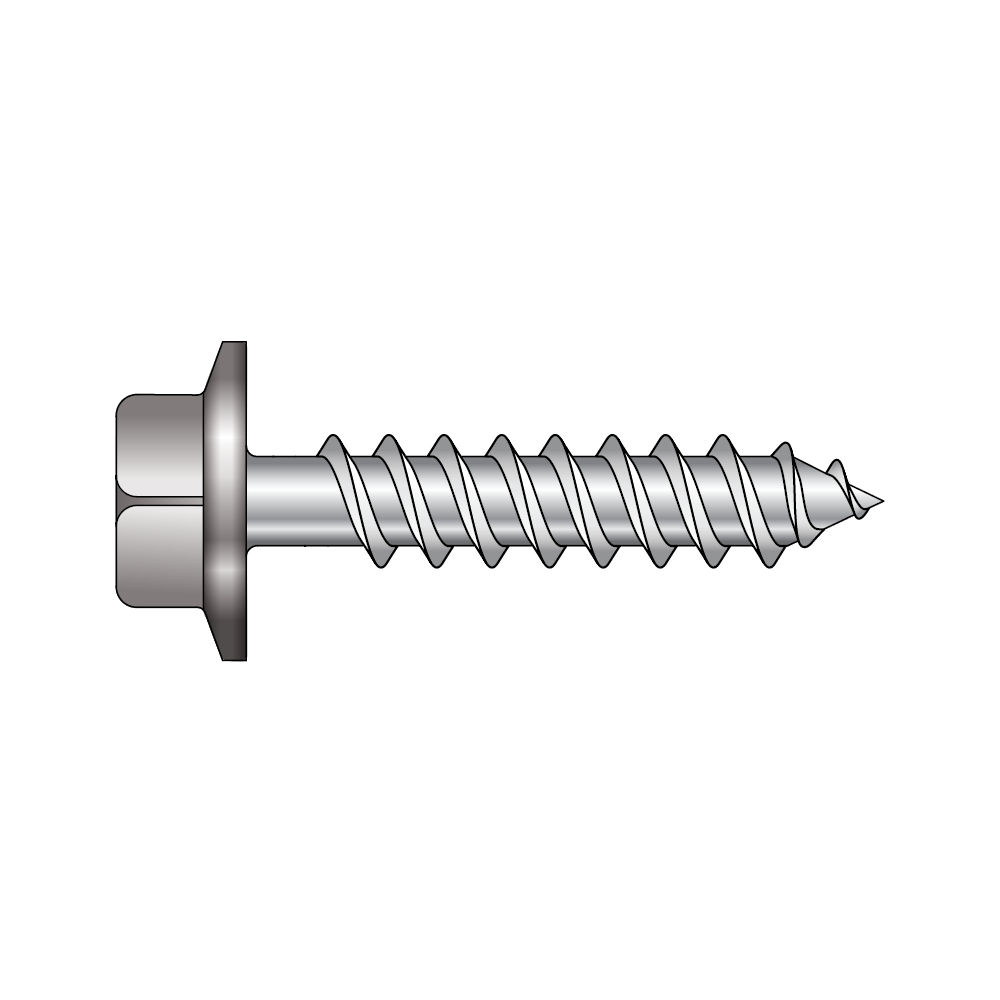

Steel Bracket to Concrete or Wood Screw

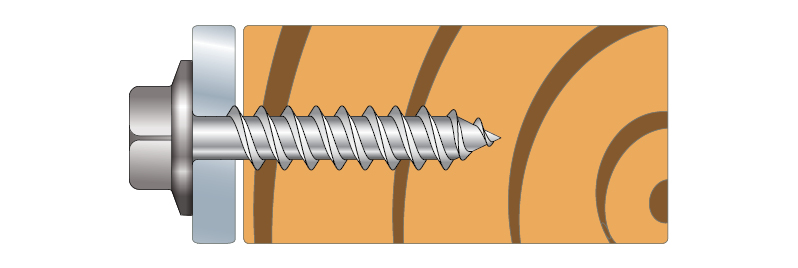

Construction and bracket screw for indoor use for fixing brackets, bracing straps, and plumbing items to timber battens or concrete, together with a Ø10 mm plug.
CE Marking
Service class 1
Electro-galvanized steel
EPD
Indoor
Product Details
Images
Technical Data
Dimensions
Dimensions
| Reference | Fasteners Dimensions | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Item Code | Other | Dimensions and drill holes[mm] | |||||||
| Tun / DB nr. | NOB nr. | Weight[kg] | d[mm] | l[mm] | dₕ[mm] | d1[mm] | lg[mm] | ||
| GKS6.5X50 | 74273 | 1949790 | 53291802 | 0.011 | 6.5 | 50 | 15 | 4.6 | 48 |
Product characteristic properties
Dimensions
| Reference | Screw Parameters | ||||
|---|---|---|---|---|---|
| Characteristic parameters | |||||
| Characteristic Yield Moment My,k[Nm] | Characteristic Withdrawal Parameter fax,k,90°[N/mm²] | Characteristic tensile capacity - fₜₑₙₛ,ₖ[kN] | Characteristic torsional strength - ftor,k[Nm] | Torsional ratio | |
| GKS6.5X50 | 19120 | 12.6 | 16.4 | 17.2 | 3.2 |
Refer to relevant ITTR for more details
