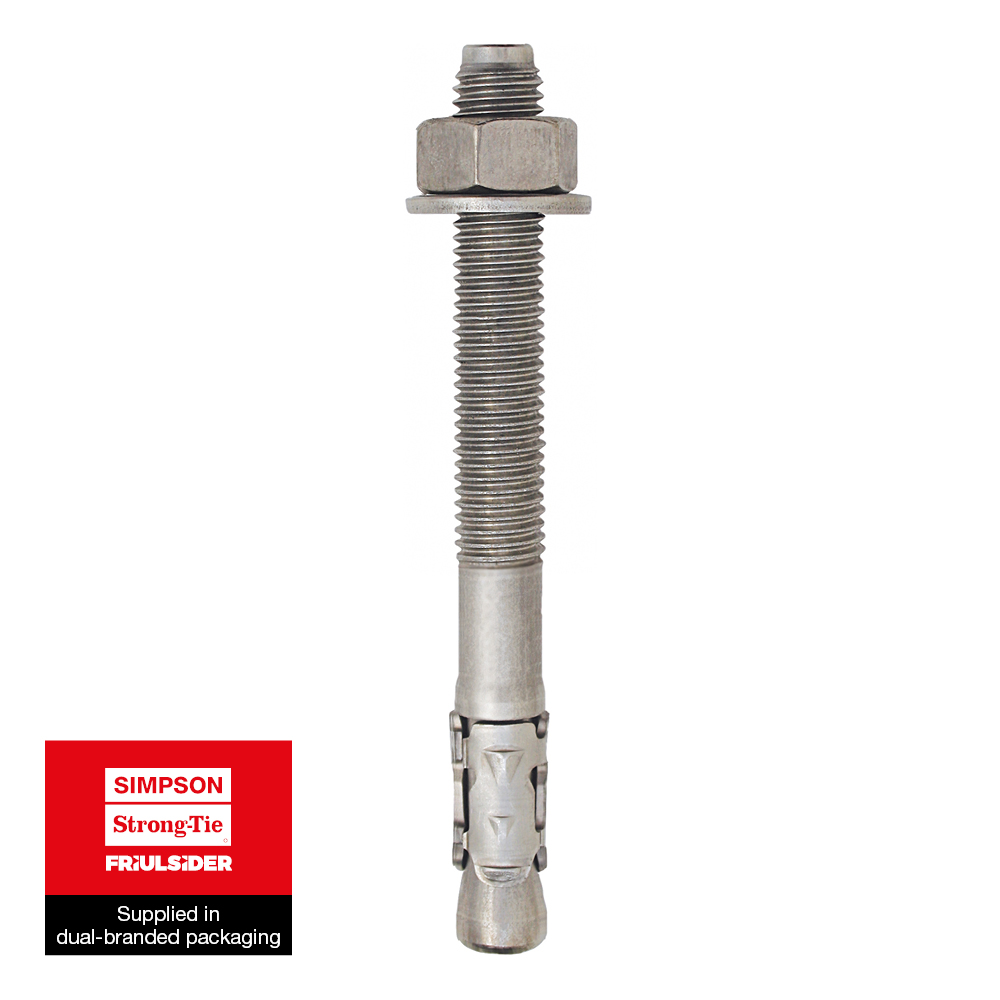

FM-753 CRACK A4

Stainless Steel Heavy Duty Wedge Anchor with Seismic Certification

Stainless steel wedge anchor for the medium load range in sizes M8 - M16 for anchoring in cracked and non-cracked concrete C20/25 - C50/60, as well as for seismic actions of the performance category C1/C2.

Technical Data Sheet

CE Marking

ETA

New

Sprinkler Systems

Fire resistance R 120

Seismic C1 C2

Stainless steel A4

Fix Calc

Product Details

Images

Features

Material

Stainless steel A4

Benefits

Dynamic and seismic loads
Seismic performance C1 and C2
Immediate expansion
Increased thickness of three expander segments
Nine gripping dents for greater adhesion to hole wall
Fire resistance R120

Application

Applications

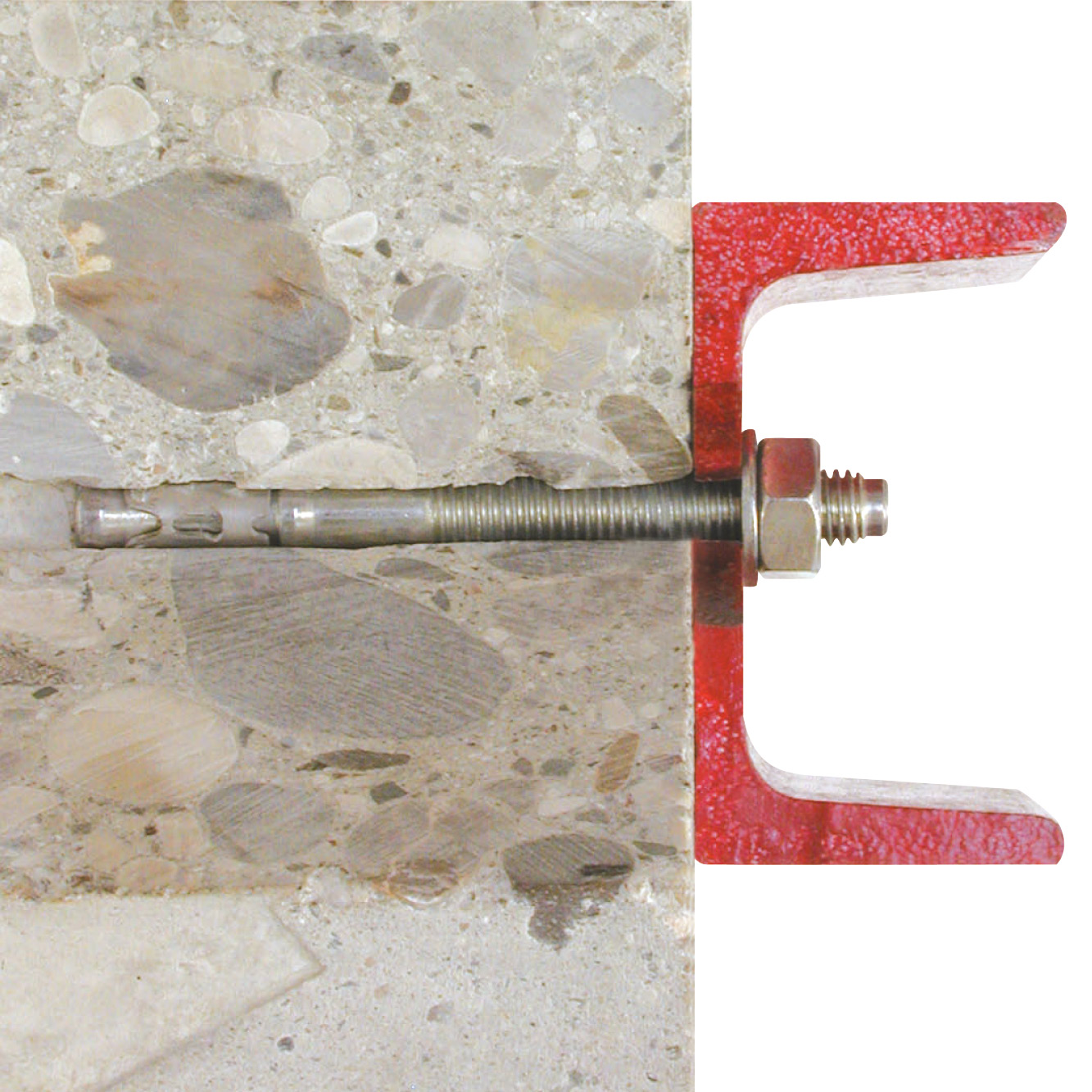

Structural fixings
Steel constructions
Seismic applications

Suitable for

Cracked concrete
Non-cracked concrete
Solid stone

Technical Data

Other

fm-753-crack-rev19.pdf

Product dimensions

Dimensions

Reference	Metallic fixings dimensions												Installation data
	Dimensions and drill holes[mm]		Product Reference	Other									Installation data
	Dimensions[mm]	Thread length [Lv][mm]	Product Reference	Fixture thickness [tfᵢₓ,ₘₐₓ] with standard setting depth [hₑf,ₛₜD][mm]	Fixture thickness [tfᵢₓ,ₘₐₓ] with reduced setting depth [hₑf,ᵣₑD][mm]	Hole diameter in fixture [df][mm]	Hole diameter [dₒ] x depth [h₁] in substrate[mm]	Hole diameter [dₒ] x depth [h₁] in substrate with reduced setting depth [hₑf,ᵣₑD][mm]	Min. setting depth [hₑf][mm]	Qty per box[stk]	Qty per outer box	Weight[kg]	Reduced setting depth [hₑf,ᵣₑD][mm]
7535000806800	M8x68	30	FM-753 CRACK A4	4	18	9	8x70	8x56	48	100.0	400	0.03	34
7535000807500	M8x75	30	FM-753 CRACK A4	10	24	9	8x70	8x56	48	100.0	400	0.032	34
7535000809000	M8x90	40	FM-753 CRACK A4	25	39	9	8x70	8x56	48	100.0	400	0.036	34
7535000811500	M8x115	60	FM-753 CRACK A4	50	64	9	8x70	8x56	48	100.0	400	0.044	34
7535000813500	M8x135	80	FM-753 CRACK A4	70	84	9	8x70	8x56	48	100.0	400	0.05	34
7535000816500	M8x165	80	FM-753 CRACK A4	100	114	9	8x70	8x56	48	50.0	200	0.061	34
7535001009000	M10x90	40	FM-753 CRACK A4	10	30	12	10x80	10x60	60	50.0	200	0.058	40
7535001010500	M10x105	55	FM-753 CRACK A4	25	45	12	10x80	10x60	60	50.0	200	0.069	40
7535001011500	M10x115	55	FM-753 CRACK A4	35	55	12	10x80	10x60	60	50.0	200	0.074	40
7535001013500	M10x135	85	FM-753 CRACK A4	55	75	12	10x80	10x60	60	50.0	200	0.084	40
7535001015500	M10x155	85	FM-753 CRACK A4	75	95	12	10x80	10x60	60	50.0	200	0.094	40
7535001018500	M10x185	85	FM-753 CRACK A4	105	125	12	10x80	10x60	60	25.0	100	0.11	40
7535001211000	M12x110	65	FM-753 CRACK A4	10	30	14	12x100	12x80	72	50.0	200	0.1	52
7535001212000	M12x120	65	FM-753 CRACK A4	20	40	14	12x100	12x80	72	50.0	200	0.11	52
7535001214500	M12x145	85	FM-753 CRACK A4	45	65	14	12x100	12x80	72	25.0	100	0.13	52
7535001217000	M12x170	85	FM-753 CRACK A4	70	90	14	12x100	12x80	72	25.0	100	0.15	52
7535001220000	M12x200	85	FM-753 CRACK A4	100	120	14	12x100	12x80	72	25.0	100	0.17	52
7535001613000	M16x130	65	FM-753 CRACK A4	10	30	18	16x115	16x95	86	20.0	80	0.22	66
7535001615000	M16x150	85	FM-753 CRACK A4	30	50	18	16x115	16x95	86	20.0	80	0.25	66
7535001618500	M16x185	85	FM-753 CRACK A4	60	80	18	16x115	16x95	86	20.0	80	0.29	66
7535001622000	M16x220	85	FM-753 CRACK A4	100	120	18	16x115	16x95	86	15.0	60	0.34	66

Recommended loads / Non-cracked concrete / for single anchors / with no edge distances or spacings

Reference	Metallic fixings dimensions		Metallic fixings loads
	Dimensions and drill holes[mm]	Product Reference	Recommended loads - Non-cracked concrete
	Dimensions[mm]		Bending moment Mᵣₑc[Nm]	Tension - Nᵣₑc[kN]				Shear - Vᵣₑc[kN]
	Dimensions[mm]		Bending moment Mᵣₑc[Nm]	C20/25[kN]	C30/37[kN]	C40/50[kN]	C50/60[kN]	C20/25[kN]	C30/37[kN]	C40/50[kN]	C50/60[kN]
7535000806800	M8x68	FM-753 CRACK A4	10.5	4.8	5.9	6.8	7.4	7.8	7.8	7.8	7.8
7535000807500	M8x75	FM-753 CRACK A4	10.5	4.8	5.9	6.8	7.4	7.8	7.8	7.8	7.8
7535000809000	M8x90	FM-753 CRACK A4	10.5	4.8	5.9	6.8	7.4	7.8	7.8	7.8	7.8
7535000811500	M8x115	FM-753 CRACK A4	10.5	4.8	5.9	6.8	7.4	7.8	7.8	7.8	7.8
7535000813500	M8x135	FM-753 CRACK A4	10.5	4.8	5.9	6.8	7.4	7.8	7.8	7.8	7.8
7535000816500	M8x165	FM-753 CRACK A4	10.5	4.8	5.9	6.8	7.4	7.8	7.8	7.8	7.8
7535001009000	M10x90	FM-753 CRACK A4	21.5	7.6	9.3	10.7	11.8	13.4	13.4	13.4	13.4
7535001010500	M10x105	FM-753 CRACK A4	21.5	7.6	9.3	10.7	11.8	13.4	13.4	13.4	13.4
7535001011500	M10x115	FM-753 CRACK A4	21.5	7.6	9.3	10.7	11.8	13.4	13.4	13.4	13.4
7535001013500	M10x135	FM-753 CRACK A4	21.5	7.6	9.3	10.7	11.8	13.4	13.4	13.4	13.4
7535001015500	M10x155	FM-753 CRACK A4	21.5	7.6	9.3	10.7	11.8	13.4	13.4	13.4	13.4
7535001018500	M10x185	FM-753 CRACK A4	21.5	7.6	9.3	10.7	11.8	13.4	13.4	13.4	13.4
7535001211000	M12x110	FM-753 CRACK A4	37.4	10.5	12.8	14.8	16.3	17.3	17.3	17.3	17.3
7535001212000	M12x120	FM-753 CRACK A4	37.4	10.5	12.8	14.8	16.3	17.3	17.3	17.3	17.3
7535001214500	M12x145	FM-753 CRACK A4	37.4	10.5	12.8	14.8	16.3	17.3	17.3	17.3	17.3
7535001217000	M12x170	FM-753 CRACK A4	37.4	10.5	12.8	14.8	16.3	17.3	17.3	17.3	17.3
7535001220000	M12x200	FM-753 CRACK A4	37.4	10.5	12.8	14.8	16.3	17.3	17.3	17.3	17.3
7535001613000	M16x130	FM-753 CRACK A4	94.9	18.7	22.8	26.4	29	34.9	34.9	34.9	34.9
7535001615000	M16x150	FM-753 CRACK A4	94.9	18.7	22.8	26.4	29	34.9	34.9	34.9	34.9
7535001618500	M16x185	FM-753 CRACK A4	94.9	18.7	22.8	26.4	29	34.9	34.9	34.9	34.9
7535001622000	M16x220	FM-753 CRACK A4	94.9	18.7	22.8	26.4	29	34.9	34.9	34.9	34.9

1) In case of interaction of tension and shear loads (lever arm) as well as in case of anchor groups and/or edge influence, a design according to EN 1992-4 (seismic actions - Annex C / fire action
- Annex D) shall be carried out taking into account the entire European Technical Assessment ETA-10/0293.
2) The load data take into account the partial safety factors of the resistances given in the European Technical Assessment (ETA) and a partial safety factor of the actions
of γF = 1.4. The values given assume unreinforced or normally reinforced concrete with a spacing of the reinforcing bars s ≥ 15 cm or s ≥ 10 cm at a
rebar diameter ds ≤ 10 mm is assumed.

Design capacities - single anchor - no edge distances - Uncracked concrete

Reference	Metallic fixings dimensions		Metallic fixings loads
	Dimensions and drill holes[mm]	Product Reference	Design capacity - Non-cracked concrete (3)[kN]
	Dimensions[mm]		Bending moment MRd[Nm]	Tension - NRd (1)				Shear - VRd (1-2)[kN]
	Dimensions[mm]		Bending moment MRd[Nm]	C20/25[kN]	C30/37[kN]	C40/50[kN]	C50/60[kN]	C20/25[kN]	C30/37[kN]	C40/50[kN]	C50/60[kN]
7535000806800	M8x68	FM-753 CRACK A4	-	6.7	-	-	-	10.9	-	-	-
7535000807500	M8x75	FM-753 CRACK A4	-	6.7	-	-	-	10.9	-	-	-
7535000809000	M8x90	FM-753 CRACK A4	-	6.7	-	-	-	10.9	-	-	-
7535000811500	M8x115	FM-753 CRACK A4	-	6.7	-	-	-	10.9	-	-	-
7535000813500	M8x135	FM-753 CRACK A4	-	6.7	-	-	-	10.9	-	-	-
7535000816500	M8x165	FM-753 CRACK A4	-	6.7	-	-	-	10.9	-	-	-
7535001009000	M10x90	FM-753 CRACK A4	-	10.7	-	-	-	18.8	-	-	-
7535001010500	M10x105	FM-753 CRACK A4	-	10.7	-	-	-	18.8	-	-	-
7535001011500	M10x115	FM-753 CRACK A4	-	10.7	-	-	-	18.8	-	-	-
7535001013500	M10x135	FM-753 CRACK A4	-	10.7	-	-	-	18.8	-	-	-
7535001015500	M10x155	FM-753 CRACK A4	-	10.7	-	-	-	18.8	-	-	-
7535001018500	M10x185	FM-753 CRACK A4	-	10.7	-	-	-	18.8	-	-	-
7535001211000	M12x110	FM-753 CRACK A4	-	14.7	-	-	-	24.2	-	-	-
7535001212000	M12x120	FM-753 CRACK A4	-	14.7	-	-	-	24.2	-	-	-
7535001214500	M12x145	FM-753 CRACK A4	-	14.7	-	-	-	24.2	-	-	-
7535001217000	M12x170	FM-753 CRACK A4	-	14.7	-	-	-	24.2	-	-	-
7535001220000	M12x200	FM-753 CRACK A4	-	14.7	-	-	-	24.2	-	-	-
7535001613000	M16x130	FM-753 CRACK A4	-	26.1	-	-	-	48	-	-	-
7535001615000	M16x150	FM-753 CRACK A4	-	26.1	-	-	-	48	-	-	-
7535001618500	M16x185	FM-753 CRACK A4	-	26.1	-	-	-	48	-	-	-
7535001622000	M16x220	FM-753 CRACK A4	-	26.1	-	-	-	48	-	-	-

1. The design loads loads have been calculated using the partial safety factors for resistances stated in ETA-approval(s). The loading figures are valid for unreinforced concrete and reinforced concrete with a rebar spacing s ≥ 15 cm (any diameter) or with a rebar spacing s ≥ 10 cm, if the rebar diameter is 10mm or smaller.
2. The figures for shear are based on a single anchor without influence of concrete edges. For anchorages close to edges (c ≤ max [10 hef; 60d]) the concrete edge failure shall be checked per ETAG 001, Annex C, design method A.
3. Concrete is considered non-cracked when the tensile stress within the concrete is\sigmaL +\sigmaR ≤ 0. In the absence of detailed verification\sigmaR = 3 N/mm² can be assumed (\sigmaL equals the tensile stress within the concrete induced by external loads, anchors loads included).

Recommended loads - Cracked concrete - single anchor - no edge distances

Reference	Metallic fixings dimensions		Metallic fixings loads
	Dimensions and drill holes[mm]	Product Reference	Recommended loads - Cracked concrete
	Dimensions[mm]		Bending moment Mᵣₑc[Nm]	Tension - Nᵣₑc				Shear - Vᵣₑc
	Dimensions[mm]		Bending moment Mᵣₑc[Nm]	C20/25[kN]	C30/37[kN]	C40/50[kN]	C50/60[kN]	C20/25[kN]	C30/37[kN]	C40/50[kN]	C50/60[kN]
7535000806800	M8x68	FM-753 CRACK A4	10.5	3.1	3.8	4.4	4.8	5.4	5.4	5.4	5.4
7535000807500	M8x75	FM-753 CRACK A4	10.5	3.1	3.8	4.4	4.8	5.4	5.4	5.4	5.4
7535000809000	M8x90	FM-753 CRACK A4	10.5	3.1	3.8	4.4	4.8	5.4	5.4	5.4	5.4
7535000811500	M8x115	FM-753 CRACK A4	10.5	3.1	3.8	4.4	4.8	5.4	5.4	5.4	5.4
7535000813500	M8x135	FM-753 CRACK A4	10.5	3.1	3.8	4.4	4.8	5.4	5.4	5.4	5.4
7535000816500	M8x165	FM-753 CRACK A4	10.5	3.1	3.8	4.4	4.8	5.4	5.4	5.4	5.4
7535001009000	M10x90	FM-753 CRACK A4	21.5	4.8	5.9	6.8	7.4	13.4	13.4	13.4	13.4
7535001010500	M10x105	FM-753 CRACK A4	21.5	4.8	5.9	6.8	7.4	13.4	13.4	13.4	13.4
7535001011500	M10x115	FM-753 CRACK A4	21.5	4.8	5.9	6.8	7.4	13.4	13.4	13.4	13.4
7535001013500	M10x135	FM-753 CRACK A4	21.5	4.8	5.9	6.8	7.4	13.4	13.4	13.4	13.4
7535001015500	M10x155	FM-753 CRACK A4	21.5	4.8	5.9	6.8	7.4	13.4	13.4	13.4	13.4
7535001018500	M10x185	FM-753 CRACK A4	21.5	4.8	5.9	6.8	7.4	13.4	13.4	13.4	13.4
7535001211000	M12x110	FM-753 CRACK A4	37.4	6.2	7.6	8.7	9.6	17.3	17.3	17.3	17.3
7535001212000	M12x120	FM-753 CRACK A4	37.4	6.2	7.6	8.7	9.6	17.3	17.3	17.3	17.3
7535001214500	M12x145	FM-753 CRACK A4	37.4	6.2	7.6	8.7	9.6	17.3	17.3	17.3	17.3
7535001217000	M12x170	FM-753 CRACK A4	37.4	6.2	7.6	8.7	9.6	17.3	17.3	17.3	17.3
7535001220000	M12x200	FM-753 CRACK A4	37.4	6.2	7.6	8.7	9.6	17.3	17.3	17.3	17.3
7535001613000	M16x130	FM-753 CRACK A4	94.9	12.4	15.1	17.5	19.2	26.2	26.2	26.2	26.2
7535001615000	M16x150	FM-753 CRACK A4	94.9	12.4	15.1	17.5	19.2	26.2	26.2	26.2	26.2
7535001618500	M16x185	FM-753 CRACK A4	94.9	12.4	15.1	17.5	19.2	26.2	26.2	26.2	26.2
7535001622000	M16x220	FM-753 CRACK A4	94.9	12.4	15.1	17.5	19.2	26.2	26.2	26.2	26.2

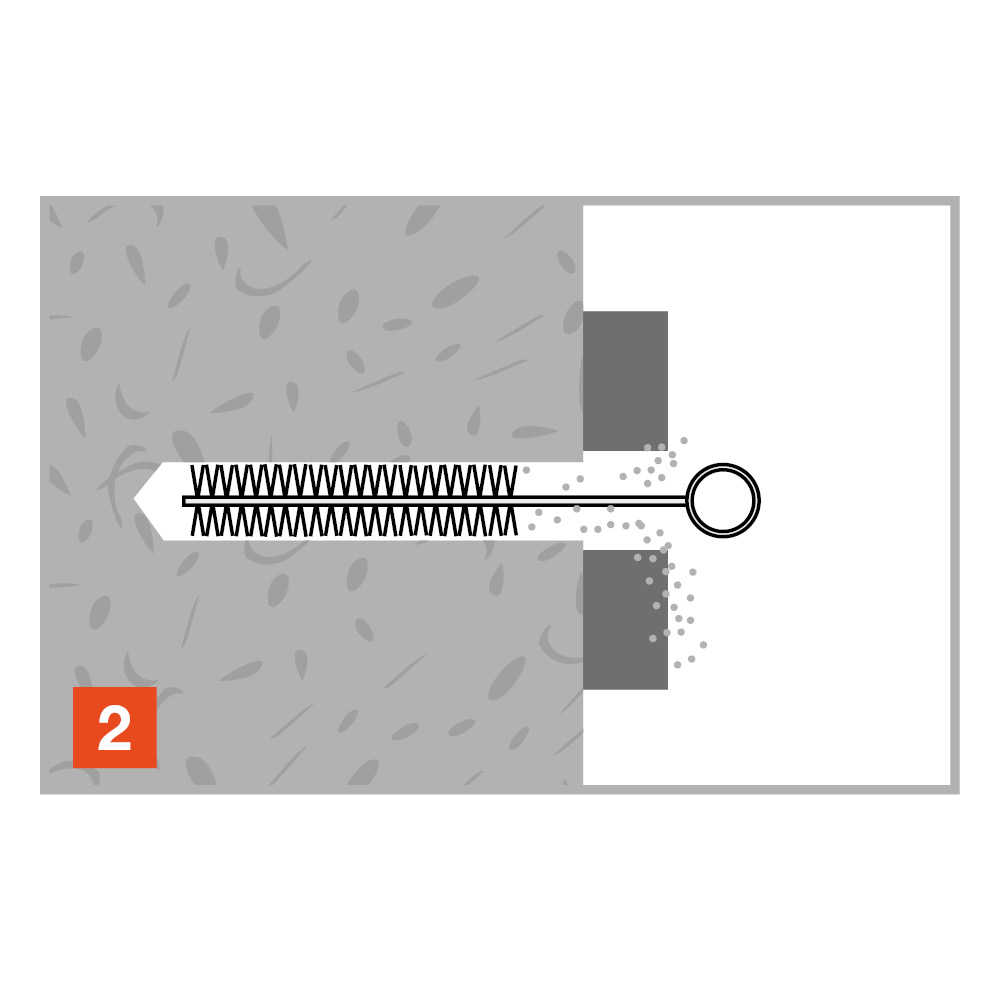

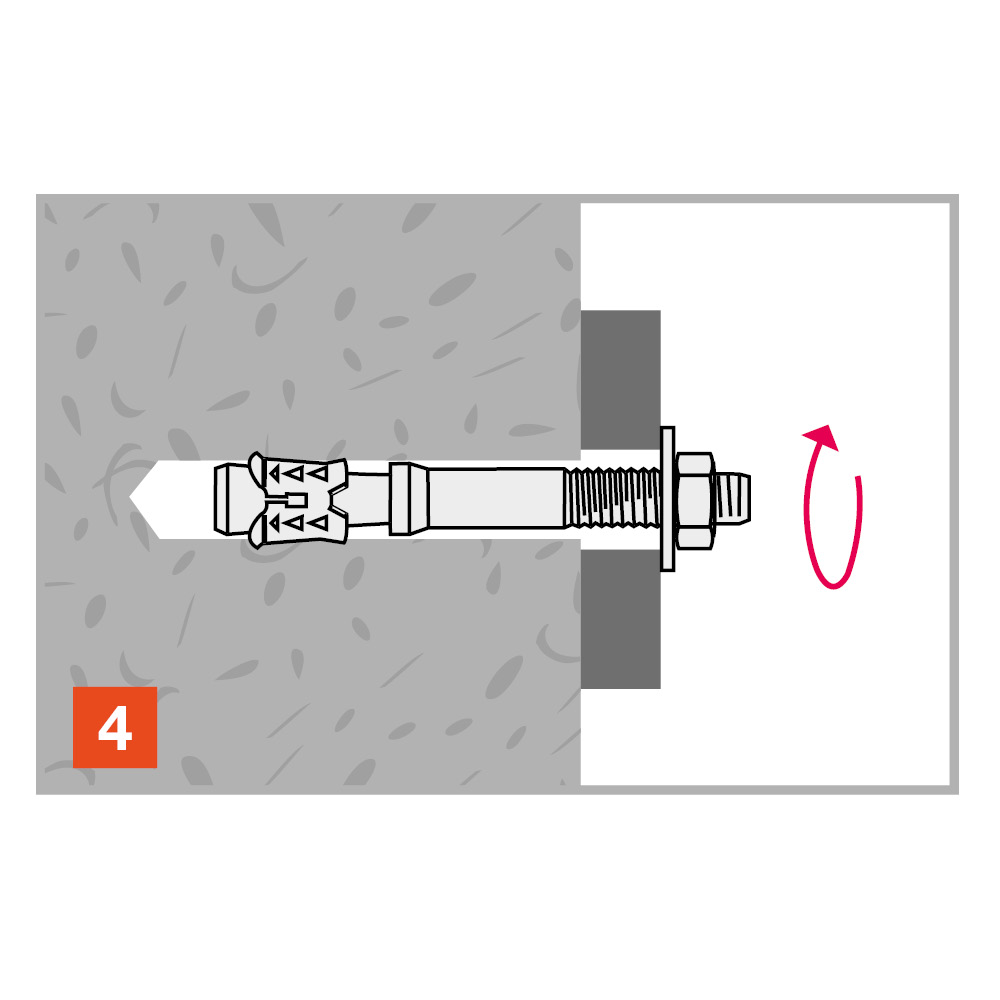

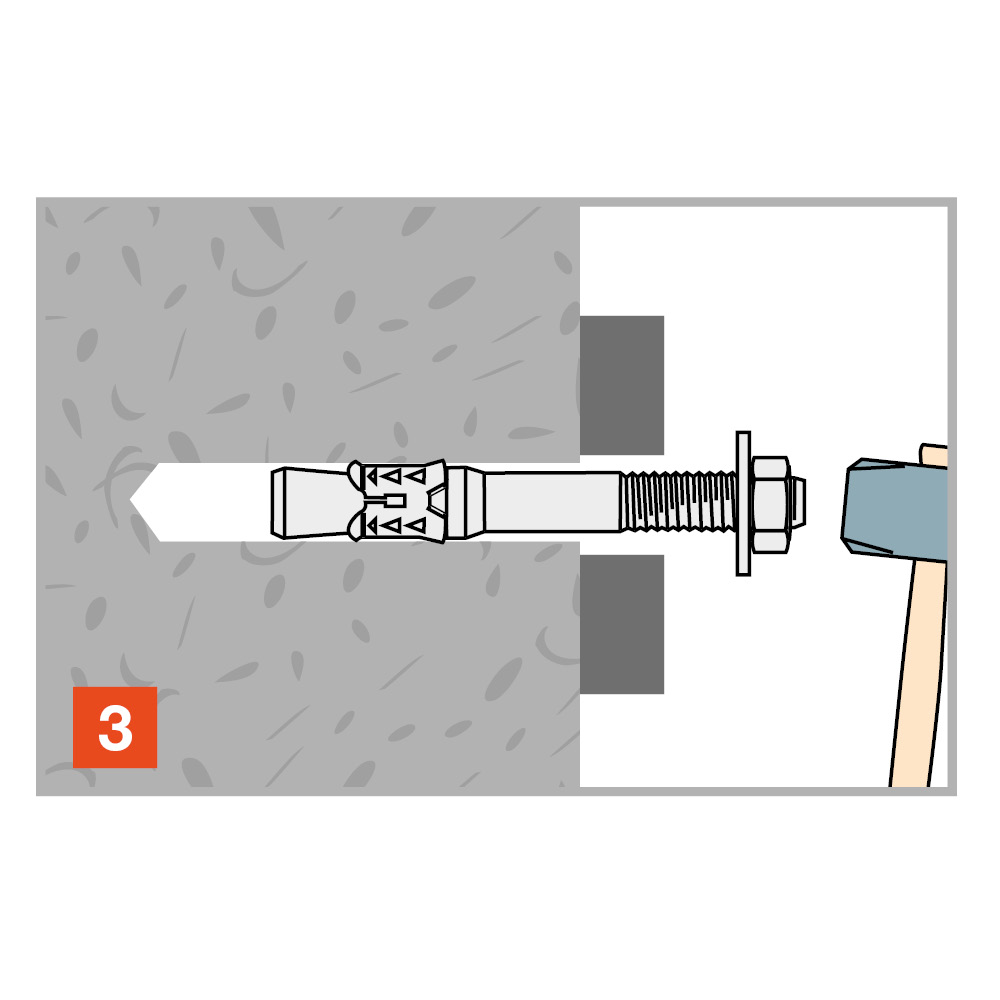

Installation

Installation data

Reference	Metallic fixings dimensions			Installation data
	Dimensions and drill holes[mm]		Product Reference	Installation data					Spacing and edge distances
	Dimensions[mm]	Wrench size[mm]	Product Reference	Ø drilling hole[mm]	Min. drill depth[mm]	Ø drilling fixture[mm]	Installation torque[Nm]	Embedment depth[mm]	Min. support thickness[mm]
7535000806800	M8x68	13	FM-753 CRACK A4	8	70	9	20	48	100
7535000807500	M8x75	13	FM-753 CRACK A4	8	70	9	20	48	100
7535000809000	M8x90	13	FM-753 CRACK A4	8	70	9	20	48	100
7535000811500	M8x115	13	FM-753 CRACK A4	8	70	9	20	48	100
7535000813500	M8x135	13	FM-753 CRACK A4	8	70	9	20	48	100
7535000816500	M8x165	13	FM-753 CRACK A4	8	70	9	20	48	100
7535001009000	M10x90	17	FM-753 CRACK A4	10	80	12	40	60	120
7535001010500	M10x105	17	FM-753 CRACK A4	10	80	12	40	60	120
7535001011500	M10x115	17	FM-753 CRACK A4	10	80	12	40	60	120
7535001013500	M10x135	17	FM-753 CRACK A4	10	80	12	40	60	120
7535001015500	M10x155	17	FM-753 CRACK A4	10	80	12	40	60	120
7535001018500	M10x185	17	FM-753 CRACK A4	10	80	12	40	60	120
7535001211000	M12x110	19	FM-753 CRACK A4	12	100	14	60	72	150
7535001212000	M12x120	19	FM-753 CRACK A4	12	100	14	60	72	150
7535001214500	M12x145	19	FM-753 CRACK A4	12	100	14	60	72	150
7535001217000	M12x170	19	FM-753 CRACK A4	12	100	14	60	72	150
7535001220000	M12x200	19	FM-753 CRACK A4	12	100	14	60	72	150
7535001613000	M16x130	24	FM-753 CRACK A4	16	115	18	120	86	170
7535001615000	M16x150	24	FM-753 CRACK A4	16	115	18	120	86	170
7535001618500	M16x185	24	FM-753 CRACK A4	16	115	18	120	86	170
7535001622000	M16x220	24	FM-753 CRACK A4	16	115	18	120	86	170

Spacings and edge distances

Reference	Metallic fixings dimensions		Installation data
	Dimensions and drill holes[mm]	Product Reference	Spacing and edge distances
	Dimensions[mm]	Product Reference	Min. edge distance[mm]	Min. spacing[mm]	Characteristic edge distance[mm]	Characteristic spacing(5) - Scr,N[mm]
7535000806800	M8x68	FM-753 CRACK A4	50	50	72	144
7535000807500	M8x75	FM-753 CRACK A4	50	50	72	144
7535000809000	M8x90	FM-753 CRACK A4	50	50	72	144
7535000811500	M8x115	FM-753 CRACK A4	50	50	72	144
7535000813500	M8x135	FM-753 CRACK A4	50	50	72	144
7535000816500	M8x165	FM-753 CRACK A4	50	50	72	144
7535001009000	M10x90	FM-753 CRACK A4	50	55	90	180
7535001010500	M10x105	FM-753 CRACK A4	50	55	90	180
7535001011500	M10x115	FM-753 CRACK A4	50	55	90	180
7535001013500	M10x135	FM-753 CRACK A4	50	55	90	180
7535001015500	M10x155	FM-753 CRACK A4	50	55	90	180
7535001018500	M10x185	FM-753 CRACK A4	50	55	90	180
7535001211000	M12x110	FM-753 CRACK A4	60	60	108	216
7535001212000	M12x120	FM-753 CRACK A4	60	60	108	216
7535001214500	M12x145	FM-753 CRACK A4	60	60	108	216
7535001217000	M12x170	FM-753 CRACK A4	60	60	108	216
7535001220000	M12x200	FM-753 CRACK A4	60	60	108	216
7535001613000	M16x130	FM-753 CRACK A4	70	70	129	258
7535001615000	M16x150	FM-753 CRACK A4	70	70	129	258
7535001618500	M16x185	FM-753 CRACK A4	70	70	129	258
7535001622000	M16x220	FM-753 CRACK A4	70	70	129	258

Certification

Declaration of Performance (DoP)

uk-fm753cracka4-09-f.pdf

No history available

European Technical Assessment (ETA)

fm-753-crack-a4-eta-10-0293-en-op1-seismic-2023-02-02.pdf

No history available

Select one of our Websites

Connectors

Fasteners

Anchors & fixings

Others

Product Details

Images

Features

Material

Benefits

Application

Applications

Suitable for

Technical Data

Other

Product dimensions

Dimensions

Recommended loads / Non-cracked concrete / for single anchors / with no edge distances or spacings

Design capacities - single anchor - no edge distances - Uncracked concrete

Recommended loads - Cracked concrete - single anchor - no edge distances

Installation

Installation

Installation data

Spacings and edge distances

Certification

Declaration of Performance (DoP)

European Technical Assessment (ETA)

About Simpson Strong-Tie®

Simpson Strong-Tie Poland

Phone

Email

Website

Copyright (en-LV)
